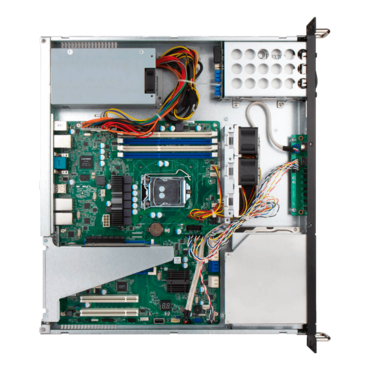

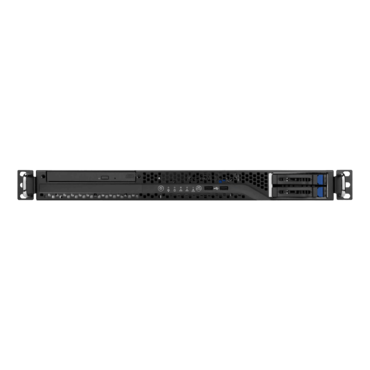

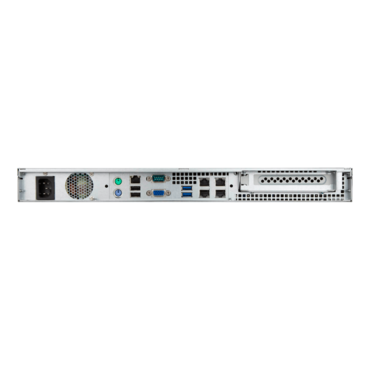

RA102-S315.B3, 2x 2.5" External Bays, No PSU, ATX, Black/Grey, 1U Chassis - TAA Compliant
Quantity:
- SKU: 18507447
- Manufacturer: InWin
- MPN: RA102-S315.B3
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$266.25
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets | |
| M/B Form Factor | ATX (12" x 9.6") | |
| Drive Bay |
• External: slim ODD x 1, hot-swap 2.5" x 2 • Internal: 3.5" HDD x 1 |
|
| Power Supply |
Supports: • Form factor: Flex • Watt: up to 315W |
|
| Indicators | Power status, HDD, LAN activity LEDs | |
| Front Control Panel | Power switch, system reset, USB 2.0 x 2 | |
| Cooling Fans | Supports 40 x 28mm PWM fan x 3 (pre-installed x 2) | |
| Expansion Slot | Full height PCIe slot x 1 (via riser card and bracket) | |
| Material |
• Material: SGCC • Thickness: 1.0mm |
|
| Rail Kit | Supports 20" friction slide rail | |
| Product Dimensions (DxWxH; Chassis Only) |
393.2 x 430 x 43.5mm (15.48" x 16.93" x 1.71") |
|
| Package Dimensions (DxWxH) | 592 x 518 x 155mm | |
| Weight (Chassis Only) |
• Net weight: 3.79kg • Gross weight: 5.04kg |
|
| Cubic Feet | 1.68 | |
| Container Information |
Single packing with pallets: • 20': 440pcs • 40': 968pcs • 40'HQ: 1056pcs |
|
|
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications. * The above image is for reference only. All hardware components and optional parts are not included. |
||
