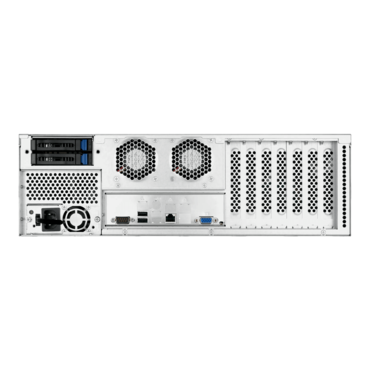

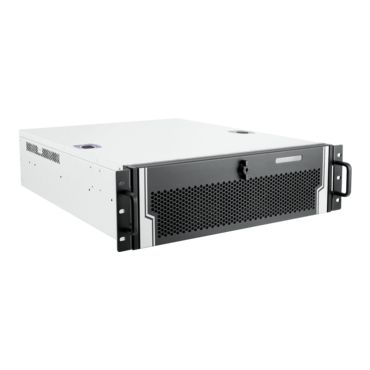

R300-01N-CR550, 4x 5.25" External Bays, 550W PSU, CEB, Black/Grey, 3U Chassis - TAA Compliant
Quantity:
- SKU: 18622351
- Manufacturer: InWin
- MPN: R300-01N-CR550
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$819.36
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5") |
| Drive Bay |
• External: 5.25" x 4 • 2.5" hot-swap x 2 (optional) |
| Power Supply |
Supports: • Form factor: 2U single or 2U 1+1 redundant • Watt: single 500W , redundant 550W |
| Indicators | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, system reset, USB 2.0 x 2 |
| Chassis Security | Intrusion switch (optional) |
| Cooling Fans |
Supports: • 80 x 25 mm PWM front fan x 1 • 60 x 25 mm PWM rear fan x 2 (optional) |
| Expansion Slot | Full height PCI slot x 7 |
| Material |
• Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" ball-bearing rail |
| Product Dimensions (DxWxH; Chassis Only) |
550 x 482.6 x 133.4mm (21.7" x 19" x 5.25") |
| Package Dimensions (DxWxH) | 710 x 595 x 258mm |
| Weight (Chassis Only) |
• Net weight: 12.3kg • Gross weight: 17.8kg |
| Cubic Feet | 3.91 |
| Container Information |
Single packing with pallets: • 20': 168pcs • 40': 350pcs • 40' HQ: 400pcs |
|
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications. * The above image is for reference only. All hardware components and optional parts are not included. |
|
