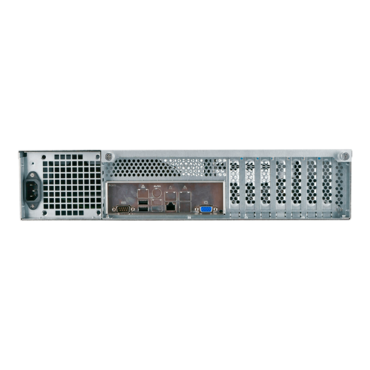

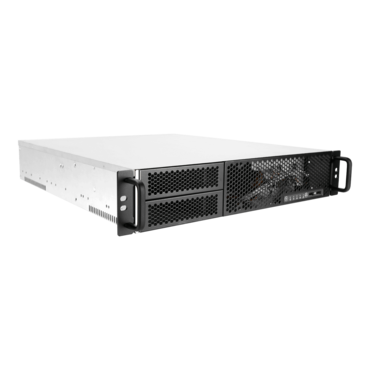

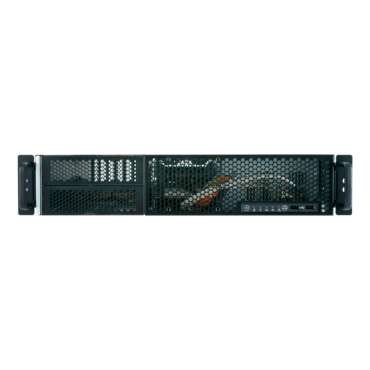

R200-02N.U3, 2x 5.25" External Bays, 4x 3.5" Internal Bays, No PSU, ATX, Black/Grey, 2U Chassis - TAA Compliant
Quantity:
- SKU: 18628470
- Manufacturer: InWin
- MPN: R200-02N.U3
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$273.52
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6") |
| Drive Bay |
• External: 5.25" x 2 • Internal: 3.5" x 4 |
| Power Supply |
Supports: • Form factor: single, 2U redundant, CRPS • Watt: single 500W, 2U redundant 550W, CRPS 550W / 800W |
| Indicators | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, system reset, USB 2.0 x 2 |
| Chassis Security | Intrusion switch (optional) |
| Cooling Fans |
• 80 x 25mm PWM front fan x 1 • 80 x 25mm PWM rear fan x 1 |
| Expansion Slot | Low profile PCIe slot x 7 or full-height PCIe slot x 3 (via riser card) |
| Material |
• Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) |
504 x 432.4 x 88mm (19.84" x 17.02" x 3.46") |
| Package Dimensions (DxWxH) | 682 x 563 x 204mm |
| Weight (Chassis Only) |
• Net weight: 7.18kg • Gross weight: 10.12kg |
| Cubic Feet | 2.77 |
| Container Information |
Single packing with pallets: • 20': 270pcs • 40': 540pcs • 40' HQ: 600pcs |
|
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications. * The above image is for reference only. All hardware components and optional parts are not included. |
|
