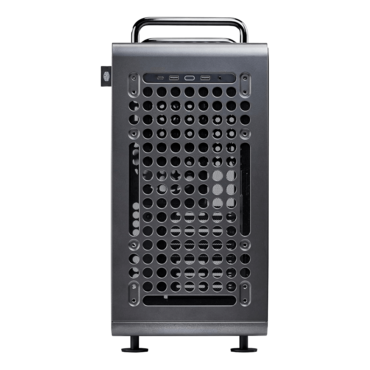

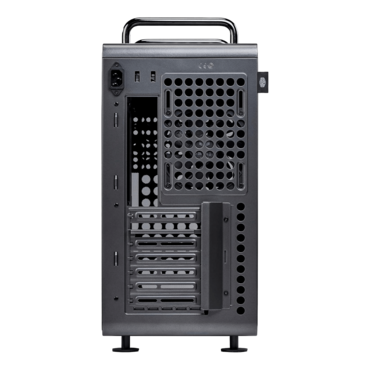

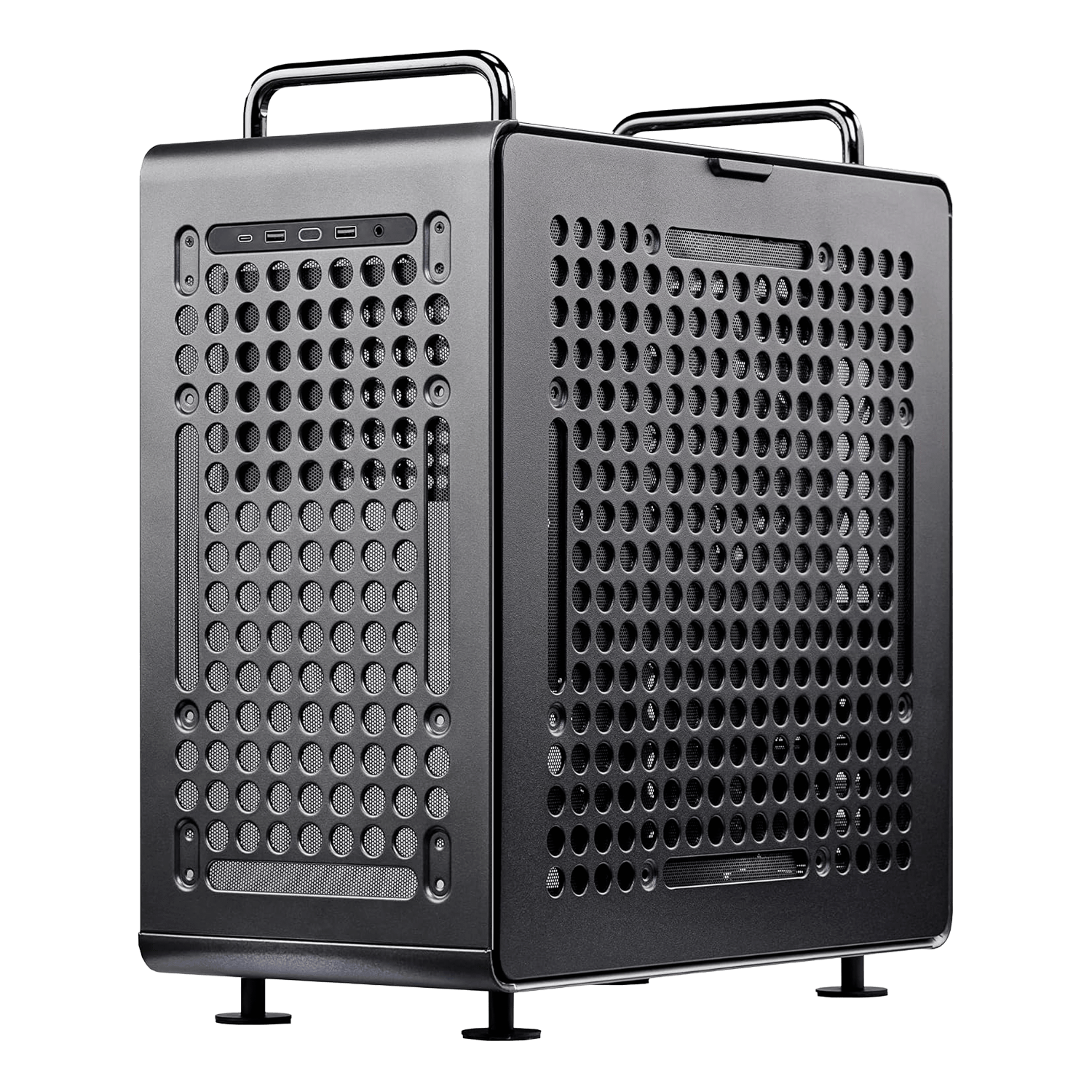

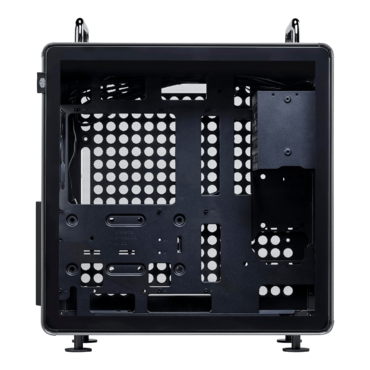

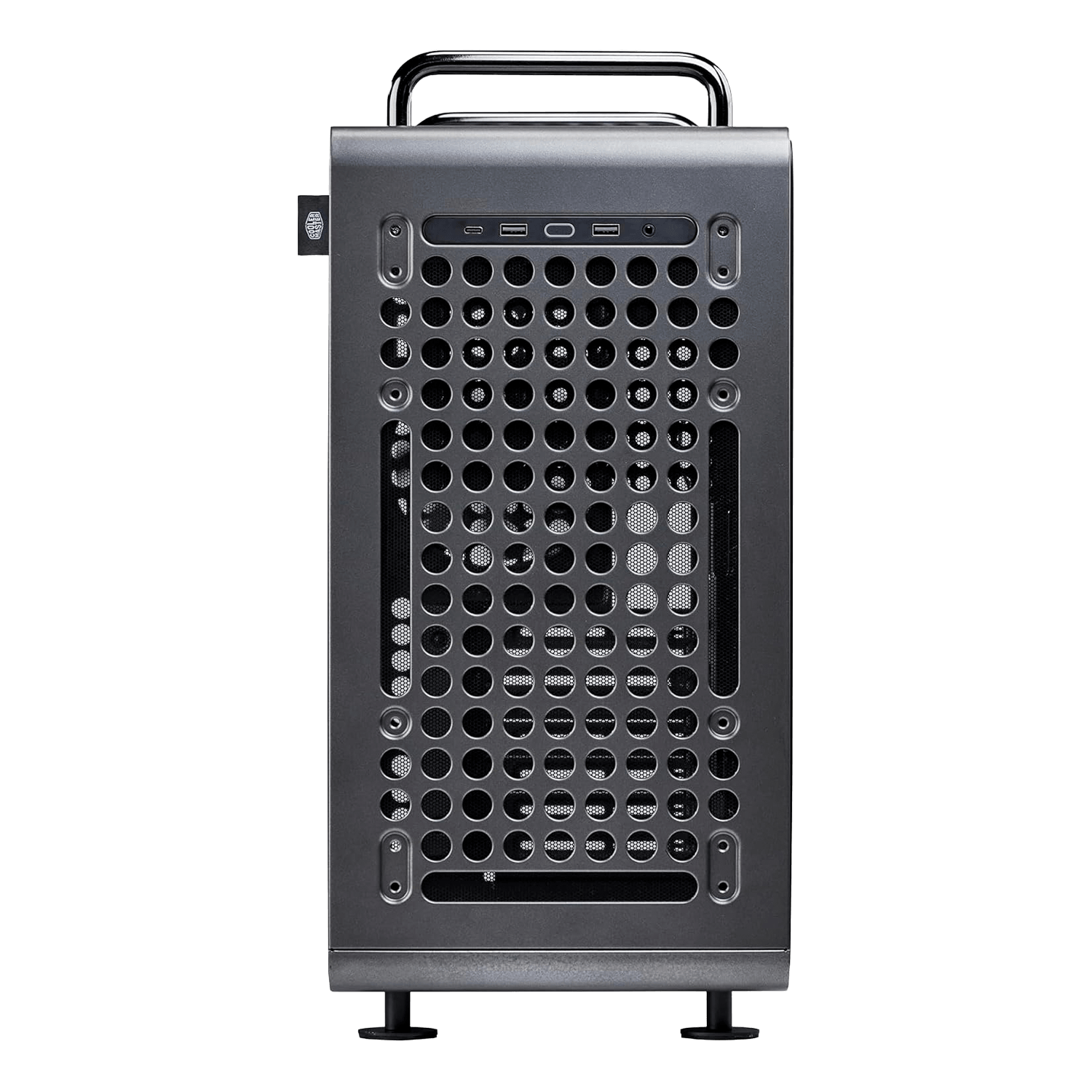

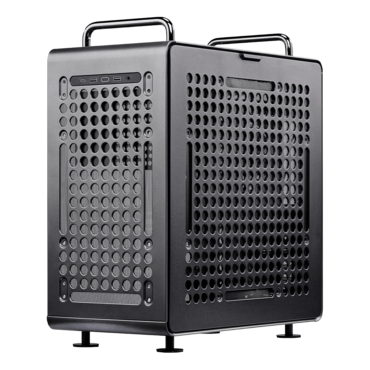

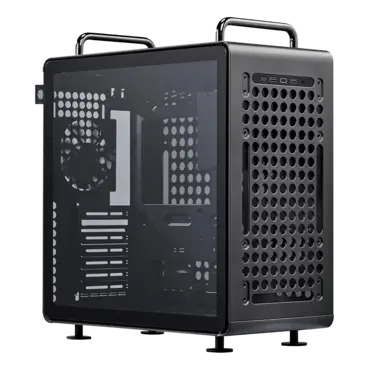

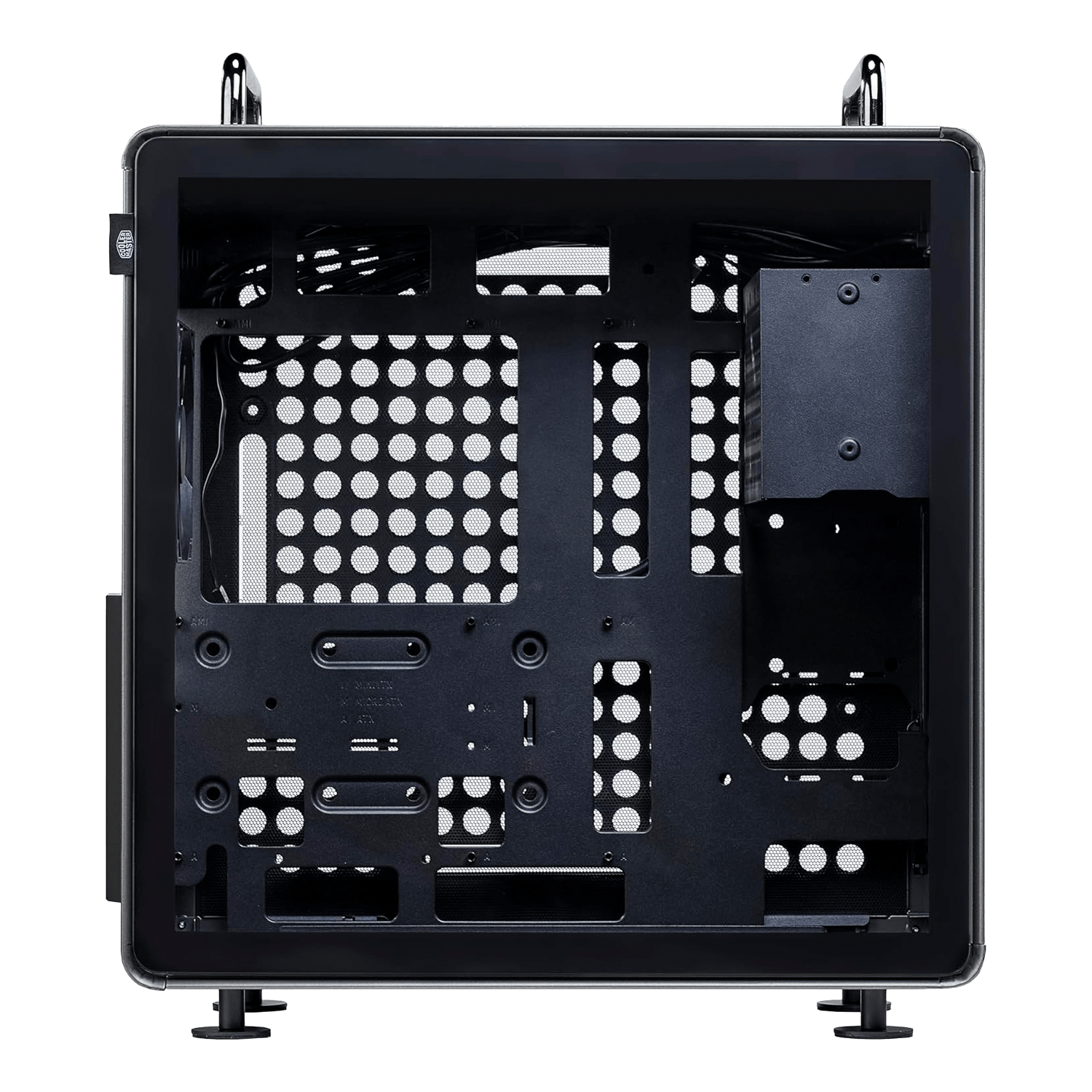

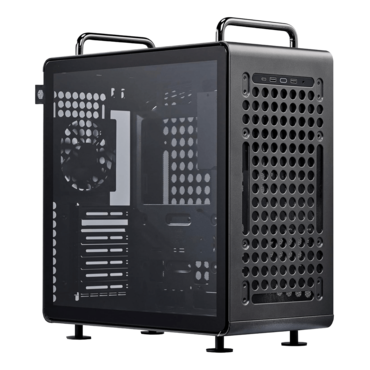

QUBE 540, Tempered Glass, No PSU, E-ATX, Stardust Iron, Mid Tower Case
- SKU: 19739946
- Manufacturer: COOLER MASTER
- MPN: Q540-MGNN-S00
- Availability: TEMPORARILY OUT OF STOCK
Price
$99.36
| Product Name | QUBE 540 |
| Model Number | Stardust Iron: Q540-MGNN-S00 |
| Model Number | Moonstone: Q540-LGNN-S00 |
| Color(s) | Stardust Iron / Moonstone |
| Materials - | ExteriorSteel |
| Material - | Side Panel (Right)Steel |
| Material - | Side Panel (Left)TG |
| Dimensions (L x W x H) | Incl. Protrusions: 438.5 x 225 x 492.1 mm |
| Dimensions (L x W x H) | Excl. Protrusions: 425 x 225 x 425 mm |
| Volume (w/o protrusions) | 40.64 L |
| Volume (with panel, protrusions and feet) | 48.55 L |
| Motherboard Support | ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm) |
| Expansion Slots | 7 |
| Drive Bays - 5.25" ODD | N/A |
| Drive Bays - 3.5" HDD | 1 (Shared 3.5" and 2.5" mounting on PSU bracket) |
| Drive Bays - 2.5" SSD | 2 (Max. 5) |
| I/O Panel - USB Ports | 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C |
| I/O Panel - Audio In / Out | 1 x 3.5 Mic / Audio Combo Jack |
| Fan Support - Front | 3 x 120 mm (w/o I/O panel) / 2 x 140 mm |
| Fan Support - Top | 3 x 120 mm (w/o I/O panel) / 2 x 140 mm |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Bottom | 3 x 120 mm / 2 x 140 mm |
| Preinstalled Fan(s) - Front | N/A |
| Preinstalled Fan(s) - Top | N/A |
| Pre-installed Fans - Rear | 1x 120mm Black Fan |
| Radiator Support - Front | 140 / 280 / 360 mm (w/o I/O panel) |
| Radiator Support - Top | 140 / 280 / 360 mm (w/o I/O panel) |
| Radiator Support - Rear | 120 mm |
| Radiator Support - Bottom | 140 / 280 / 360mm (w/o I/O panel) |
| Clearances - CPU Cooler | 172 mm |
| Clearances - Power Supply | 200 mm |
| Clearances - Graphics Card | 415 mm (w/o Front Fan) |
| Cable Routing - Behind Motherboard Tray | 27 mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX / SFX |
| Warranty | 2 years |
| Note | - |
| Series | QUBE Series |
| Size | Mid Tower |
