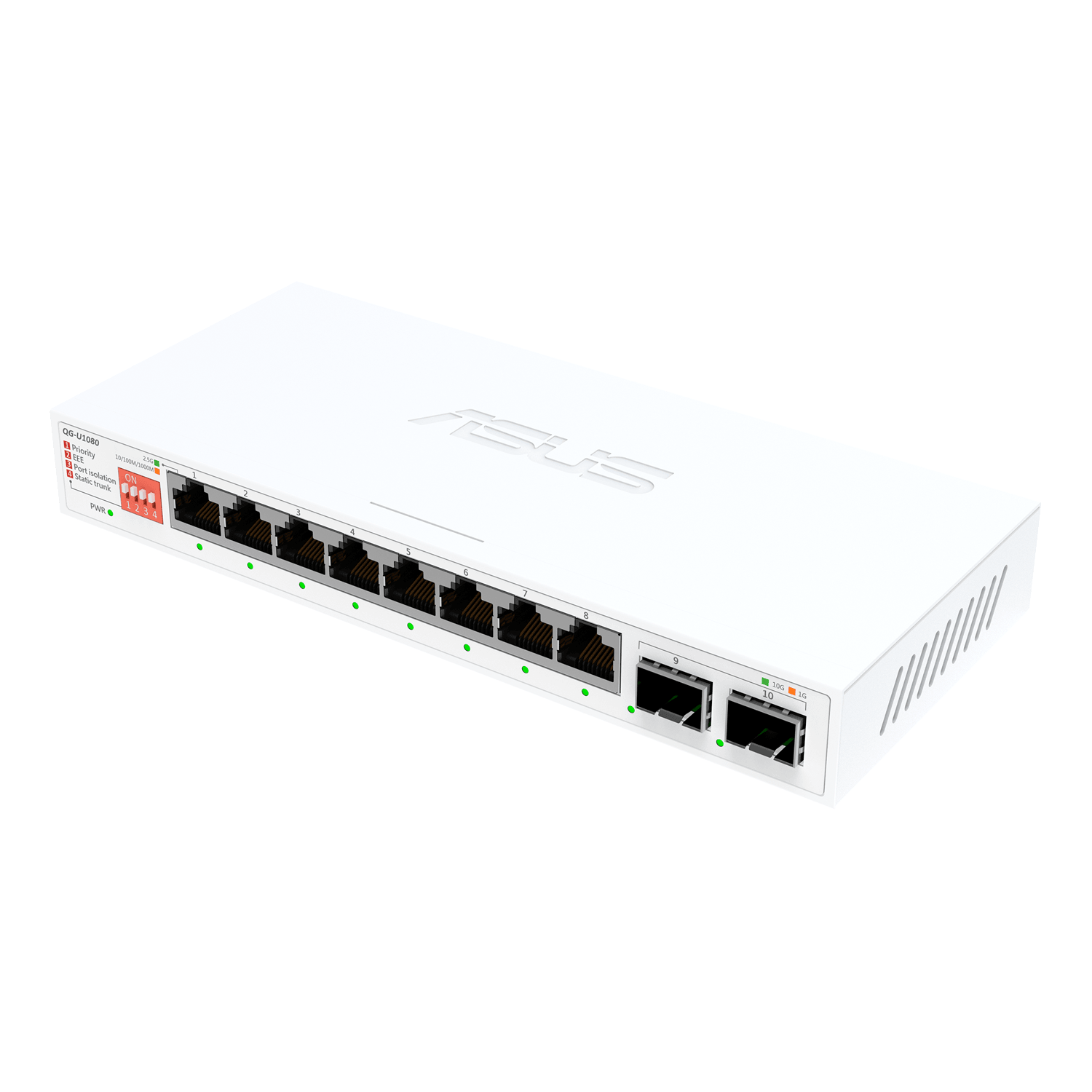

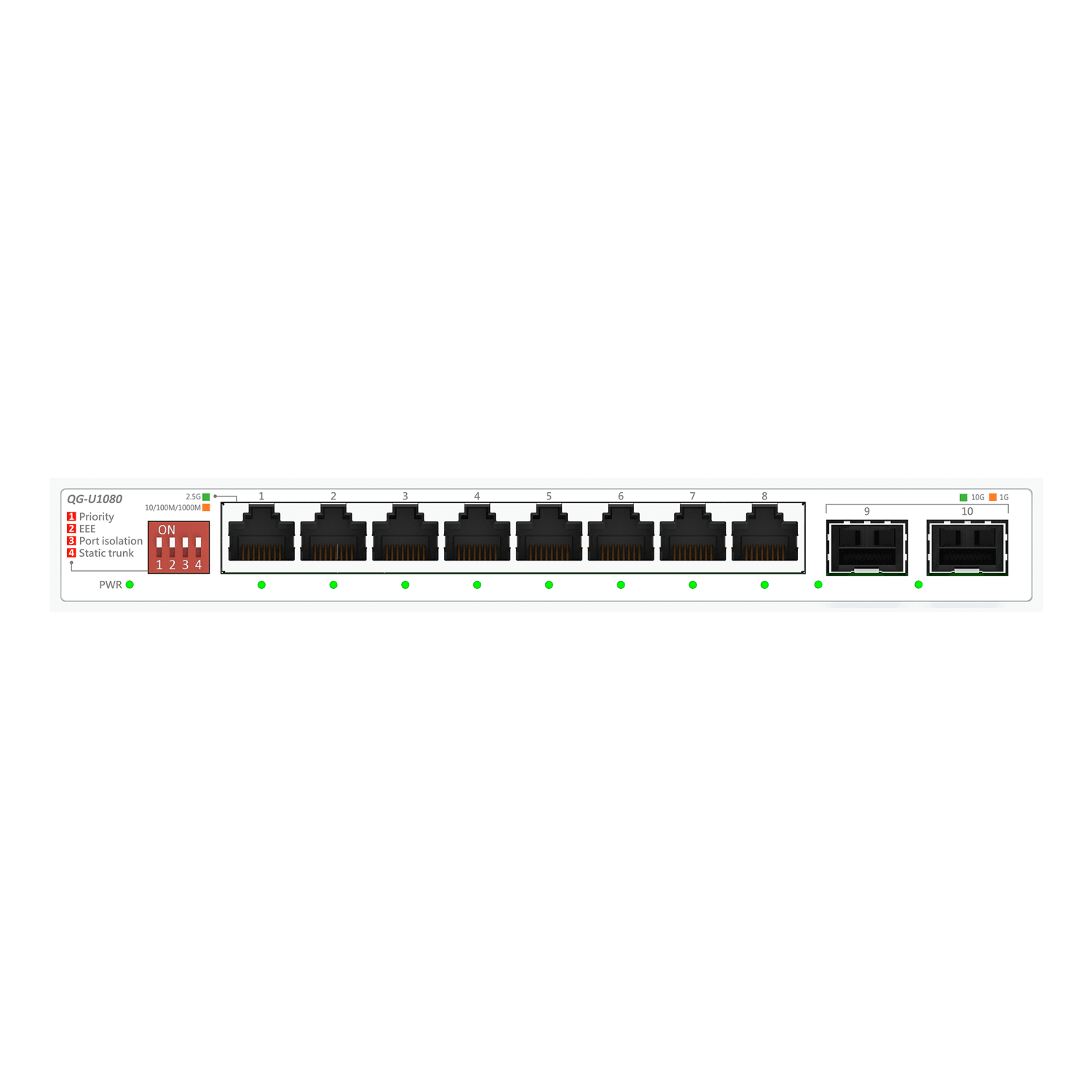

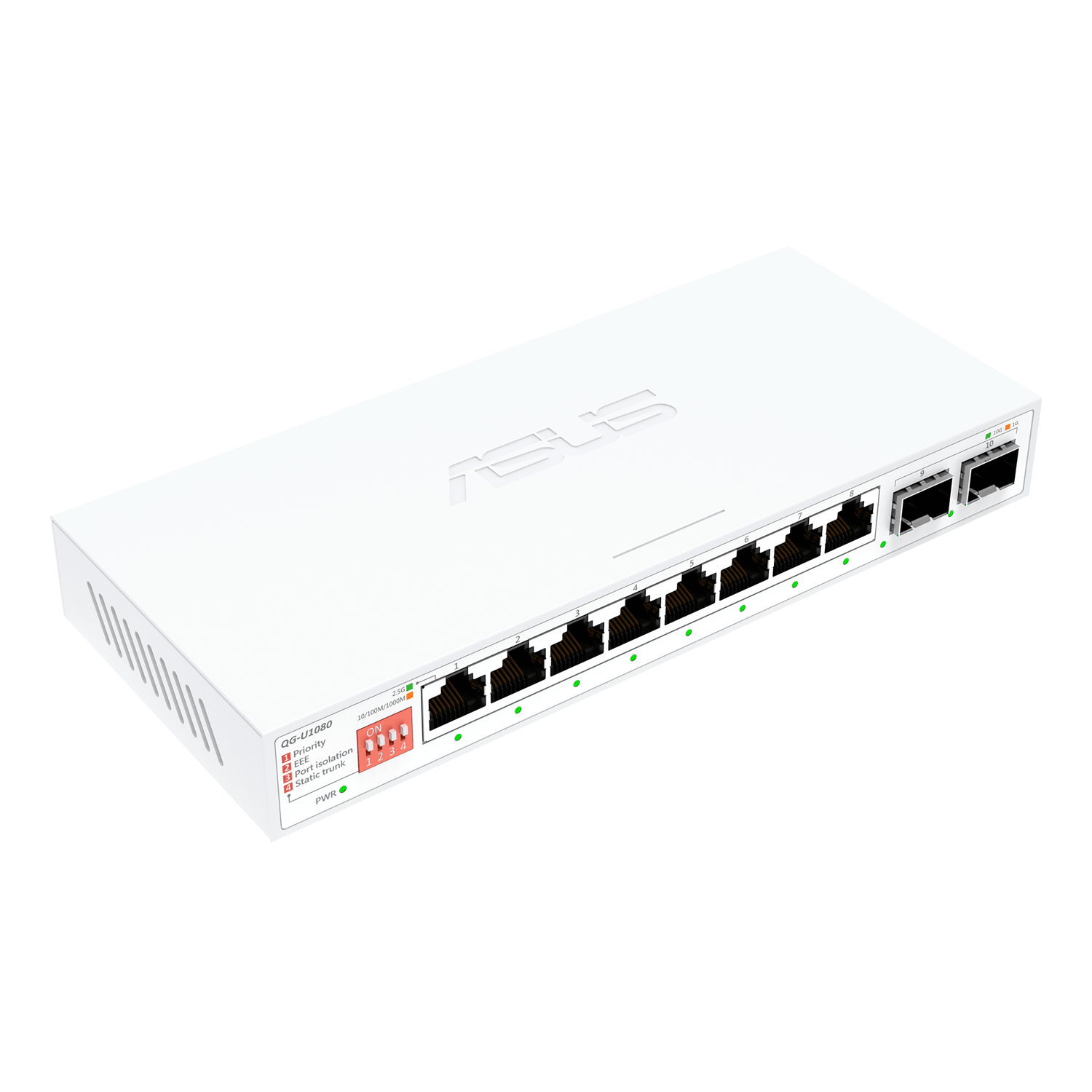

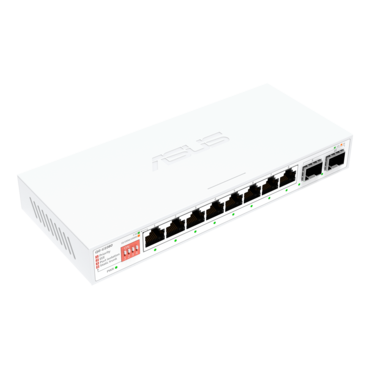

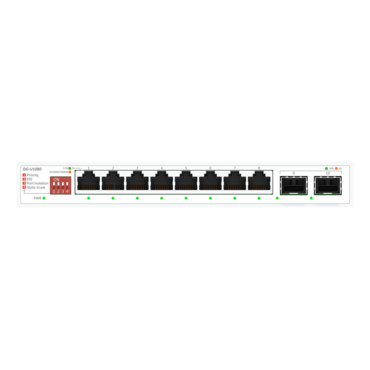

QG-U1080, 2 Port 10G SFP+, 8 Ports 2.5G Unmanaged Switch - TAA Compliant
- SKU: 19411703
- Manufacturer: ASUS
- MPN: QG-U1080
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
- Upgraded 2.5G ports and 10G SFP+ - Seamlessly upgrade to 2.5G by using standard CAT5e Ethernet cables to enjoy faster network performance.
- Support four intelligent functions - priority, EEE, port isolation, and static trunk. One switch is all you need to safeguard and optimize your home or business network.
- Plug and Play, Effortless Setup - Setting up your network has never been easier! Simply connect your devices, and you’re good to go—no complicated configurations required.
- Versatile Networking Expansion - You can connect 2.5G/10G-compatible devices, including NAS , AP, Gaming PCs, and 4K streaming devices to achieve a more comprehensive network setup.
| Model | QG-U1080 |
| Port Attributes | 8 x 2.5G RJ45 ports 2 x 10G SFP+ ports |
| Standard |
IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3bz 2.5G BASE-T IEEE 802.3-2012, IEEE 10GBASE-KR (10.3125 Gbps) IEEE802.3az EEE IEEE802.3x Flow control |
| Color | White |
| Performance |
MAC address Table: 16K Packet buffer: 8Mbits Jumbo Frame: 10K bytes Forwarding Rate: 59.52Mpps (64-byte) |
| LED Indicator |
Power LED Off: The switch is powered off or fails. Green On: The switch is powered on. Blinking: Loop detected. Port 1-8 LED Off: Devices are disconnected or the link has failed. Green On: 2.5Gbps connection Amber On: 10/100/1000Mbps connection Blinking: Devices are connected and data is transmitting or receiving. Blinking rapidly: Loop detected. SFP+ Port 9-10 LED Off: Devices are disconnected or the link has failed. Green On: 10Gbps connection Amber On: 1Gbps connection Blinking: Devices are connected and data is transmitting or receiving. Blinking rapidly: Loop detected. |
| Power Supply | External Power Adapter Output: 12V/1A |
| Environmental |
Operating Temperature: 0 ~ 40? Storage Temperature: -40 ~ 70? Operating Humidity: 10% ~ 90% RH (non-condensing) Storage Humidity: 5% ~ 90% RH (non-condensing) |
| Package Content | ASUS QG-U1080 Switch Power Adapter Quick Start Guide Warranty Card |
| Product Weight (g) | 420 g |
| Product Dimensions | 193 x 84.1 x 26 mm |
