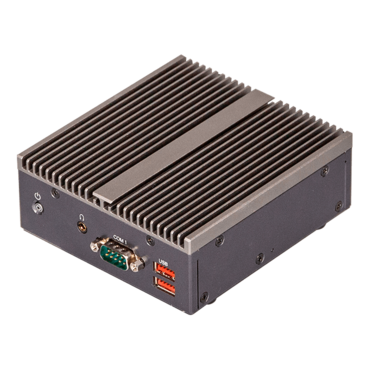

QBiX-EHLA6412-A1, Intel® Celeron® J6412 Processor, 1x DDR4 SO-RDIMM, M.2, Embedded Industrial PC
Quantity:
- SKU: 15045463
- Manufacturer: GIGABYTE
- MPN: QBIX-EHLA6412-A1
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$273.69
- System Size : 118W x 109.4D x 44.4H (mm)
- Intel® Celeron® J6412 Processor
- 1 x COM Port (RS-232)
- Single Channel DDR4, 1 x SO-DIMM
- 2 x HDMI for Dual display
- 2 x GbE LAN Ports
| Dimension | 118W x 109.4D x 44.4H(mm) |
| CPU |
Intel® Celeron® J6412 Processor 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W |
| Chipset | SoC |
| Memory |
1 x DDR4 SO-DIMM socket, Max. Capacity 32 GB Support Single Channel DDR4 3200 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I211AT) |
| Graphic Support |
Integrated Graphics Processor - Intel® UHD Graphics for 10th Gen Intel® Processors : 2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Expansion Slots |
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) |
| Front I/O |
2 x USB 3.2 Gen 2x1 1 x COM Port (RS-232) 1 x Headphone Jack 1 x Power button with LED |
| Rear I/O |
2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 2 x HDMI 2 x External Antenna Holes (Optional) 1 x Screw Type DC Jack |
| Power | +12V~19VDC |
| Operation Temperature |
Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation |
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Box size: 258 x 191 x 130 (mm) |
