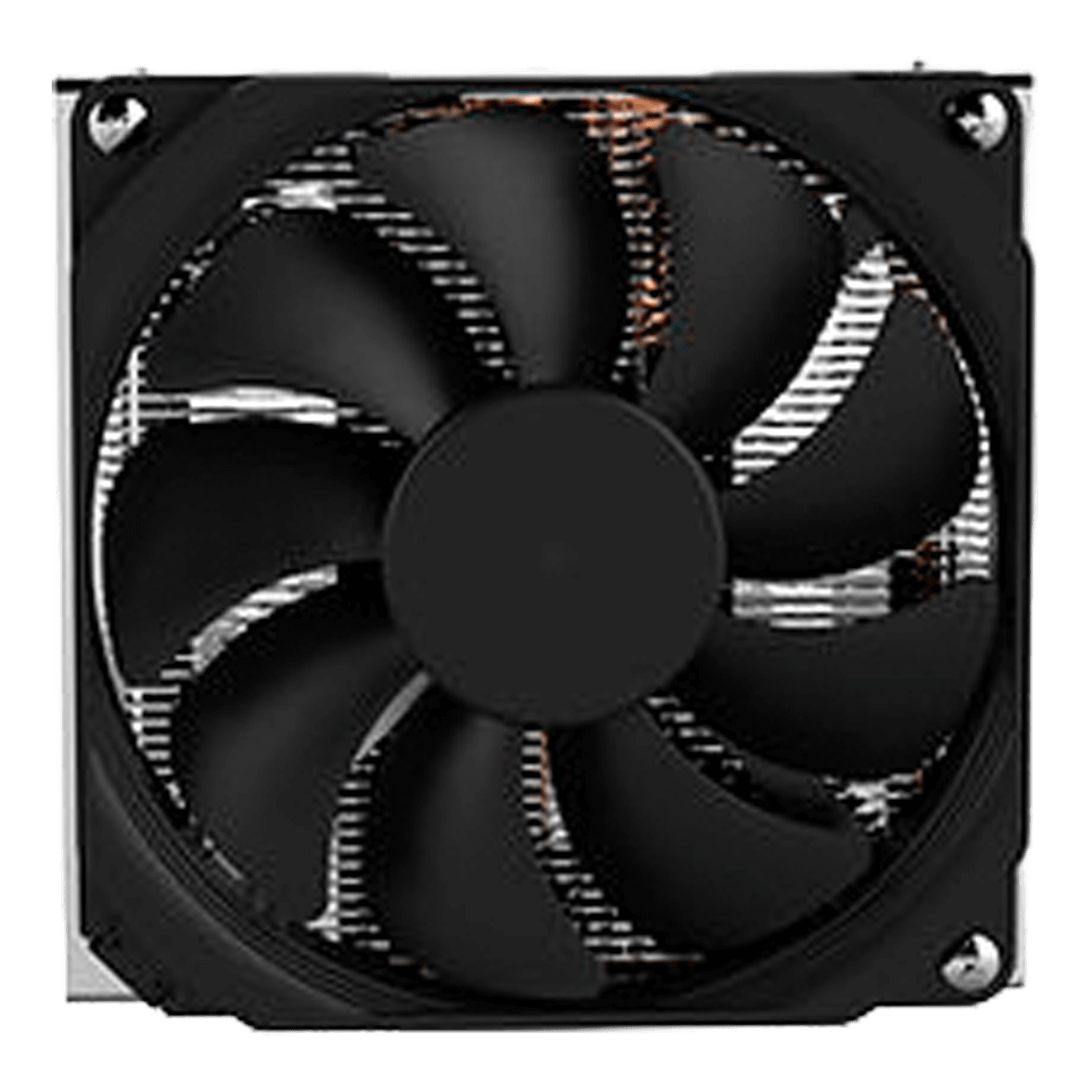

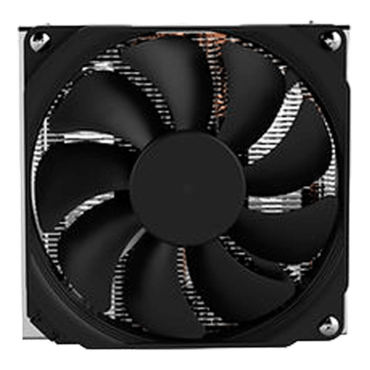

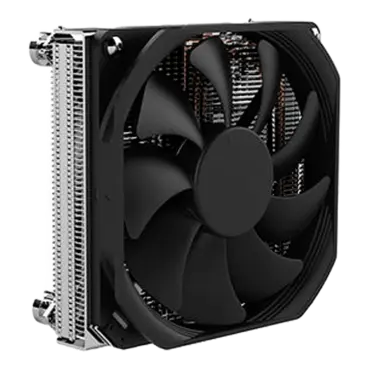

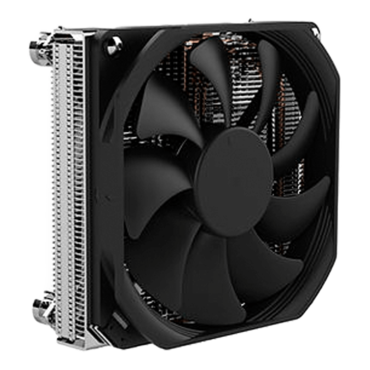

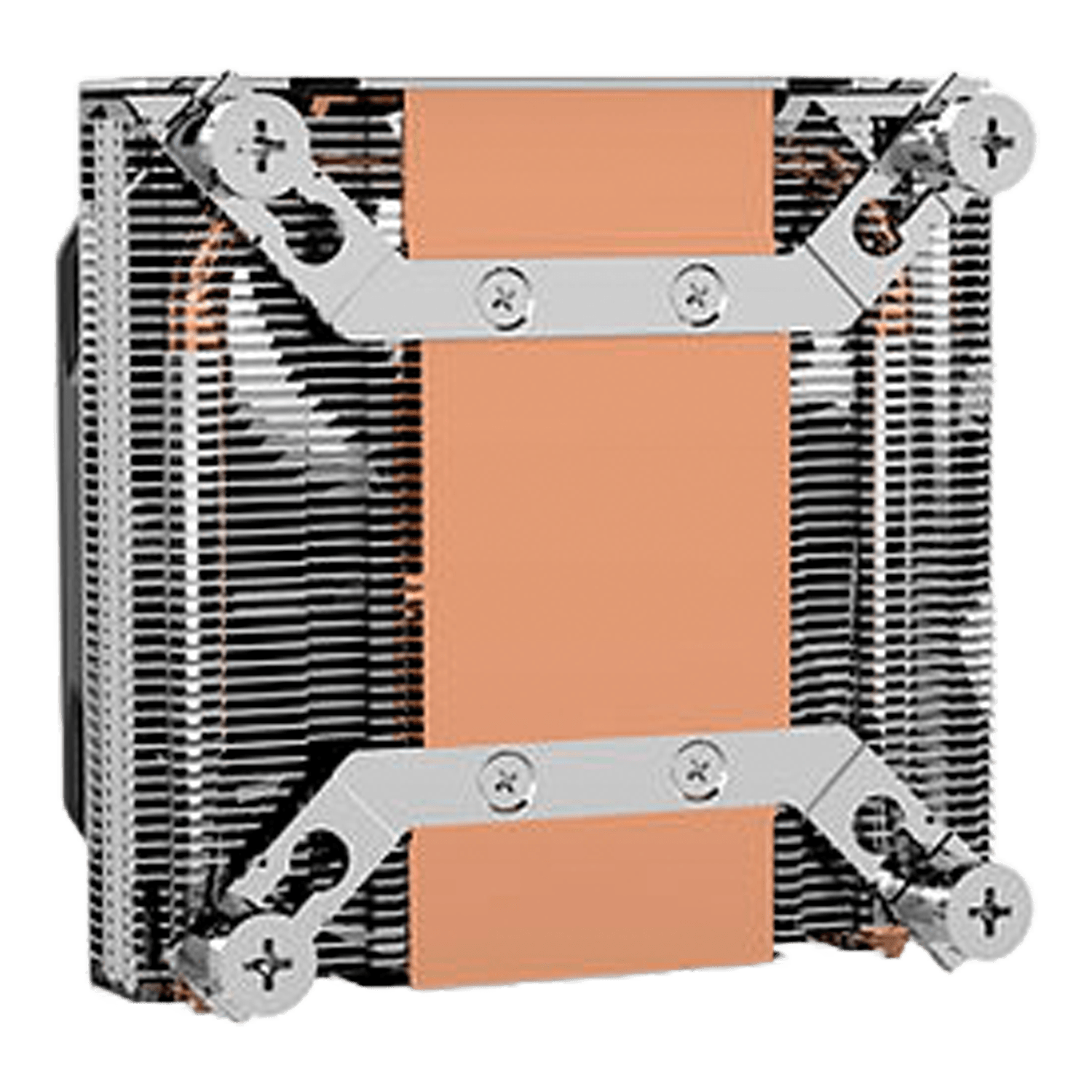

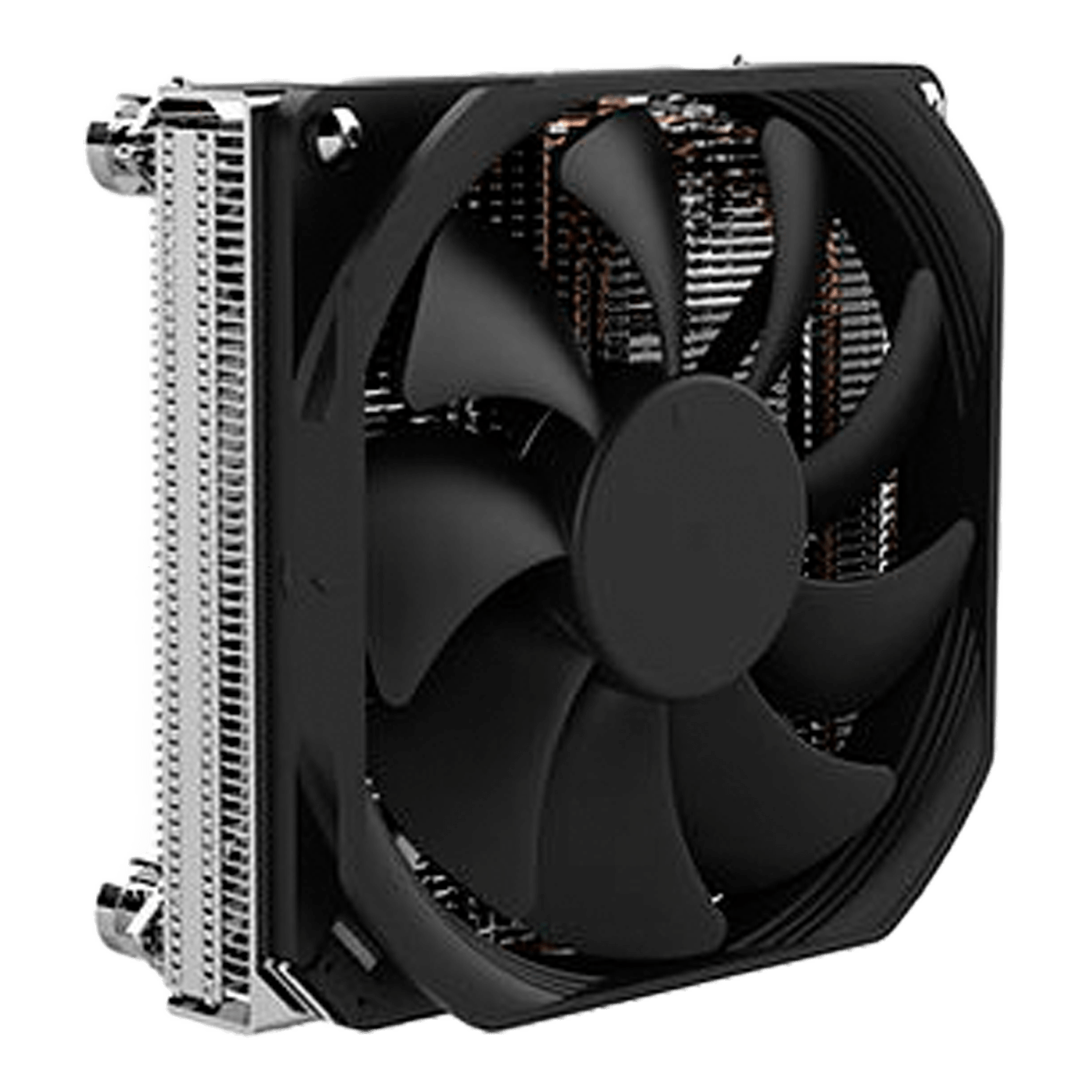

Q16, 35.2mm Height, 135W TDP, Copper/Aluminum CPU Cooler
- SKU: 20409399
- Manufacturer: DYNATRON
- MPN: Q16
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Q16, 35.2mm Height, 135W TDP, Copper/Aluminum CPU Cooler
The Dynatron Q16 CPU cooler is designed for 1.5U Active cooler with heatpipe (U8)
The Dynatron Q16 CPU cooler is designed for 1.5U Active cooler with heatpipe (U8)
| CPU Support | Intel |
| CPU Socket | Intel LGA 1851/1700 |
| Screw Type | M3 |
| Installation Torque | 5-7 in-lb |
| Solution | 1.5U & Up |
| Dimensions | 93.4 x 95.0 x 35.2 mm |
| Weight | 412g (Fan + Heatsink) |
| Material | Copper Base & Aluminum Fins with Heat Pipe Embedded |
| Fan Dimension | 92.0 x 92.0 x 12.0 mm |
| Speed | At Duty Cycle 0~20%: 800 ± 200 RPM At Duty Cycle 50%: 1900 ± 10% RPM At Duty Cycle 100%: 3200 ± 10% RPM |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 0.2 W At Duty Cycle 50%: 0.5 W At Duty Cycle 100%: 1.6 W |
| Air Flow | At Duty Cycle 0~20%: 9.88 CFM At Duty Cycle 50%: 21.38 CFM At Duty Cycle 100%: 35.78 CFM |
| Noise Level | At Duty Cycle 0~20%: 22.3 dBA At Duty Cycle 50%: 26.1 dBA At Duty Cycle 100%: 36.2 dBA |
| Air Pressure | At Duty Cycle 0~20%: 0.28 mm-H2O At Duty Cycle 50%: 1.22 mm-H2O At Duty Cycle 100%: 3.21 mm-H2O |
| Lead Wire Pin Out | Pin#1- Black(-) Pin#2- Black (+) Pin#3- Black (Tachometer/ Signal Output) Pin#4- Black (PWM) |
| Thermal Grease | Shin-Etsu 7762 or Equivalent |
| Life – Continuous operating under normal temperature (40 °C or 104 °F) | 70,000 Hours |
| *All product specifications and product images are subject to change without notice. | |
