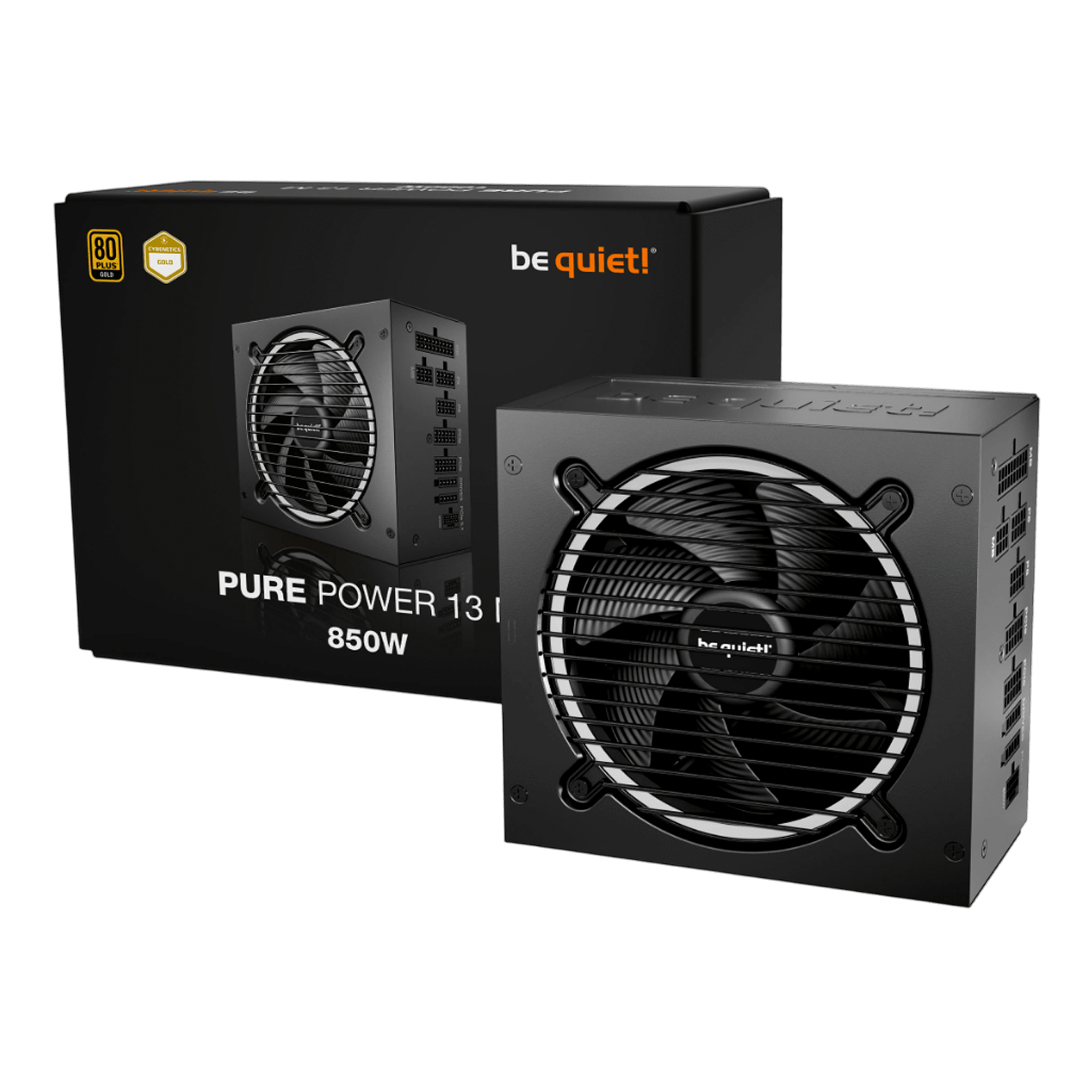

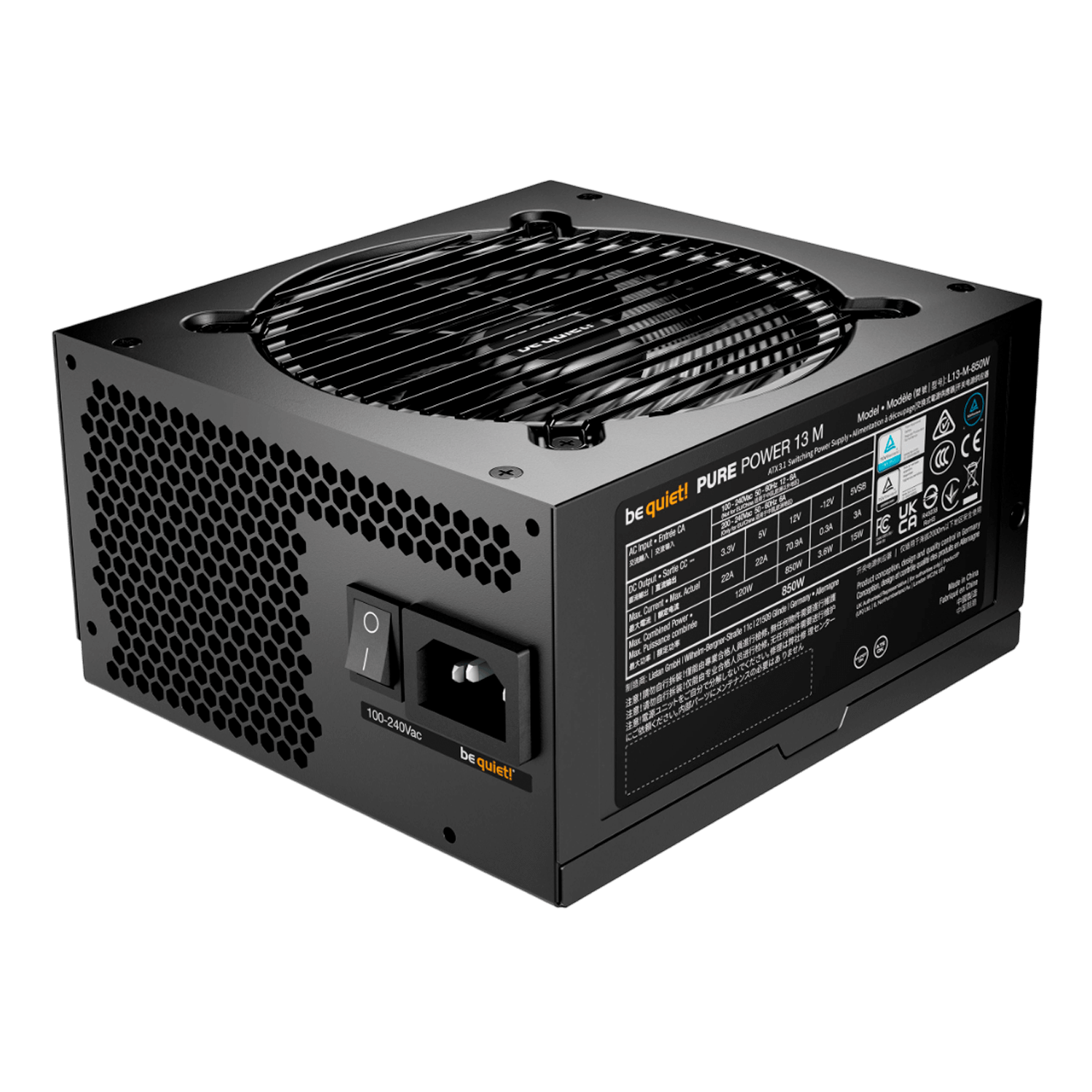

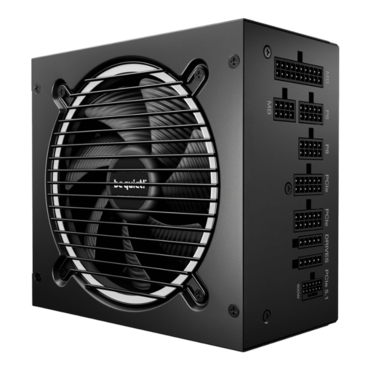

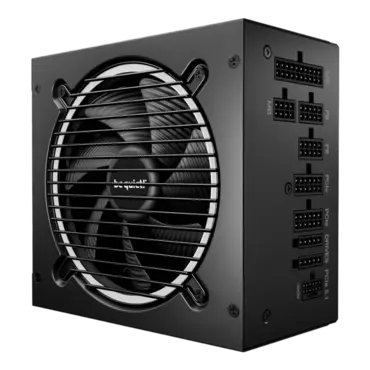

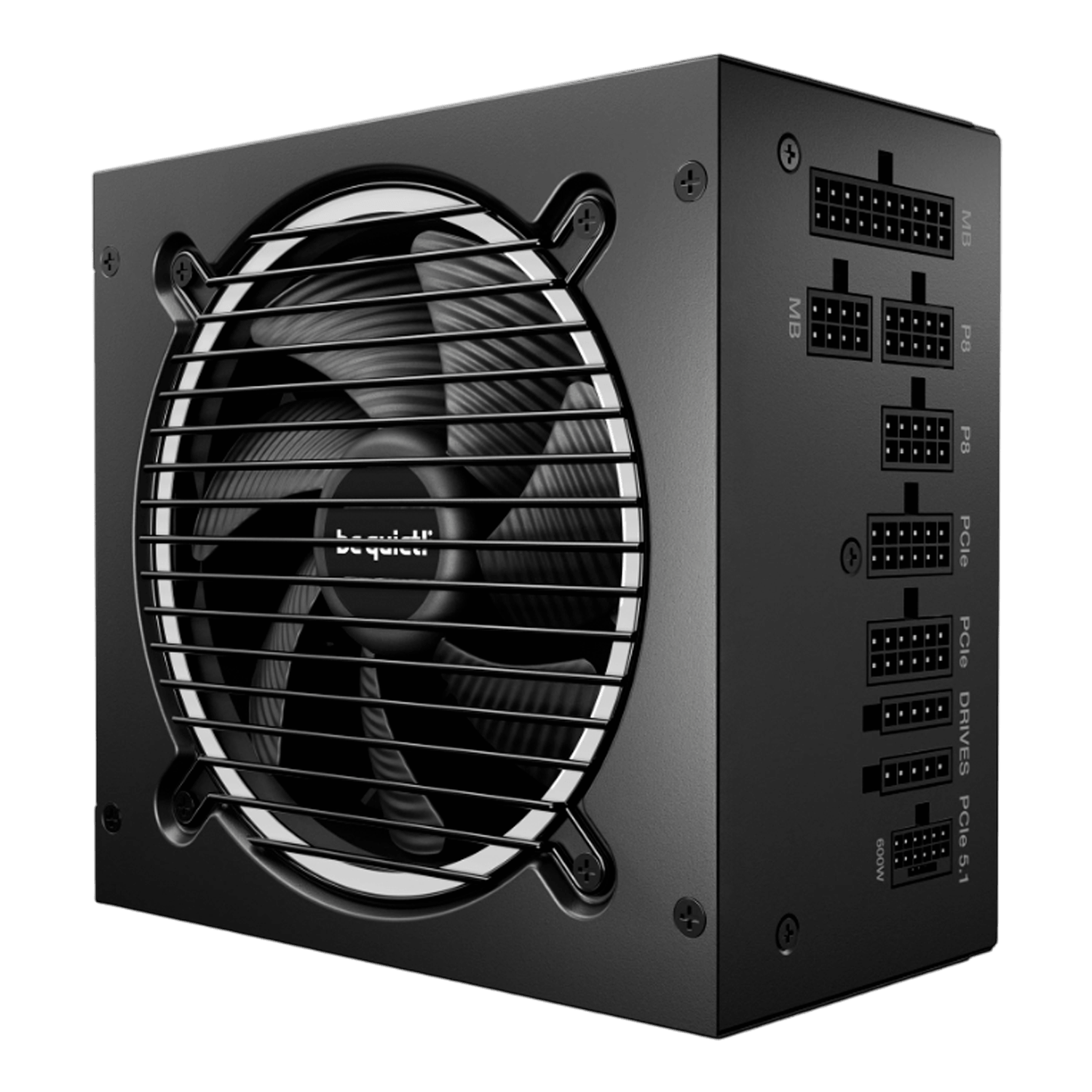

Pure Power 13 M, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
- SKU: 19260890
- Manufacturer: be quiet!
- MPN: BP027US
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$152.60
- 80 PLUS® Gold efficiency (up to 94.4%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent semi-passive 120mm be quiet! fan
- Semi-passive construction for quiet and energy-saving operation
- LLC technology for advanced stability and voltage regulation
- One massive high-performance 12V-rail
- One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
| General data | |
| Model | Pure Power 13 M | 850W |
| Continuous power (W) | 850 |
| Peak power (W) | 900 |
| Form factor | Version 3.1 |
| Form factor EPS 12V | Version 2.92 |
| Topology | LLC + SR + DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 12 / 6 |
| Power factor at 100% load | >0.98 |
| Modern standby | ✓ |
| Power consumption in standby (W) | <0.1 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
| Efficiency | |
| 80 PLUS certification | Gold |
| Efficiency (%) at 230V, 2% load | 70.5 |
| <Efficiency (%) at 230V, 10% load | 90.0 |
| Efficiency (%) at 230V, 20% load | 93.2 |
| Efficiency (%) at 230V, 50% load | 94.4 |
| Efficiency (%) at 230V, 100% load | 92.8 |
| Fan and cooling technology | |
| Cybenetics Noise Rating | - |
| Fan | Silence-optimized be quiet! fan |
| Fan size (mm) | 120 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 2000 |
| dB(A) at 10% load | 7.5 |
| dB(A) at 20% load | 7.6 |
| dB(A) at 50% load | 8.3 |
| dB(A) at 100% load | 17.6 |
| Output | |
| Multi-rail operation (12V rails) | - |
| 12V single rail operation | ✓ |
| Overclocking key | - |
| +3.3V (A) | 22 |
| +5V (A) | 22 |
| +12V1 (A) | 70.9 |
| +12V2 (A) | N/A |
| +12V3 (A) | N/A |
| +12V4 (A) | N/A |
| +12V5 (A) | N/A |
| +12V6 (A) | N/A |
| -12V (A) | 0,3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 850 |
| Max. combined power 12V-2x6 (W) | 600 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | 25.09 |
| Hold-up time at 80% load (ms) | 33.38 |
| Power good signal (ms) | 100 - 150 |

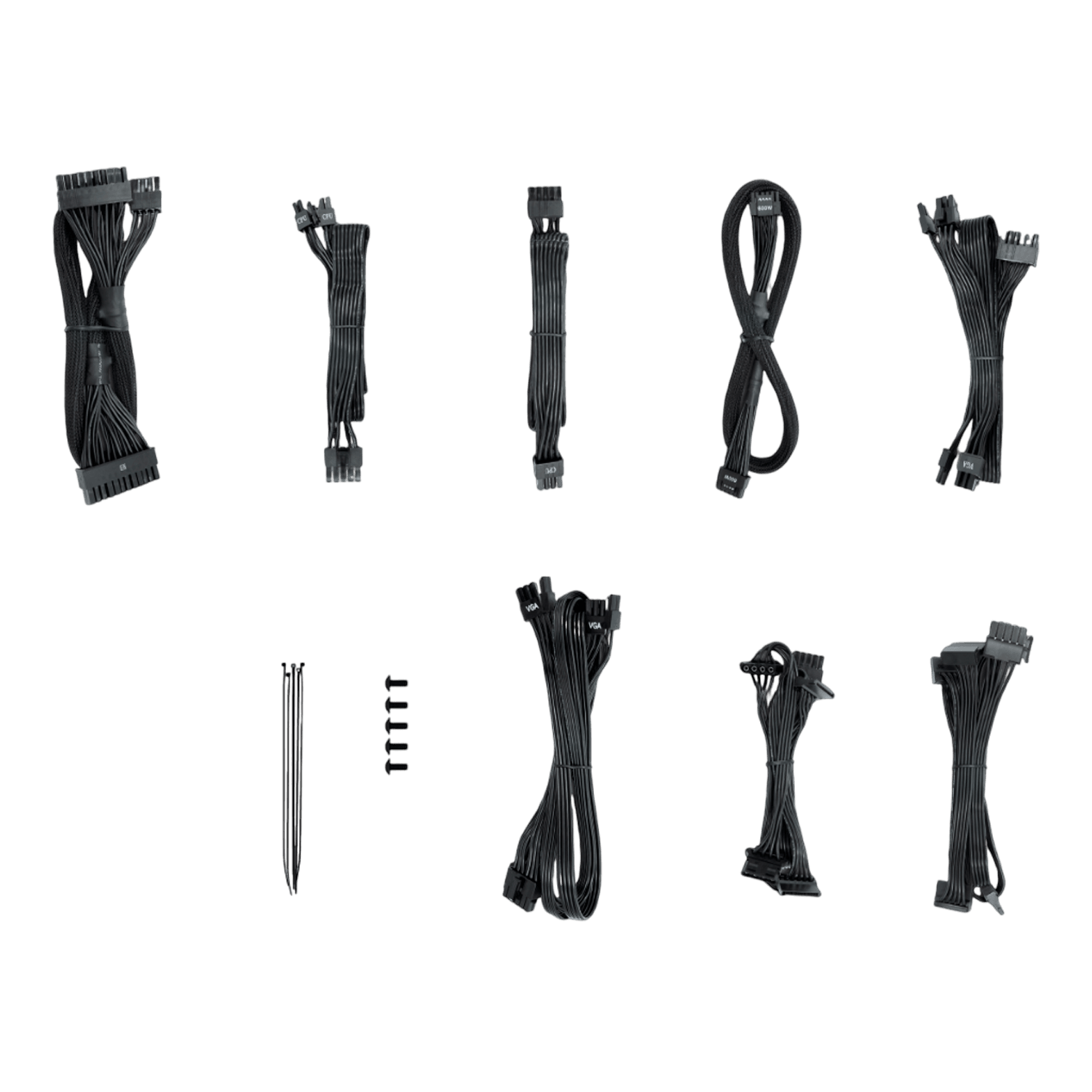

| Cables and connectors | |
| Modular cables | ✓ |
| Sleeved cables | ✓ |
| Flat cables | ✓ |
| Maximum cable length (cm) | 95 |
| Cable length to motherboard (cm) | 55 |
| No. of cables | 8 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12V-2x6 cables | 1 |
| PCI-e 6+2-pin (GPU) | 4 |
| PCI-e 6-pin (GPU) | - |
| SATA | 6 |
| PATA | 2 |
| FDD (Floppy) | - |
| Protection | |
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush protection) | ✓ |
| Safety certification | |
| BSMI | ✓ |
| CB | ✓ |
| CCC | ✓ |
| CE | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| CU | ✓ |
| FCC | ✓ |
| RCM | ✓ |
| TÜV | ✓ |
| UKCA | ✓ |
| IRAM | - |
| Environmental directives | |
| Energy Star | 8.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | - |
| Scope of delivery | |
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to- ATX adapter bracket | - |
| Casing | |
| Dimensions without cable (L x W x H), (mm) | 160 x 150 x 86 |
| Weight (kg) | 2.62 |
| Color | Black |
| Service | |
| Warranty (Years) | 10 |
| Express replacement service in first year | - |
| International hotline / free of charge | ✓ / DE, FR |
