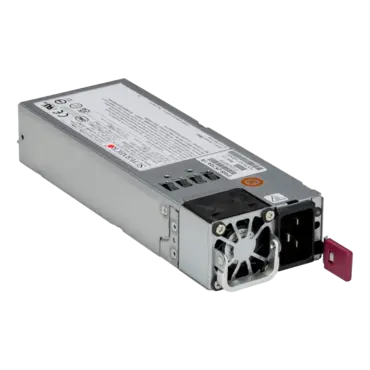

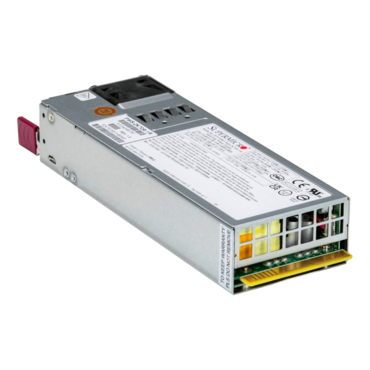

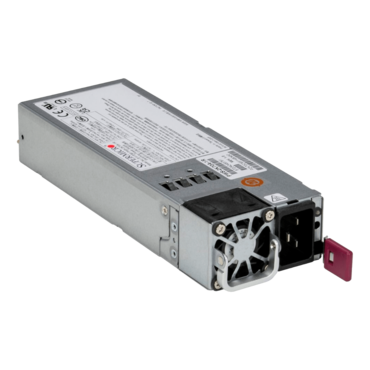

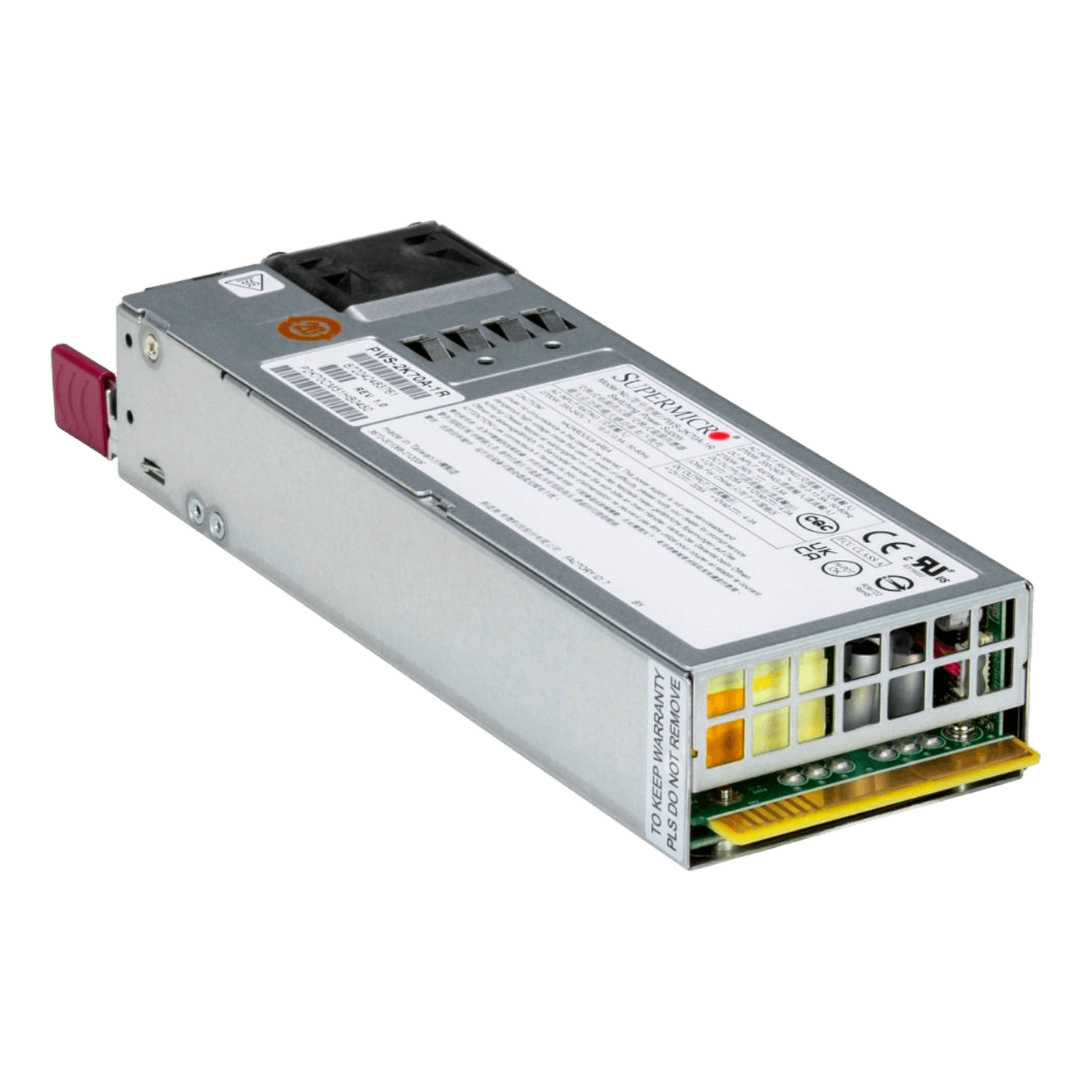

PWS-2K70A-1R, 80 PLUS Titanium 200W, Redundant, 1U Power Supply
- SKU: 19936019
- Manufacturer: SUPERMICRO
- MPN: PWS-2K70A-1R
- Availability: TEMPORARILY OUT OF STOCK
Price
$613.12
- PMBus 1.2 Support for Remote Management
- Hot swappable, N+1
- Titanium 96%+ Efficiency
- Supermicro Certified
| Total Power Output | 200W |
| Type | Redundant |
| Type of Power Supply | Power Supply |
| Form Factor | 1U |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| +5V | N/A |
| +12V | 225A (2700W) |
| +3.3V | N/A |
| 5V Standby | N/A |
| +12V Standby | 4A |
| Input Voltage Range | 200-240Vac: 2700W / 240Vdc: 2700W (for CQC only) |
| Input Frequency Range | 50-60Hz |
| Input Current Range | 200-240Vac: 16A -13.5A / 240Vdc: 13.5A (for CQC only) |
| Output Type | Gold Finger |
| 8Pin / 4Pin (12V) Connector | N/A |
| Inlet Connector | IEC 60320 C20 |
| PFC | N/A |
| Energy Efficiency | 96%+ Efficiency |
| 80 Plus Certification | 80 Plus Titanium |
| Warranty | 1 year warranty |
| Product Environmental Compliance | RoHS and REACH compliant, details available upon request |
