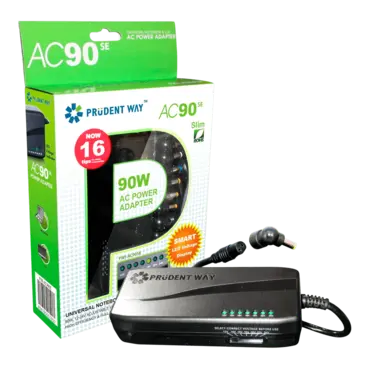

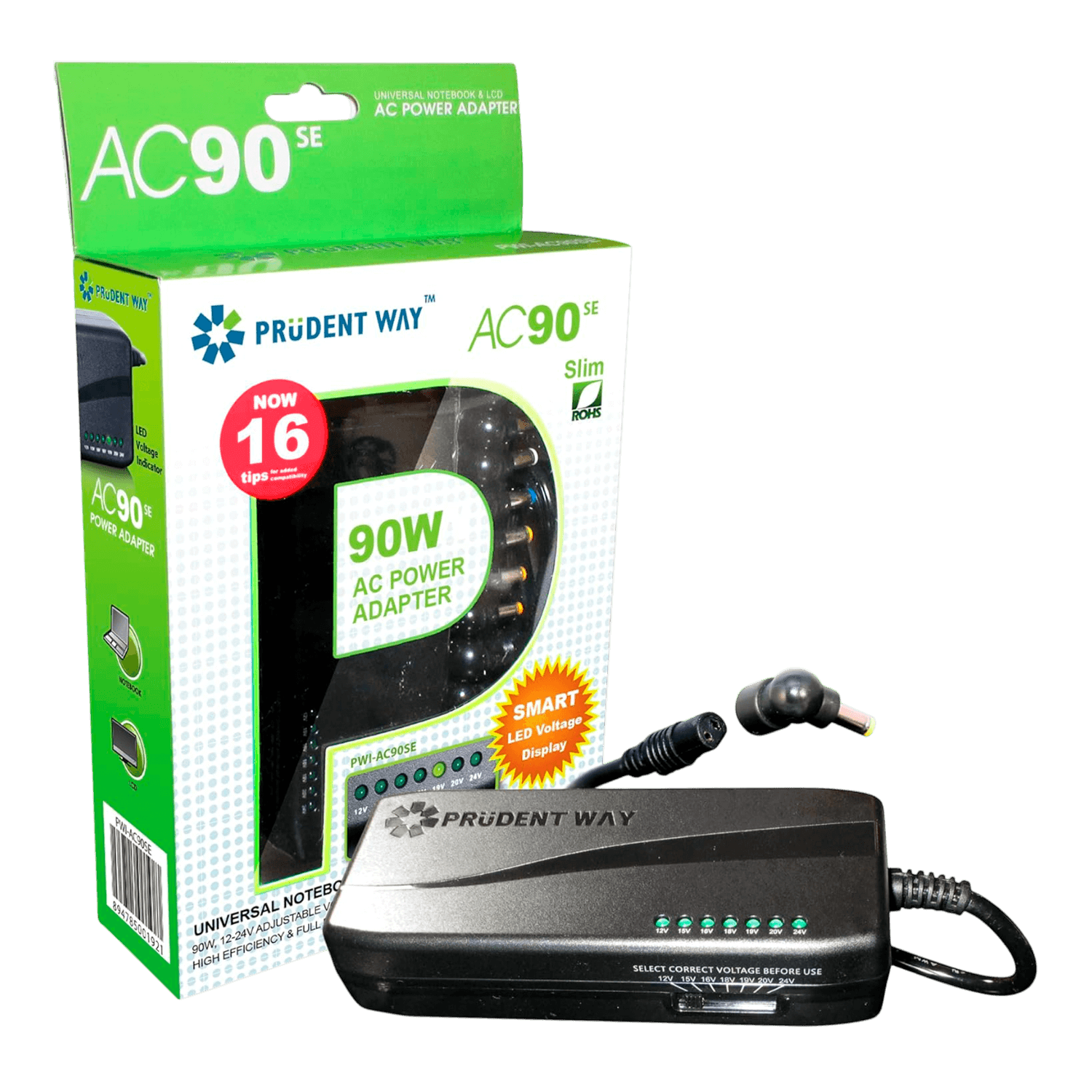

PWI-AC90SE, 90W, Slim/Compact, Universal Notebook Adapter
- SKU: 19472488
- Manufacturer: PRUDENT WAY
- MPN: PWI-AC90SE
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$33.33
| PRODUCT FEATURES | |||||||||
| Output Power (Max.) | 90W | ||||||||
| Overload Protection | Yes | ||||||||
| Fanless | No noise | ||||||||
| Short Circuit Protection | Yes | ||||||||
| Line Regulation | ±6% | ||||||||
| Load Regulation | ±6% | ||||||||
| Switching Mode | Universal switching-mode power adapter for notebooks and LCDs | ||||||||
| Special Connectors |
15 Pieces Tip Connectors Including 7.4*5.0mm & 4.5*3.0mm with pin for Dell/HP, New USB Connector for Lenovo 4.8x1.7mm for HP, 3.0x1.0mm for tablet, 4.0x1.35mm for Asus. Dell Tip 4.5x30 (optional) |
||||||||
| Efficiency | > 87% (TYP) | ||||||||
| Unit Size | 4.93"(W) x 2.25"(D) x 1.25"(H) | ||||||||
| Net Weight | 9 oz | ||||||||
| Package Contents |
Prudent way (PWI-AC90SE) 90W AC Netbooks. Laptops and LCDs Power Adapter 15 Tips Connectors User Manuals |
||||||||
| Limited Warranty | One year | ||||||||
| OUTPUT | |||||||||
| Output Voltage | 12V | 15V | 16V | 18V | 19V | 20V | 24V | DC12V-24V | |
| Output Current | 12V | 15V | 16V | 18V | 19V | 20V | @4.5Amp (max) | ||
| Output Current | 24V | @3.75Amp (max) | |||||||
| INPUT | |||||||||
| Input Voltage | AC120V | AC230V | |||||||
| Vibration Input Voltage | AC100V-240V | ||||||||
| Input Current | 1.65AMP | ||||||||
| Input Power | 102VA | ||||||||
| ENVIRONMENTAL | |||||||||
| Operating Temp. | 0 to 40°C | ||||||||
| Humidity | 20% to 80% | ||||||||
| RoHS Compliant | Yes | ||||||||
