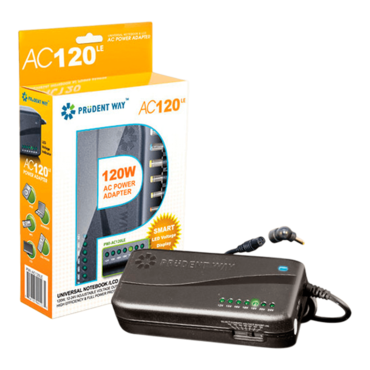

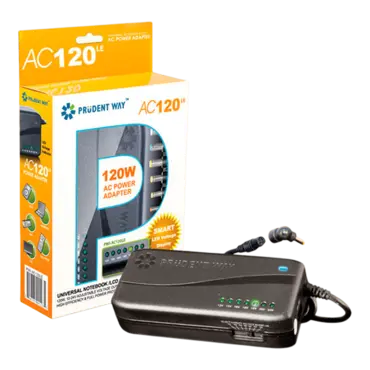

PWI-AC120LE, 120W, Universal AC/DC Notebook Adapter
- SKU: 3987312
- Manufacturer: PRUDENT WAY
- MPN: PWI-AC120LE
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$49.99
| PRODUCT FEATURES | |||||||||
| Output Power (Max.) | 120W | ||||||||
| Overload Protection | Yes | ||||||||
| Short Circuit Protection | Yes | ||||||||
| Line Regulation | ±5% | ||||||||
| Load Regulation | ±5% | ||||||||
| Switching Mode | Universal switching-mode power adapter for notebooks and LCD | ||||||||
| Special Connectors |
15 Pieces Tip Connectors Including 7.4*5.0mm & 4.5*3.0mm with pin for Dell/HP, New USB Connector for Lenovo 4.8x1.7mm for HP, 3.0x1.0mm for tablet, 4.0x1.35mm for Asus. |
||||||||
| Efficiency | > 87% (TYP) | ||||||||
| Fanless | Yes | ||||||||
| Unit Size | 5.25"(W) x 2.4"(D) x 1.5"(H) | ||||||||
| Net Weight | 1lb | ||||||||
| Package Contents |
Prudent way (PWI-AC120LE) 120W AC Netbooks. Laptops and LCDs Power Adapter 15 Tips Connectors User Manuals |
||||||||
| OUTPUT | |||||||||
|
Output Voltage (0/+0.8V No Load) |
12V | 15V | 16V | 18V | 19V | 20V | 24V | DC12V-24V | |
|
Output Voltage (5% @typical 0.8V) |
12V | 15V | 16V | 18V | 19V | 20V | 24V | ||
| USB Port | 5V | ||||||||
| Output Current | 12V | 15V | 16V | 18V | 19V | 20V | @5Amp (max) | ||
| USB Port | 5V | @ 2Amp | |||||||
| INPUT | |||||||||
| Input Voltage | AC120V | AC230V | |||||||
| Vibration Input Voltage | AC100V-240V | ||||||||
| Input Current | 2.2AMP | ||||||||
| Input Power | 135VA | ||||||||
| ENVIRONMENTAL | |||||||||
| Operating Temp. | 0°C to 40°C | ||||||||
| Humidity | 20% to 80% | ||||||||
| RoHS Compliant | Yes | ||||||||
