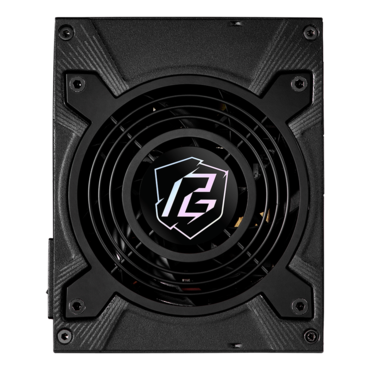

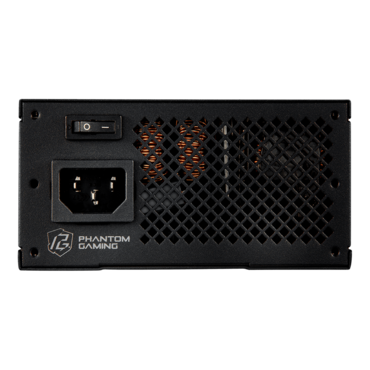

PG-1000PSF, 80 PLUS Platinum 1000W, Fully Modular, SFX Power Supply
- SKU: 19915233
- Manufacturer: ASROCK
- MPN: PG-1000PSF
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
- 80 PLUS® PLATINUM Certified
- Cybenetics PLATINUM and LAMBDA A Certified
- ATX3.1 & PCIe5.1 Ready

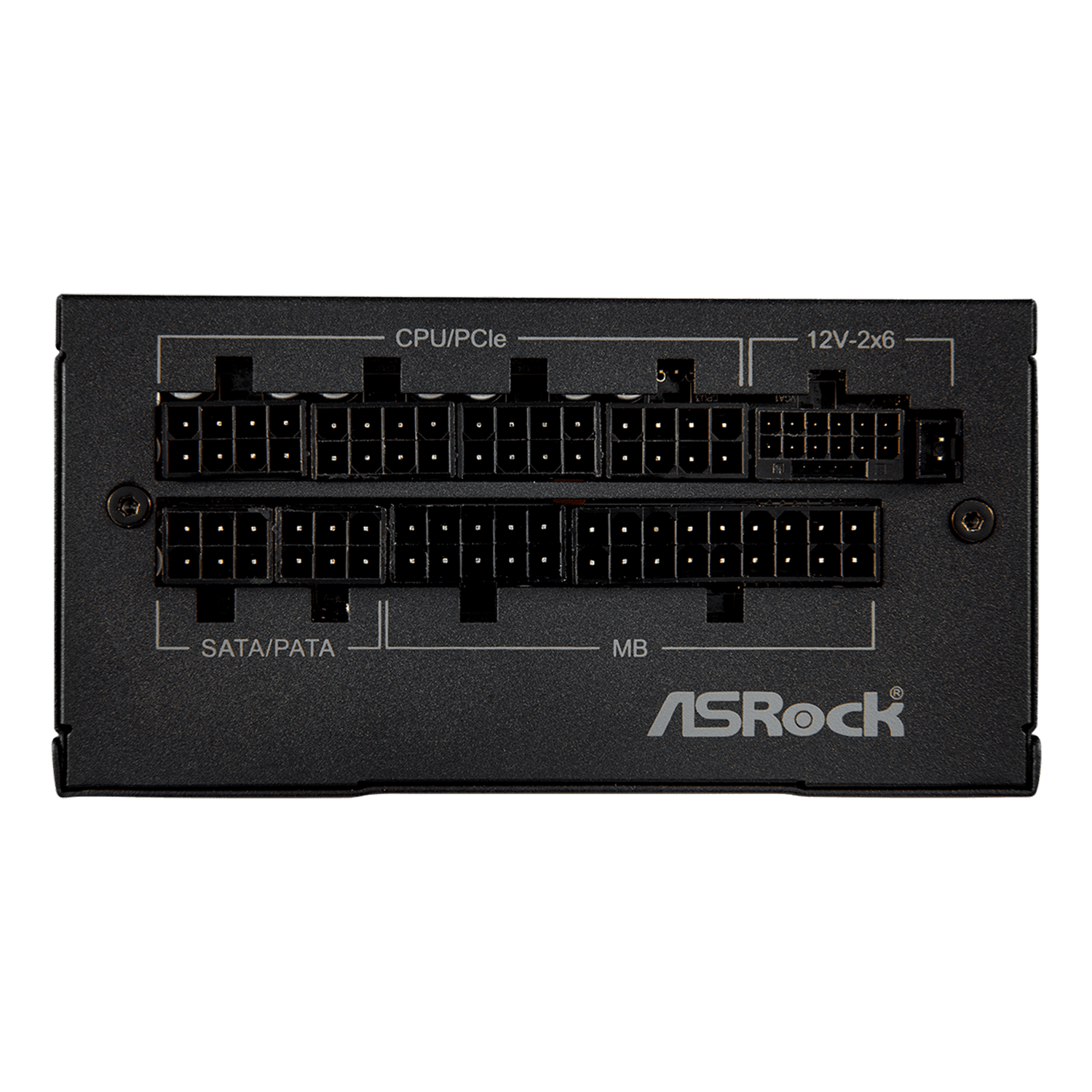

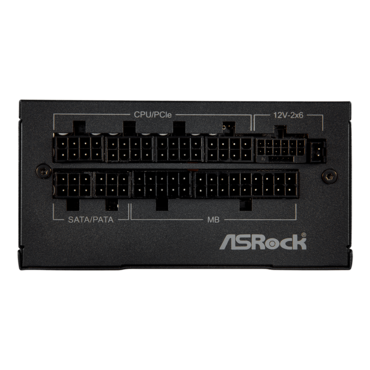

- Fully Modular Cable Design
- Standard SFX size
- Native 12V-2x6 Connector Dual Color Design with TempGuard
- 100% Highly Reliable Japanese Capacitors

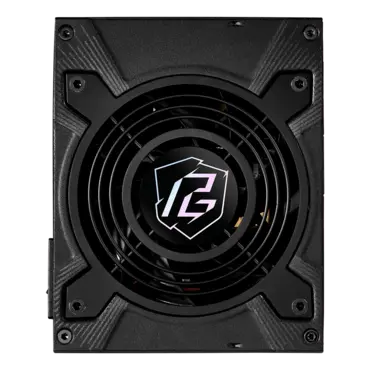

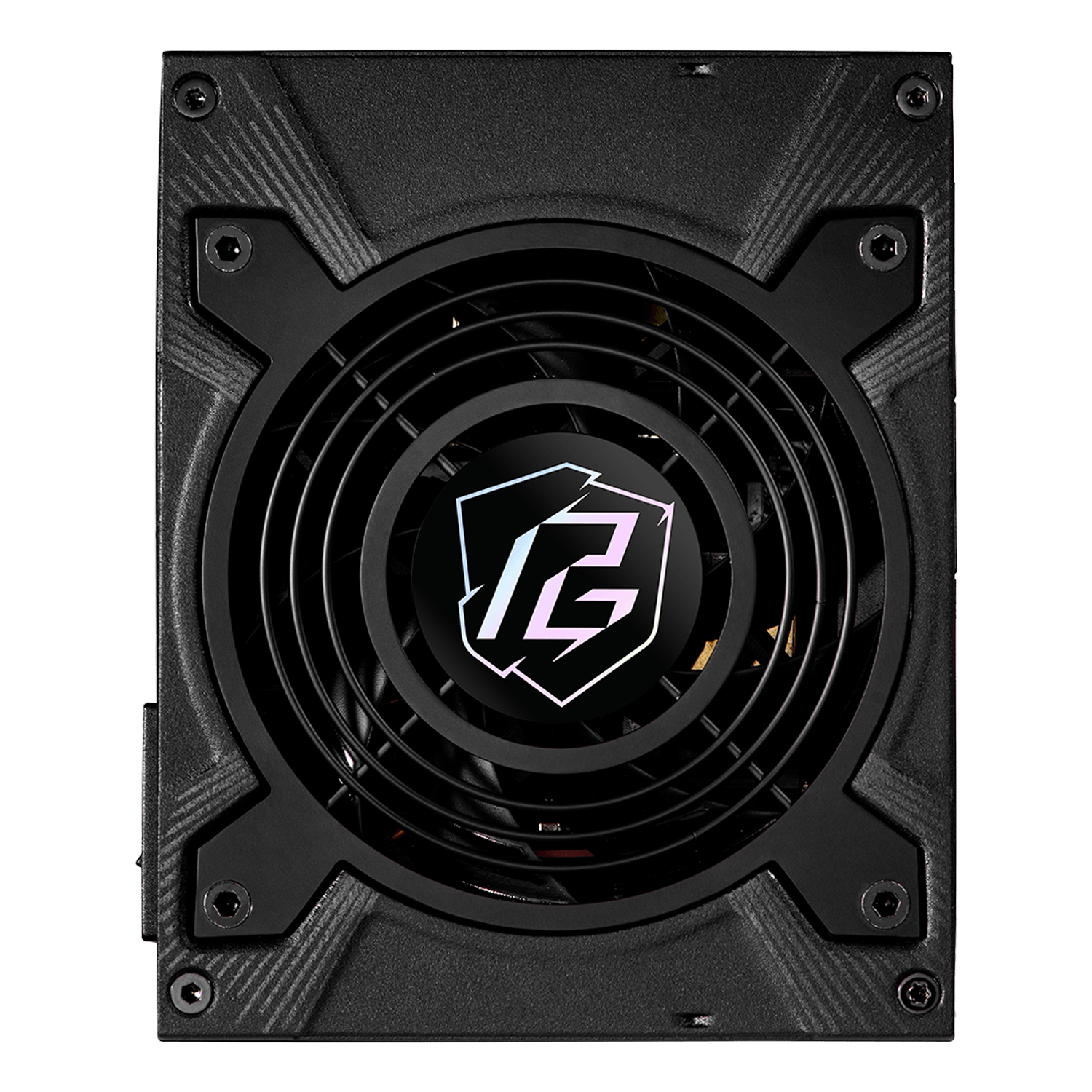

- 92mm Striped Axial FDB Fan
- Auto iCool Intelligent Fan Control
- Built-in 5V BOOST function
- Remarkable 10-Year Warranty
| 80 Plus Efficiency | - PLATINUM |
| Cybenetics (ETA/LAMBDA) | - PLATINUM / A |
| ATX 12V Version | - ATX 3.1 |

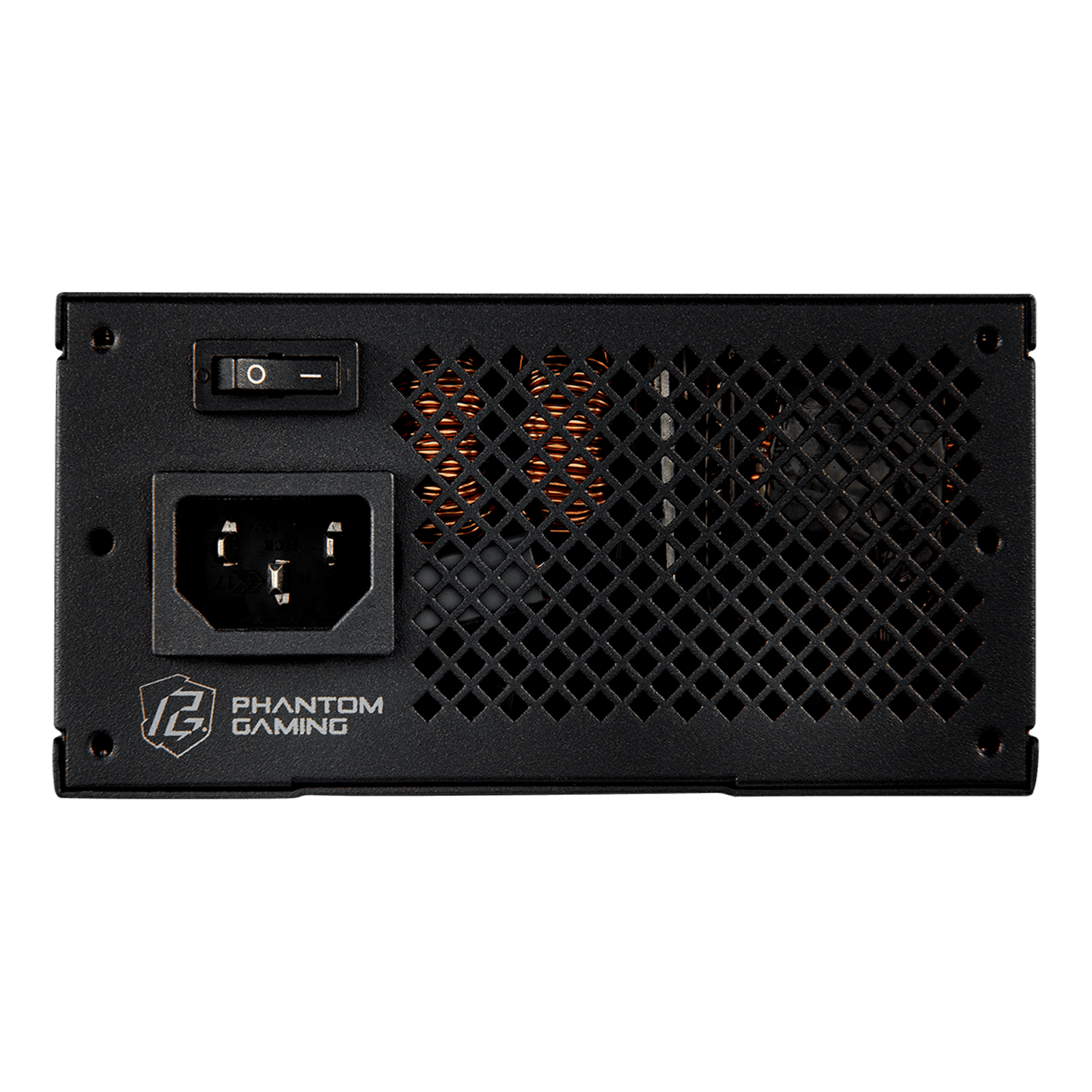

| AC Input | - 100-240V~, 50-60Hz, 13-6A |
| Continuous 12V output | - 83.4A |
| Warranty (Years) | - 10 |
| Dimensions(L x W x H) | - 100mm x 125mm x 63.5mm |
| Fan | - 92mm Fluid Dynamic Bearing Fan |
| iCOOL MODE | - Yes (Auto) |
| Protections | - OCP, SCP, OVP, UVP, OTP, OPP |
| Capacitors | - All Japanese |
| 5V BOOST | - Yes (Built-in) |
| PCIe 5.1 Cable TempGuard | - Yes |
| Total Power Excursion | - 235% |
| MTBF (Hours)@25°C | - 100,000 |

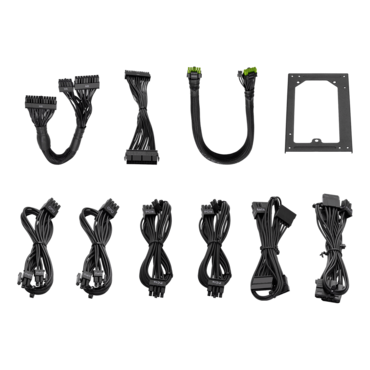

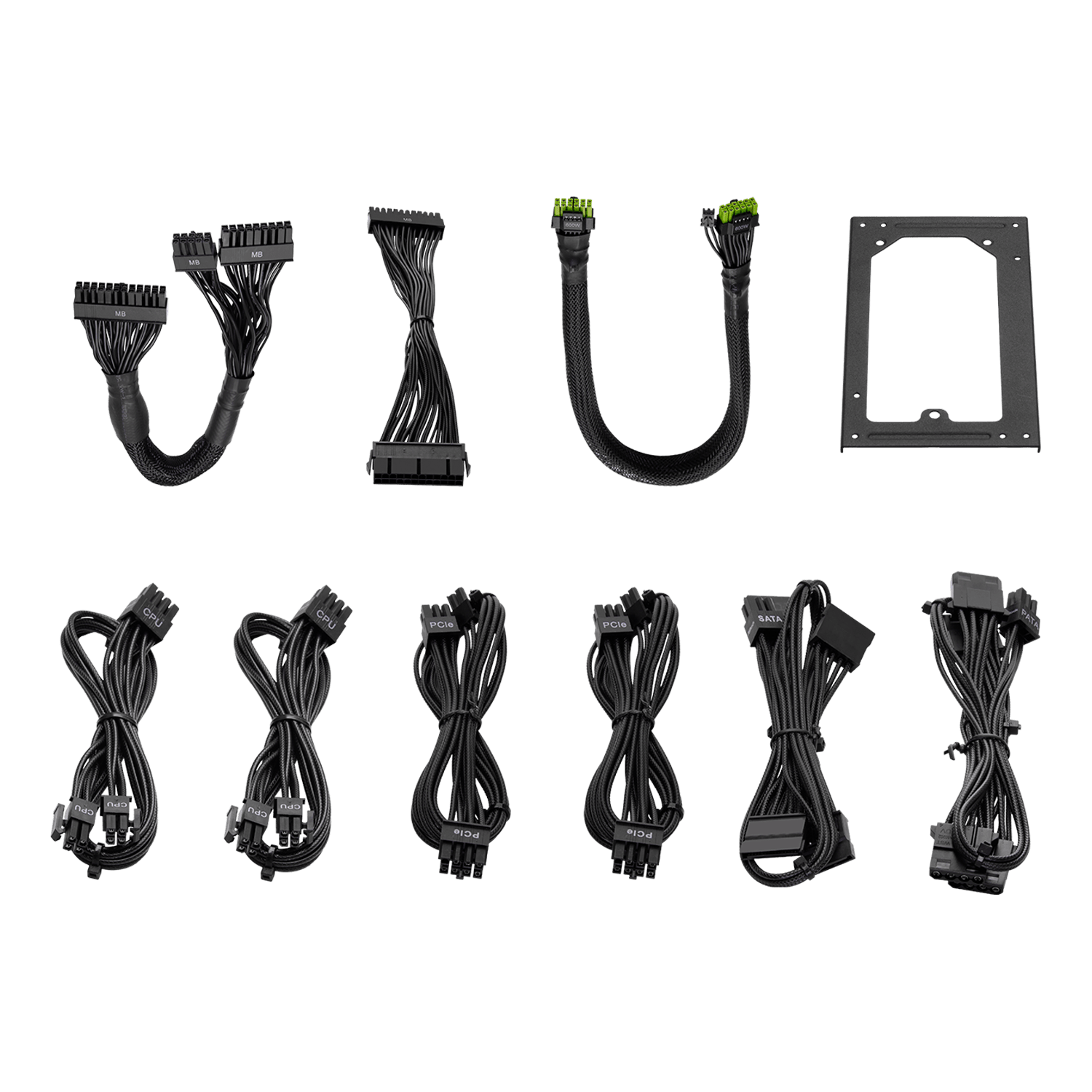

| Cable Type | - 24pin & 12+4pin: Sleeved - Others: Individual Braided Pattern |
| Motherboard cable (24pin) | - 1 |
| EPS 12V CPU connectors (4+4pin) | - 2 |
| PCIe5.1 connectors(12+4pin) Dual Color | - 1 |
| PCIe connectors (6+2pin) | - 2 |
| 4-pin Peripheral connectors | - 4 |
| 24-pin Extension cable | - 1 |
| SATA 5-pin connectors | - 4 |
