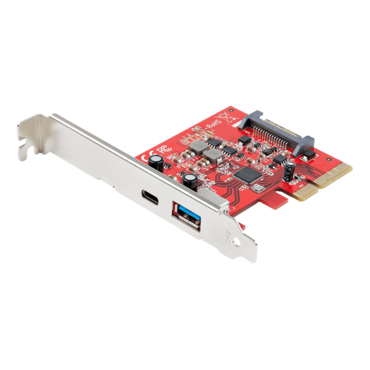

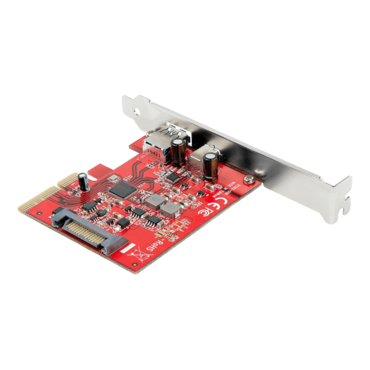

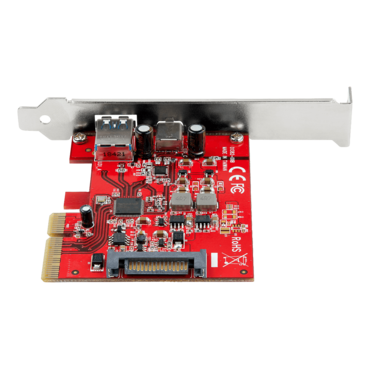

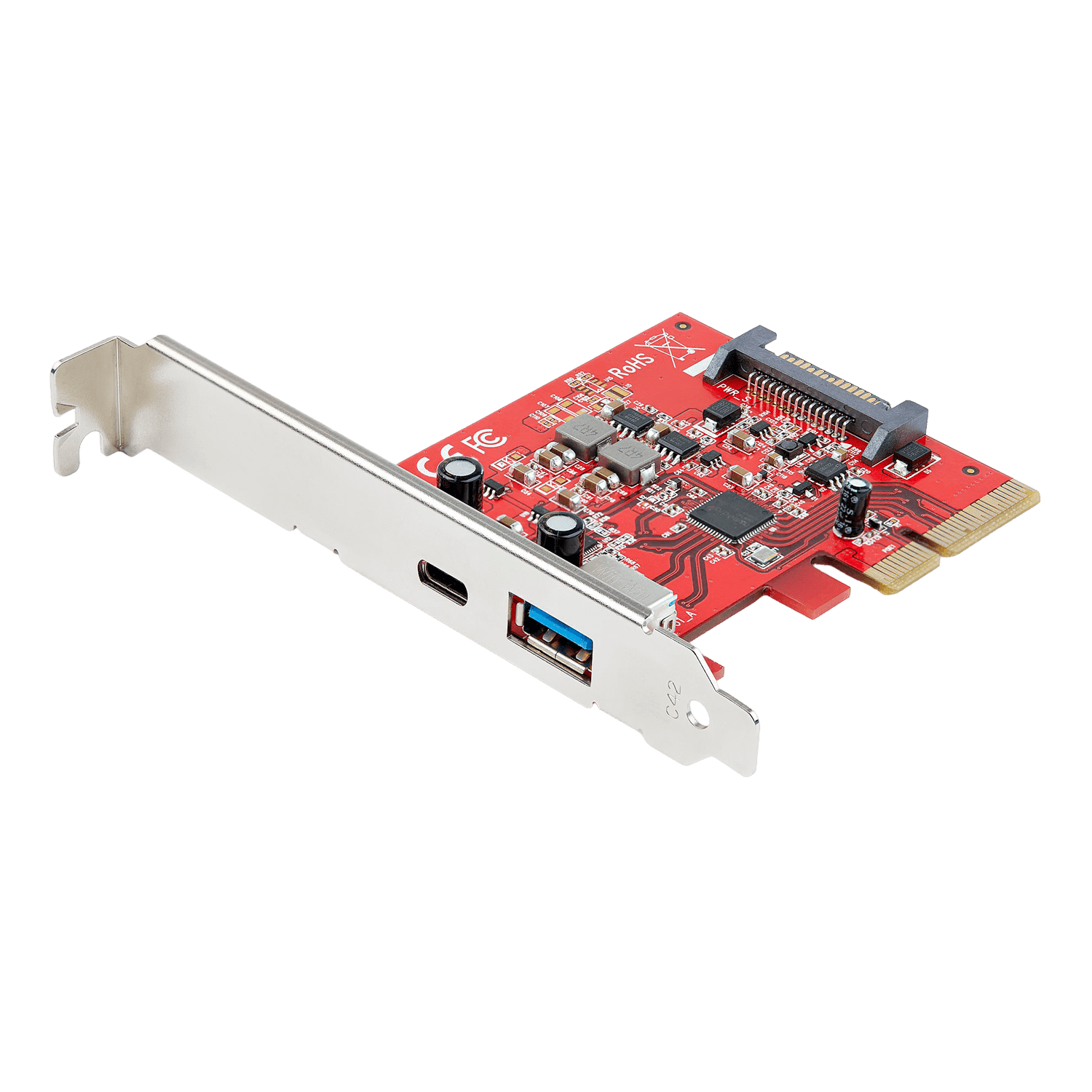

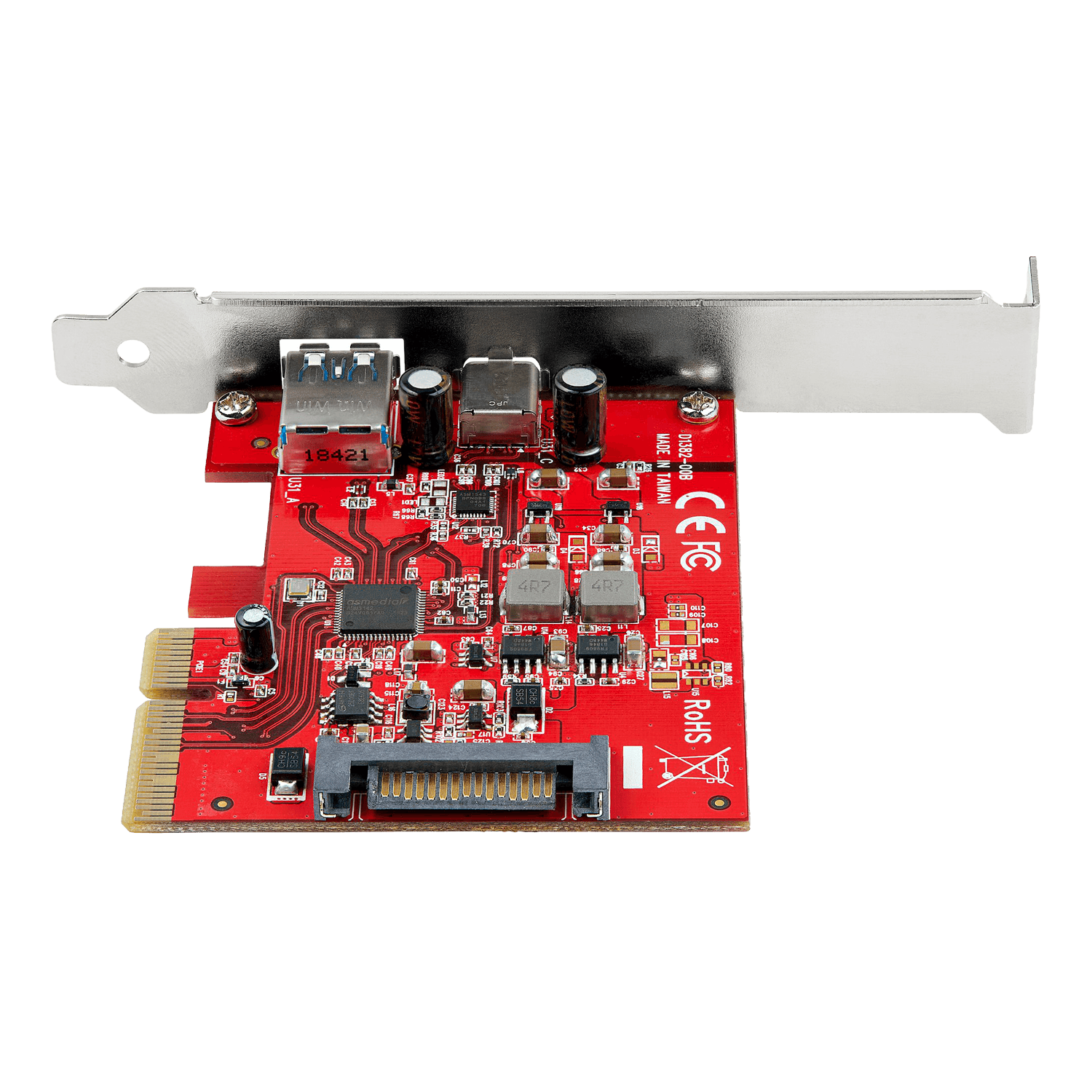

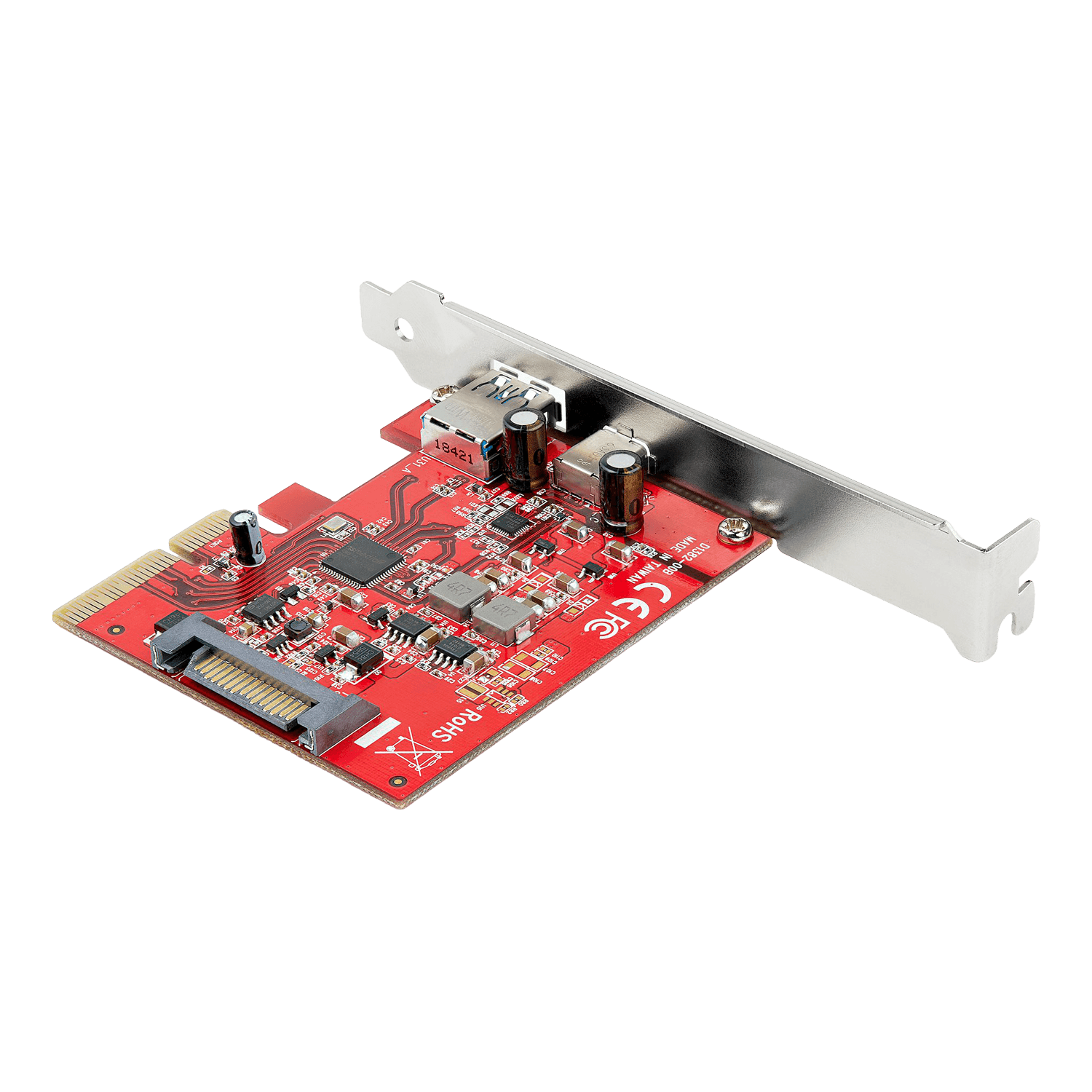

PEXUSB311AC3, 1 x USB 3.2 Type-C/1 x USB 3.2 Type-A Connector to PCI Express 3.0 x4 Add-On Card
- SKU: 13443309
- Manufacturer: STARTECH.COM
- MPN: PEXUSB311AC3
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$48.94
| Warranty Information | |
| Warranty | 2 Years |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x4 |
| Internal Ports | 1 - SATA Power (15 pin) |
| External Ports |
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps) 1 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps) |
| Environmental | |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Humidity | 20~80% RH |
| Hardware | |
| Ports | 2 |
| Interface | PCI Express x4 |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Industry Standards |
USB 3.2 Specifications PCI Express Base 3.0 Specifications Intel xHCI Specification Rev. 1.1 |
| Chipset ID | ASMedia - ASM3142 |
| Packaging Information | |
| Package Height | 1.3 in [3.3 cm] |
| Package Length | 6.9 in [17.4 cm] |
| Shipping (Package) Weight | 4.3 oz [122.0 g] |
| Package Width | 5.6 in [14.3 cm] |
| Package Quantity | 1 |
| Performance | |
| Maximum Data Transfer Rate | 10Gbps |
| UASP Support | Yes |
| Type and Rate | USB 3.2 Gen 2 - 10 Gbit/s |
| MTBF | 2,684,396 Hours |
| Physical Characteristics | |
| Color | Red |
| Product Height | 0.8 in [2.1 cm] |
| Product Length | 4.7 in [12.0 cm] |
| Weight of Product | 1.7 oz [48.0 g] |
| Product Width | 3.2 in [8.1 cm] |
| Material | Steel |
| Software | |
| OS Compatibility |
Windows® 7, 8, 8.1, 10, 11 Windows Server® 2008 R2, 2012, 2016, 2019, 2022 Linux® 3.5 and up - LTS Versions only macOS 26.1, 15, 14.0, 13.0, 12.0, 11.0, 10.15, 10.14, 10.13 |
| Microsoft WHQL Certified | Yes |
| Special Notes / Requirements | |
| System and Cable Requirements |
PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16) Optional SATA power connector |
| Note |
The card's USB-C port is a standard data throughput port. It does not support DP Alt Mode or USB Power
Delivery The maximum throughput of this card is limited by the bus interface |
| What's in the Box | |

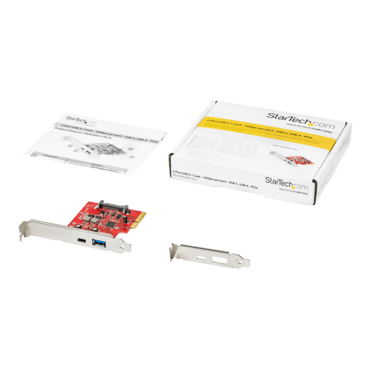

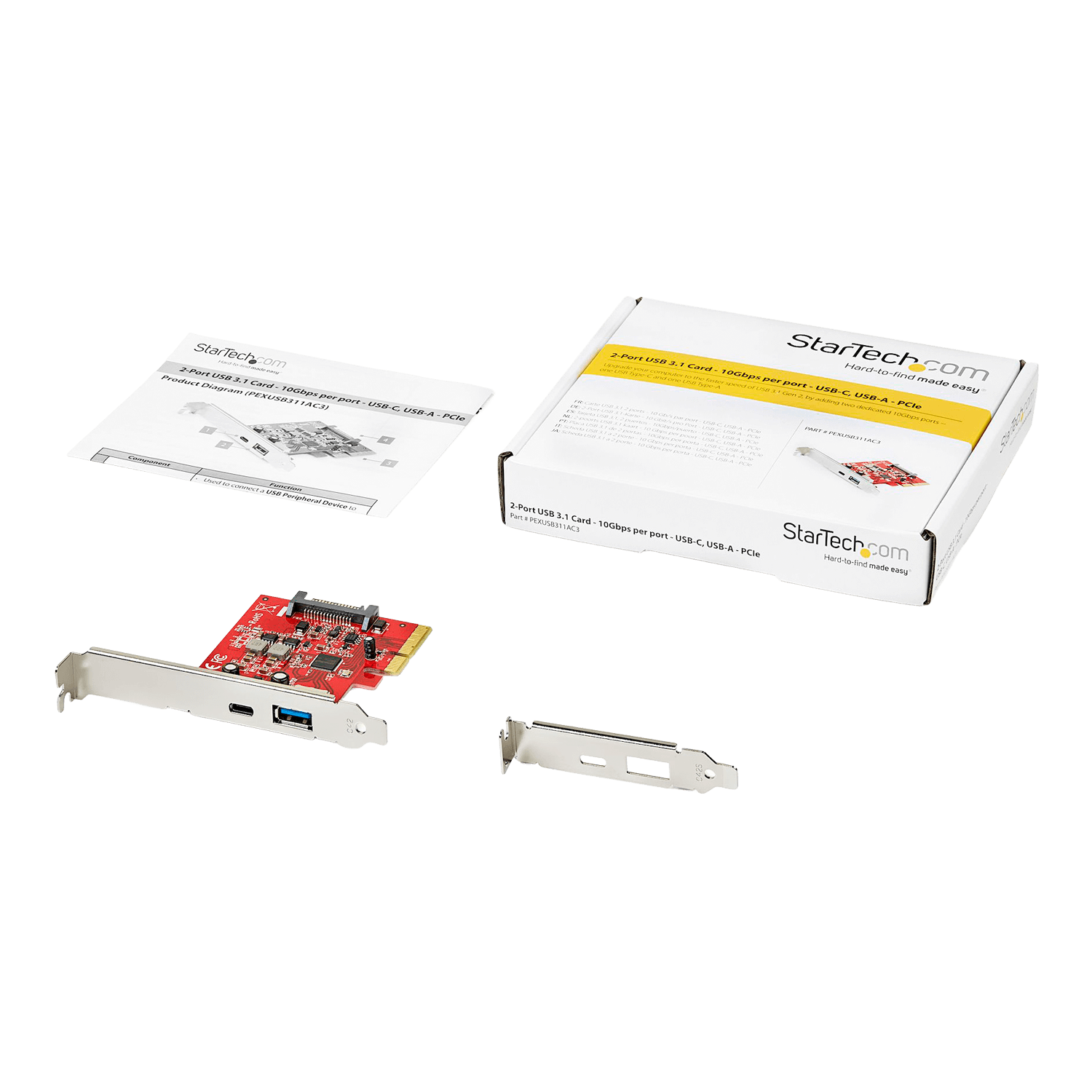

| Included in Package |
1 - USB 3.1 Card 1 - Full Profile Bracket (Installed) 1 - Low Profile Bracket 1 - Quick-Start Guide |
