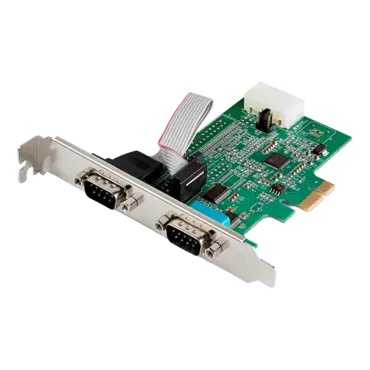

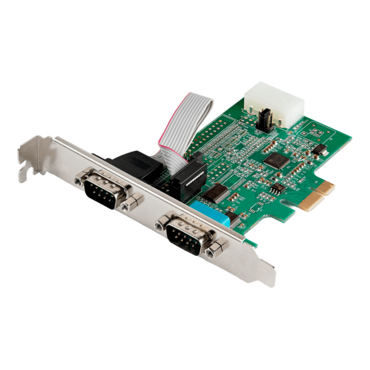

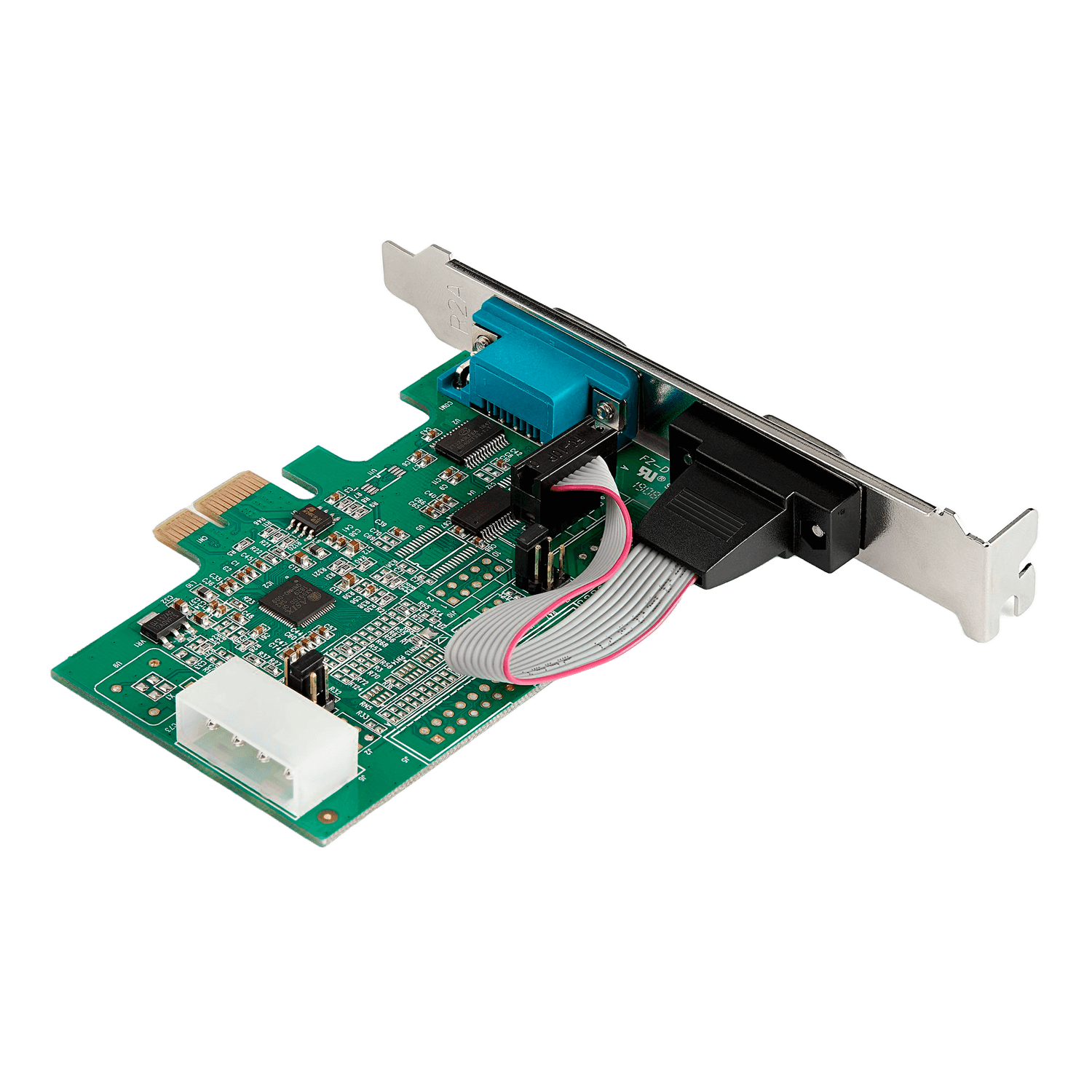

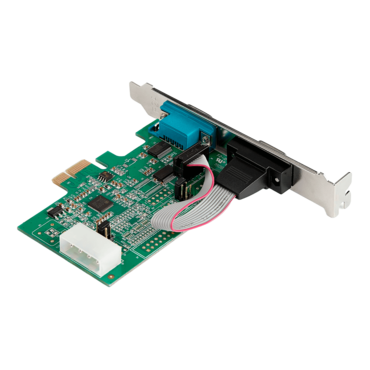

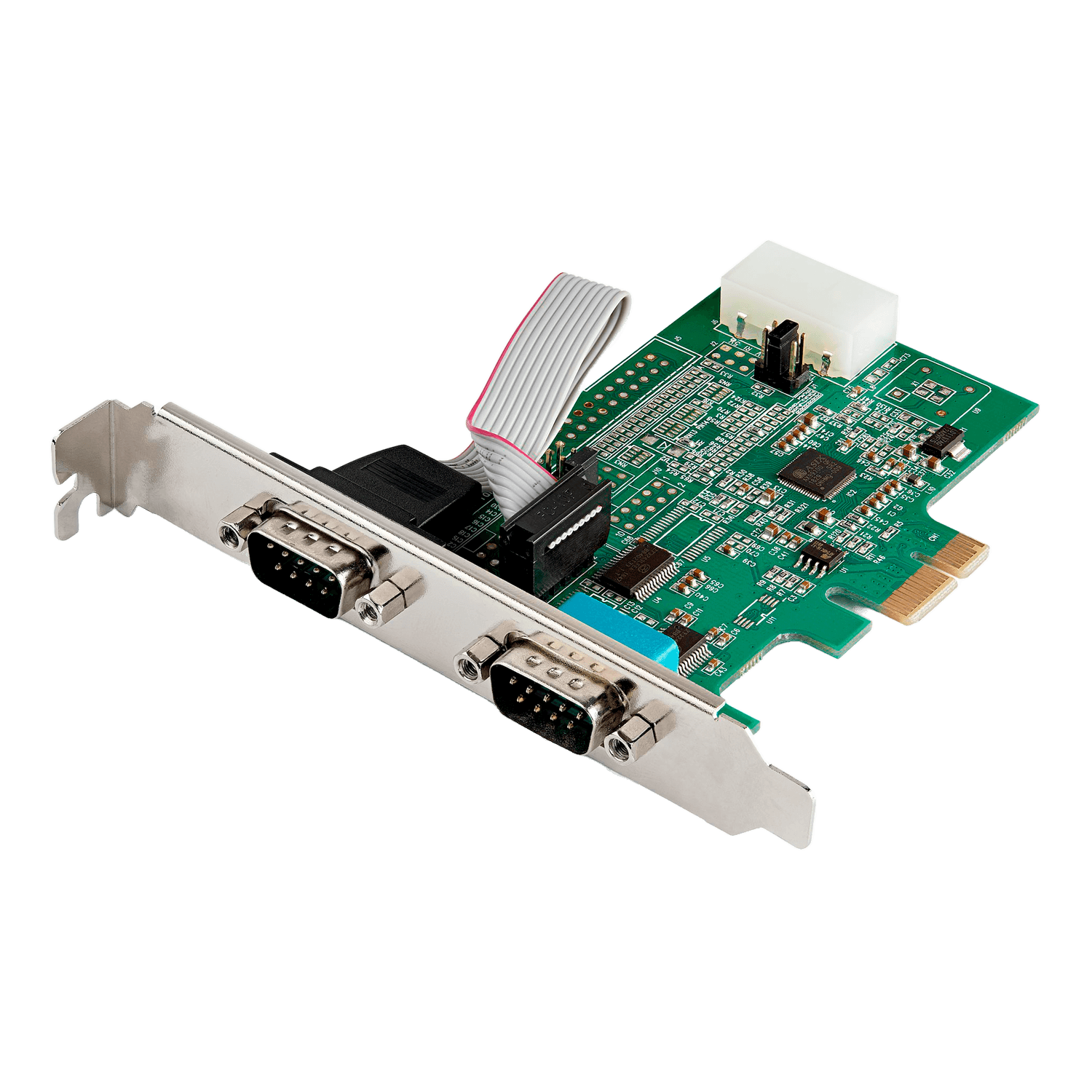

PEX2S953, Dual-Serial Port / RS-232 PCIe Card - TAA Compliant
- SKU: 13267214
- Manufacturer: STARTECH.COM
- MPN: PEX2S953
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$50.48
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 |
| Internal Ports | 1 - LP4 (4 pin; Large Drive Power) |
| External Ports | 2 - DB-9 (9 pin, D-Sub) |
| Environmental | |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) |
| Humidity | 5~85% RH |
| Hardware | |
| Ports | 2 |
| Interface | Serial |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Port Style | Integrated on Card |
| Chipset ID | Asix AX99100 |
| Packaging Information | |
| Package Height | 1.2 in [3.0 cm] |
| Package Length | 6.7 in [17.0 cm] |
| Shipping (Package) Weight | 4.7 oz [134.0 g] |
| Package Width | 5.7 in [14.4 cm] |
| Package Quantity | 1 |
| Performance | |
| Serial Protocol | RS-232 |
| Max Baud Rate | 921.6 Kbps |
| Data Bits | 5, 6, 7, 8, 9 |
| FIFO | 256 Bytes |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Parity | None, Odd, Even, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| MTBF | 1,712,904 hours |
| Physical Characteristics | |
| Product Height | 0.6 in [1.5 cm] |
| Product Length | 3.0 in [7.5 cm] |
| Weight of Product | 2.0 oz [56.0 g] |
| Product Width | 2.5 in [6.3 cm] |
| Color | Green |
| Material | Steel |
| Power | |
| Input Voltage | 12V DC |
| Output Voltage | 12V DC |
| Software | |
| OS Compatibility |
Windows® 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 Linux 2.4.x and up - LTS Versions only |
| Microsoft WHQL Certified | Yes |
| Special Notes / Requirements | |
| Note | Selectable power output on pin 9 of the serial port |
| What's in the Box | |
| Included in Package | 1 - Two Port Serial Card 2 - Low Profile Bracket 1 - Quick Start Guide |
