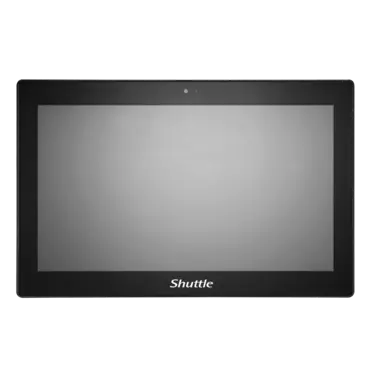

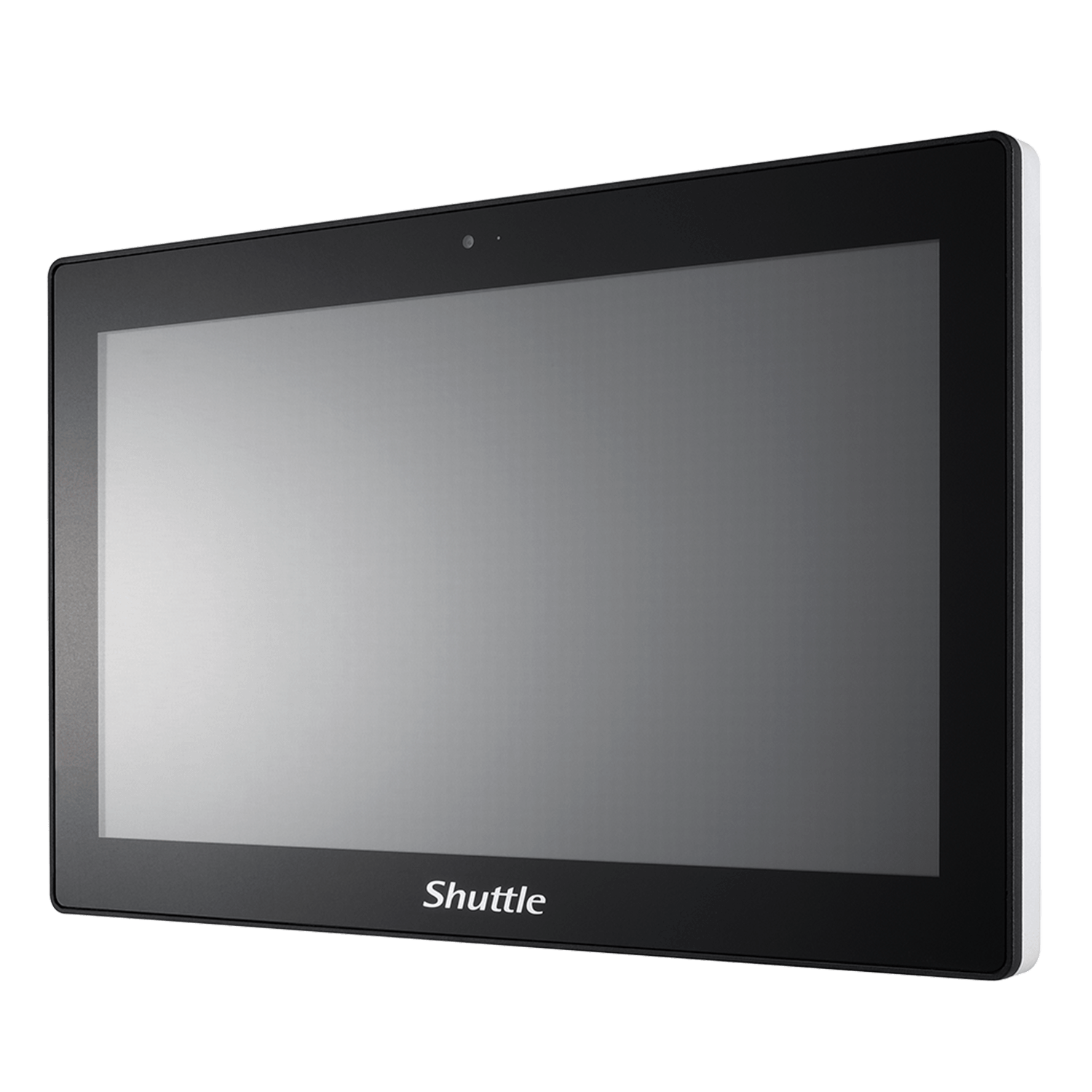

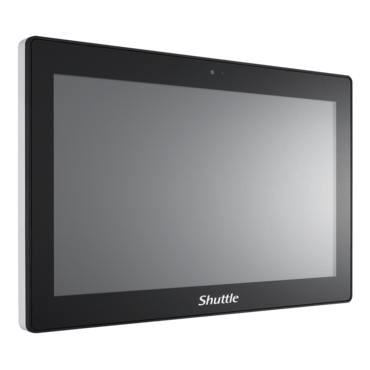

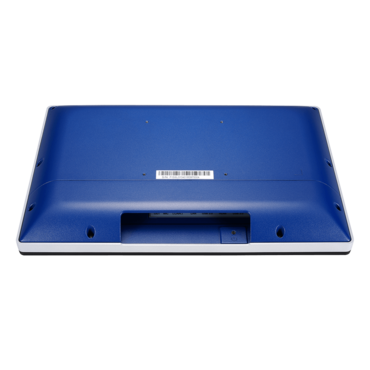

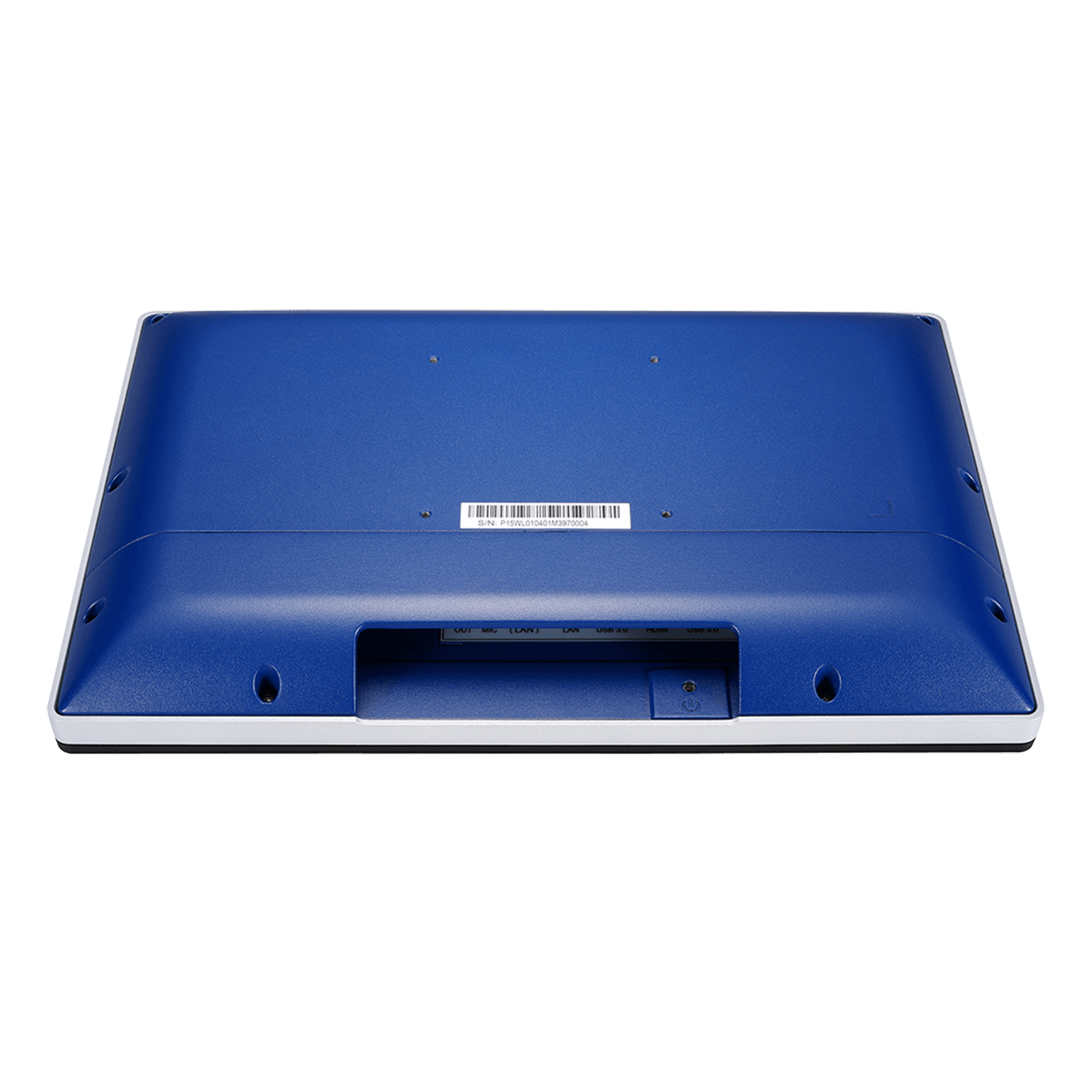

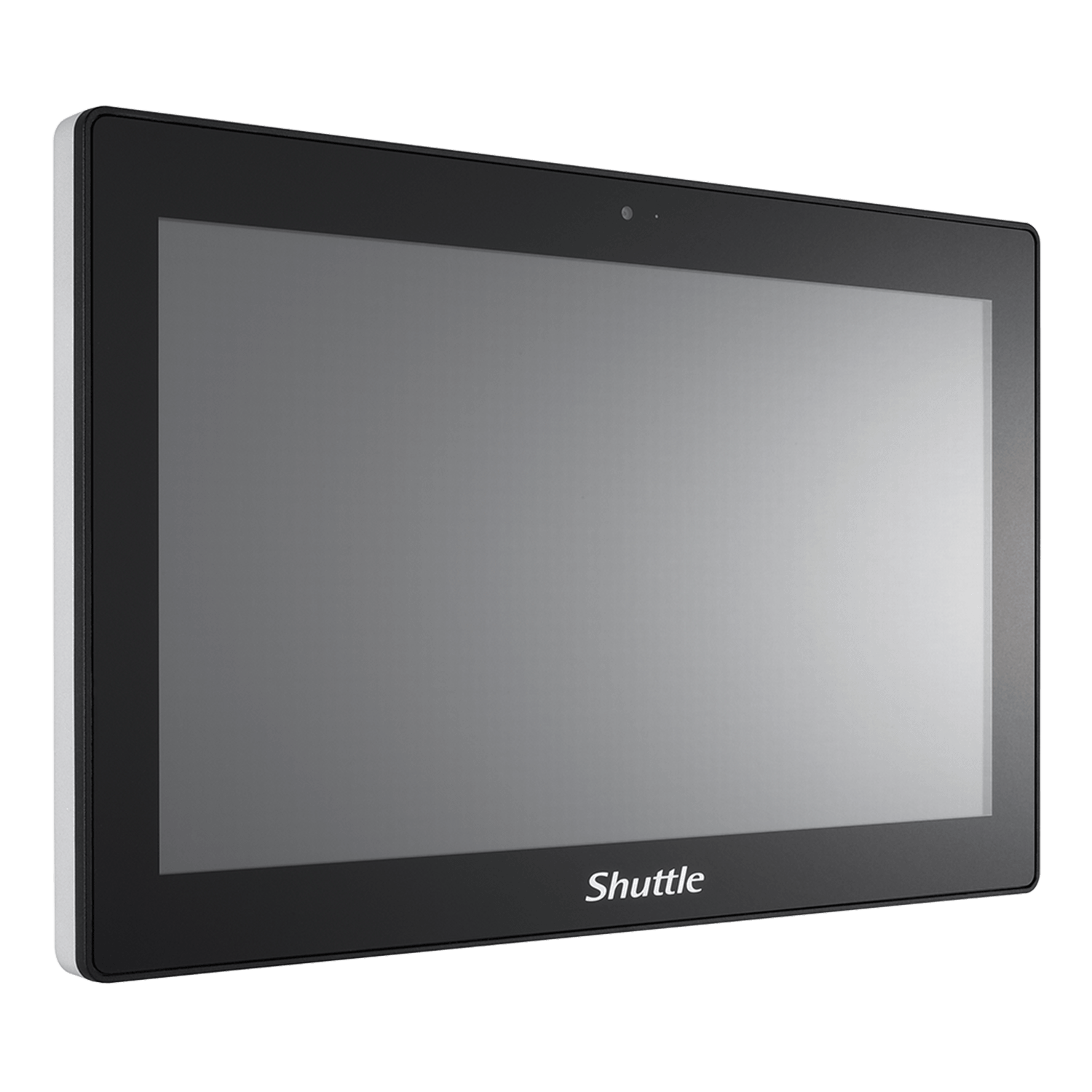

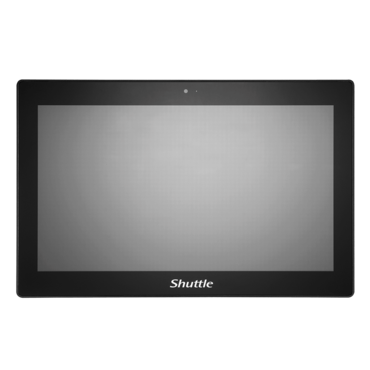

P15WL01UE5 Fanless Panel PC, TAA Compliant, 15.6" Full HD, Intel® Core™ i5-8365UE, IP65, VESA, vPro
- SKU: 19941522
- Manufacturer: SHUTTLE
- MPN: P15WL01UE5
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$1,465.99
| System | |
|---|---|
| Processor | 8th Gen. Intel® Whiskey Lake Core i5-8365UE |
| Memory | 2 x 260 pin SO-DIMM up to 64GB Dual Channel DDR4 2400MHz |
| Display and Touch Screen | |
| Display | 15.6” 1920x1080 Full HD LED with 10-Point Capacitive Multi-Touch |
| Brightness | default 350nits |
| Graphics | |
| Chipset | Intel® UHD Graphics |
| Display Interface |
Supports two independent displays 1 x HDMI 1.4b: (4K / 30fps) 1 x VGA (optiona? board) 1 x DVI-I: 1920 x 1080@60Hz (optional board) |
| Storage | |
| Storage |
1 x M.2 2280, M key (PCIe x4 or SATA, either one) Option: 1 x M.2 2280, M key, SSD SATA I/F, Fixed design |
| Audio | |
| Audio Codec | Realtek ALC6662 |
| Network | |
| Ethernet | 1 x RJ-45 Lan Intel® Gigabit Ethernet 1 x RJ-45 2nd Lan (optional) |
| WLAN | 1 x M.2 2230, M key with Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 5.0 with 2 internal antenna (default) / external antenna (optional) |

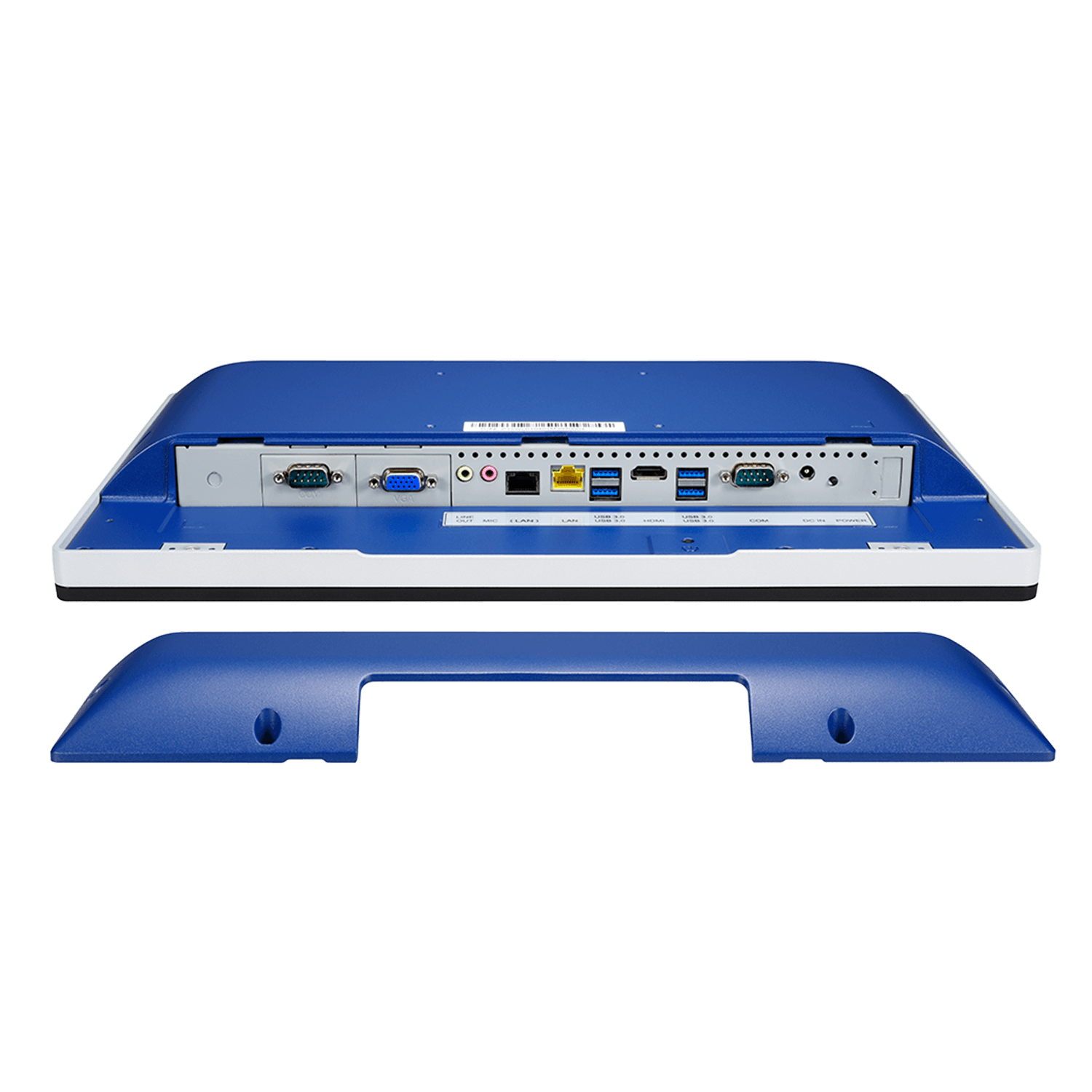

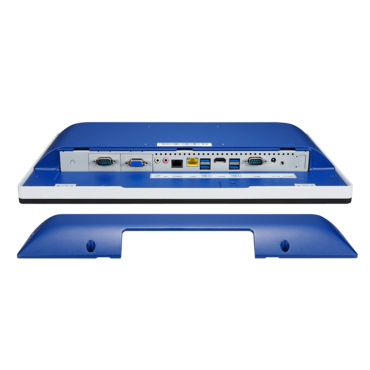

| I/O Interface | |
| LAN | 1 x RJ-45 Lan Gigabit Ethernet 1 x RJ-45 2nd Lan optional) |
| Serial Ports |
1 x RS-232 (DB-9) 1 x RS-232 (DB-9) (optional board) 2 x RS-232/422/485 (DB-9) (RS-232 with power supply: ring in/ 5V (standard) &12V (with specific optional board)) |
| USB | 4 x USB3.2 Gen 1 (Type A) 4 x USB2.0 (optional board) |
| Audio | 1 x Line-out 1 x Mic-in |
| Power | |
| Adapter | 19V/4.7A 90W extenal adapter |
| Power | 9-36V DC-in (Optional wide range board) |
| Watchdog Timer | |
| Watchdog Timer | 255 Sec. |
| OS Support | |
| OS Support | Windows 10/11 64bit Linux 64bit |
| Mechanism | |
| IP Rating | IP65 Front Panel Protection |
| Mounting | VESA Mount 100 x 100 mm |
| Dimension (WxHxD) | 394 x 256 x 48.9 mm |
| Weight | 4.6kg |
| Environment | |
| Operating Temperature | 0 ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Relative Humidity | 10% - 90% RH (non-condensing) |
| EMC | CE, FCC, CEC, BSMI |
| Safety | CB, cTUVus, BSMI |
| RF | EU, US, Taiwan |
