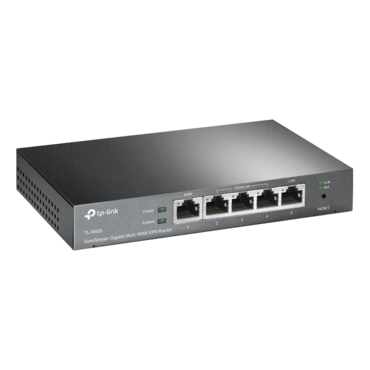

Omada Gigabit ER605 Multi-WAN Wired VPN Router
Quantity:
- SKU: 14454284
- Manufacturer: TP-LINK
- MPN: ER605
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$59.60
- Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Five Gigabit Ports: High-speed wired connectivity.
- Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
- Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
- Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
| HARDWARE FEATURES | |
| Standards and Protocols |
• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
|---|---|
| Interface |
• 1 Fixed Gigabit WAN Port • 1 Fixed Gigabit LAN Port • 3 Changeable Gigabit WAN/LAN Ports |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Button | Reset Button |
| Power Supply | External 9V/0.9A DC Adapter |
| Flash | SPI 16MB |
| DRAM | 128 MB |
| LED | PWR, SYS, WAN, LAN |
| Dimensions ( W x D x H ) |
6.2 × 4.0 × 1.0 in. (158 × 101 × 25mm) |
| PERFORMANCE | |
| Concurrent Session | 25,000 |
| IPsec VPN Throughput | 41.5 Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type |
• Static/Dynamic IP • PPPoE • PPTP • L2TP |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP |
• DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces* |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing |
• Static Routing • Policy Routing |
| Bandwidth Control |
• IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance |
• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection |
| NAT |
• One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security |
• SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN |
• 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2* • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) *These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller |
| PPTP VPN |
• PPTP VPN Server • 10 PPTP VPN Clients • 16 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN |
• L2TP VPN Server • 10 L2TP VPN Clients • 16 Tunnels • L2TP over IPSec |
| OpenVPN |
• OpenVPN Server* • 10 OpenVPN Clients* • 16 OpenVPN Tunnels* |
| SECURITY | |
| Filtering |
WEB Group Filtering§ URL Filtering Web Security§ |
| ARP Inspection |
• Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ |
| Attack Defense |
• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
| Web Authentication |
• No Authentication • Simple Password* • Hotspot(Local User / Voucher* / SMS* / Radius*) • External Radius Sever • External Portal Sever* • Facebook* |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management |
• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance |
• Time Setting • Diagnostic • Firmware Upgrade • Factory Defaults/Reboot • Backup&Restore • System Log • Remote Management • Statistics • Controller Settings • SNMP |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features |
• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)** |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents |
• Gigabti VPN Router ER605 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
| Environment |
• Operating Temperature: 0–40 °C (32–104 ?); • Storage Temperature: -40–70 °C (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
|
*These functions requires the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller † LAN MAC Address can be modified only in Standalone Mode. § These functions are supported only in Standalone Mode. ?For OpenVPN: When set up as a VPN server, each WAN port can connect with up to 10 VPN clients. At the same time, the ER605 can work as a VPN client to connect with up to 10 VPN servers. The total number of OpenVPN tunnels is limited to 16. **For PPTP and L2TP VPN: ER605 can work as a VPN client and can connect with up to 10 VPN servers. ***Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. |
|
