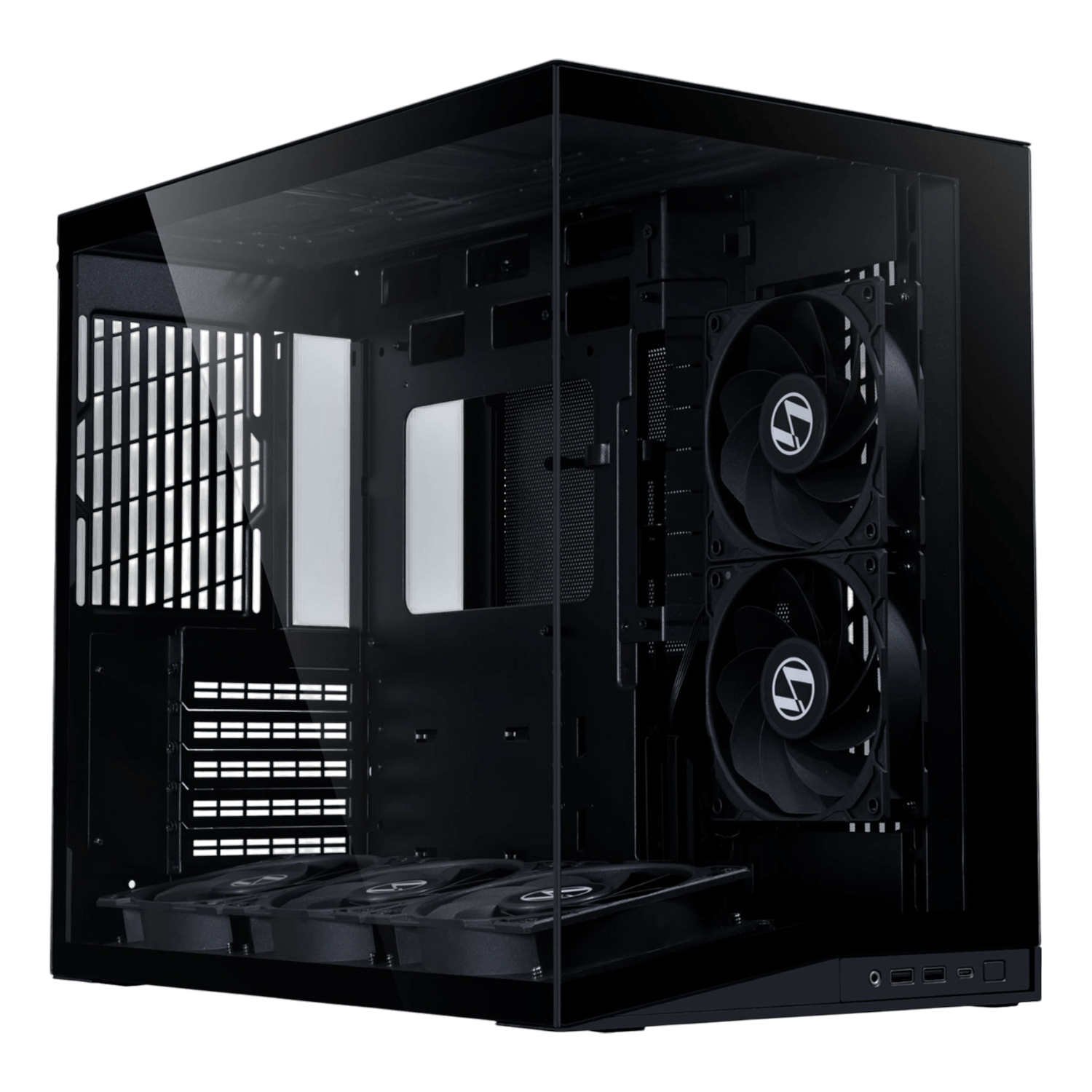

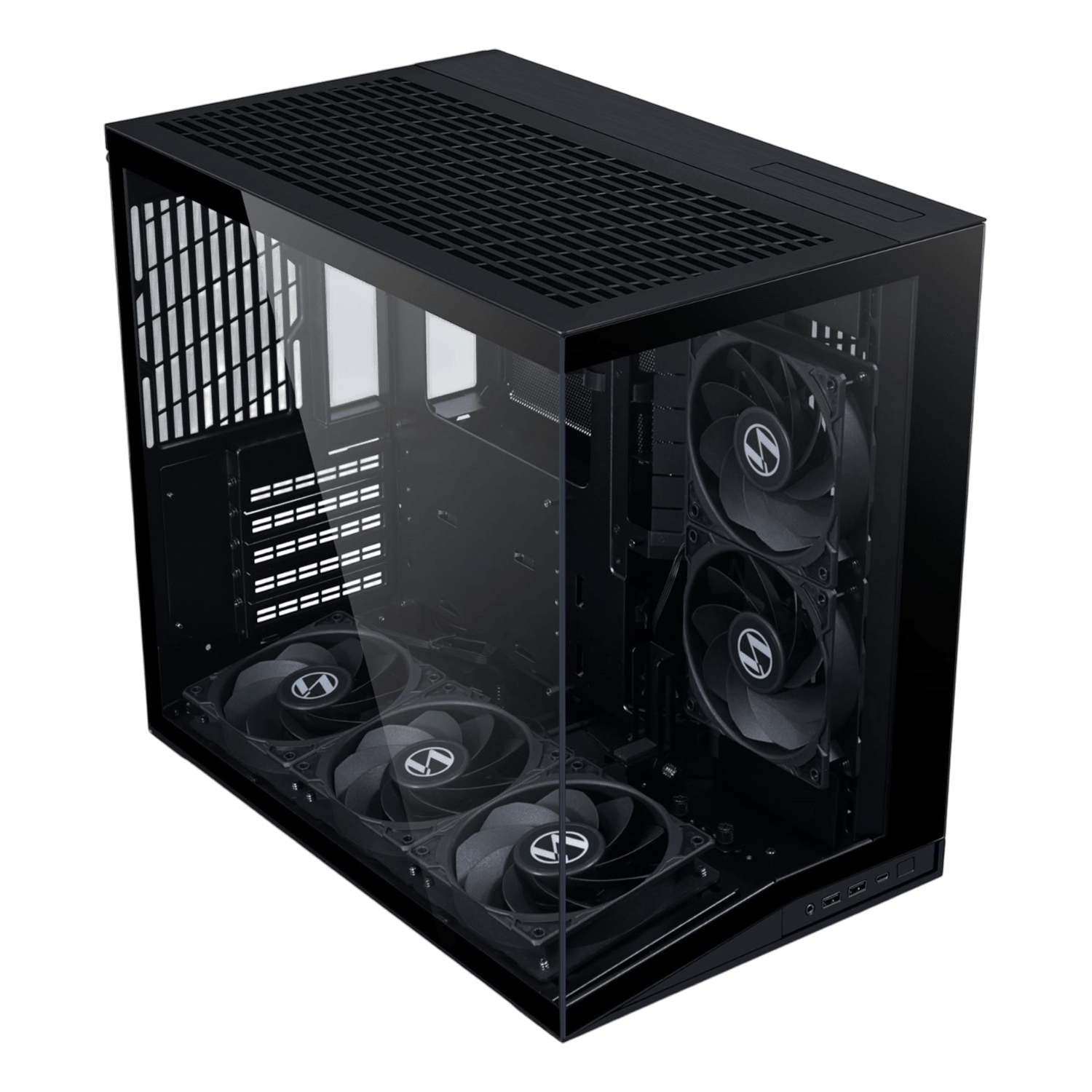

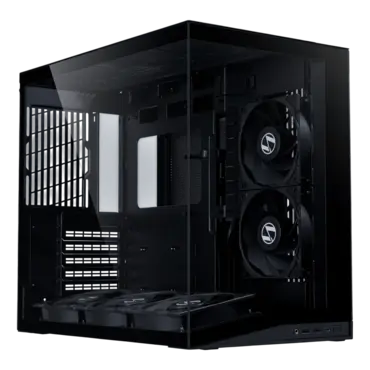

O11 DYNAMIC MINI V2 Flow, Tempered Glass, No PSU, ATX, Black, Mini Tower Case
- SKU: 19304432
- Manufacturer: LIAN LI
- MPN: O11DMIV2FX
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$141.23
- Precision resized 45.38L chassis offers expanded hardware support with a compact footprint
- Pillar-less tempered glass front and side panels for an unobstructed internal view
- 10° slanted bottom improves GPU airflow and aesthetic presentation
- Supports ATX, M-ATX, Mini-ITX, and ATX Back-Connect motherboards
- Accommodates 400mm long GPUs, 160mm tall CPU coolers, and ATX PSU (Under 200mm)
- Supports up to 360mm top radiator, 240mm side radiator, and 9 x 120mm fans
- Includes horizontal and vertical GPU anti-sag brackets for heavy GPU support
| Product Name | O11D MINI V2 Flow |
| Model No. | O11DMIV2FX |
| Color | Black |
| Dimensions | 423.6mm x 273.3mm x 391.95mm (D x W x H) |
| Materials | 2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass |
| Motherboard Support |
Back-Connect ATX ATX / Micro-ATX / Mini-ITX |
| Expansion Slot | 5 |
| Storage |
Drive Cage: 2.5” SSD x 2 or 3.5” HDD x 2 Behind MB Tray: 2.5” SSD x 2 |
| GPU Length Clearance | 400mm |
| CPU Cooler Height Clearance | 160mm |
| PSU Support | ATX (Under 200mm) |
| Radiator Support |
Top: 240mm / 280mm / 360mm (280mm requires motherboard to be mounted one slot lower) Side: 240mm |
| Fan Support |
Top: 120mm x 3 or 140mm x 2 Side: 120mm x 2 Bottom: 120mm x 3 Rear: 120mm x 1 |
| Included Fans |
Side: Reverse blade 120mm PWM fan x2 Bottom: Reverse blade 120mm PWM fan x3 |
| Dust Filter | Bottom x 1 |
| I/O Ports |
USB 3.0 x 2 USB 3.2 Type C x 1 Audio x 1 Power Button x 1 |
