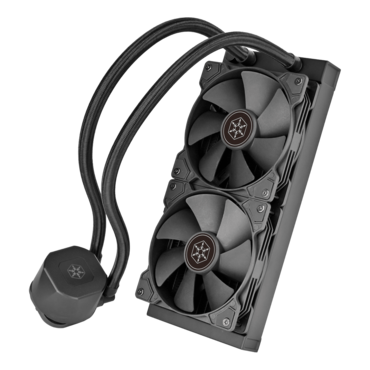

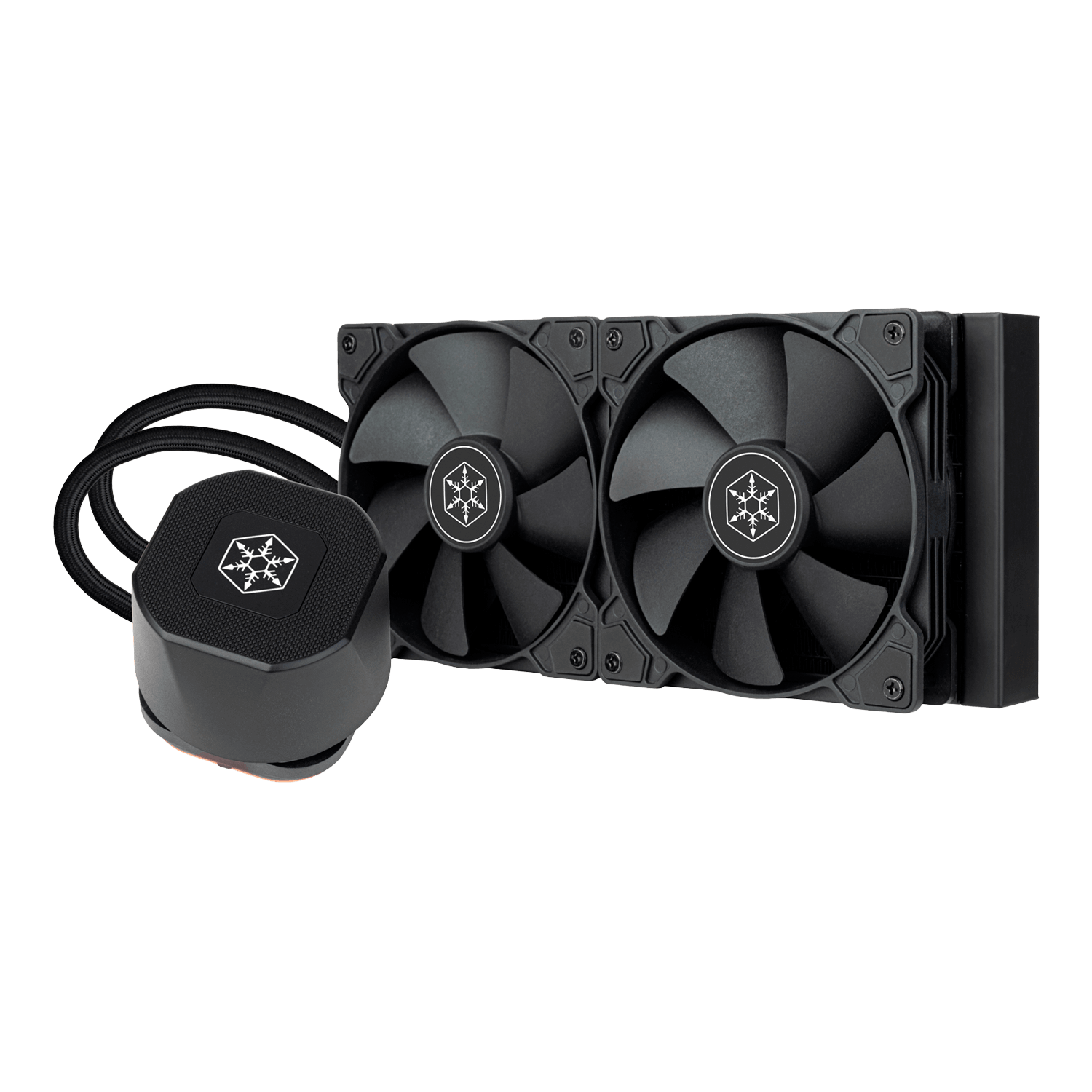

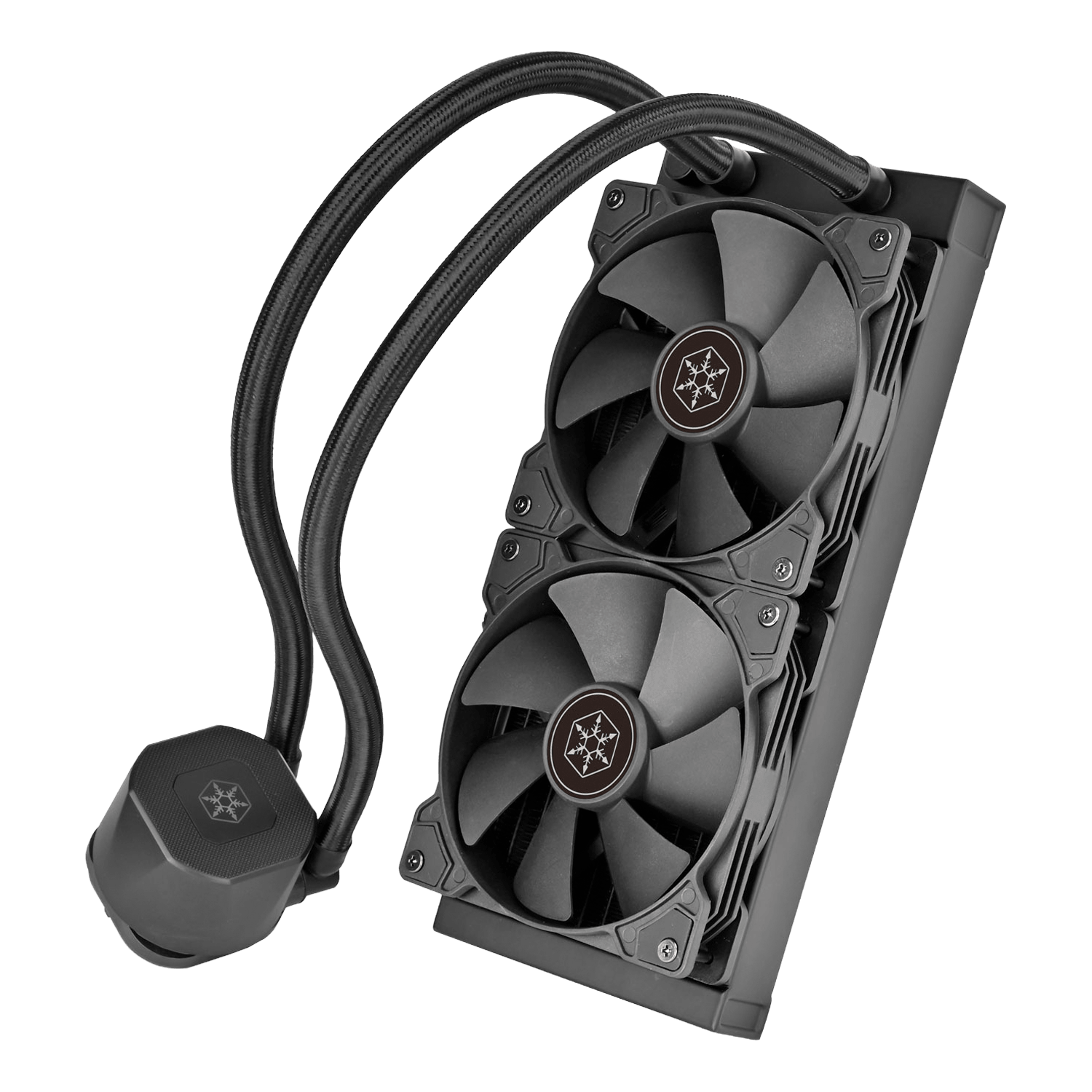

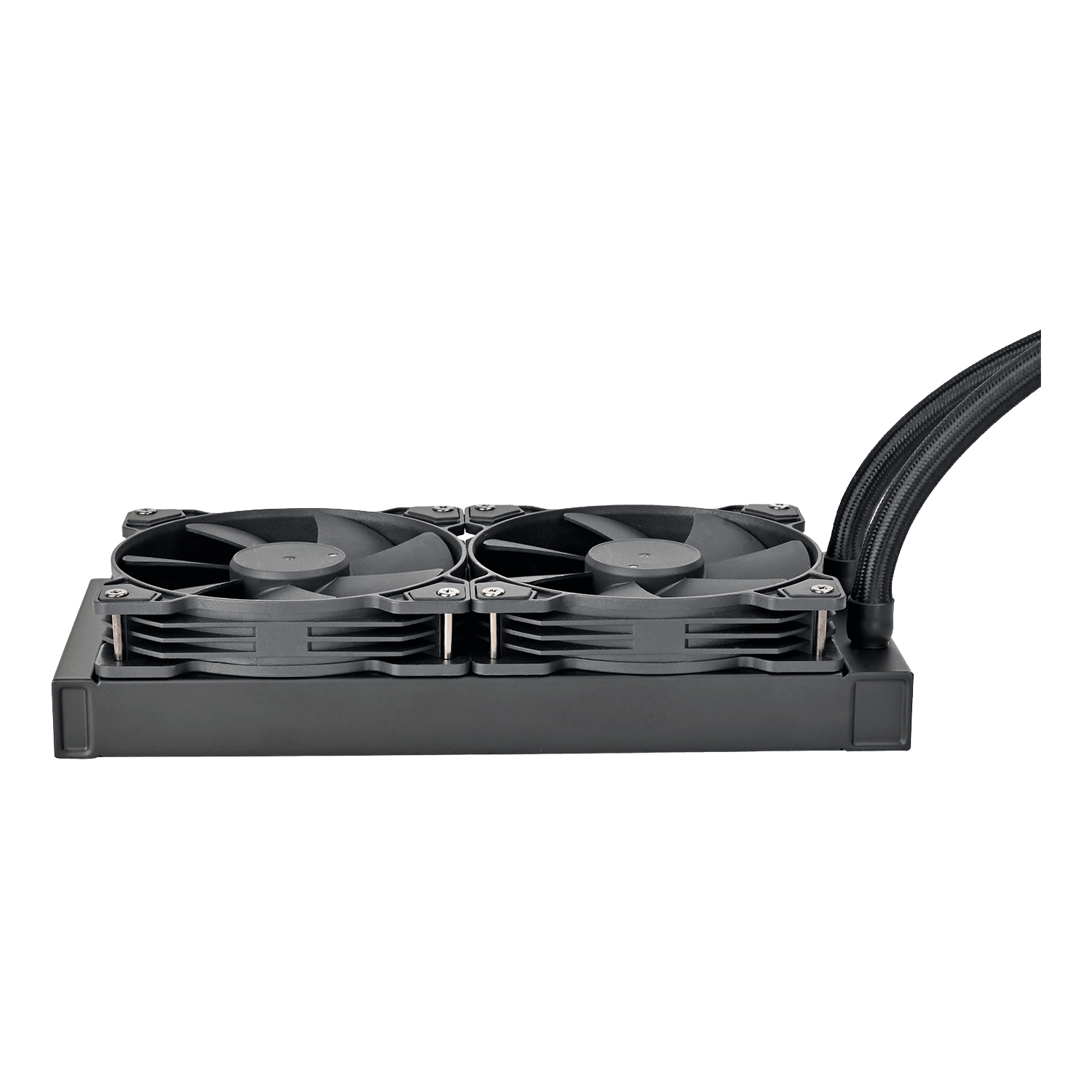

NovaPeak 240, 240mm Radiator, Liquid Cooling System
- SKU: 20110633
- Manufacturer: SILVERSTONE
- MPN: NP240B
- Availability: LOW STOCK

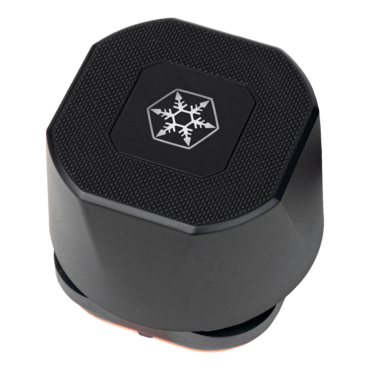

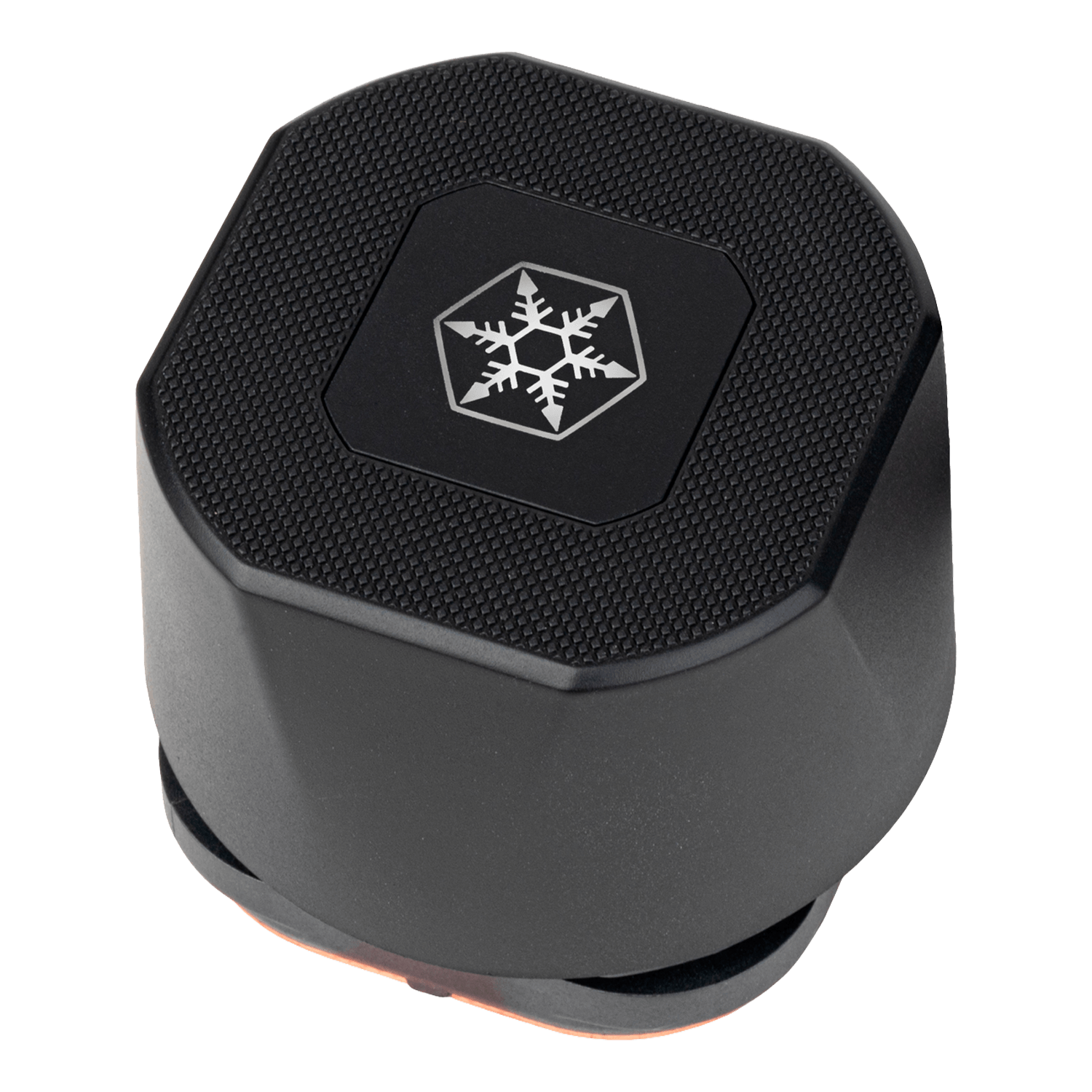

- All-black design with a single white LED indicator
- Dual-ball bearing PWM fan with sound dampening pads

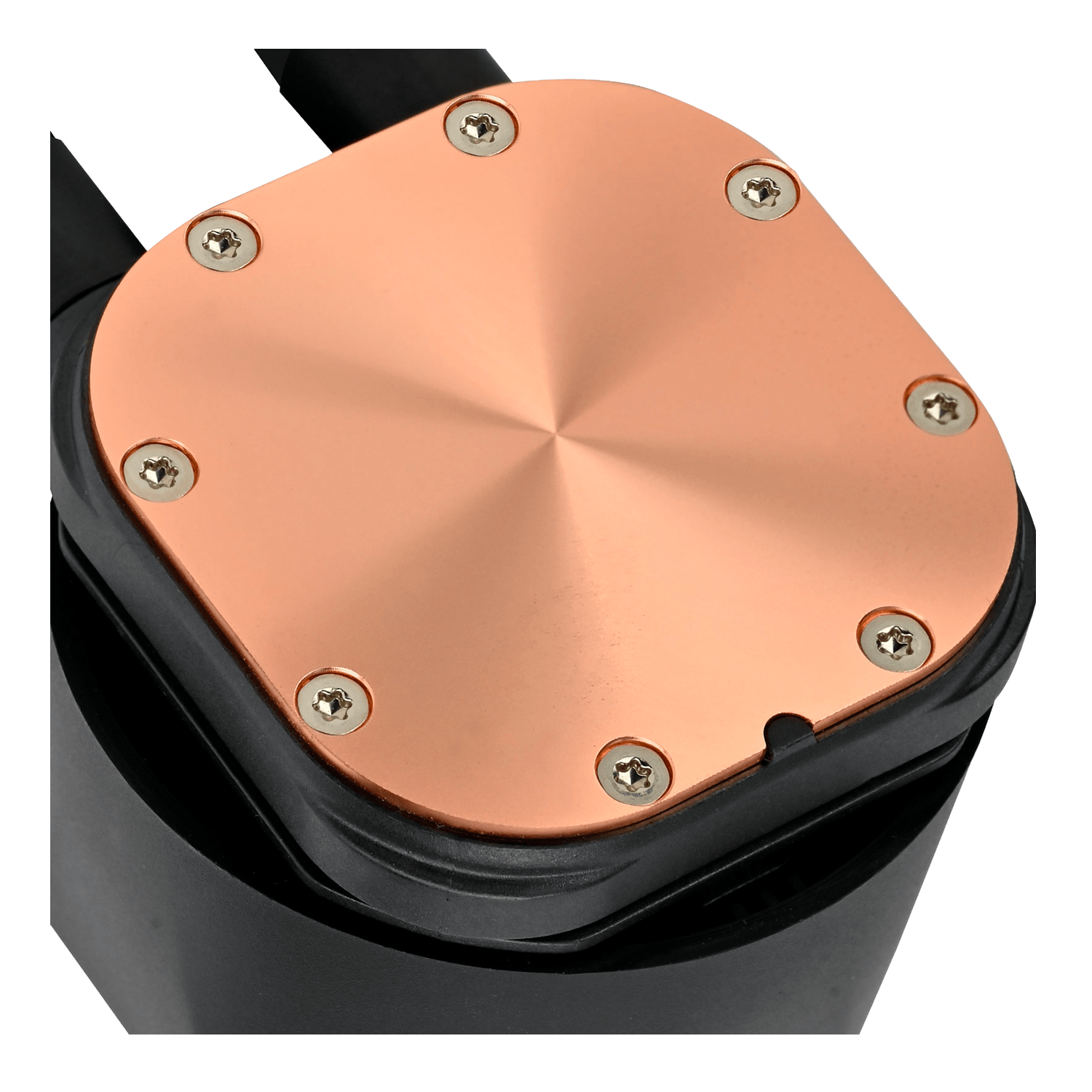

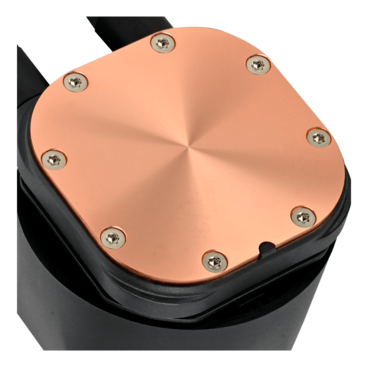

- A slightly convexed copper baseplate ensures firm contact with the processor
- Radiator-optimized cooling fans with tremendous airflow and static pressure figures
- Three-phase, six-pole motor design
| Model No. | SST-NP240B |
| Application | Intel LGA 115x/1200/1700/1851/2011/2066 AMD Socket AM5/AM4 |
| Water block | |
| Dimension | 67mm (W) x 54mm (H) x 81mm (D) 2.64" (W) x 2.13" (H) x 3.19" (D) |
| Material | Copper base with plastic body |
| Pump | |
| Motor speed | 3,100 ±10% RPM |
| Rated Voltage | Pump:12V |
| Rated Current | Pump:0.27A |
| Connectors | 3 Pin |

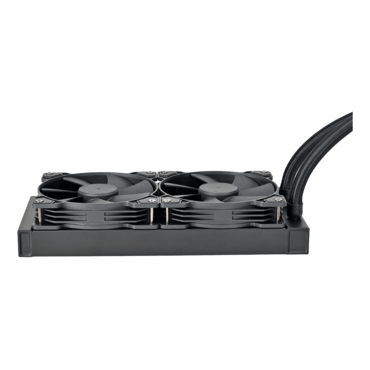

| Radiator | |
| Dimension | 120mm (W) x 28mm (H) x 277mm (D) 4.72" (W) x 1.1" (H) x 10.91" (D) |
| Material | Aluminum |
| Tube | |
| Length | 460mm |
| Material | Rubber |
| Fan | |
| Dimension | 120mm (W) x 25mm (H) x 120mm (D) 4.72" (W) x 0.98" (H) x 4.72" (D) |
| Speed | 600 ~ 2,200 RPM |
| Noise level | 35.1 dBA |
| Rated Voltage | 12V |
| Rated Current | 0.17A |
| Max airflow | 69.8 CFM |
| Max air pressure | 3.5mmH2O |
| Connector | 4 Pin PWM |
