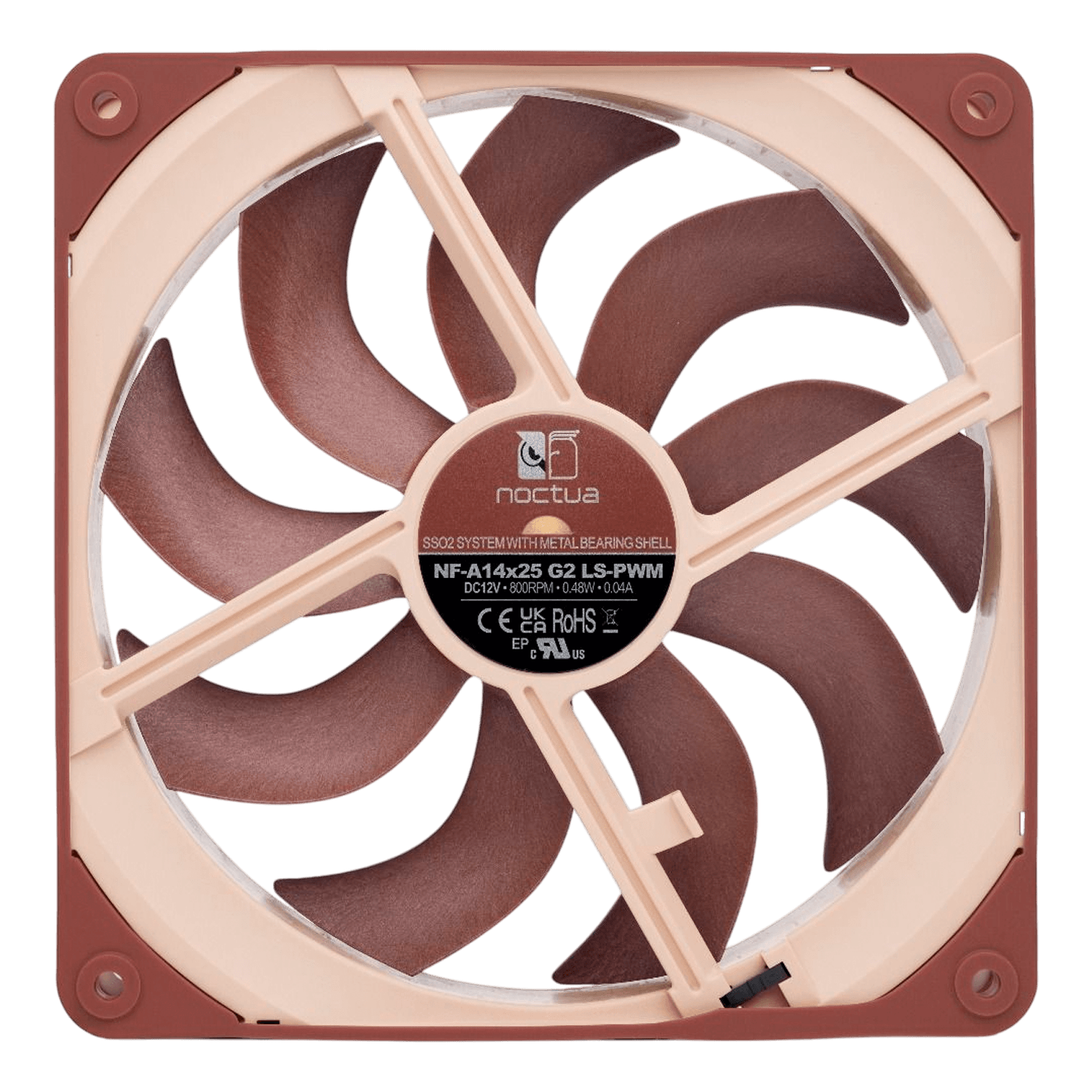

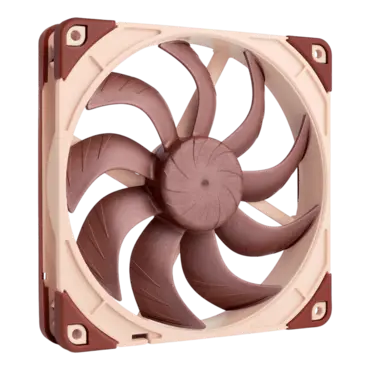

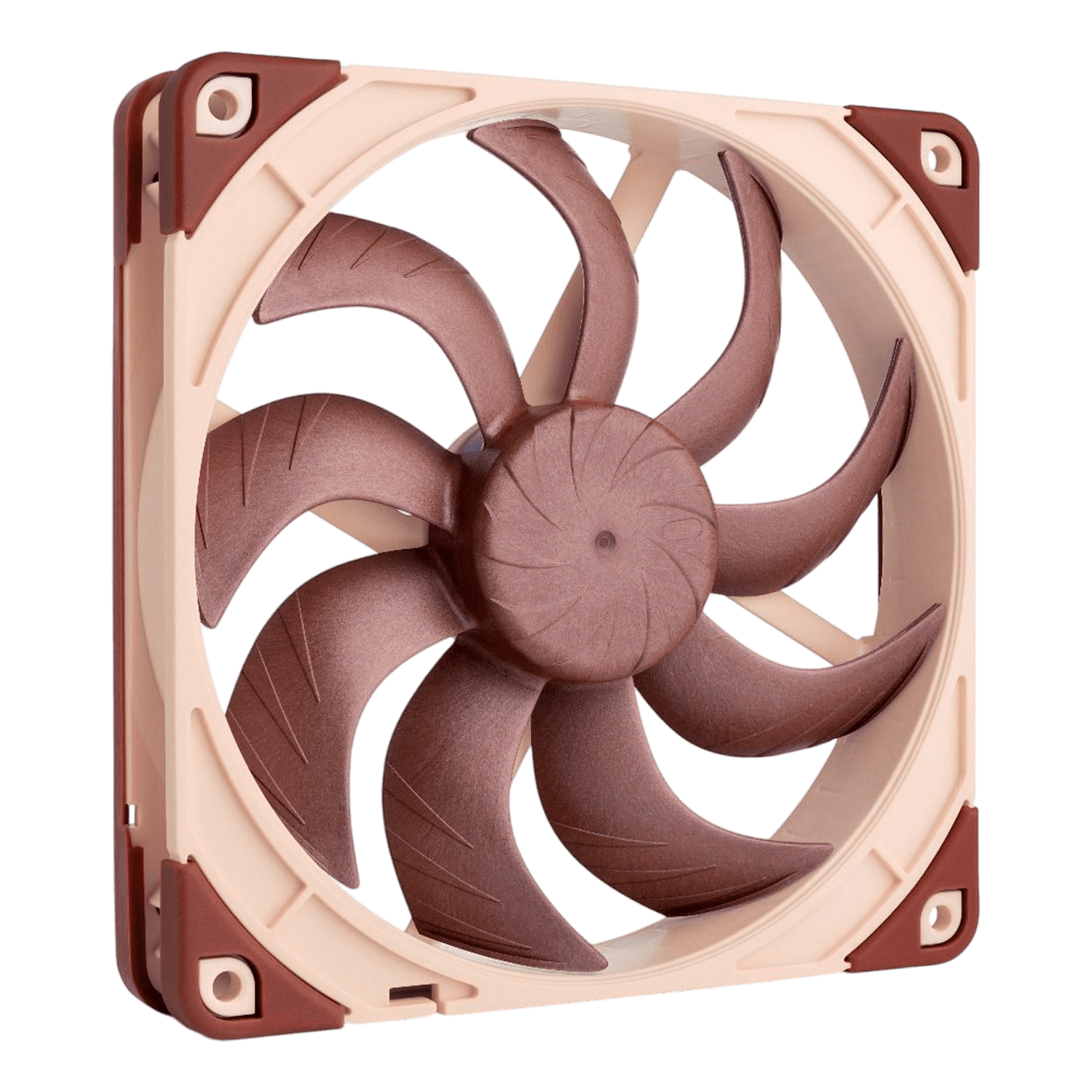

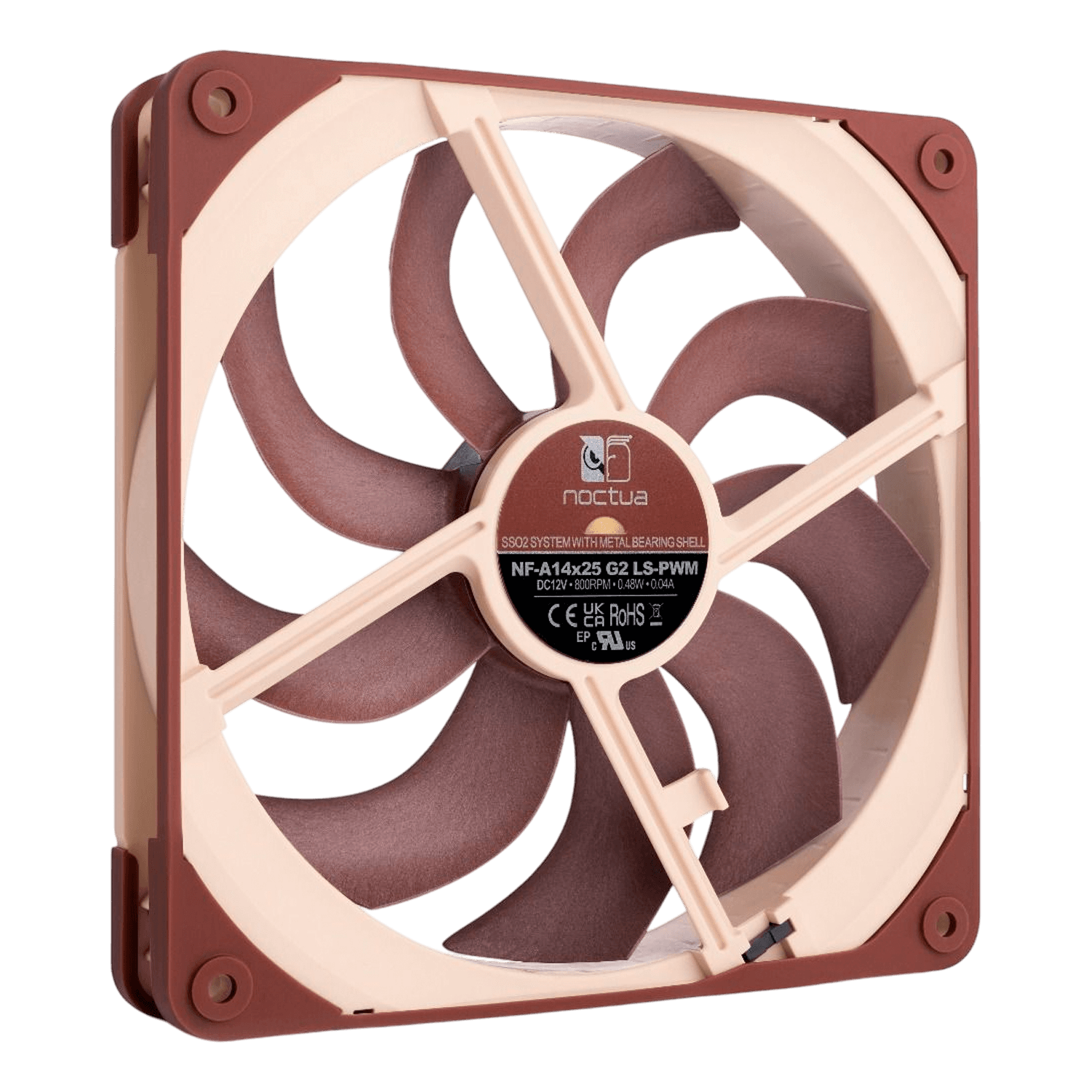

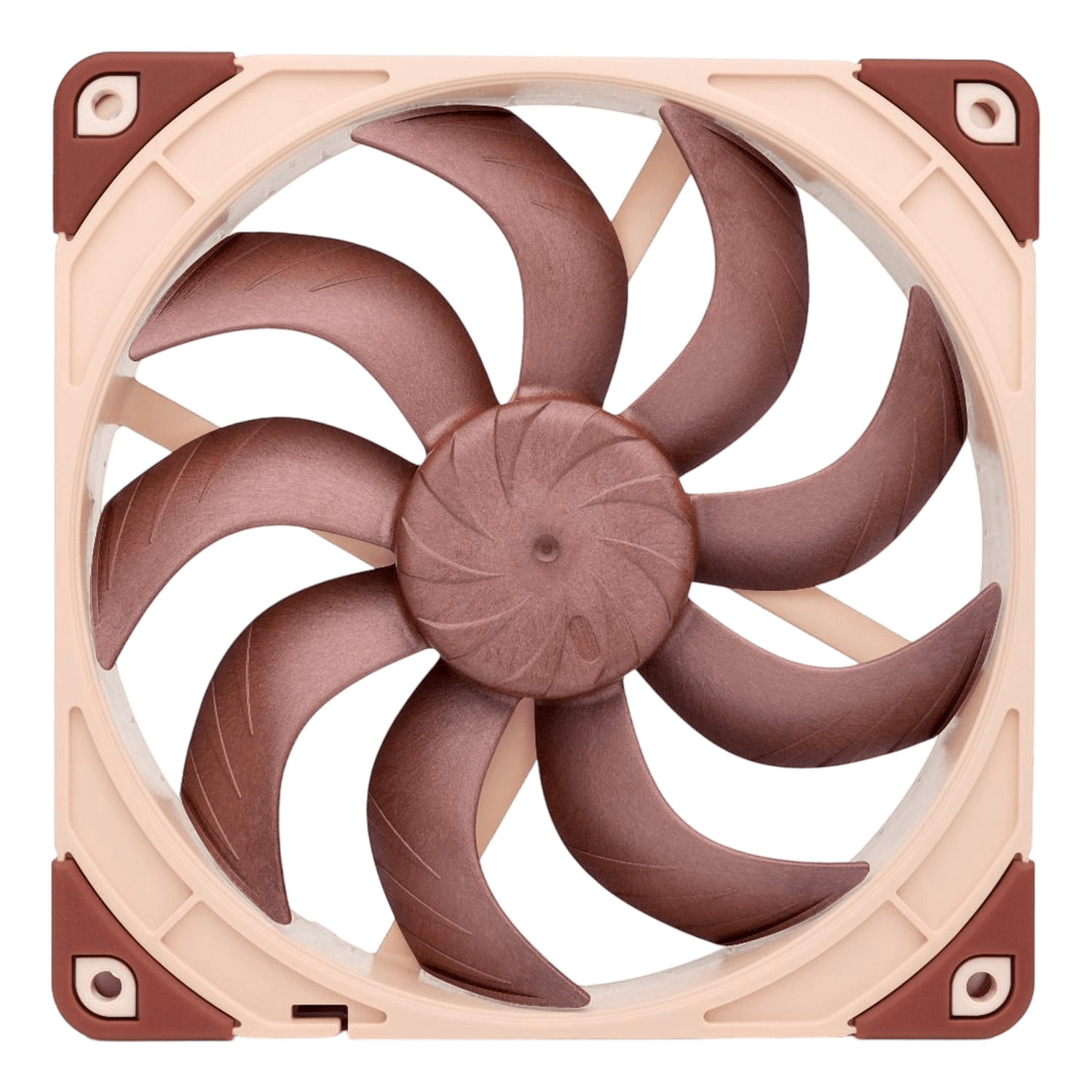

NF-A14x25 G2 LS-PWM 140mm, 800 RPM, 81.6 CFM, 11.4 dBA, Cooling Fan
- SKU: 19284552
- Manufacturer: NOCTUA
- MPN: NOCTUA NF-A14x25 G2 LS-PWM
- Availability: TEMPORARILY OUT OF STOCK
Price
$52.79
| Size | 140x140x25 mm |
| Mounting hole spacing | 124.5x124.5 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Material | Sterrox® LCP |
| Rotational speed (+/- 10%) | 800 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 600 RPM |
| Airflow | 81.6 m³/h |
| Airflow with L.N.A. | 67.5 m³/h |
| Acoustical noise | 11.4 dB(A) |
| Acoustical noise with L.N.A. | 8.6 dB(A) |
| Static pressure | 0.71 mm H2O |
| Static pressure with L.N.A. | 0.43 mm H2O |
| Input power (max.) | 0.48 W |
| Max. input current | 0.04 A |
| Operating voltage | 12 V |
| MTTF | > 150,000 h |
| Scope of delivery |
|
| Warranty | 6 years |
