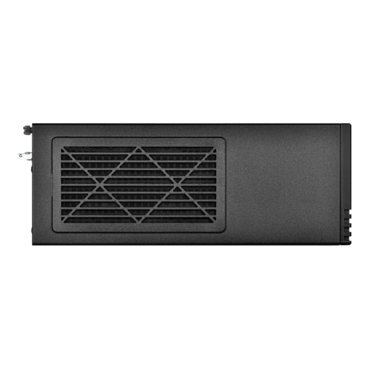

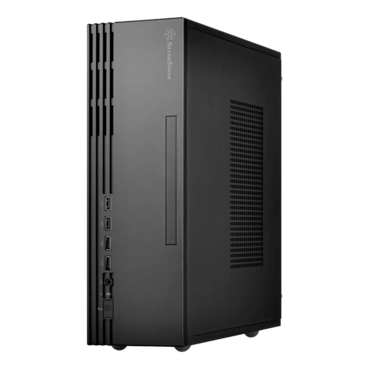

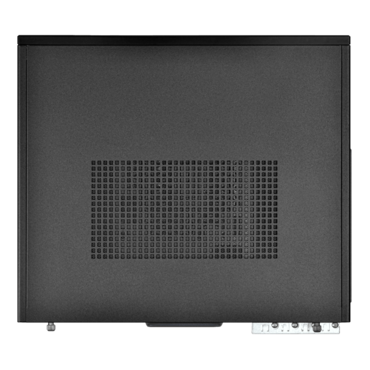

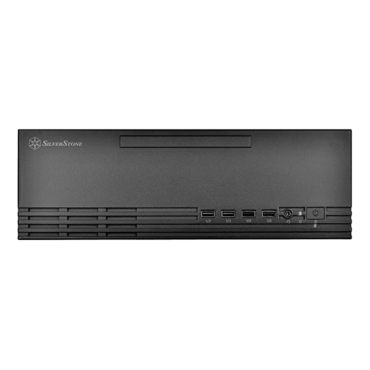

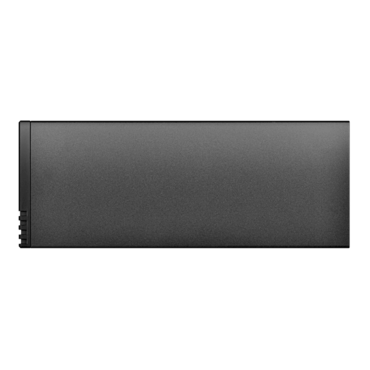

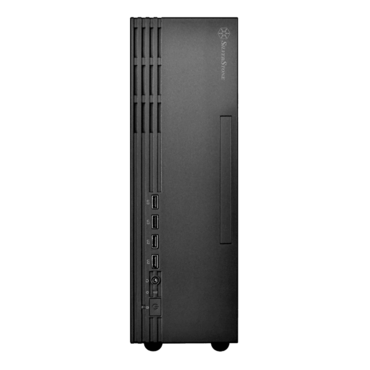

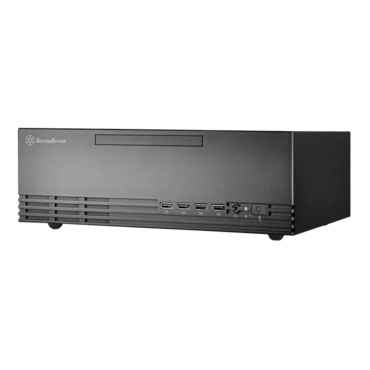

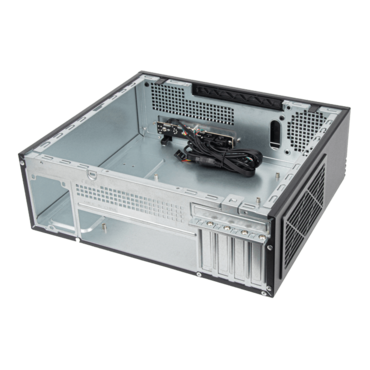

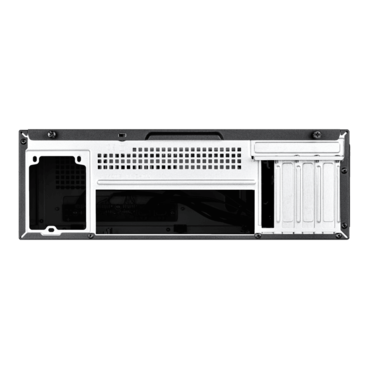

Milo ML11B, No PSU, microATX, Black, Slim Case
Quantity:
- SKU: 15119537
- Manufacturer: SILVERSTONE
- MPN: ML11B
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$93.15
| Model No. | SST-ML11B |
| Motherboard | Micro-ATX, Mini-ITX |
| Cooling system |
Front 80mm x 1* Rear -- Side 80mm x 1** / 60mm x 1*** Top -- Bottom -- Internal -- |
| Expansion slot | Low-profile x 4 |
| Power supply | TFX (not included) |
| Dimension | 330mm (W) x 110mm (H) x 285mm (D), 10.35 liters |
| Material | Plastic bezel, steel body |
| Drive bay |
External 9.5mm slim optical bay Internal 3.5" / 2.5" x 1 2.5" x 1 |
| Limitation of CPU cooler |
90mm (w/o ODD bracket) 69mm (w/ ODD bracket, w/o 3.5" HDD) 43.4mm (w/ ODD bracket & 3.5" HDD) |
| Limitation of expansion card |
Length: 272mm (w/o front fan installed) Height: 96mm |
| Front I/O port | USB 3.0 x 2, USB 2.0 x 2, combo audio x 1 |
| Net weight | 2.48 kg |
| Remark |
* If the connectors on the motherboard is facing forward, then the thickness supported for the fan is 27.2mm, minus the length of the SATA cable connector and minus the size of the motherboard. i.e. if the direction of the
connectors on the motherboard is upward, then the front fan supports fans with thickness of up to 25mm. ** Supports motherboard size of 248mm minus the fan’s total thickness *** Corresponds to motherboard’s connector design, which allows a total height of 23mm, while leaving the 4th PCI slot unoccupied. |
