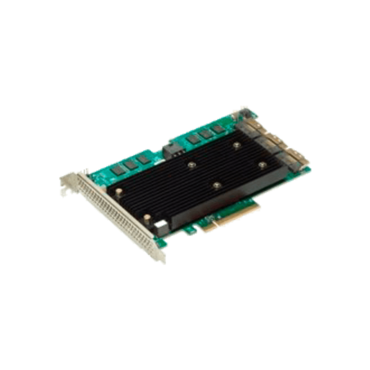

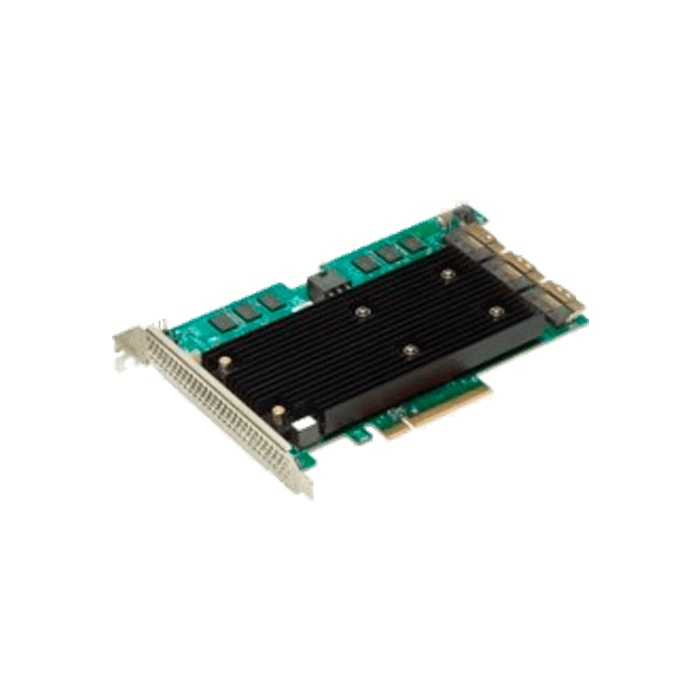

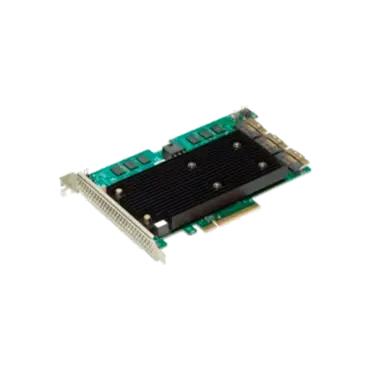

MegaRAID 9670-24i, Tri-mode SATA/SAS/PCIe (NVMe) 24Gb/s, 24-Port, PCIe 4.0 x8, Controller with 8GB Cache
- SKU: 15484057
- Manufacturer: Broadcom
- MPN: 05-50123-00
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$1,407.55
|
Adapter Type |
MegaRAID |
| Ports | 24 internal |
|
Storage Controller |
SAS4124 ROC |
|
PCIe Host Interface |
x8, Gen 4.0 |
|
Storage Interface |
Gen 4.0 PCIe (NVMe), 24Gb/s SAS, 6Gb/s SATA |
| RAID Levels | 0, 1, 10, 5, 50, 6, 60 |
|
Max SAS/ SATA PDs |
240 |
|
Max NVMe PDs |
32 |
| Connectors |
3 x8 SFF-8654 |
| Form Factor | FH-MD2 |
| Dimensions | 9670-24i: 6.127 in. × 4.376 in. (155.65 mm × 111.15 mm) |
|
Typical Power |
24W |
|
Operating Conditions |
200 LFM at 55°C |
|
Energy Backup |
CVPM05 (FBU345) |
| Security | HW Secure Boot and Attestation |
| Driver | Unified MPI3 Driver |
| OS Support |
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD. See www.broadcom.com/support/download-search for details on versions. |
| Ordering Information | |
| Single Pack | 05-50123-00 |
| CVPM05 | 05-50039-00 |
