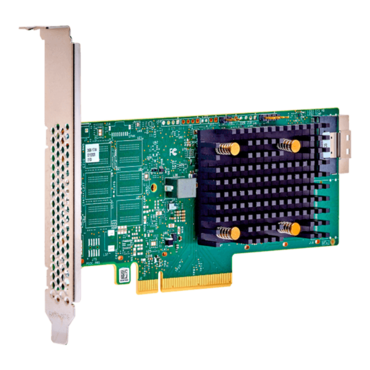

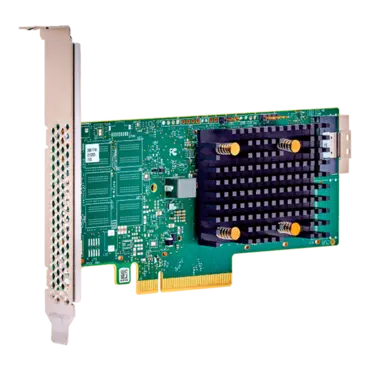

MegaRAID 9540-8i, Tri-mode SATA/SAS/PCIe (NVMe) 12Gb/s, 8-Port, PCIe 4.0 x8, Controller
- SKU: 15484013
- Manufacturer: Broadcom
- MPN: 05-50134-03
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$374.60
| Port Count | 8 internal |
| Connectors | One x8 SFF-8654 |
| Host Interface | x8 PCIe Gen 4.0 |
| Storage Interface |
12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
|
Controller (ROC/IOC) |
SAS3808 |
| RAID Levels | 0, 00, 1, 10 |
| Max Devices Per Controller |
SAS/SATA: 32 NVMe: 4 |
| Cache Size | — |
| Cache Protection | — |
| RAID Features |
• JBOD Mode with R0/1/10 and JBOD for SDS environments* • Online Capacity Expansion (OCE) • Auto resume after loss of system power during array rebuild or OCE • Single controller multipathing • Load balancing • Configurable stripe size up to 1 MB • Fast initialization for quick array setup • Check consistency for background data integrity • SSD support with SSD Guard™ technology • Patrol read for media scanning and repairing • 240 virtual drive support (32 for the 9540) • DDF-compliant Configuration on Disk (COD) • S.M.A.R.T. support • Global and dedicated Hot Spare with Revertible Hot Spare support: − Automatic rebuild − Enclosure affinity − Emergency SATA hot spare for SAS arrays • Enclosure management: − SES (inband) − SGPIO (sideband) − Universal Backplane Management (UBM) ready • DataBolt bandwidth optimizer technology support for compatible expander-based enclosures • Shield state drive diagnostic technology • MegaRAID SafeStore Software for SED Key Management |
| Management Utilities |
• LSI Storage Authority (LSA) • StorCLI (command-line interface) • HII (UEFI Human Interface Infrastructure) |
| OS Support |
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD. See www.broadcom.com/support/download-search for details on versions. |
| Dimensions |
6.127 in. × 2.712 in. (155.65 mm × 68.90 mm) |
|
Operating Conditions |
Operating: 0°C to 55°C, 5% to 90% non-condensing Storage: −45°C to 105°C, 5% to 95% non-condensing |
| Typical Power | 6.0W |
|
Operating Voltage |
12V ±8%; 3.3V ±9% |
|
MTBF (Calculated) |
>3,000,000 hours at 40°C |
|
Regulatory Certifications |
USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/ UL 60950; RoHS; WEEE. |
| Ordering Information | |
| Single Pack | 05-50134-03 |
| CVPM05 | — |
