MS04-S315.H, 1x Slim ODD, 4x 3.5"/2.5" External Bays, 315W PSU, Mini-ITX, Black, Mini Tower Chassis - TAA Compliant
Quantity:
- SKU: 18515903
- Manufacturer: InWin
- MPN: MS04-S315.H
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$275.13
- SAS Backplane (12Gb/s Supported)
- Unique server design ideal for small office
- Include 315 Watts 80+ Bronze Flex ATX power supply
- slim ODD supported
- Front access USB 3.0 X 2 Ports
- 1 x 120mm PWM rear fan
| M/B Form Factor | Mini ITX (M/B Cooler Max. 65mm) |
| Drive Bay |

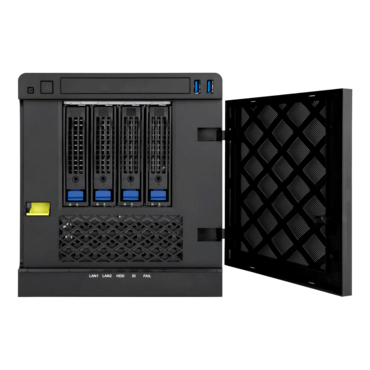

• External: slim ODD x 1, 2.5"/3.5" hot-swap drive bays x 4 • Internal: 2.5" drive bays x 1 or x 2 (via slim ODD conversion tray) |
| Power Supply |

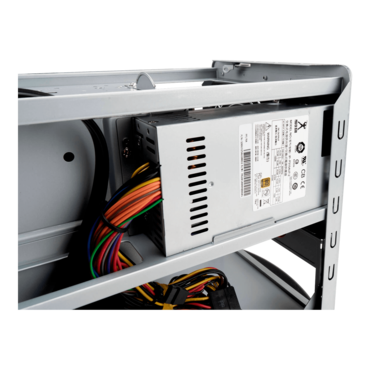

Supports: • 1U Flex PSU, 80 Plus Bronze 265W • 1U Flex PSU, 80 Plus Gold 315W |

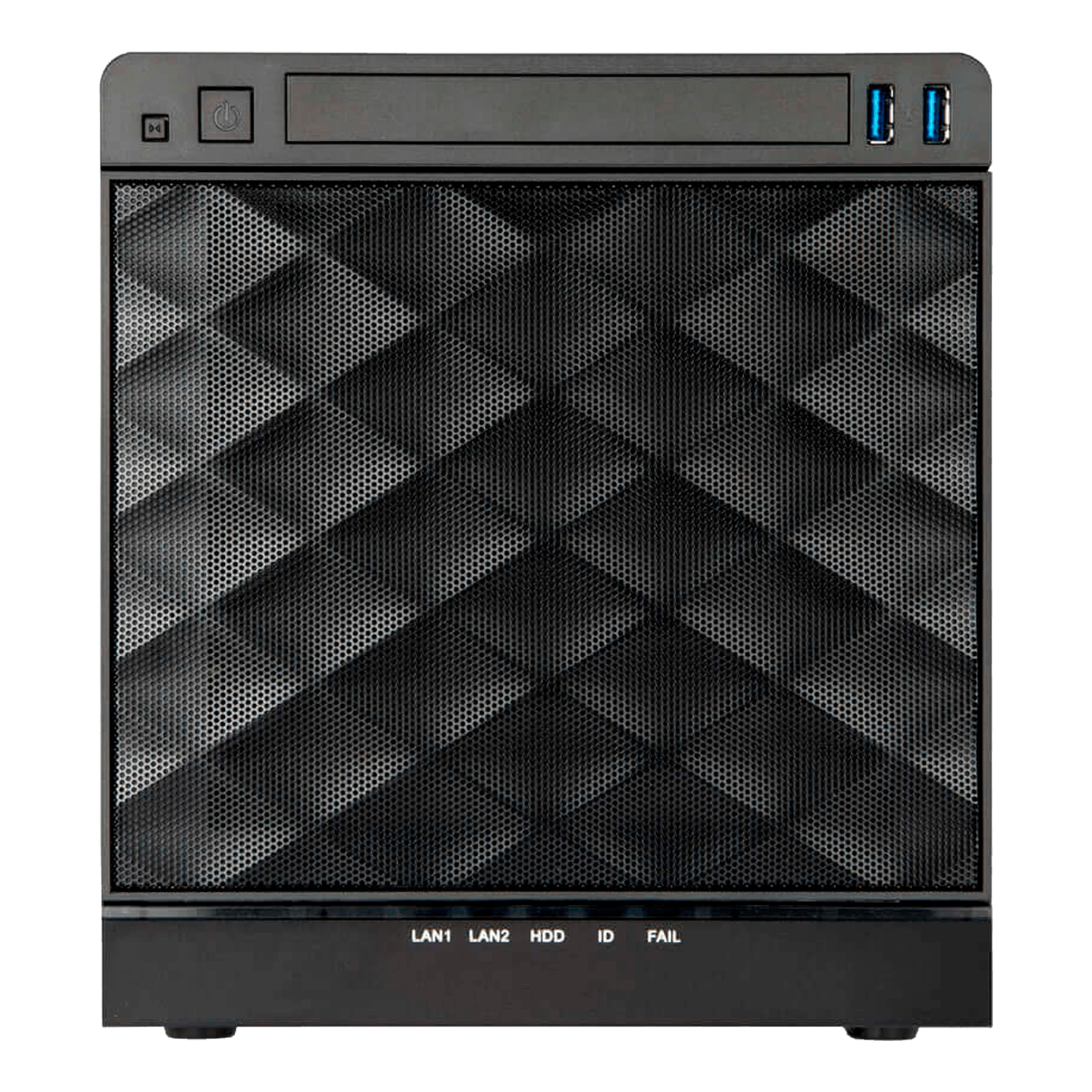

| Indicators | Power status, HDD, LANs, system fail activity LEDs, ID |
| Front Control Panel | Power switch, system reset, USB 3.0 x 2 |
| Chassis Security |
• Supports padlock loop and Kensington lock slot • Intrusion switch (optional) |
| Backplane |
• SATA 6Gbps, SATA 7pin to 7pin • Mini-SAS HD 12Gbps, SFF-8643 |

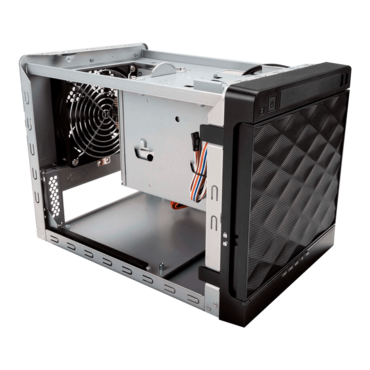

| Cooling Fans | Supports 120 x 25mm rear PWM fan x 1 |
| Expansion Slot | Low-profile slot x 1 |
| Material |
• Material: SECC • Thickness: 1.0mm |
| Product Dimensions (DxWxH; Chassis Only) |
276.1 x 210 x 230mm (10.87" x 8.27" x 9.06") |
| Package Dimensions (DxWxH) | 328 x 282 x 390mm |
| Weight (Chassis Only) |
• Net weight: 4.41kg • Gross weight: 5.43kg |
| Cubic Feet | 1.27 |
| Container Information |
Single packing with pallets: • 20': 600pcs • 40': 1320pcs • 40' HQ: 1320pcs |
| 6Gbps Backplane Specifications | |
| Backplane | SATA backplane |
| Dimension (W x H) | 111mm x 111mm |
| Backplane Type | Passive |
| Host Interface | SATA (7pin to 7pin) x 4 |
| HDD Interface | SAS/SATA 3.5" HDD x 4 |
| 12Gbps Backplane Specifications | |
| Backplane | Mini-SAS HD backplane |
| Dimension (W x H) | 111.5mm x 111.5mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 1 |
| HDD Interface | SAS/SATA 3.5" HDD x 4 |
|
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications. * The above image is for reference only. All hardware components and optional parts are not included. |
|
