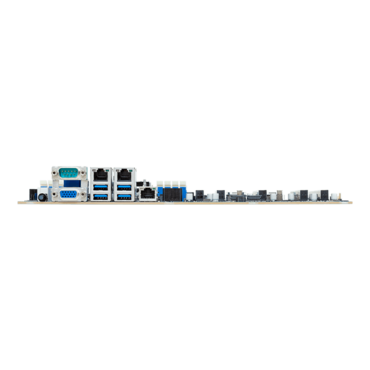

MS04-CE0, Intel® SoC, LGA 4710, DDR5-6400 2TB ECC RDIMM / 8, VGA, M.2 / 2, USB 3.2 Gen1 / 4, SlimSAS / 3, 1GbLAN / 2, ATX OEM
Quantity:
- SKU: 18022129
- Manufacturer: GIGABYTE
- MPN: MS04-CE0
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,030.38
- Single Intel® Xeon® 6 Processors, LGA 4710
- 8-Channel DDR5 RDIMM / MCR DIMM, 8 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 3 x SlimSAS connectors for 12 x SATA 6Gb/s
- 2 x M.2 slots with PCIe Gen5 x2 interface
- 5 x PCIe Gen5 x16 and x8 expansion slots
| Form Factor (WxD, mm) |
ATX 304.8 x 244 |
| CPU |
Intel® Xeon® 6 Processors - Intel® Xeon® 6700E-Series Processors - Intel® Xeon® 6700P-Series Processors (available Q1'25) - Intel® Xeon® 6500P-Series Processors (available Q1'25) Single processor, TDP up to 350W |
| Socket |
1 x LGA 4710 Socket E2 |
| Chipset | System on Chip |
| Memory |
8 x DIMM slots DDR5 memory supported 8-Channel memory architecture MCR DIMM supported [1] RDIMM: Up to 6400 MT/s MCR DIMM: Up to 8000 MT/s [1] MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores. |
| LAN |
2 x 1Gb/s LAN (2 x Intel® I210-AT) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Video |
Integrated in Aspeed® AST2600 - 1 x VGA port |
| Audio | N/A |
| Storage Interface |
SlimSAS: 3 x SlimSAS 4i for 12 x SATA 6Gb/s M.2: 2 x M.2 (2280/22110), PCIe Gen5 x2 |
| RAID | Onboard VROC key header |
| PCIe Expansion Slots |
Slot_7: PCIe x16 (Gen5 x16) Slot_6: PCIe x16 (Gen5 x16) Slot_4: PCIe x16 (Gen5 x16) Slot_2: PCIe x16 (Gen5 x16) Slot_1: PCIe x16 (Gen5 x8) |
| Internal I/O |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 6 x System fan headers 1 x USB 3.2 Gen1 x2 header 2 x M.2 slots 3 x SlimSAS connectors 1 x VROC connector 1 x NCSI connector 1 x Front panel header 1 x Backplane board header 1 x PMBus header 1 x IPMB header 1 x TPM header 1 x PRoT connector (only enabled on RoT SKU) |
| Rear I/O |
4 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 1 x COM port 2 x RJ45 ports 1 x MLAN port 1 x ID button with LED |
| Security Modules |
1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM012 1 x PRoT connector (only enabled on RoT SKU) |
| OS Compatibility | Please refer to OS compatibility table in support page |
| Board Management |
Aspeed® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| PSU Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Operating Properties |
Operating temperature: 10°C to 40°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content |
1 x MS04-CE0 1 x I/O shield 1 x Quick start guide 2 x Carriers 1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm) Single Box dimensions: 360 x 330 x 80 mm Carton dimensions: 674 x 424 x 385 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content |
10 x MS04-CE0 10 x I/O shields 20 x Carriers Carton dimensions: 600 x 473 x 495 mm |
| Reference Numbers |
Retail: 9MS04CE0MR-000-1* Bulk: 9MS04CE0NR-000-1* Part Numbers: - I/O shield: 12AIO-MS04CE-00R - SlimSAS to 4 x SATA cable (600mm): 25CFM-600700-A4R |
