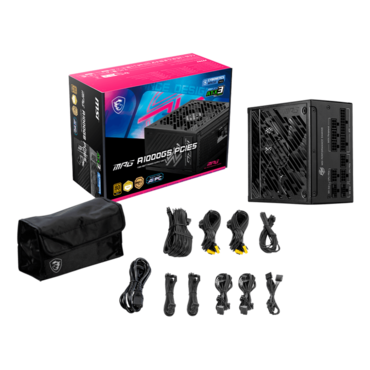

MPG A1000GS PCIE5, 80 PLUS Gold 1000W, Full Modular, ATX Power Supply
Quantity:
- SKU: 18393272
- Manufacturer: MSI
- MPN: MPGA1000GSPCIE5
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$195.20
- Supports Nvidia® GeForce RTXTM 50 series graphics cards
- 2 x native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Gold certified
- Optimized the sound level
- 100% all Server-grade 105oC capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (full modular) |

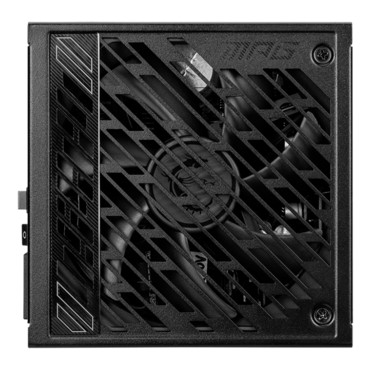

| Fan Size | 135 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 150 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240V~ |
| Power Watt | 1000W |
| Power Excursion | 2350W (*up to 235% of the PSU's rated power for 100μs) |
| Input Frequency Range | 50-60 Hz |
| Protection | OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO |
| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.1 (16 pin) | 2 |
| PCI-E (6+2 pin) | 1 |
| SATA (15 pin) | 8 |
| PERIPHERAL (4 pin) | 4 |
