Home › Components › Core Components › Motherboards › Server and Workstation Motherboards
MBD-X14SBM-TP4F-O, Intel® SoC, LGA 4710, DDR5-6400 1TB ECC RDIMM / 8, VGA, M.2 / 2, MCIO / 4, USB 3.2 Gen1 / 2, 10GbLAN / 4, microATX Retail
MBD-X14SBM-TP4F-O, Intel® SoC, LGA 4710, DDR5-6400 1TB ECC RDIMM / 8, VGA, M.2 / 2, MCIO / 4, USB 3.2 Gen1 / 2, 10GbLAN / 4, microATX Retail

MBD-X14SBM-TP4F-O, Intel® SoC, LGA 4710, DDR5-6400 1TB ECC RDIMM / 8, VGA, M.2 / 2, MCIO / 4, USB 3.2 Gen1 / 2, 10GbLAN / 4, microATX Retail

Quantity:
  • SKU: 18089658
  • Manufacturer: SUPERMICRO
  • MPN: MBD-X14SBM-TP4F-O
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$872.29
Quantity:
Product SKUs MBD-X14SBM-TP4F
Physical Stats
Form Factor
  • microATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
Core
  • Up to 144 (E) cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 1TB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
  • 6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
DIMM Sizes
  • 32GB, 64GB, 96GB, 128GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • ASMediaASM1061 controller for 2 SATA3 ports
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Quad LAN with 10GBase-T and 10G SFP+ with Intel® X710-TM4

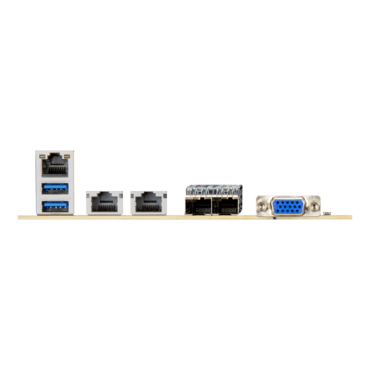

Input / Output
SATA
  • 2 SATA3 port(s)
LAN
  • 2 RJ45 10 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 10G SFP+ LAN ports
USB
  • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
  • 1 TPM TPM 2.0 onboard
Expansion Slots
PCIe
  • 2 PCIe 5.0 x16,
  • 1 PCIe 5.0 x8,
  • 4 PCIe 5.0 x8 MCIO connector
M.2
  • M.2 Interface: 2 PCIe 5.0 x2
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 64MB AMI UEFI
BIOS Features
  • ACPI 6.5
  • SMBIOS 3.7 or later
  • UEFI 2.9
Management
Software
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, 5 -fan status, +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
Other Features
  • WOL
  • UID
  • Control of power-on for recovery from AC power loss
  • ACPI power management
Price
$872.29
As low as $72.69/ Month*
$872.29
