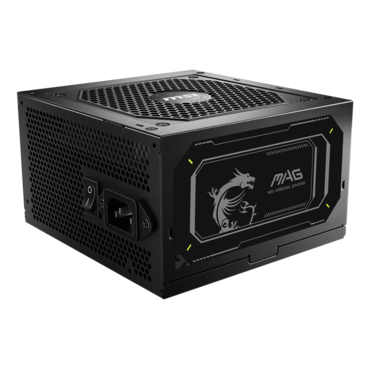

MAG A850GL PCIE5 II, 80 PLUS Gold 850W, Full Modular, ATX Power Supply
- SKU: 18396025
- Manufacturer: MSI
- MPN: MAGA850GLPCIE5II
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$167.21
- ATX 3.1 ready, native PCIe 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 Series graphics cards

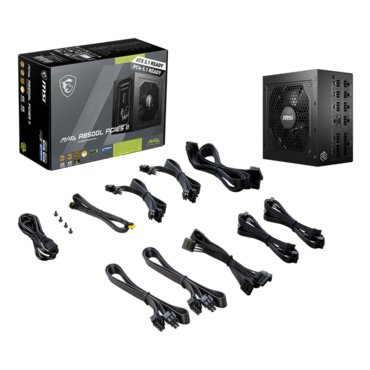

- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency with Active PFC design
- Industrial level protection with OVP, OCP, OPP, OTP, SCP, UVP

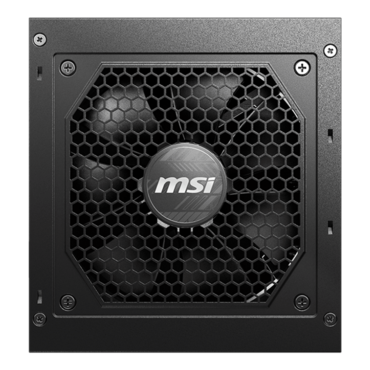

- 120 mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (full modular) |
| Fan Size | 120 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 140 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100~240 VAC |
| Power Watt | 850W |
| Power Excursion | 1700W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range | 47-63Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |

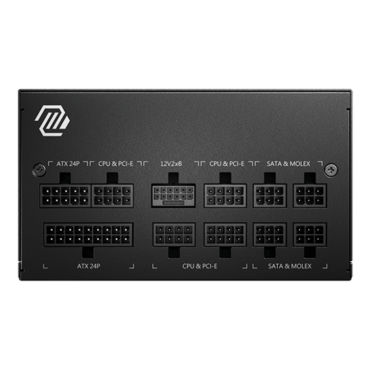

| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.1 (16 pin) | 1 |
| PCI-E (6+2 pin) | 4 |
| SATA (15 pin) | 8 |
| PERIPHERAL (4 pin) | 4 |
| FDD (4 pin) | 1 |
