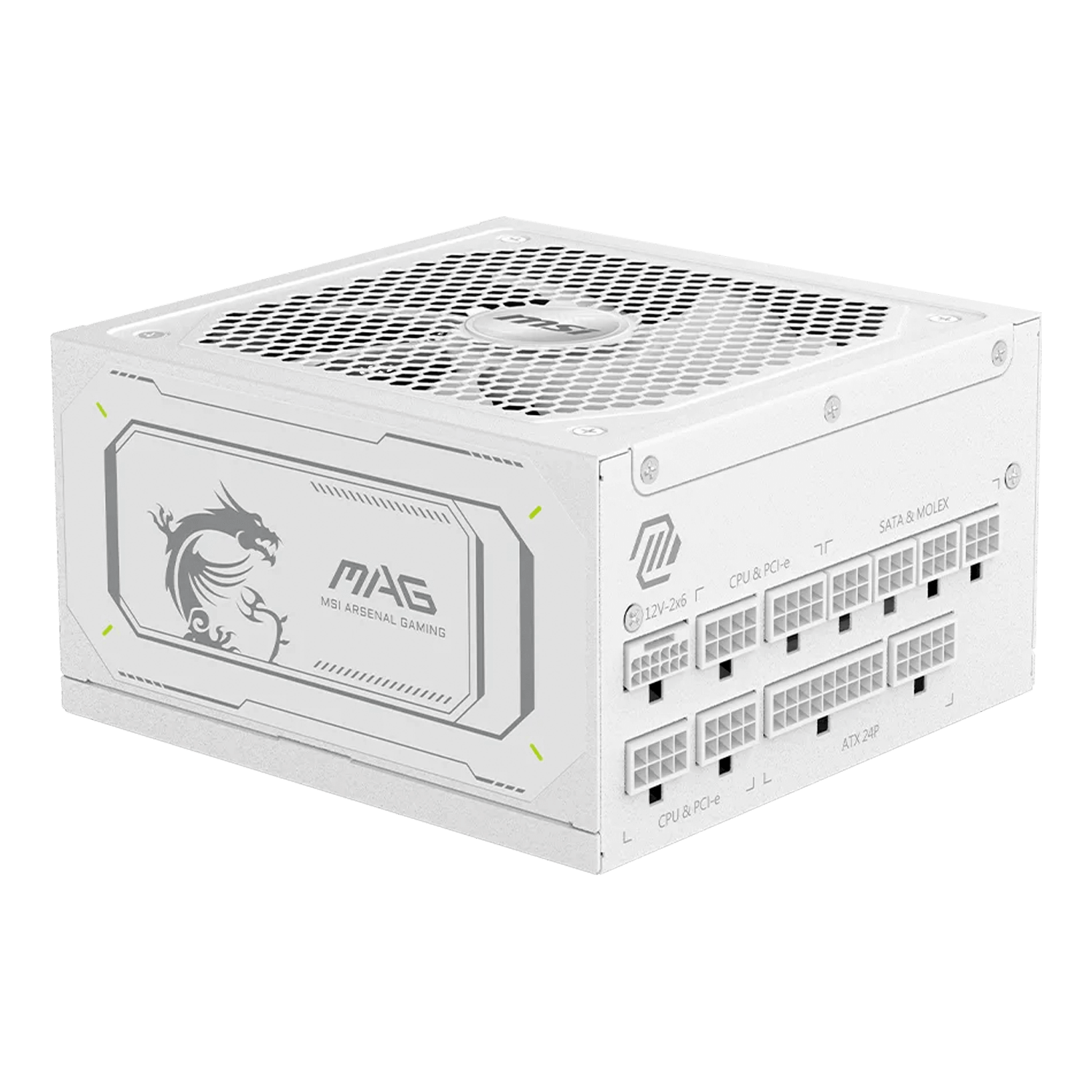

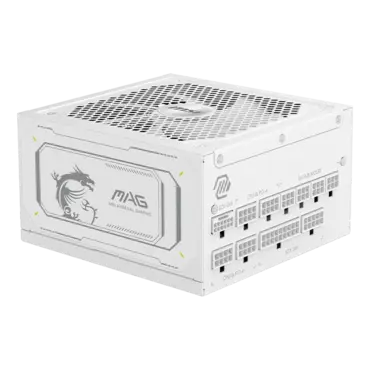

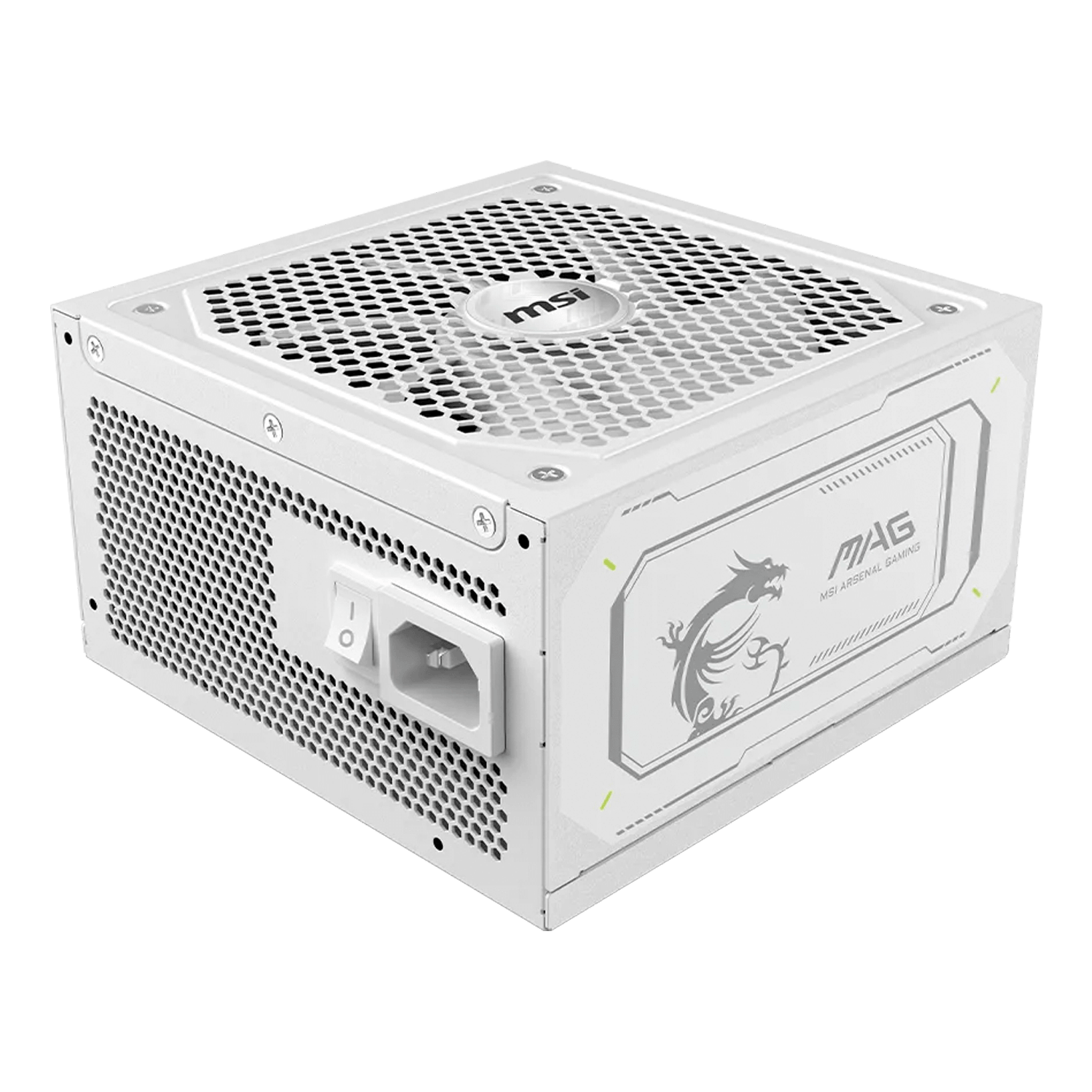

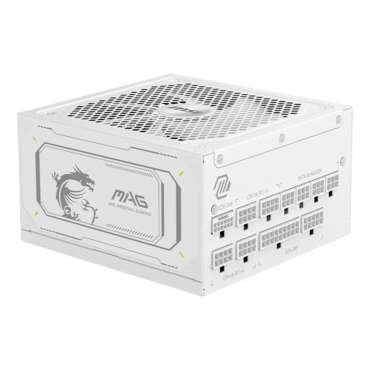

MAG A1000GL PCIE5 WHITE, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply
- SKU: 19723536
- Manufacturer: MSI
- MPN: MAGA1000GLPCIE5WT
- Availability: TEMPORARILY OUT OF STOCK
Price
$203.29
- ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 series graphics cards
- Fully modular design, flat cables
- 80 PLUS Gold certified for high efficiency
- Active PFC design
- Protection with OVP / OCP / OPP / OTP / SCP / UVP

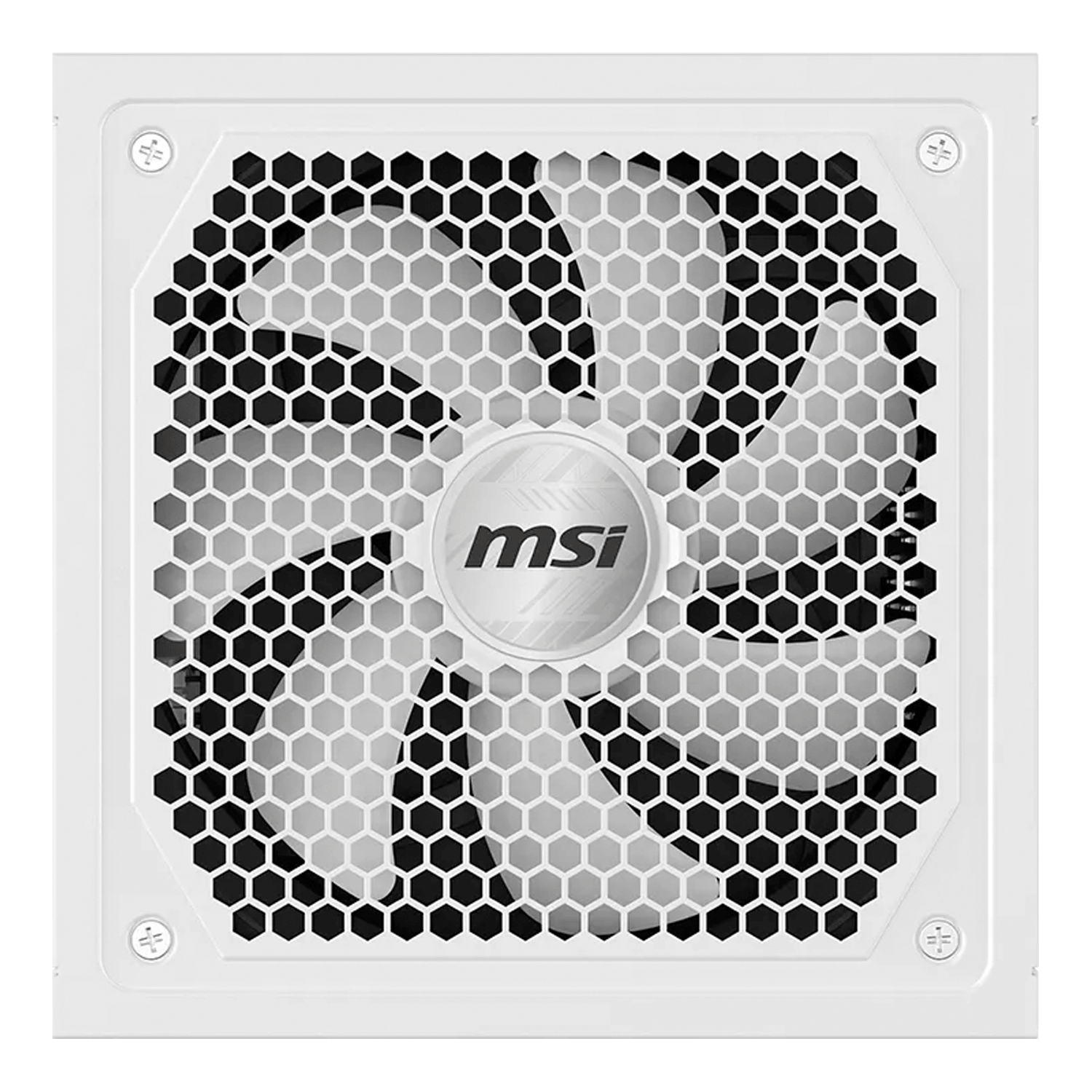

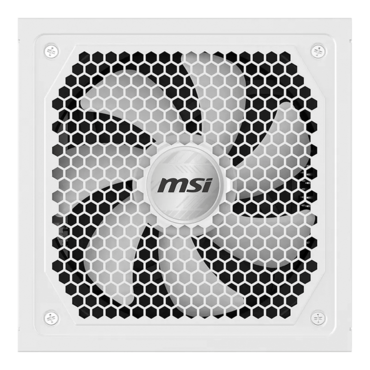

- 135 mm fluid dynamic bearing fan
- LLC full bridge topology with DC-to-DC module design

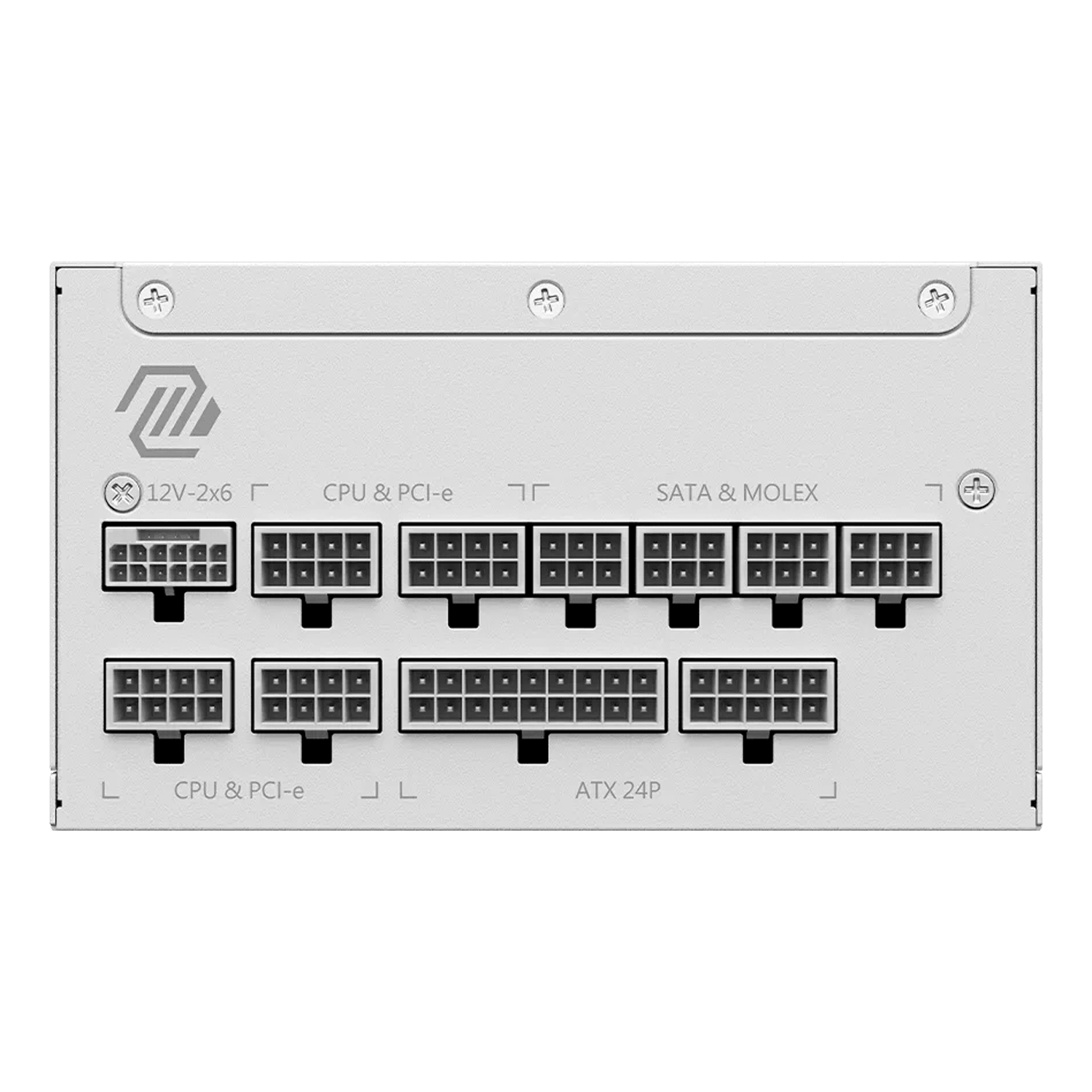

| MODULAR | Yes (fully modular) |
| FAN BEARING | Fluid Dynamic Bearing |
| POWER WATT | 1000W |
| INPUT VOLTAGE RANGE | 100-240V~ |
| POWER EXCURSION | 2000W (*up to 200% of the PSU's rated power for 100μs) |
| INPUT FREQUENCY | 50-60Hz |
| ATX (24 PIN) | 1 |
| EFFICIENCY | 80 PLUS Gold (up to 90%) |
| EPS (4+4 PIN) | 2 |
| PCI-E 5.1 (16 PIN) | 1 (600W) |
| FAN SIZE | 135 mm |
| DIMENSION | 150 x 150 x 86 mm |
| PCI-E (6+2 PIN) | 4 |
| PFC TYPE | Active PFC |
| SATA (15 PIN) | 12 |
| PROTECTION | OCP / OVP / OPP / OTP / SCP / UVP |
| MOLEX (4 PIN) | 4 |
| FDD (4 PIN) | 1 |
| UPC | 0824142339763 |
