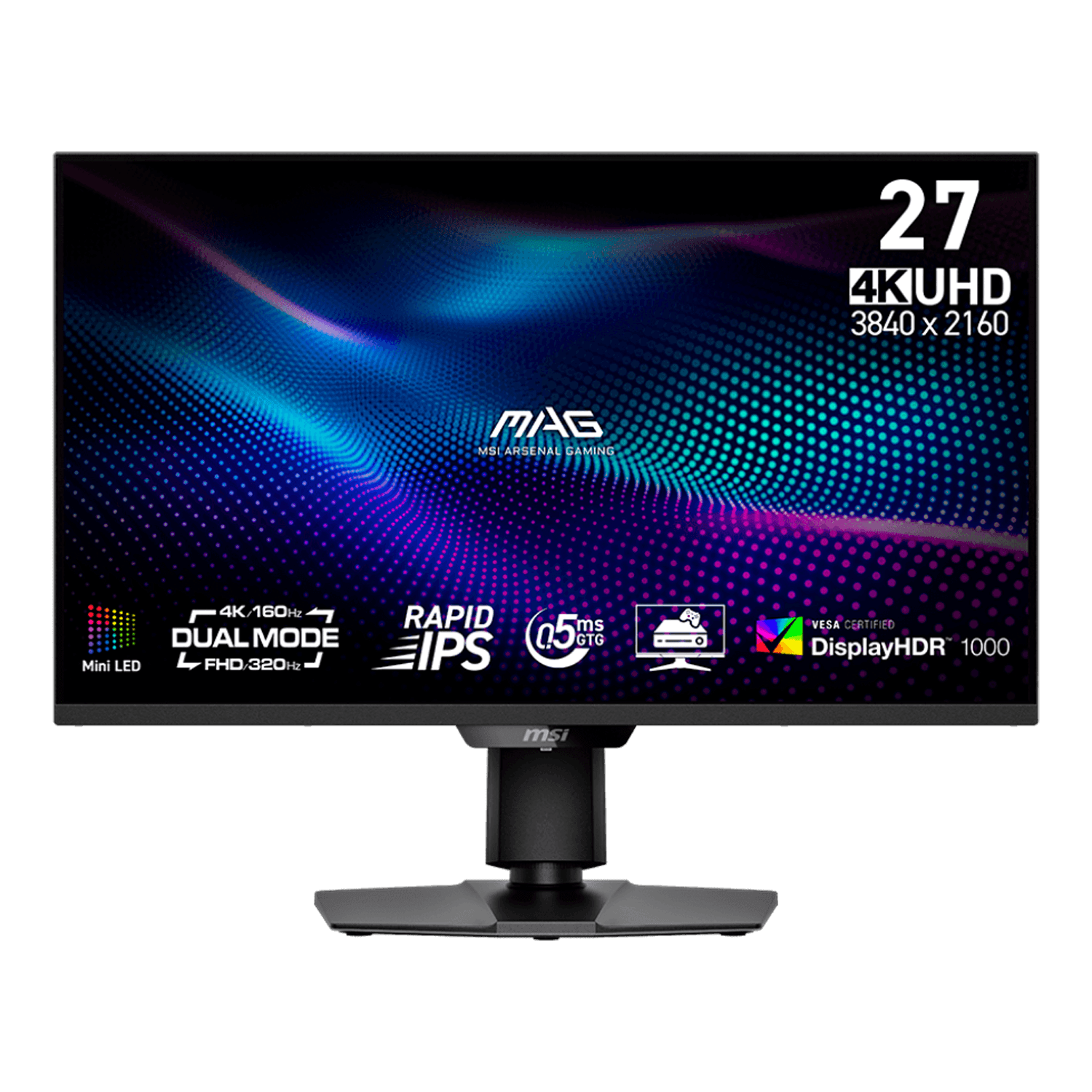

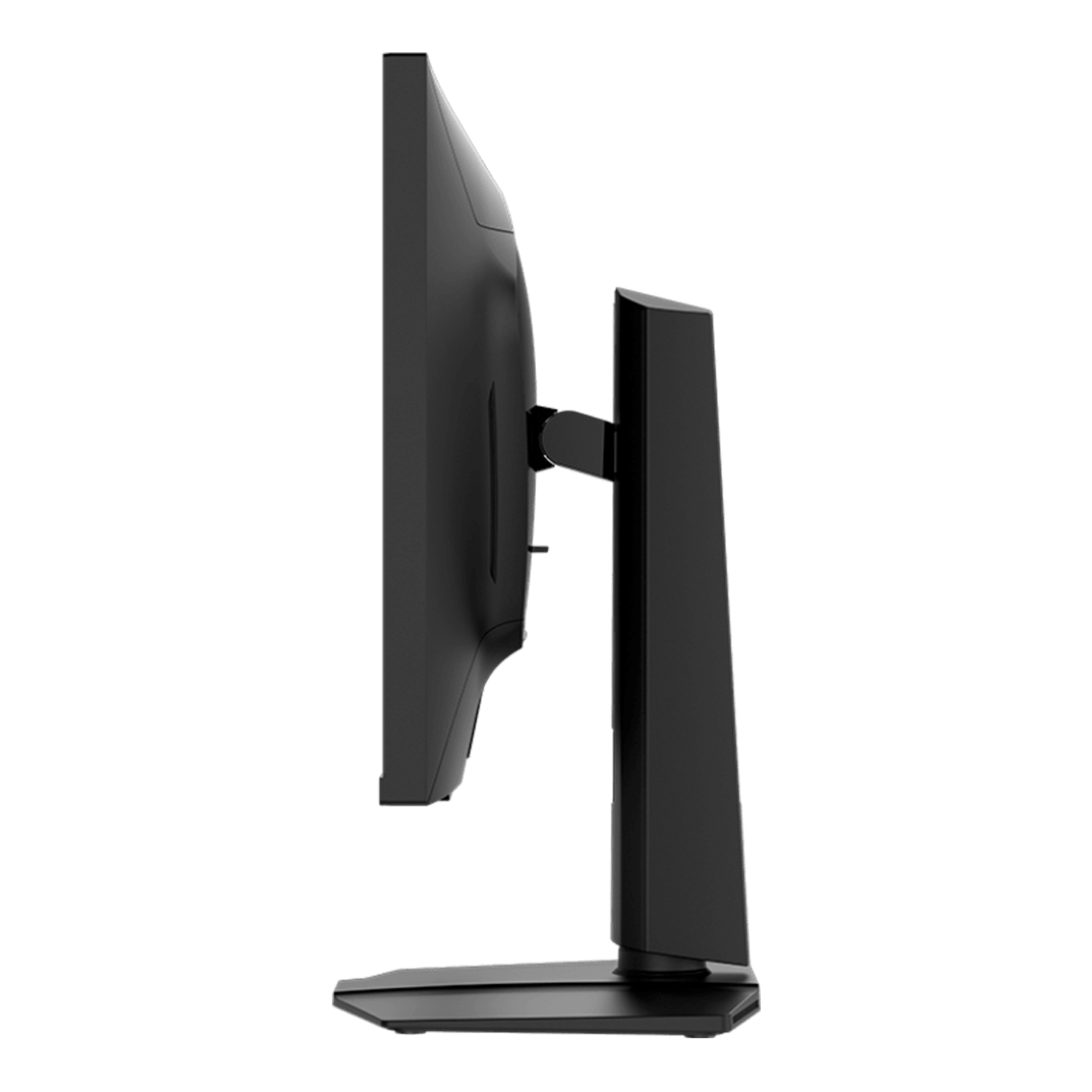

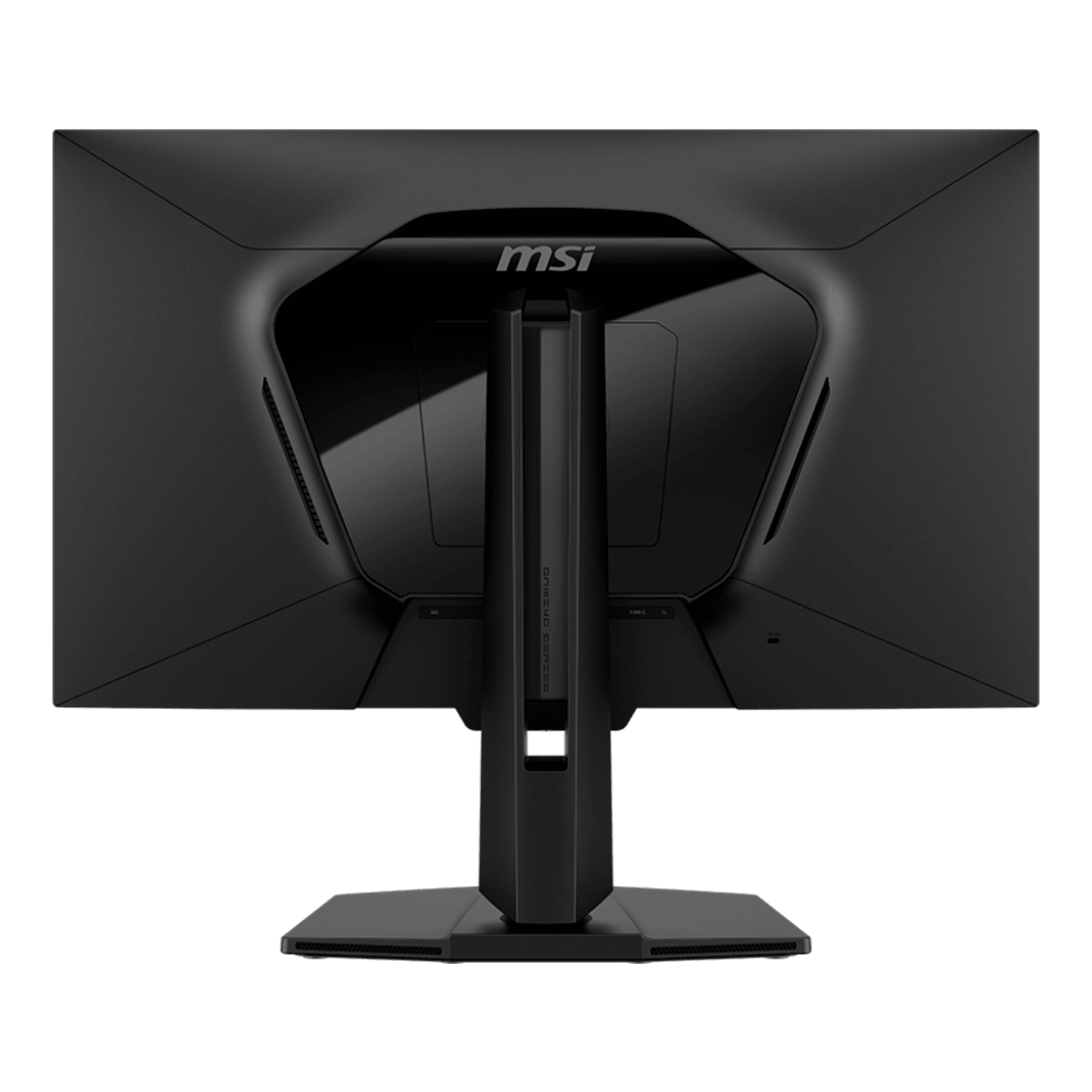

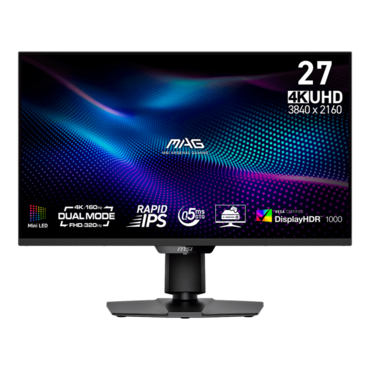

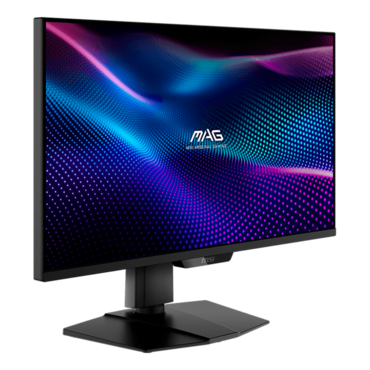

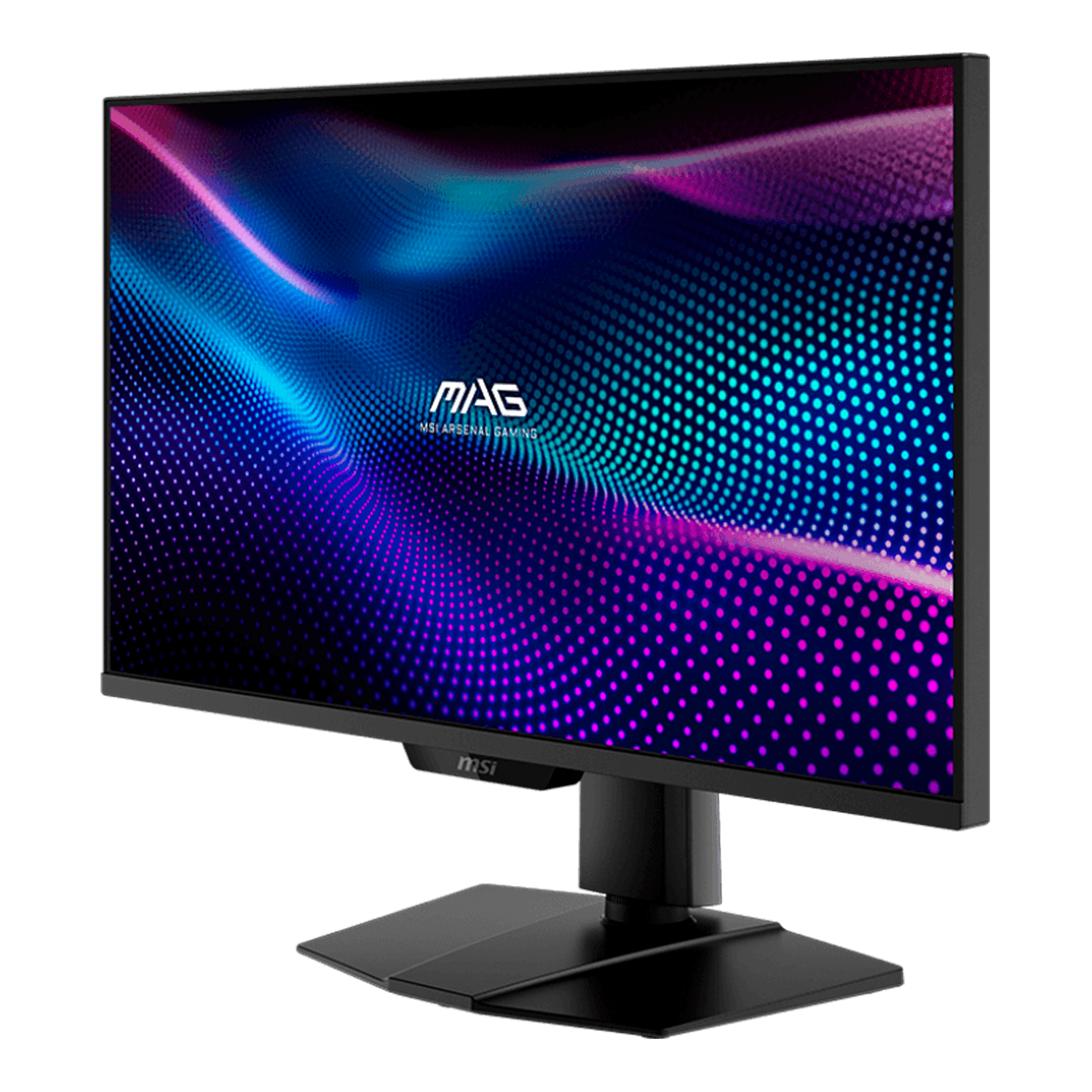

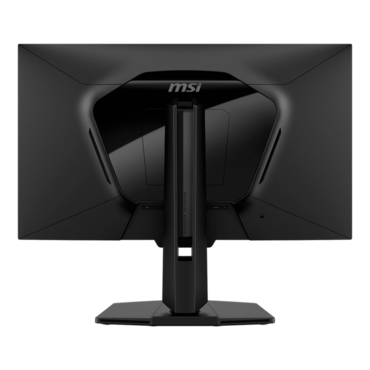

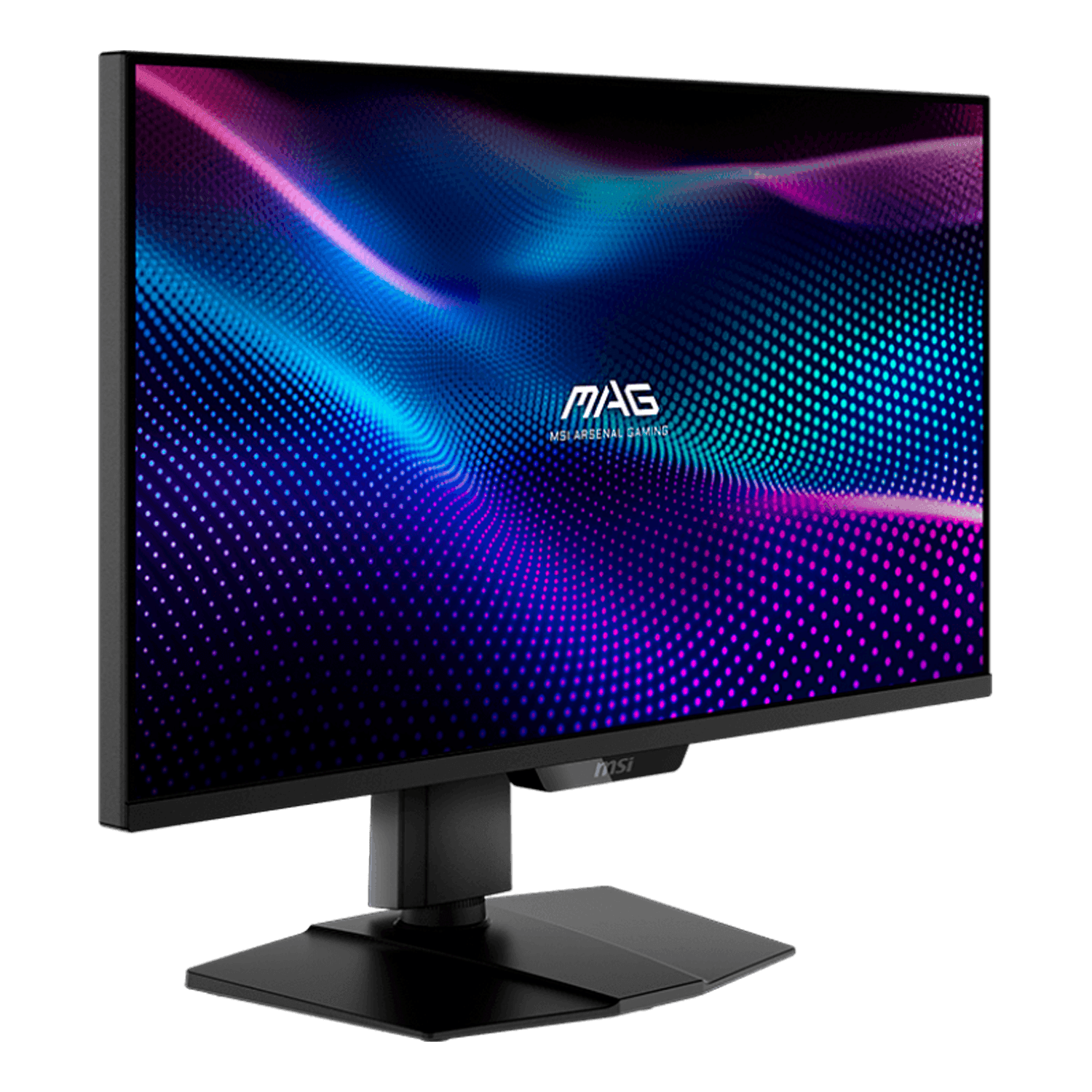

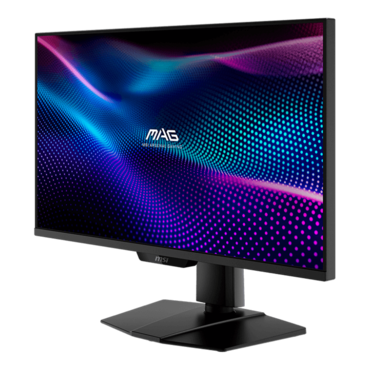

MAG 274UPDF E16M, DisplayHDR™ 1000, 27" Rapid IPS, 3840 x 2160 (4K UHD), 0.5 ms, Dual Mode 160Hz/320Hz, Gaming Monitor
- SKU: 19528860
- Manufacturer: MSI
- MPN: MAG274UPDFE16M
- Availability: TEMPORARILY OUT OF STOCK
Price
$469.38
- Mini-LED – Improves HDR with full-array local dimming and 1,152 zones for deeper blacks and brighter highlights.
- Dual Mode – Easily switch between different resolutions and refresh rates, allowing user to adjust settings based on the game.
- Rapid IPS – Ensures the intensity and purity of colors when gaming.
- 0.5ms (GtG, Min.) Response Time – Eliminates screen tearing and choppy frame rates.
- VESA DisplayHDR 1000 – VESA-certified eye-catching details through precise contrast and shadow adjustment.
- Console Mode – Optimized for seamless compatibility with gaming consoles like PS5 and Xbox Series X|S.
- Quantum Dot Technology – Delivers over a billion vibrant colors with stunning clarity.
- Aspect Ratio Options – Choose between multiple aspect ratios for a more personalized gaming experience.
| Panel Size | 27" |
| Active Display Area (mm) | 596.16 (H) x 335.34 (V) |
| Curvature | Flat |
| Panel Type | Rapid IPS with Mini-LED (1152 Zones) |
| Panel Resolution |
Normal: 3840 x 2160 (UHD) Dual Mode: 1920 x 1080 (FHD) |
| Pixel Pitch (H x V) | 0.15525 (H) x 0.15525 (V) |
| Aspect Ratio | 16:9 |
| Brightness (nits) |
SDR: 400 cd/m² HDR: 1000 cd/m² (Peak) |
| Contrast Ratio | 1000:1 (Typ.) |
| DCR | 100000000:1 |
| Signal Frequency |
Normal: 180~356KHz (H) / 48~160Hz (V) Dual Mode: 180~356KHz (H) / 48~320Hz (V) |
| ACTIVATED RANGE |
Normal: 48~160Hz Dual Mode: 48~320Hz |
| Refresh Rate |
Normal: 160Hz Dual Mode: 320Hz |
| Response time | 0.5ms (GtG, Min.) |
| DYNAMIC REFRESH RATE TECHNOLOGY | Adaptive-Sync |
| HDR Support | VESA DisplayHDR 1000 |
| Video ports |
1x DisplayPort 1.4a (HBR3) 2x HDMI™ 2.1 (UHD@160Hz) 1x Type-C (DP alt.) w/ 15W Power Delivery |
| Audio ports | 1x Headphone-out |
| Viewing Angle | 178° (H) / 178° (V) |
| Adobe RGB / DCI-P3 / sRGB | 100% / 98% / 143% (CIE1976 Standard) |
| Surface Treatment | Anti-glare |
| Display Colors | 1.07B, 10 bits (8 bits + FRC) |
| Console Mode |
Supported Resolution & Refresh Rate: 1080p: 60Hz and 120Hz 1440p: 60Hz and 120Hz 2160p: 60Hz and 120Hz HDMI™ CEC: Supported VRR: PS5 and Xbox Supported |
| Frameless Design | Yes |
| PIP / PBP Function | Yes |
| Power Type | External Adaptor 19V 7.89A |
| Power Input | 100~240V, 50/60Hz |
| Adjustment (Tilt) | -5° ~ 20° |
| Adjustment (Swivel) | -30° ~ 30° |
| Adjustment (Pivot) | -90° ~ 90° |
| Adjustment (Height) | 0~110 mm |
| Kensington Lock | Yes |
| VESA Mounting | 100 x 100 mm |
| Dimension with Stand (W x D x H) |
613.10 x 227.90 x 423.53 mm (24.14 x 8.97 x 16.67 inch) |
| Dimension without Stand (W x D x H) |
613.10 x 68.77 x 375.31 mm (24.14 x 2.71 x 14.78 inch) |
| Weight (NW / GW) | 7.5 kg (16.54 lbs) / 11 kg (24.25 lbs) |
| Carton Dimension (W X D X H) |
910 x 170 x 470 mm (35.83 x 6.69 x 18.50 inch) |
| Accessories |
1x DP Cable (1.4a), 1x Power Cord (C5), 1x AC Adaptor, 1x Quick Guide, 4x VESA Wall Mount Screw |
| Note |
HDMI™: Normal (UHD): 3840 x 2160 (Up to 160Hz) Dual Mode (FHD): 1920 x 1080 (Up to 320Hz) DisplayPort: Normal (UHD): 3840 x 2160 (Up to 160Hz) Dual Mode (FHD): 1920 x 1080 (Up to 320Hz) Type-C: Normal (UHD): 3840 x 2160 (Up to 160Hz) Dual Mode (FHD): 1920 x 1080 (Up to 320Hz) Support: HDMI™ CEC, PIP/PBP; Non Support: KVM |
