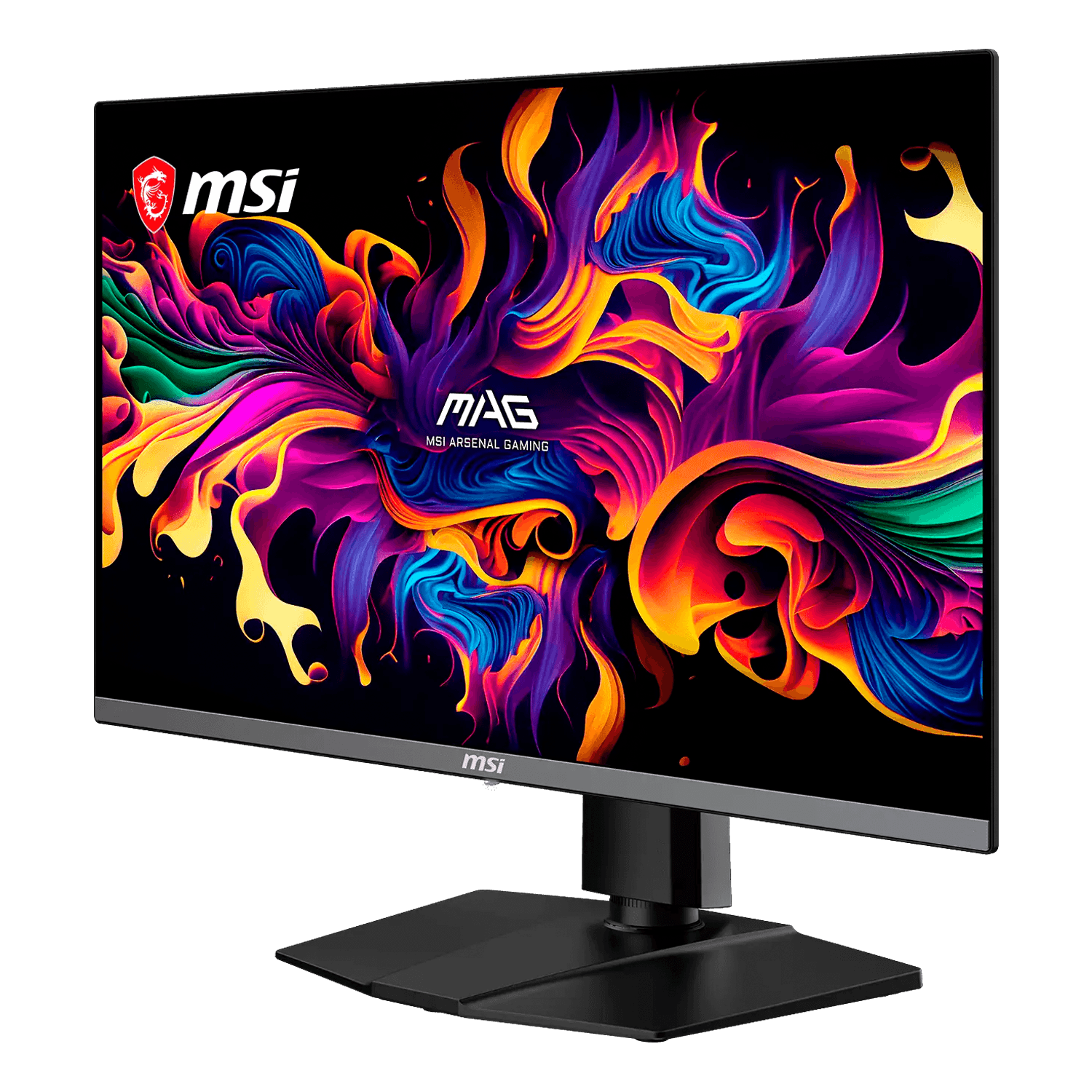

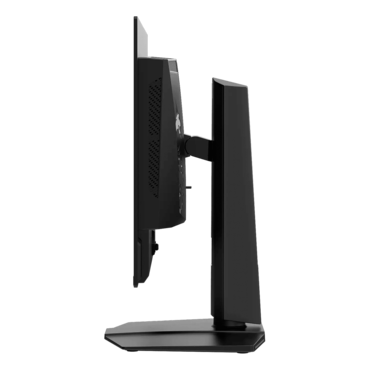

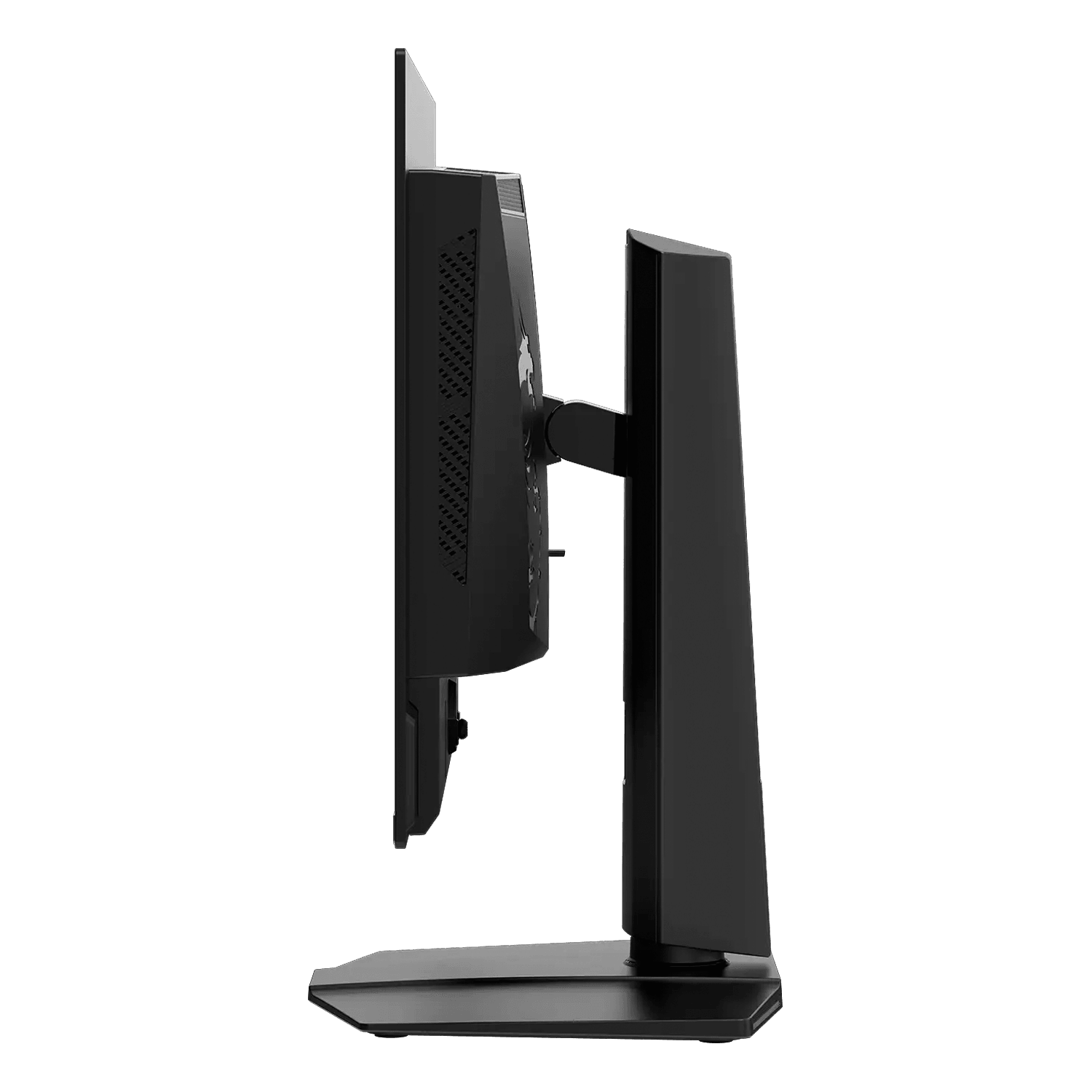

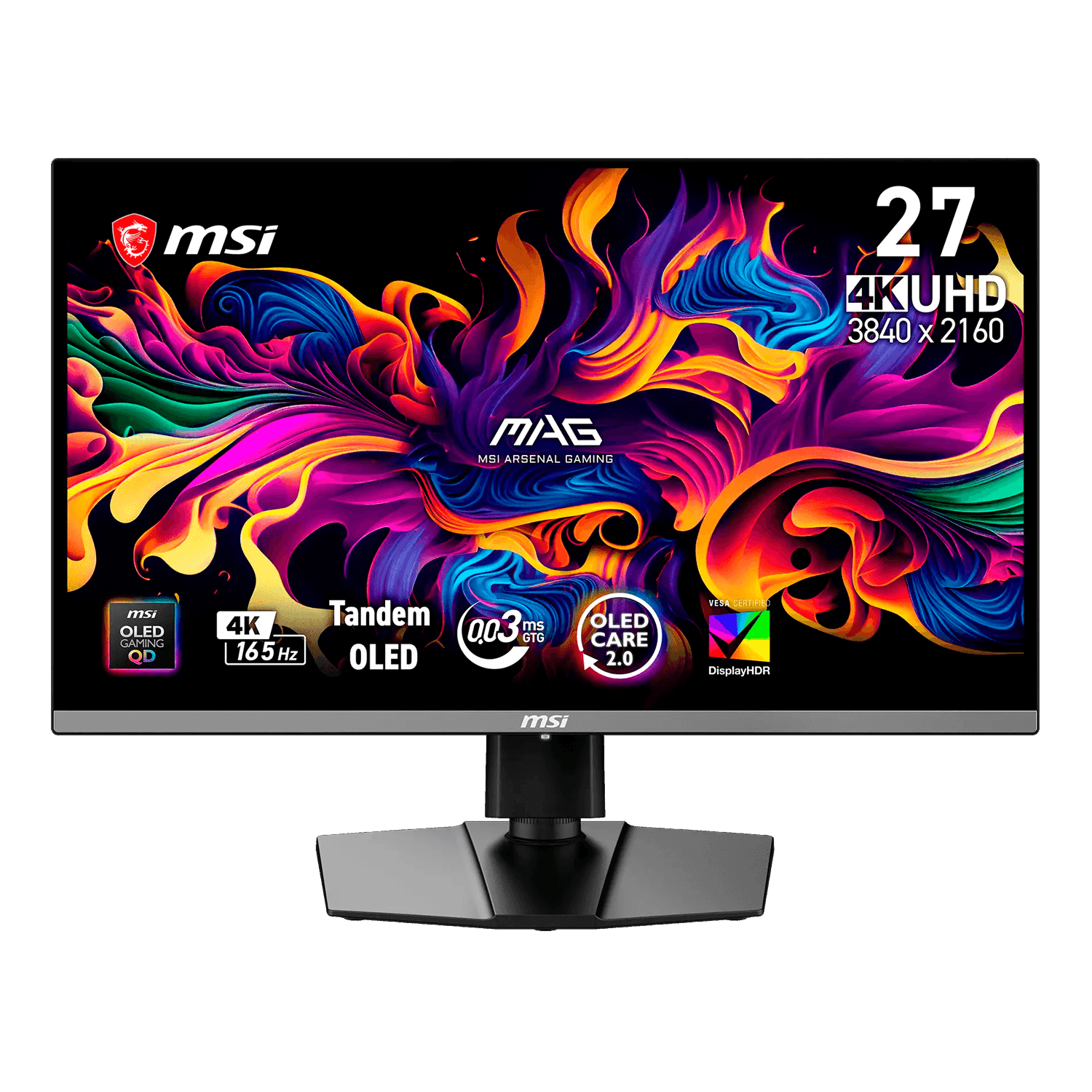

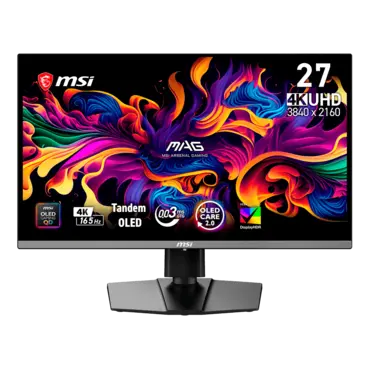

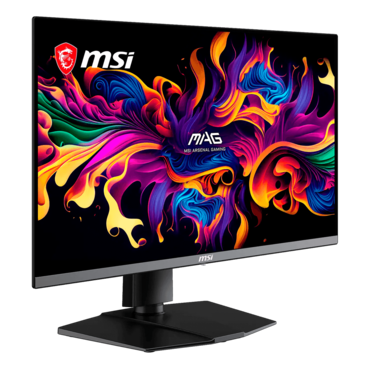

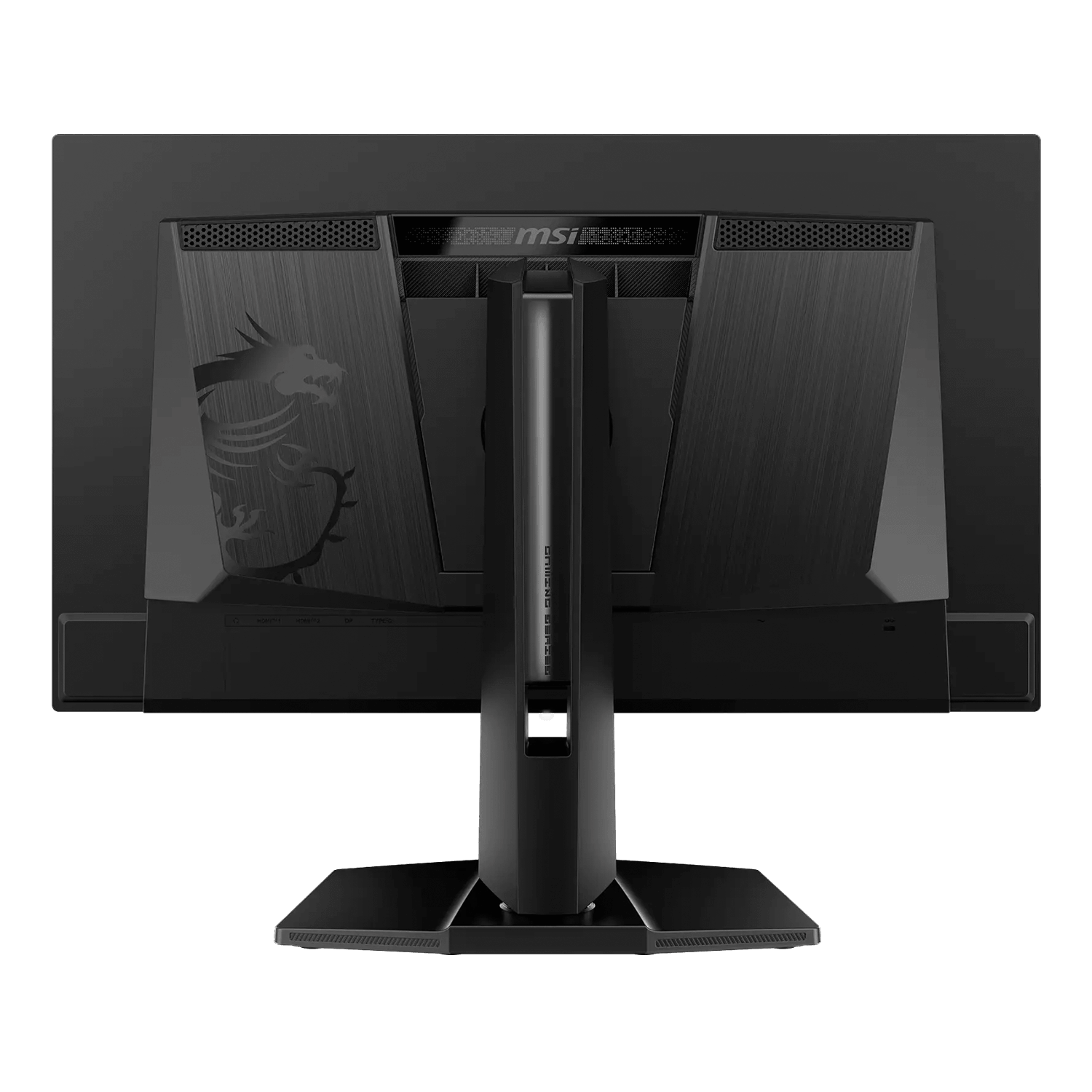

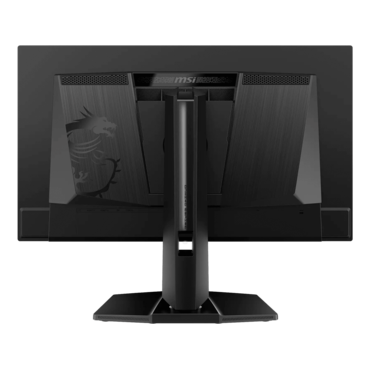

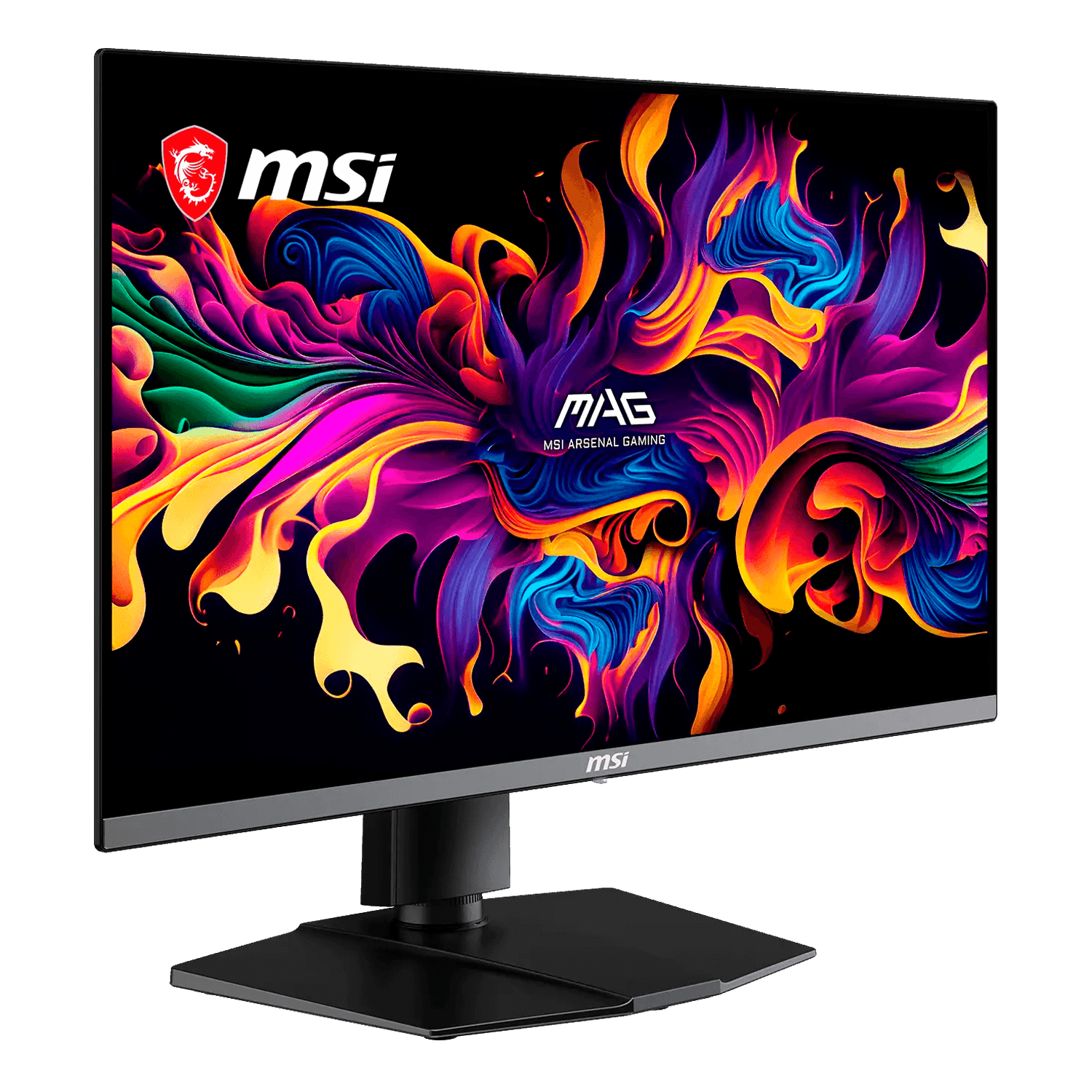

MAG 272UP QD-OLED E16, DisplayHDR™ 400, 26.5" QD-OLED, 3840 x 2160 (4K UHD), 0.03 ms, 165Hz, FreeSync™ Premium Pro/G-SYNC® Compatible Gaming Monitor
- SKU: 20240623
- Manufacturer: MSI
- MPN: MAG272UPQDOLEDE16
- Availability: TEMPORARILY OUT OF STOCK
- The latest 4th-Gen QD-OLED Panel – With stunning image quality and fast response time.
- Uniform Luminance - HDR Curve Customization allowing you to customize the HDR curve and enjoy a smoothly uniform HDR experience.
- Incredible HDR visual – VESA DisplayHDR True Black 400.
- Ensures the color meets the market standard – Delta E≤2.
- Crystal-Clear Motion – VESA ClearMR 9000 certified.
- 3-Year Burn-In Warranty – Including coverage for OLED burn-in.
| Panel Size | 26.5” |
| Active Display Area (mm) | 589.97 (H) x 332.93 (V) |
| Curvature | Flat |
| Panel Type | QD-OLED |
| Panel Resolution | 3840 x 2160 (UHD) |
| Pixel Pitch (H x V) | 0.153(H) x 0.153(V) |
| Aspect Ratio | 16:9 |
| Brightness (nits) | SDR: 250 HDR: 1000 |
| Contrast Ratio | 1500000:1 (Typ.) |
| Signal Frequency | 280.3~386.8 KHz(H) / 48~165 Hz(V) |
| ACTIVATED RANGE | 48~165Hz |
| Refresh Rate | 165Hz |
| Response time | 0.03ms (GtG) |
| DYNAMIC REFRESH RATE TECHNOLOGY | G-SYNC™ Compatible AMD FreeSync™ Premium Pro Technology |
| HDR Support | VESA DisplayHDR True Black 400 |
| Video ports | 2x HDMI™ 2.1 (UHD@165Hz) 1x DisplayPort 1.4a (HBR3) 1x Type-C (DP alt.) w/ 15W PD |
| Audio ports | 1x Headphone-out |
| Viewing Angle | 178° (H) / 178° (V) |
| Adobe RGB / DCI-P3 / sRGB | 98% / 99% / 138% (CIE1976 Standard) |
| Surface Treatment | Anti-Reflection |
| Display Colors | 1.07B, 10 bits |
| Frameless Design | Yes |
| PIP / PBP Function | Yes |
| Power Type | Internal Power Board |
| Power Input | 100~240V, 50/60Hz |
| Adjustment (Tilt) | -5° ~ 20° |
| Adjustment (Swivel) | -30° ~ 30° |
| Adjustment (Pivot) | -90° ~ 90° |
| Adjustment (Height) | 0 ~ 110 mm |
| Kensington Lock | Yes |
| VESA Mounting | 100 x 100 mm |
| Dimension with Stand (W x D x H) | 611.1 x 241.9 x 532.8 mm (24 x 9.5 x 20.9 inch) |
| Dimension without Stand (W x D x H) | 611.1 x 69.3 x 357.2 mm (24 x 2.7 x 14 inch) |
| Weight (NW / GW) | 7.7 kg (16.9 lbs) / 10.9 kg (24 lbs) |
| Accessories |
1x DisplayPort Cable (1.4a), 1x Power Cord (C13), 1x Quick Guide, 4x VESA Screw, 1x Fiber Cloth, 1x Color Report |
| Note |
HDMI™: 3840 x 2160 (Up to 165Hz) DisplayPort: 3840 x 2160 (Up to 165Hz) Type-C: 3840 x 2160 (Up to 165Hz) Support: HDMITM CEC, PIP/PBP; Non Support: KVM |
| Warranty | 3 years (including panel burn-in) |
