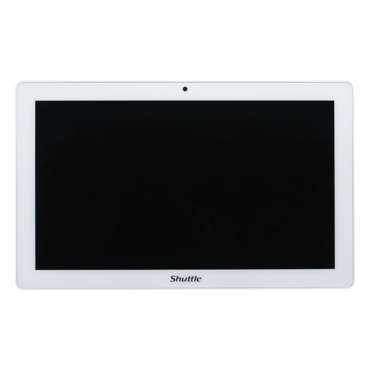

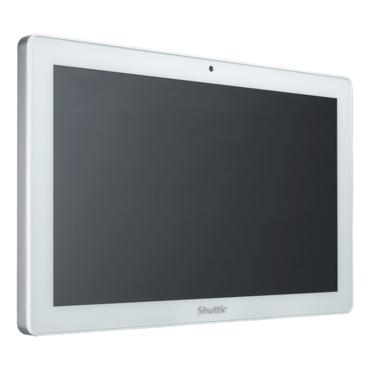

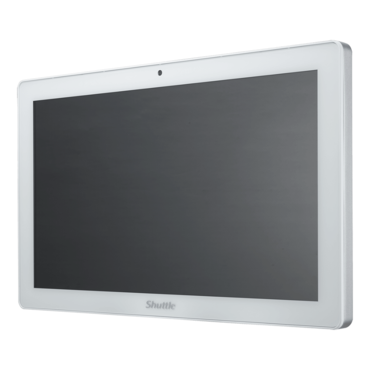

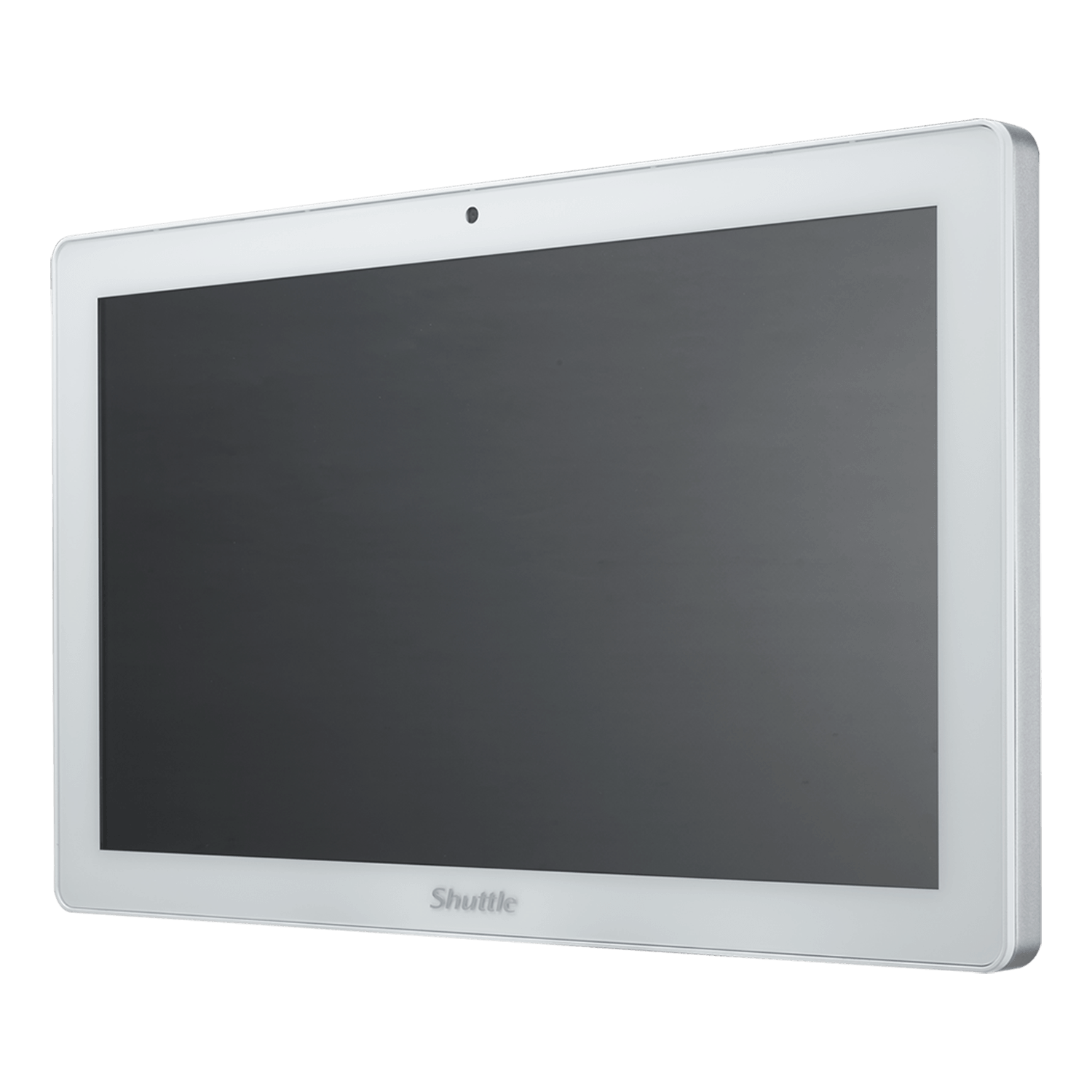

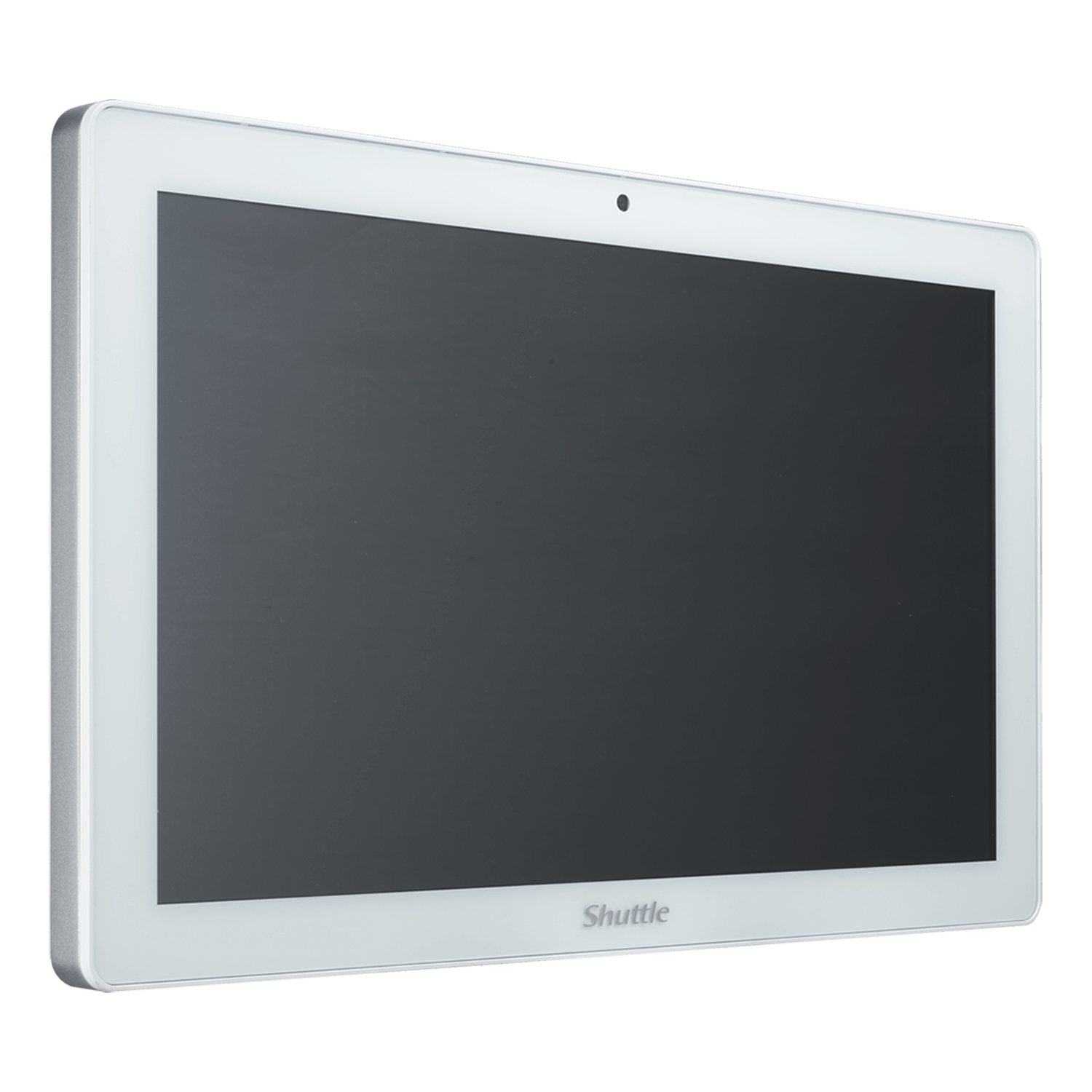

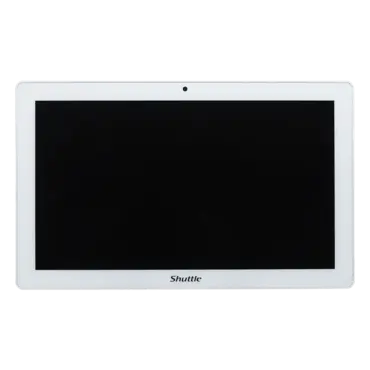

M21WL01UE5 Fanless Panel PC, 21.5" Full HD, TAA Compliant, Intel® Core™ i5-8365UE, IP65, Antibacterial coating, VESA, vPro
- SKU: 19941426
- Manufacturer: SHUTTLE
- MPN: M21WL01UE5
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$1,979.99
| Fanless and silent |
Passive heatpipe cooling, absolutely no fan noise Perfect for noise-sensitive environments Fanless, dust-free and thus virtually maintenance-free |
|---|---|
| 24/7 nonstop operation |
This device is approved for 24/7 permanent operation. Requirements: - Free circulation of air amongst the PC must be guaranteed. - If a SSD is installed, this must also be approved for permanent operation by its manufacturer. |
| IP65 protected | The front panel is protected from dust and jets of water according to protection class IP65. |
| Chassis |
Anti-Septic coating based on an inorganic zinc compound (front panel) and epoxy/polyester resin (rear
chassis) Robust chassis with cover for the I/O connectors Rear/cable cover and middle frame are all made of Aluminium Rear cover chassis thickness: 3.0 mm Color: White Dimensions: 543 x 334 x 49.9 mm (W x H x D) 100x100 mm VESA mountable, 4x M4x6L screws required) VESA mount and stand are not included in the scope of delivery. Net weight: 7.6 kg |
| Operating system |
This system comes without operating system. It is compatible with: - Windows 10 ( 64-bit) - Windows 11 ( 64-bit) - Linux (64-bit) |
| Touchscreen |
Touchscreen function supports fingertip input Projected capacitive touch panel with 10-point multi-touch and antibacterial coating Supports input with gloves (PVC, cotton, cotton/linen) Stylus pen not supported |
| 54.6 cm display (21.5") |
54.6 cm / 21.5" LC display Type: a-Si TFT-LCD, VA mode Ratio: 16:9 wide-screen panel Native resolution: 1920 x 1080 = 2 Megapixel (Full HD / 1080p) Viewing angle (left/right/up/down): 89° Brightness: 300 cd/sqm or nits (typ.) Contrast: 3000:1 (typ.) Viewing Angle: 89°/89°/89°/89° (typ.) Backlight lifetime: 30.000 hours |
| Processor |
Model: Intel Core i5-8365UE (ULV) System-on-a-chip architecture (SoC) with integrated memory and graphics controller FCBGA1528 package - directly soldered onto the mainboard Code name: Whiskey Lake-U (8th Generation Intel Core) Cores / Threads: 4 / 8 Clock rate: 1.6 GHz, Turbo clock rate: 4.1 GHz L3 Smart Cache: 6 MB TDP wattage: 15 W maximum Manufacturing process: 3rd-generation enhanced 14nm++ |
| Integrated Graphics |
Intel UHD Graphics 620 GPU clock frequency: 300~1050 MHz Execution Units (EUs): 24 Supports up to three independent screens: 1) Built-in Full-HD display (supports 1080p/60) 2) HDMI 1.4b port (supports 1080p/60 and 2160p/30) 3) DVI-I port (supports 1080p/60) Note: DVI-I also supports analog VGA displays with an optional adapter |
| UEFI BIOS |
Supports resume after power failure Supports Wake on LAN (WOL) Supports Power on by RTC Alarm Supports boot from M.2 SSD cards and USB devices AMI BIOS in 32 MB EEPROM with SPI interface Supports hardware monitoring and Watchdog function Supports Unified Extensible Firmware Interface (UEFI) |
| Supports Intel® vPro™ and AMT |
Intel® vPro™ is a brand name for a specific set of management and security technologies.
Intel® Active Management Technology (AMT) is a subset of Intel vPro. This technology allows remote
management of PCs, even in power-off mode or with non-functional operating systems. You can audit, repair
and restore AMT-based platforms in a LAN. These functions can increase the uptime of desktops with lower
maintenance costs. Note: Intel vPro requires appropriate software. The Intel® MEBX configuration user interface can be accessed after pressing CTRL-P at the beginning of the boot process. Only the Intel i219 LAN port (yellow color) supports the Intel vPro® function. |
| TPM Module | Hardware Trusted Platform Module (Infineon SLB9670VQ2 TPM 2.0) |
| Power Adapter |
External 90 W power adapter (fanless) Model FSP090-RBBM1 Medical Safety IEC 60601-1, Meet EN55011 and FCC Class B Input: 90~264 V AC, 50/60 Hz Output: 19 V DC, 4.74 A, max. 90 W DC Connector: 5.5/2.5 mm (outer/inner diameter) AC mains cable: 3 pins, with C5/C6 coupler (called "Mickey Mouse" or "Clover-leaf") for the power adapter and CEE-7/7 plug with earth-contact (type E+F) for the power outlet DOE Energy Efficiency Level VI No Load Power Consumption ≤ 0.21W Dimensions: 140 x 71 x 22 mm |
| DC Input connector |
DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter) The DC-input of the computer supports an external power source with 19V ± 5%. |
| Wide Range DC-Input (Optional) |
The DC input voltage range can optionally be extended to support 9-36 V. For this purpose, an accessory item must be purchased separately. |
| Memory support |
2x SO-DIMM slot with 260 pins Supports DDR4-2400 (PC4-19200) SDRAM at 1.2 V Supports Dual Channel mode Supports a maximum of 32 GB per DIMM, maximum total size: 64 GB Supports two unbuffered SO-DIMM modules (no ECC or registered) |
| 2.5" bay supports SSDs |
Supports one SATA SSD drive in 6.35 cm / 2.5" format and up to 7 mm in height The SATA 3.0 interface supports up to 600 MB/s of data transfer speed (6 Gbit/s) The drive can quickly be installed via the swappable drive tray. No Hot-Swap capability (exchanging during a running operation) |
| M.2 Slot for SSDs |
The M.2 2280 M slot provides the following interfaces: - PCI-Express Gen. 3.0 x4 - SATA v3.0 (max. 6 Gbps) It supports M.2 cards with a width of 22 mm and a length of 60 or 80 mm (type 2260, 2280). Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe NVMe SSDs (with M key) with auto detection |
| Webcam | Integrated Full-HD 2.0 Megapixel (1920 x 1080) camera |
| Audio and Speakers |
Audio Realtek® ALC662 or ALC888S High-Definition Audio Two analog audio connectors (3.5 mm) on the back panel: 1) 2 channel line out (headphones) 2) microphone input Digital multi-channel audio output: via HDMI Two built-in speakers (2x 2W Stereo) |
| Dual Gigabit LAN |
Dual network with two RJ45 ports Used network chips: 1) Intel i211 Ethernet Controller with MAC, PHY and PCIe interface 2) Intel i219LM PHY connected to the MAC of the processor Supports 10 / 100 / 1000 MBit/s operation Supports WAKE ON LAN (WOL) Supports network boot by Preboot eXecution Environment (PXE) Supports Teaming mode |
| Wireless Network (WLAN) |
Built-in M.2-2230-E WLAN card with two internal antennas (external antennas available on request) WLAN Controller Realtek RTL8821CE SupportsWiFi IEEE 802.11b/g/n/ac in the 2.4 / 5 GHz band, 1T1R Supports 20 / 40 / 80 MHz channel bandwidth Security: supports WPA(-PSK), WPA2(-PSK), WEP 64/128 bit, IEEE 802.11x, IEEE 802.11i SupportsBluetooth 4.2 in the 2.4 GHz band |

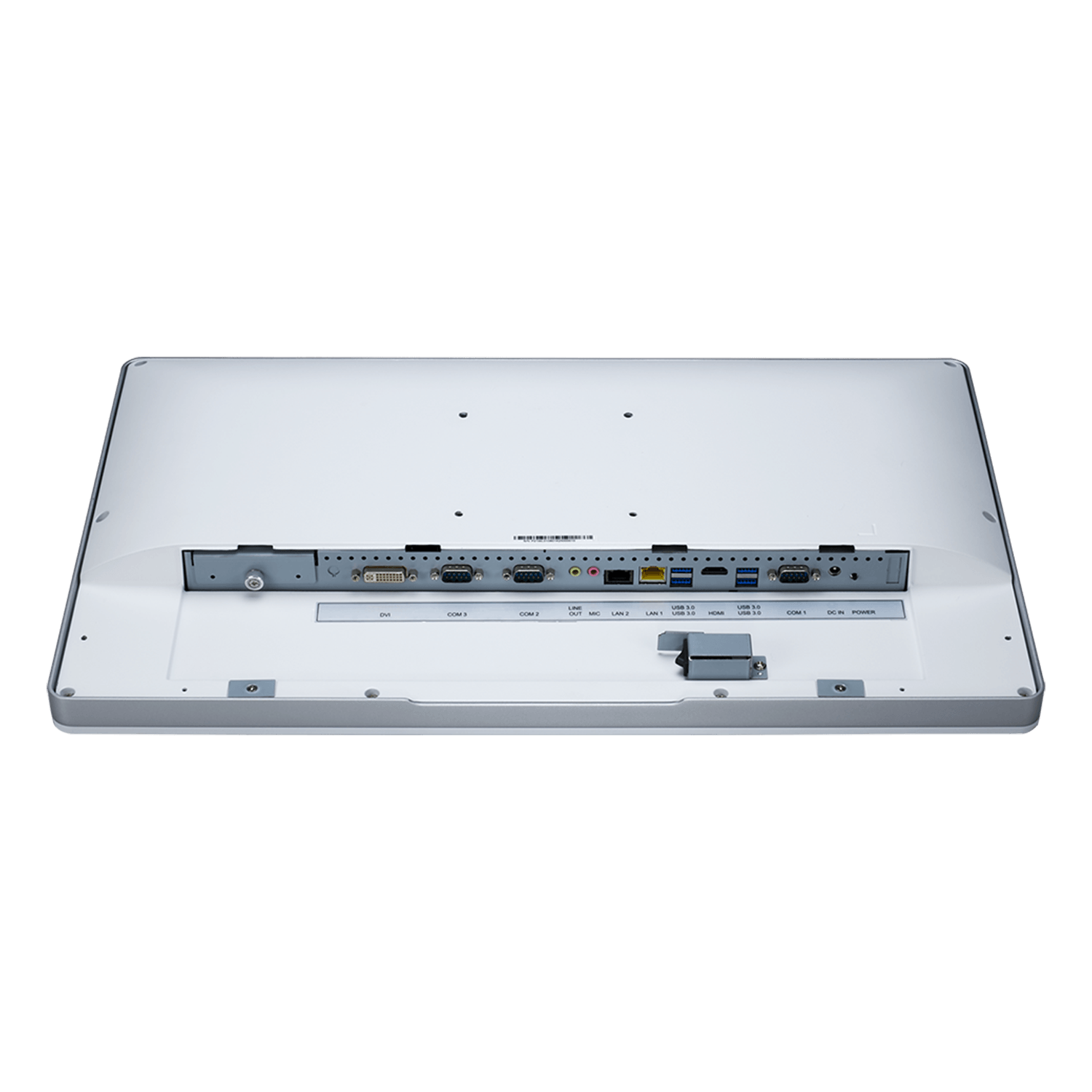

| Back Panel connectors (downwards) |
Power Button and Easy Rock Switch HDMI 1.4b (digital video+audio) DVI-I (video, analog+digital) 4x USB 3.2 Gen 1 Type A (max. 5 Gbps) 2x Intel Gigabit LAN (RJ45, i211/i219LM) 3x Serial Port DB9/D-sub (1x RS232 and 2x RS232/422/485) (the RS232/422/485 ports supports 5V auxiliary voltage on the RI pin) Microphone input (3.5 mm) Audio Line-out / Headphones (3.5 mm) DC-input connector for external power adapter (19V / 90W) Potential Equalization Pin (POAG) according to DIN 42801 - the POAG cable is included |
| Other connection options |
The backpanel has three sections, which can be assigned with other connections. This requires a modification of the metallic back panel shield. Available ports: HDMI, DisplayPort, DVI-I, VGA, Quad USB 2.0, COM. |
| Environmental criteria |
Operating temperature: 0 ~ 40 °C Storage temperature: -20 ~ 60 °C Permitted relative humidity: 20 ~ 80 % (non-condensing) |
| Certification and Compliance |
EMI: CE Class B, FCC Class B Safety: CB IEC 62368-1:2014 RF: RED (EU) Medical certificates: cTUVus (ANSI/AAMI ES60601-1:2005/(R)2012), CB (IEC/ EN 60601-1: 2005+A1: 2012), CE (EN 60601-1-2:2015, Class B), IEC 60601-1-2: 2015, FCC Part 18 (CISPR 11, Class B) This device is classed as a technical information equipment (ITE) in class B. The CE-mark approves the conformity by the EU directives: (1) 2014/30/EU relating to electromagnetic compatibility (EMC), (2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD), (3) 2009/125/EC relating to eco design requirements for energy-related products (ErP) (4) 2014/53/EU Radio Equipment Directive (RED) |
