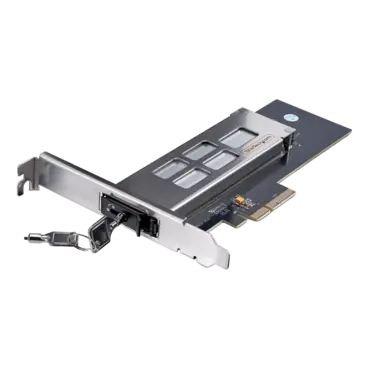

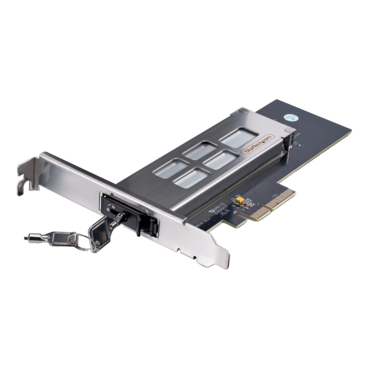

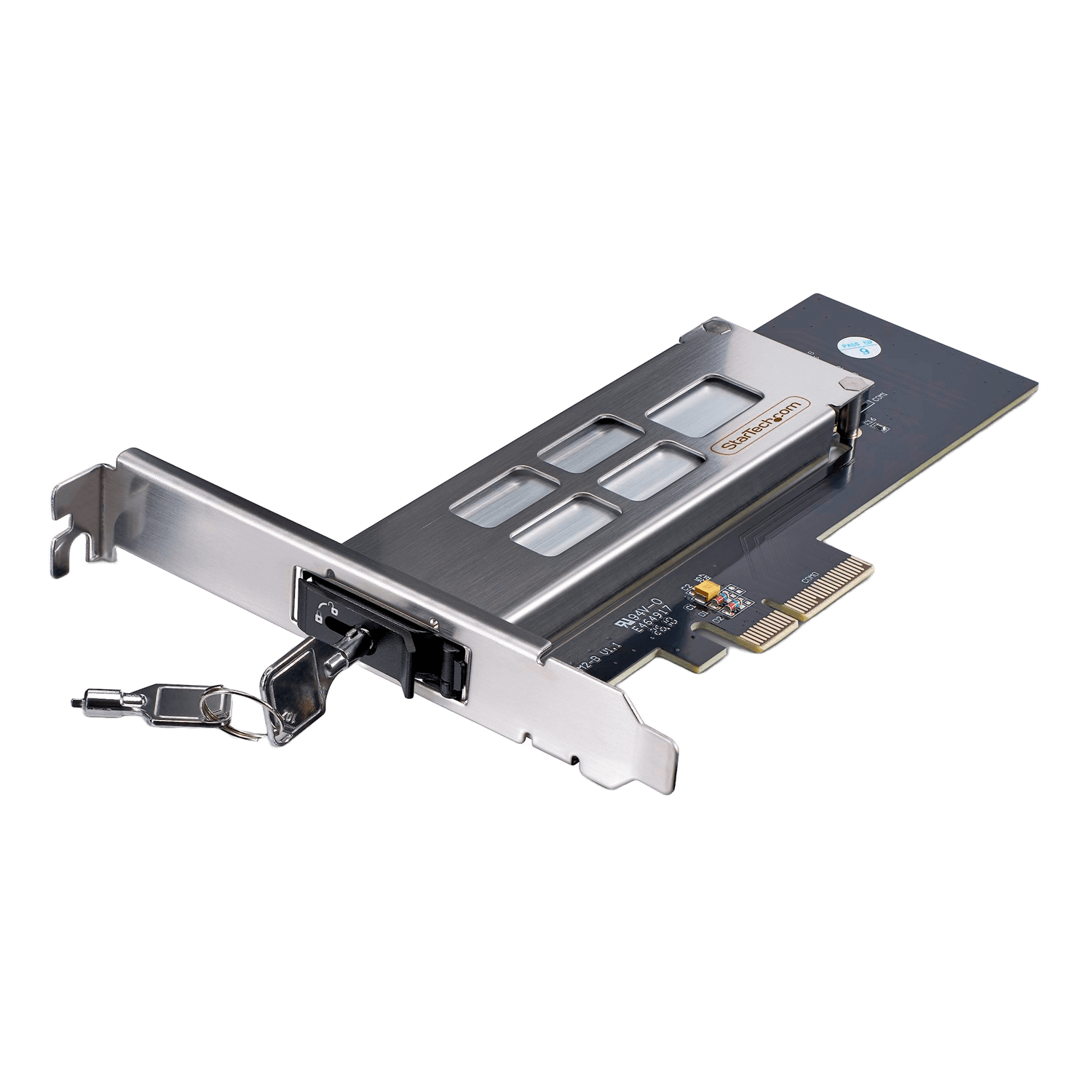

M2-REMOVABLE-PCIE-N1, M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure /Adapter for PCIe Expansion Slot
- SKU: 16991389
- Manufacturer: STARTECH.COM
- MPN: M2-REMOVABLE-PCIE-N1
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
- >REMOVABLE M.2 DRIVE BAY: Use an available PCIe 4.0 x4 expansion slot to install, remove, or swap PCIe M.2 SSDs (NVMe or AHCI); Supports 2230, 2242, 2260, and 2280 M-Key M.2 NVMe SSDs; Capable of reaching high-performance read/write speeds up to 64Gbps
- TOOLLESS INSTALLATION: Install an M.2 drive into the drive tray or insert the tray into the drive bay without the need for tools; Power/Activity LED indicator; Drive tray features a latching mechanism and is lockable for secure installation (2 keys incl.)
- OPTIMAL PERFORMANCE: Vented stainless steel frame, bracket, and tray with thermal pads and aluminum cover aid heat dissipation; Anti-vibration springs on the drive tray reduce shock or vibrations; Optional screw for stability; Incl. Low-profile bracket
- COMPATIBILITY: No drivers or software required and works on any operating system including Windows, Windows Server, Linux; Supports PCI Express 4.0 and 3.0 motherboards with an available x4, x8, or x16 slot; Not compatible with M.2 SATA drives
- HOT SWAP: Additional drive trays (TR-M2-REMOVABLE-PCIE, sold separately) offer flexibility/convenience when working with multiple drives; PCIe hot swap support is dependent on the motherboard, check with the manufacturer to confirm support
| General | |
| UPC | 065030898997 |
| Package Quantity | 1 |
| Warranty | 2 Years |
| Power | |
| Power Source | Bus Powered |
| Physical & Environmental | |
| Color | Black & Silver |
| Product Length | 6.6 in [16.7 cm] |
| Product Width | 4.7 in [12.0 cm] |
| Product Height | 0.7 in [19.0 mm] |
| Weight of Product | 2.3 oz [65.0 g] |
| Operating Temperature | 0°C to 65°C (32°F to 149°F) |
| Storage Temperature | -35°C to 70°C (-31°F to 158°F) |
| Humidity | 0% ~ 90% RH |
| Performance | |
| Maximum Data Transfer Rate | 64Gbps |
| TRIM Support | Yes |
| S.M.A.R.T. Support | Yes |
| 4Kn Support | Yes |
| SATA Type and Rate | PCI Express 4.0 (16 Gbps per lane) |
| RAID | No |
| Hot Swap Capability | Yes |
| MTBF | 10,000 Hours |
| Hardware | |
| Fans Included? Yes/No | No |
| Front Door Key Lock | Yes |
| Interface | M.2 PCIe (x4 PCIe) |
| Bus Type | PCI Express |
| Industry Standards | PCI Express 4.0 |
| Number of Drives | 1 |
| Drive Size | 22 mm - M.2 NVMe |
| Compatible Drive Types | M.2 (PCIe, NVMe, M-Key, NGFF) |
| Drive Installation | Removable |
| Supported Drive Height(s) |
2230 2242 2260 2280 |
| LED Indicators |
1 - Red: Connected Drive is Not Supported 1 - Green: Connected Drive is Supported 1 - Yellow: Flashes to indicate Drive Activity |
| Packaging & In-the-Box | |
| Included in Package |
1 - M.2 to PCIe Adapter Card 1 - Low-Profile Bracket 1 - M.2 Drive Tray 1 - Set of Keys 1 - Quick-Start Guide |
| Package Width | 6.0 in [15.3 cm] |
| Package Depth | 4.7 in [11.9 cm] |
| Package Height | 1.9 in [47 mm] |
| Shipping (Package) Weight | 8.7 oz [246 g] |
| Connector(s) | |
| Host Connector 1 (Quantity) | 1 |
| Host Connector 1 | PCI Express x4 |
| Connector 1 (Quantity) | 1 |
| Connector 1 | M.2 M-Key (PCIe, AHCI / NVMe) |
