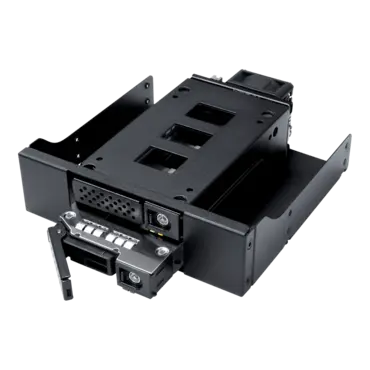

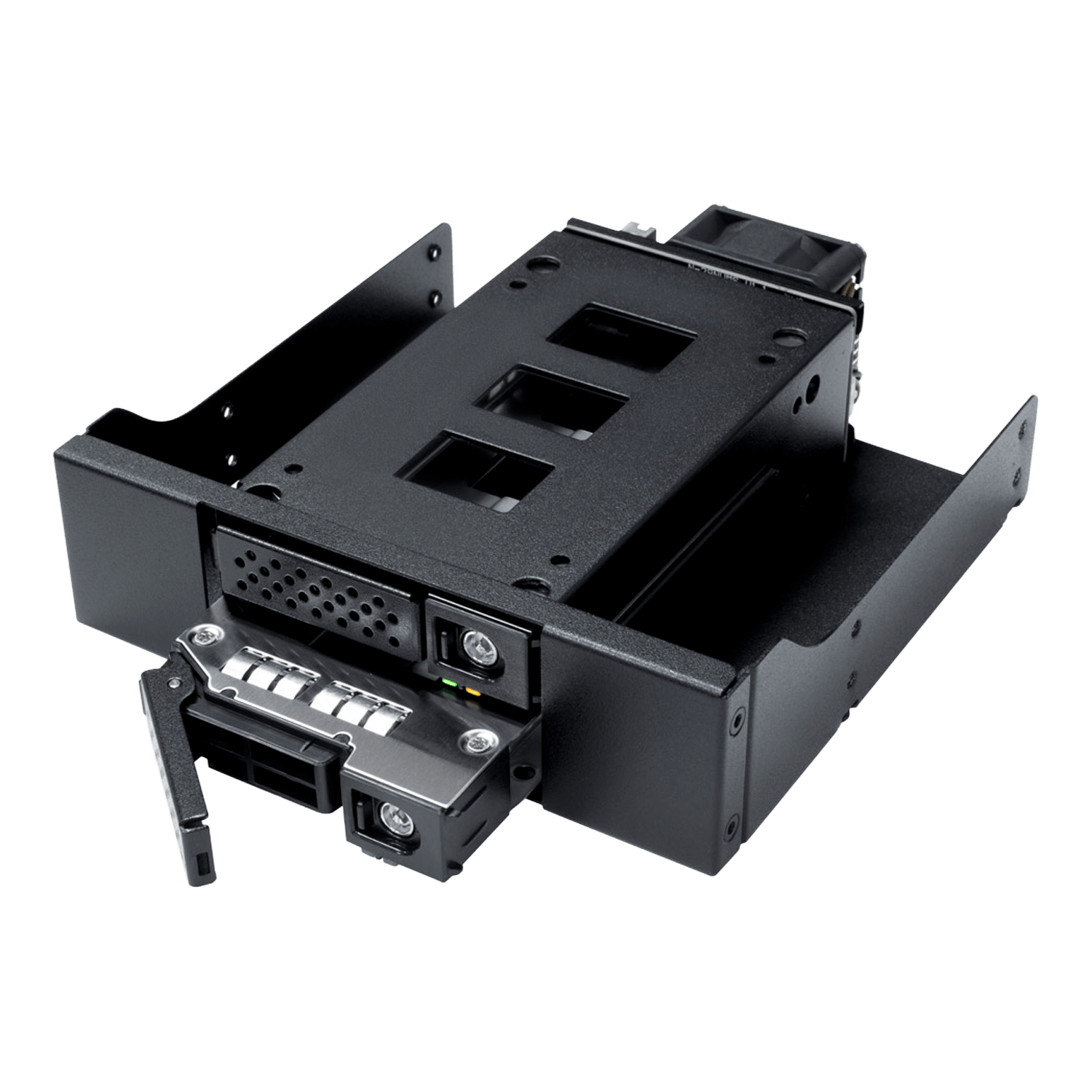

K-29NVMO15, 5.25" Bay bracket for 2 x 2.5" U.2 SSD Oculink
- SKU: 19714885
- Manufacturer: KINGWIN
- MPN: K-29NVMO15
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$207.00
- 5.25 bay bracket, w/stainless tray, keylock.
- Metal frame with stainless carriers.
- Worry-free slide-in carrier design.
- 1 x 4pin power connector + 3pin fan jumper.
- 2 x Oculink (SFF-8611) connector.
- For 2 x 2.5” NVMe U.2 SSD.
- Individual SSD carrier for swapping in/out.
- Security metal keylock and with key (2pcs).
- 4020 cooling fan x 1 for fast air ventilation.
- With vibration reducing springs on each SSD carrier.
- Support U.2 Gen3 and Gen4 Performance.
- LED: Power (green) Access (orange)
- Dimension: 155.1mm(L) x 145.8(W) x 41.8(H).
- Weight: 0.52 Kgs.
| Model Number: | K-29NVMO15 |
| Color: | Black |
| Compatible Drive Type: | U.2/ U.3(with Dual Mode), M.2(with K2U03 adapter), 2230/ 2242/ 2260/ 2280 |
| Support Drive Size: | 2 x U.2 NVME SSD(up to 15mm) |
| Fan: | 1 x 4010 Blower Fan |
| Host Interface: | OCuLink(SFF-8612) Connector x 2 |
| Power Input: | Mini 4pin Power Connector x 1 |
| Number of Drives: | 2 |
| Drive Bay: | 5.25″ |
| Transfer Speed: | PCIe3.0/ 4.0 32/ 64Gbps |
| Product Dimension: | 155.1(L) x 145.8(W) x 41.8(H) mm |
| Product Weight: | 0.37kg |
