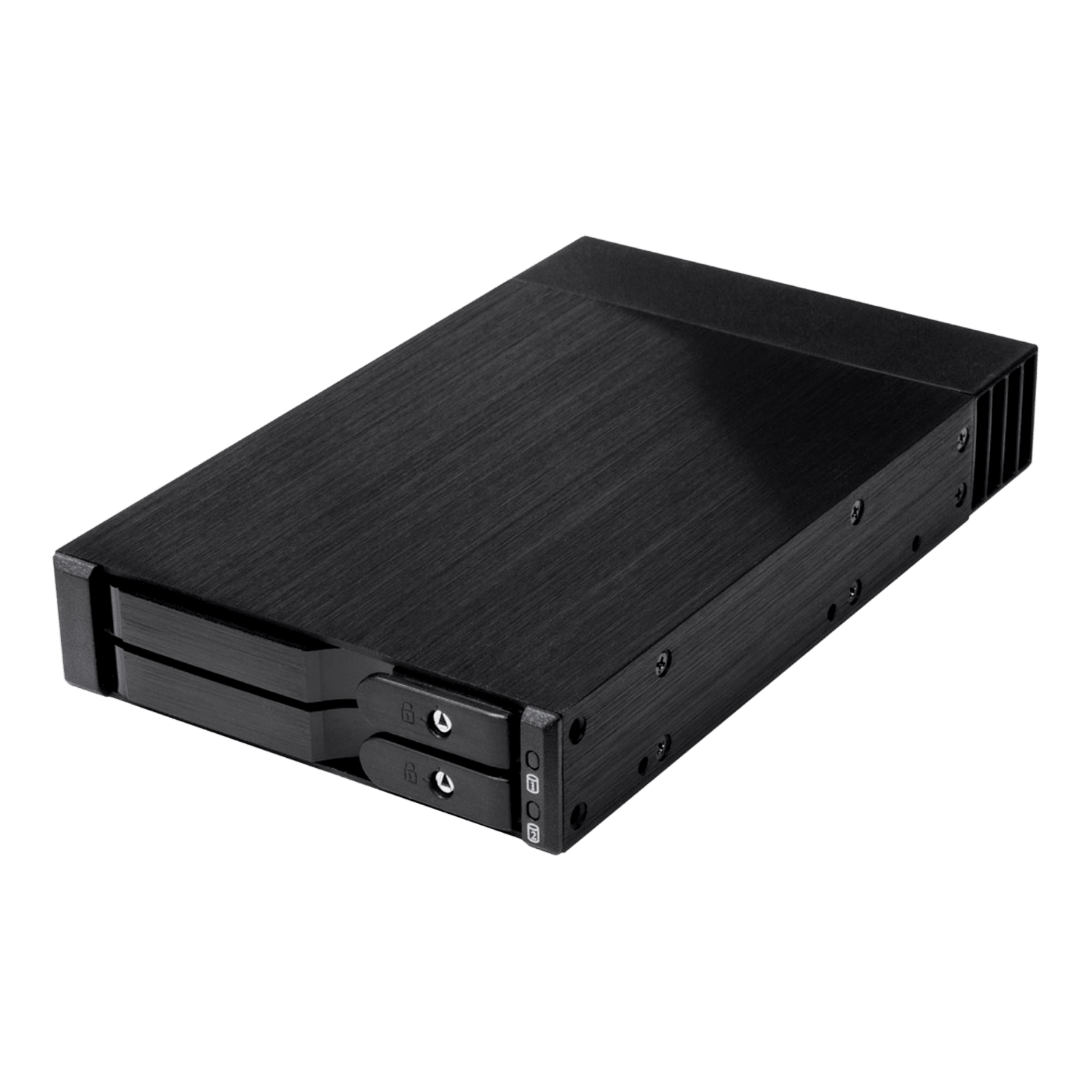

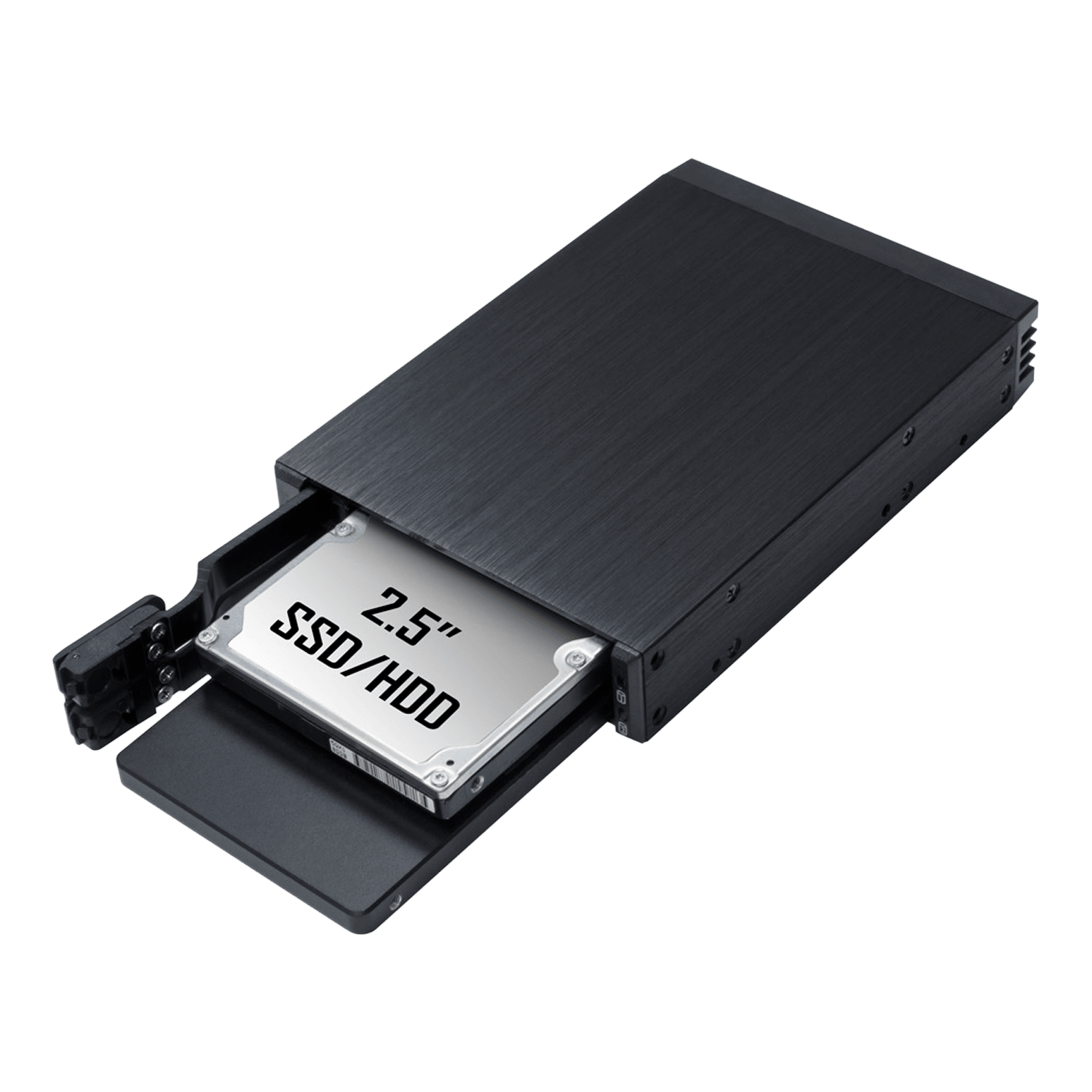

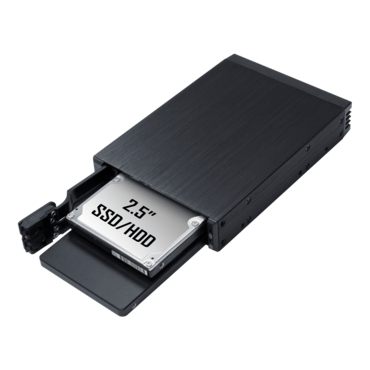

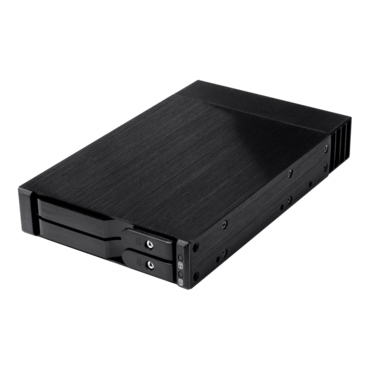

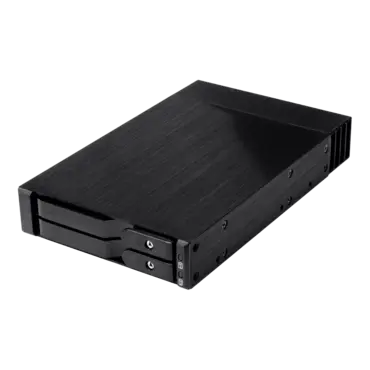

K-22SS, Trayless backplane for 2 x SATA/SAS 2.5" (7-9.5mm)
- SKU: 19714845
- Manufacturer: KINGWIN
- MPN: K-22SS
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$30.47
- 3.5” form factor for dual-bay 2.5” SSD/HDD.
- Aluminum material for the best heat dissipation.
- Triangle security metal keylock.
- Support 2.5” SATA 6Gbps/SAS 12Gbps SSD/HDD (up to 9.5mm).
- Trayless design & for easy drives swap.
- LED: Green (power) Orange (access).
- With HDD accessing enable/disable control LED switch.
- Dimensions: 147.5 (L) x 101.5 (W) x 25.4 mm (H).
- Weight: 0.21 Kgs.
| Model Number: | K-22SS |
| Color: | Black |
| Compatible Drive Type: | 2 x 2.5” SATA I, II, III & SAS I, II, III (12Gbps) HDD/SSD |
| Support Drive Size: | HDD height up to 9.5mm |
| Support Drive Length: | 30mm – 110mm |
| Host Interface: | 7pin SATA Connector x 2, |
| Power Input: | 15pin SATA Power Connector x 1 |
| Number of Drives: | 2 |
| Fan | N/A |
| Operating System | Windows/ Linux/Mac |
| Product Dimension: | 145.7(L) x 101.5(W) x 25.4(H) mm |
| Product Weight: | 0.21kg |
