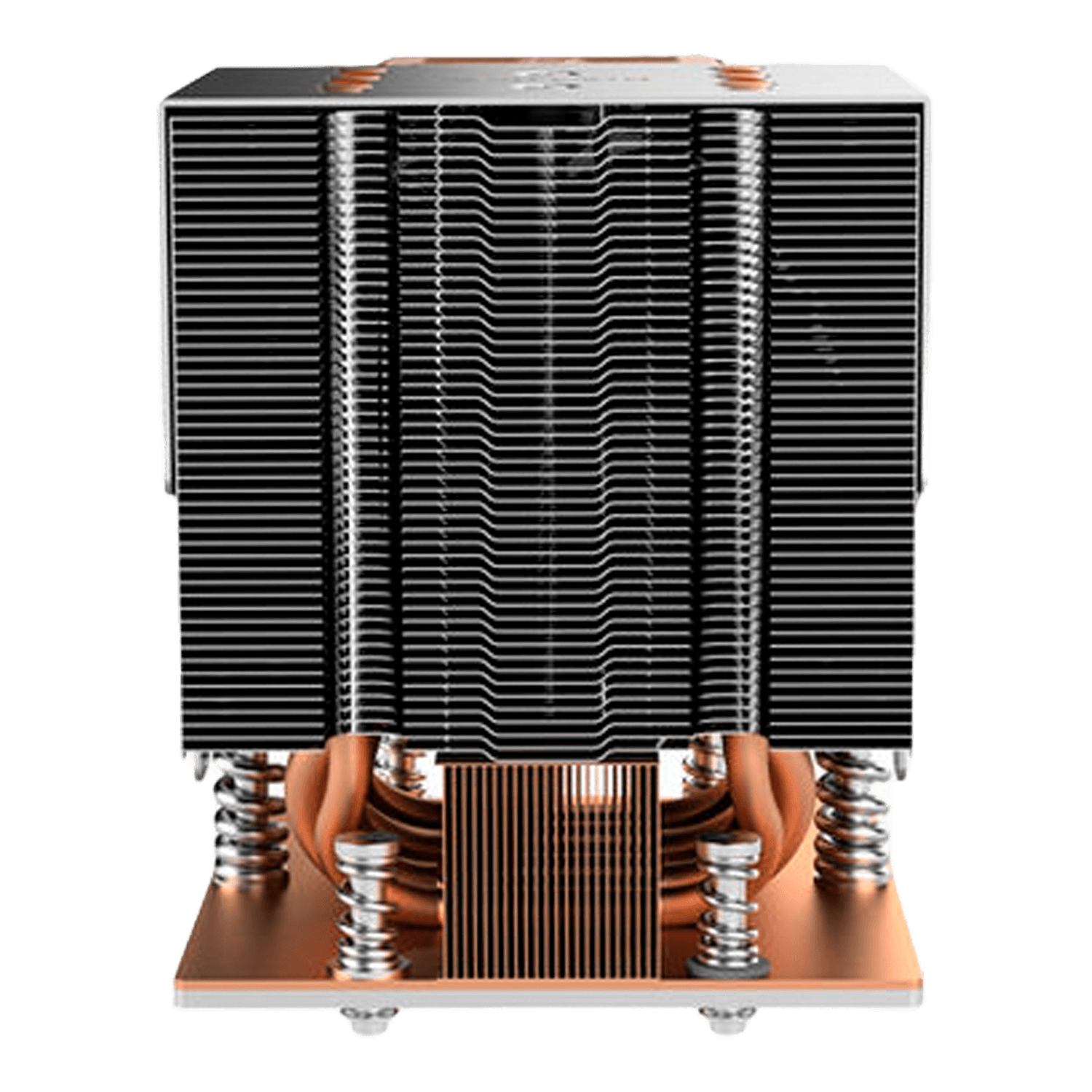

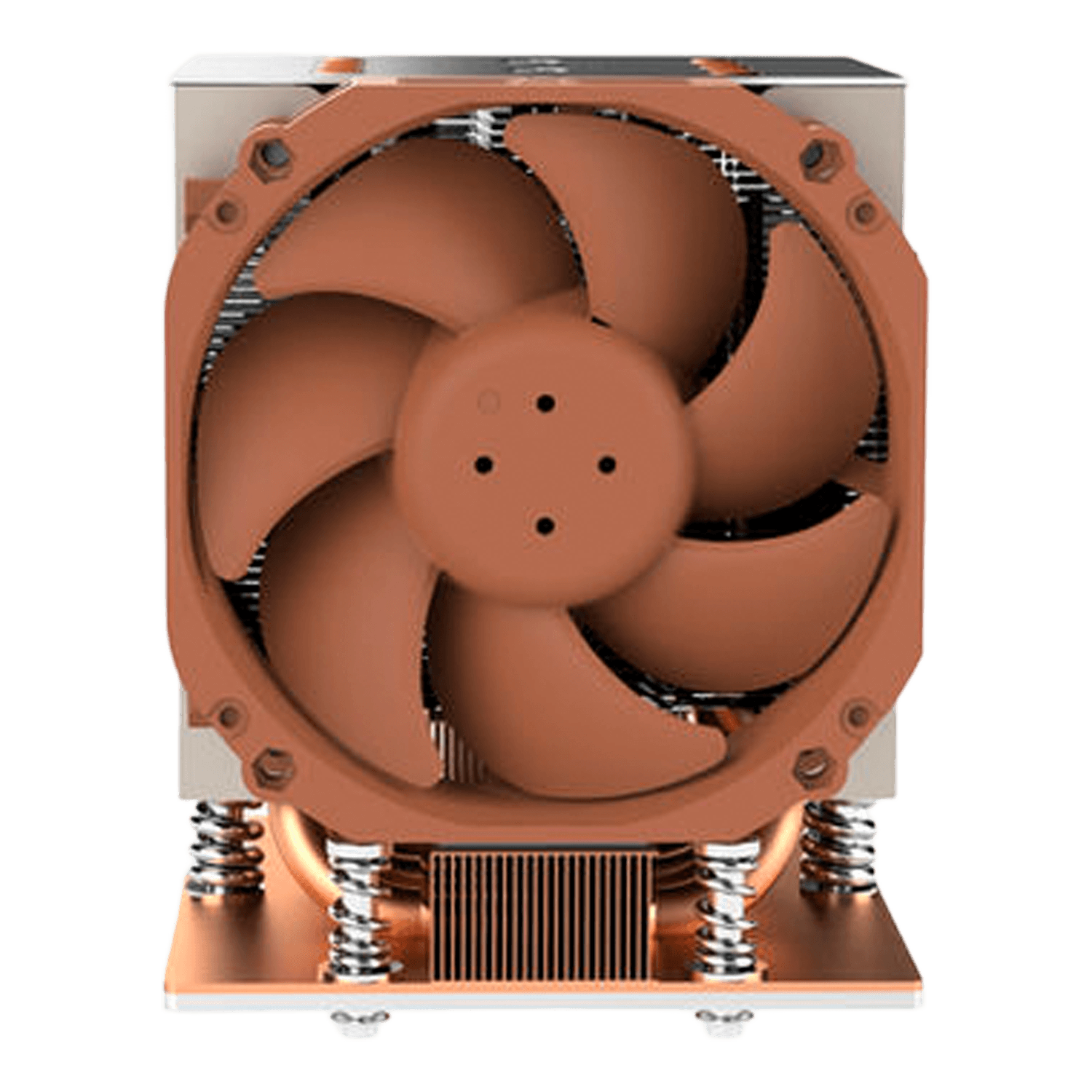

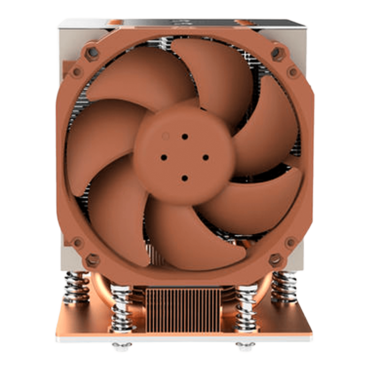

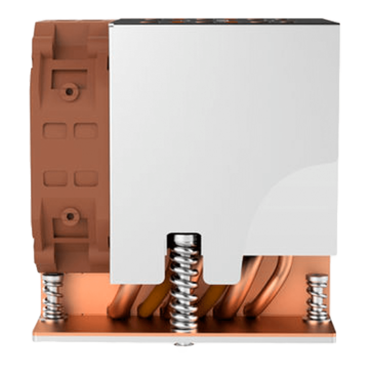

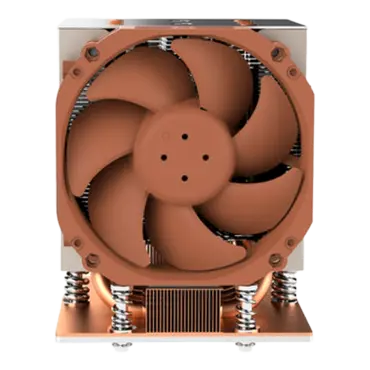

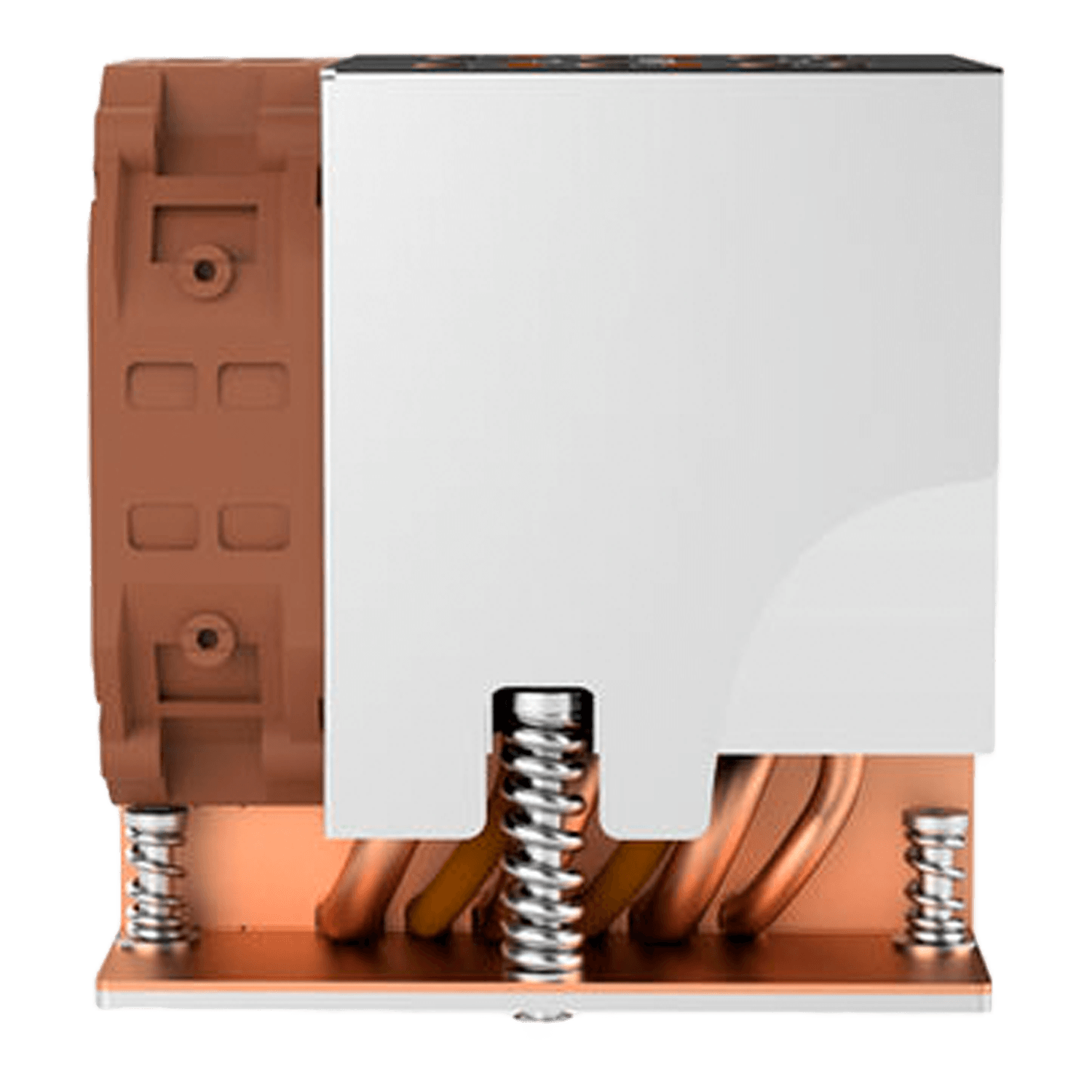

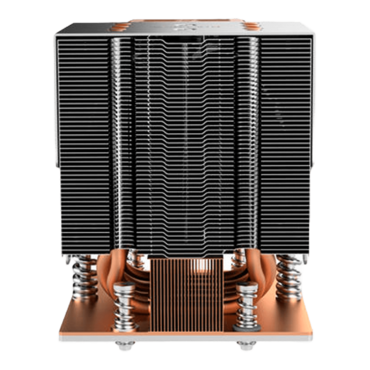

J25, 129mm Height, 600W TDP, Copper/Aluminum CPU Cooler
- SKU: 20409975
- Manufacturer: DYNATRON
- MPN: J25
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
J25, 129mm Height, 600W TDP, Copper/Aluminum CPU Cooler
The Dynatron J25 CPU cooler is designed for 4U& Up
The Dynatron J25 CPU cooler is designed for 4U& Up
| CPU Support | AMD® |
| CPU Socket | SP7 |
| Screw Type | M3.5/M4 |
| Installation Torque | 12.5–15.0 kg-cm (10.8–13.0 in-lbf) |
| Solution | 4U |
| Dimensions | 120.0 x 103.6 x 129.0 mm |
| Weight | 1230 g |
| Material | Aluminum Fin + Heat pipes + Copper Heat Spreader Embedded Vapor Chamber Heatsink Base |
| Fan Dimension | 102.0 x 102.0 x 30.8 mm |
| Speed |
At Duty Cycle 0~20%: 1250± 200 RPM At Duty Cycle 50%: 3100± 10% RPM At Duty Cycle 100%: 6000±10% RPM |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 0.72 W At Duty Cycle 50%: 3.0 W At Duty Cycle 100%: 19.2 W |
| Air Flow |
At Duty Cycle 0~20%: 34.33 CFM At Duty Cycle 50%: 60.33 CFM At Duty Cycle 100%: 116.77 CFM |
| Noise Level |
At Duty Cycle 0~20%: 20.88 dBA At Duty Cycle 50%: 40.60 dBA At Duty Cycle 100%: 54.94 dBA |
| Air Pressure |
At Duty Cycle 0~20%: 0.99 mm-H2O At Duty Cycle 50%: 6.11 mm-H2O At Duty Cycle 100%: 22.89 mm-H2O |
| Lead Wire Pin Out |
Pin#1- Black(-) Pin#2- Black (+) Pin#3- Black (Tachometer/ Signal Output) Pin#4- Black (PWM) |
| Lead Wire Pin Out | Shin-Etsu 8195-4 or Equivalent Pre-Printed |
|
Life – Continuous operating under normal temperature (40 °C or 104 °F) |
70,000 Hours |
