| Specifications |
| Wattage |
1000W |
| PSU specification compliance |
PSU specification compliance ATX12V 3.1 |
| Efficiency Certification |
80PLUS® Gold |
| Modular cables |
Fully modular |

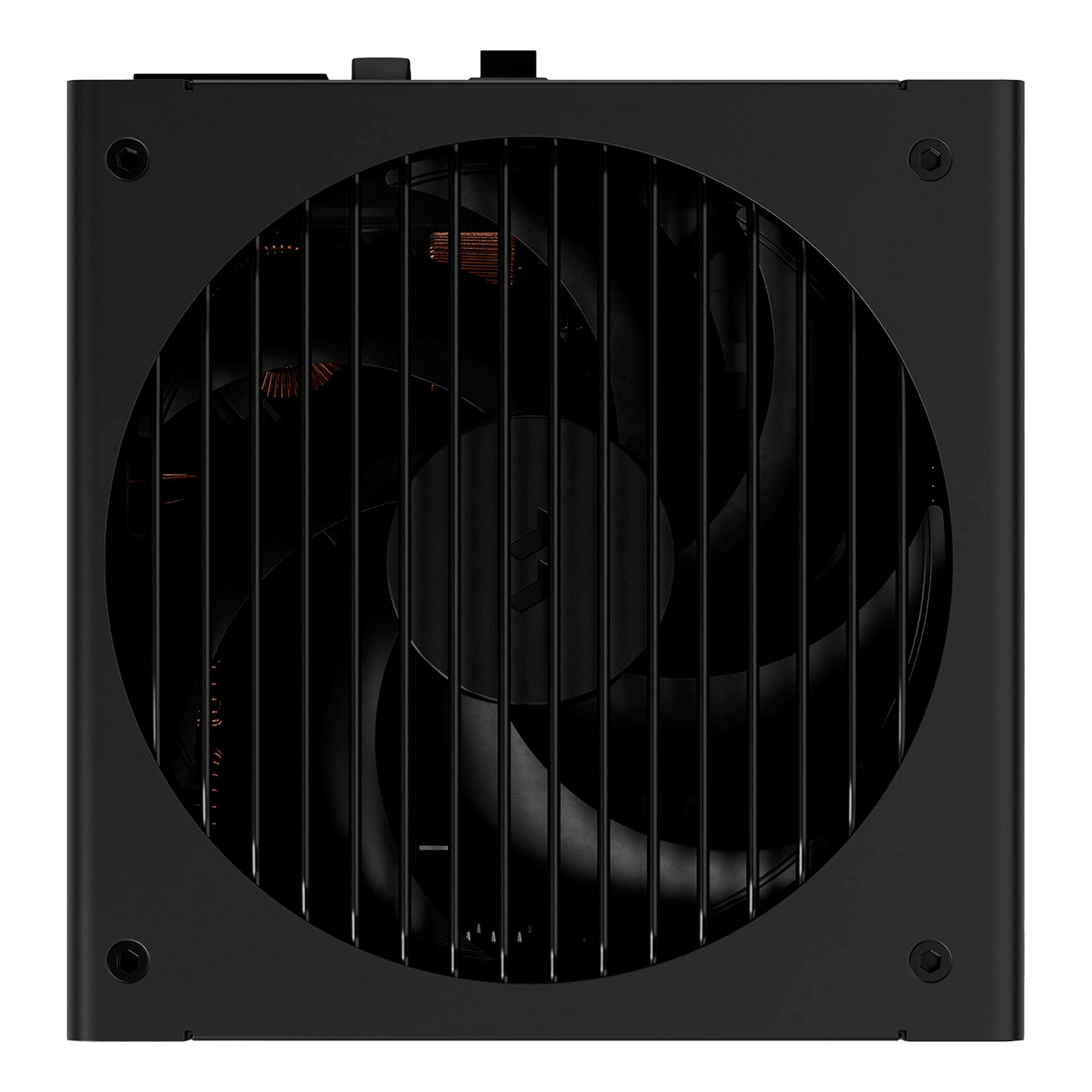

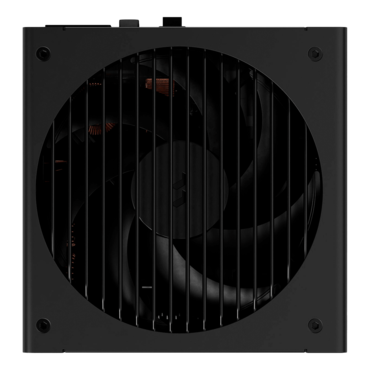

| Fan type |
Momentum 14 series fan, with Fluid Dynamic Bearing |

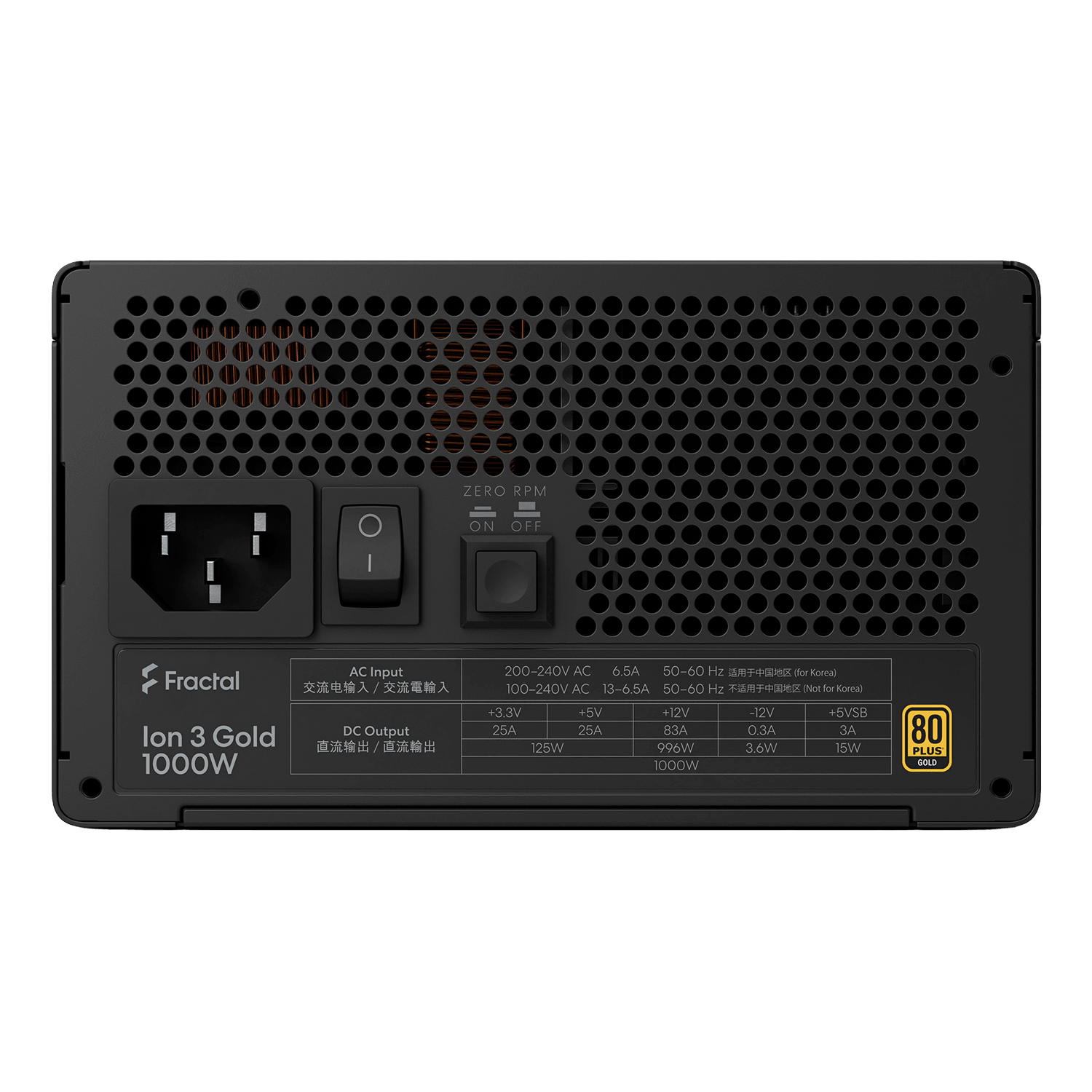

| Semi-passive operation |
Yes, user selectable (Zero RPM mode) |
| DC cable type |
UltraFlex, flat cables |
| Cable Color |
Black PSU: Black, White PSU: White |
| Electrolytic capacitors |
105°C Japanese capacitors |
| Number of 12V rails |
Single 12V rail |
| Protection features |
Over Power Protection (OPP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short
Circuit Protection (SCP), Over Current Protection (OCP), Over Temperature Protection (OTP)
|
| Life expectancy (MTBF) |
100 000 h (25°C ambient temperature) |
| Modern sleep state compatibility |
C6 and C7 compatible |
| Power factor correction (PFC) |
Yes, active |
| Input voltage |
100-240 V |
| Standby efficiency |
≥ 45% ErP Lot 6 compliant |
| Maximum operating temperature |
40°C (full load), 50°C (80% load) |
| Approvals & certifications |
CE, UKCA, BSMI, CCC, FCC, TUV, cULus, RCM, ICES, CB, KC |
| Warranty |
10 years |

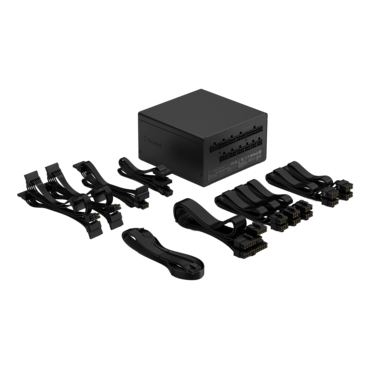

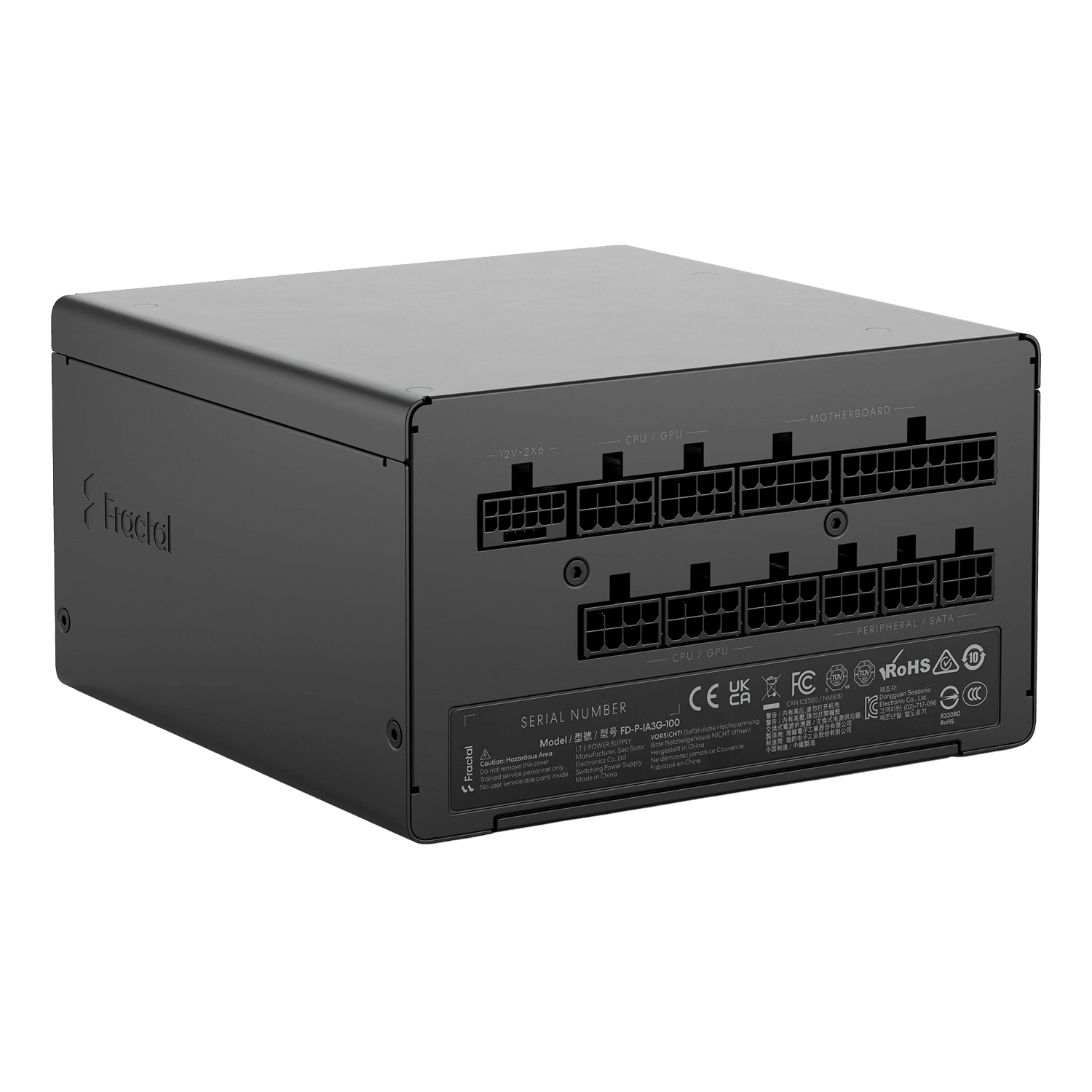

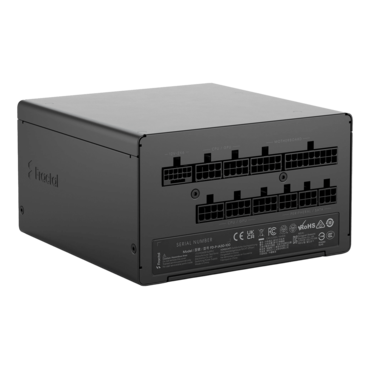

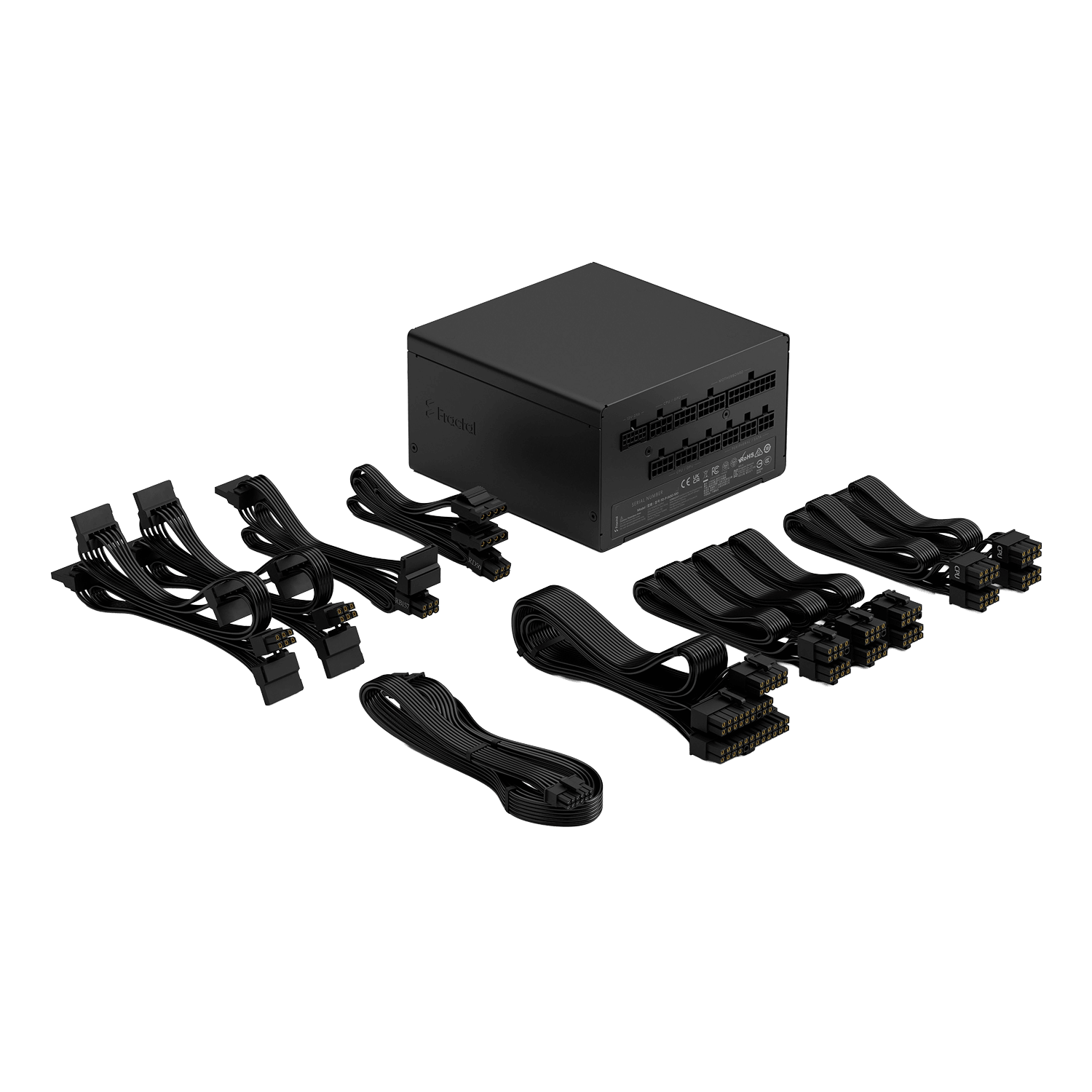

| Included modular cables |
| ATX 24 pin, 600 mm |
1 |
| ATX 12V 4+4P, 700 mm |
2 |
| PCI-E 6+2 pin, 650 mm |
3 |
| PCI-E Gen5 12V-2x6, 700 mm |
1 |
| 4x SATA, 400+150+150+150 mm |
2 |
| 2x SATA 650+150 mm |
1 |
| Total number of SATA connectors |
10 |
| 2x Peripheral (Molex) 650+150 mm |
1 |
| Total number of Molex connectors |
2 |
| Other |
| Package contents |
Ion 3 Gold power supply unit, Modular cables, Accessory kit, User manual, Power cord (regional) |
| Unit dimensions (LxWxH) |
150 x 150 x 86 mm |
| Net weight (unit only) |
1.8 kg |
| Package dimensions (LxWxH) |
354 x 189 x 122 mm |
| Package weight |
3.3 kg |
| EAN |
Black: 7340172710271, White: 7340172710288 |
| UPC |
Black: 843276110277, White: 843276110284 |
| Product code |
Black: FD-P-IA3G-100, White: FD-P-IA3G-101 |
