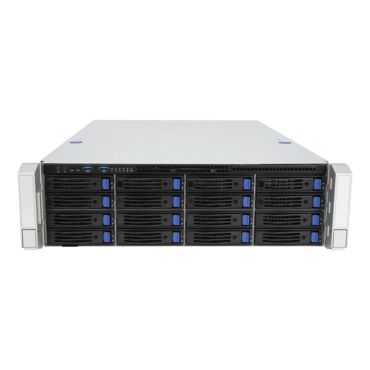

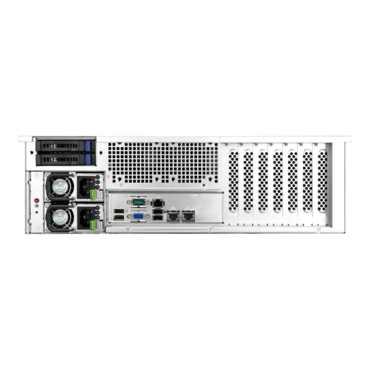

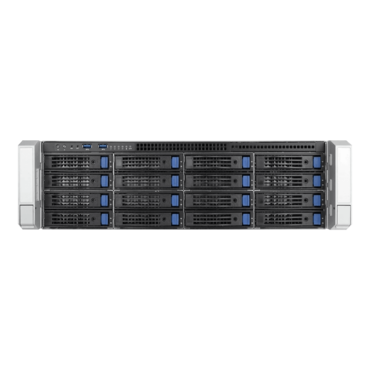

IW-RS316-02M-CR550.H, 16x 3.5"/2.5" External Bays, 4x 2.5" Internal Bays, 550W Rdt PSU, EEB, Black/Grey, 3U Chassis - TAA Compliant
Quantity:
- SKU: 18528923
- Manufacturer: InWin
- MPN: IW-RS316-02M-CR550.H
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,025.08
| Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6”), ATX(12” x10”), EEB(12” x 13”) |
|
Dimensions (D x W x H) w/o Front Door |
625 x 482.6 x 131 mm (24" x 19" x 5.25") |
| Drive Bay |
External: Slim ODD x 1, Hot-Swap 3.5" x 16 or 2.5" x 16, 2.5" HDD Hot-Swap x 2 (Optional) Internal: 2.5" HDD x 4 |
| Power Supply |
Supports Form Factor: Single or 2U 1+1 Redundant Watt: Single 500W, Redundant up to 875W |
| Indicator | Power Status, HDD, LANs, System Fail Activity LEDs |
| Front Control Panel | Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 2 |
| Backplane |
Mini-SAS (6Gb/s Supported) orMini-SAS HD (12Gb/s Supported) orMini-SAS HD (12Gb/s Supported with expander function) |
| Cooling Fan |
Supports 120 x 38 mm PWM Hot-Swap Fan x 3 60 mm PWM Rear Fan x 2 (optional) |
| Expansion Slot | Full Height PCI Slot x 7 |
| Material |
Material: SGCC Thickness: 1.2 mm |
| Rail Kit | Supports 28” Ball-bearing slide rail |
|
Packaging Dimensions (D x W x H) |
796 * 577 * 262 mm |
| Shipping Info |
Net Weight: 12.8 kg Gross Weight: 16.45 kg |
