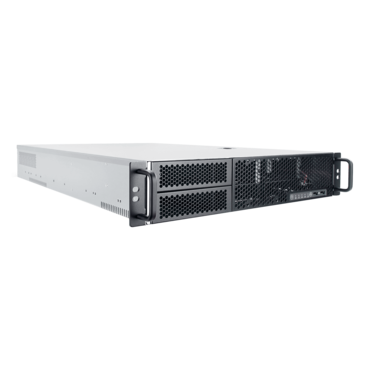

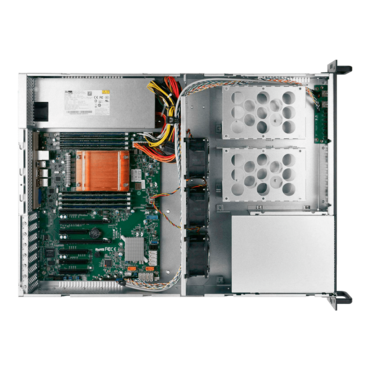

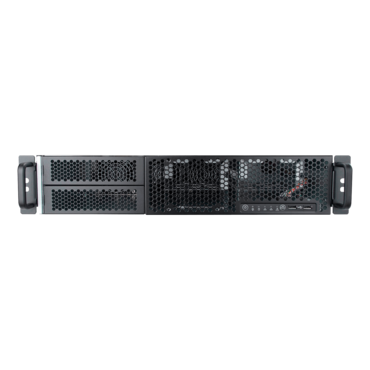

IW-R200N, 2x 5.25" External Bays, 6x 3.5" Internal Bays, No PSU, CEB, Black, 2U Chassis - TAA Compliant
Quantity:
- SKU: 18507470
- Manufacturer: InWin
- MPN: IW-R200N
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$288.45
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets | |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5") | |
| Drive Bay |
• External: 5.25"x 2 • Internal: 3.5" x 6 |
|
| Power Supply |
Supports: • Form factor: single or CRPS • Watt: single 500W, CRPS 550W or 800W |
|
| Indicators | Power status, HDD, LAN activity LEDs | |
| Front Control Panel | Power switch, system reset, USB 2.0 x 2 | |
| Chassis Security | Intrusion switch (optional) | |
| Cooling Fans | Supports 80 x 25mm PWM middle fan x 3 | |
| Expansion Slot | Low profile PCIe slot x 7 or full-height PCIe slot x 3 (via riser card) | |
| Material |
• Material: SGCC • Thickness: 1.2mm |
|
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails | |
| Product Dimensions (DxWxH; Chassis Only) |
607 x 432.4 x 88mm (23.90" x 17.02" x 3.46") |
|
| Package Dimensions (DxWxH) | 785 x 563 x 204mm | |
| Weight (Chassis Only) |
• Net weight: 8.36kg • Gross weight: 11.8kg |
|
| Cubic Feet | 3.18 | |
| Container Information |
Single packing with pallets: • 20': 252pcs • 40': 504pcs • 40' HQ: 560pcs |
|
|
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications. * The above image is for reference only. All hardware components and optional parts are not included. |
||
