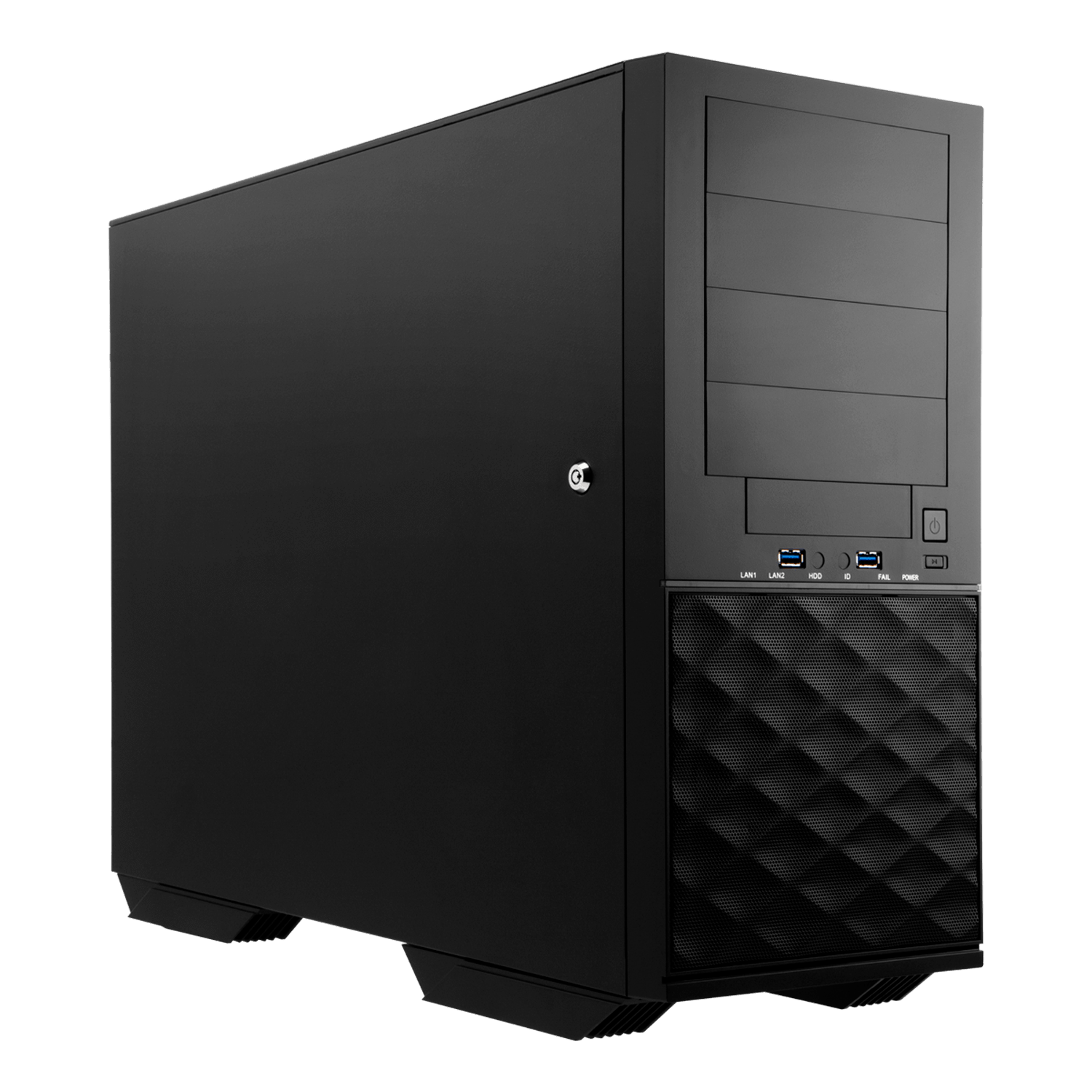

IW-PL052X.B3, 4x 5.25", 1x 3.5" External Bays, 5x 3.5"/2.5" Internal Bays, No PSU, EEB, Black, Mid Tower Chassis - TAA Compliant
Quantity:
- SKU: 11760948
- Manufacturer: InWin
- MPN: IW-PL052X.B3
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$202.75
| M/B Form Factor | ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13") |
| Drive Bay |
• External 5.25" x 4, 3.5" x 1 • Internal 2.5"/3.5" x 5 |
| Power Supply |
Supports: • 1250W PS2 single PSU, 80 Plus Gold • 550W/800W/1200/1600W 1+1 CRPS, 80 Plus Platinum |
| Indicators | Power status, HDD, LANs, system fail activity LEDs, ID |
| Front Control Panel | Power switch, system reset, USB 3.0 x 2 |
| Chassis Security |
• Supports padlock loop and Kensington lock slot • Intrusion switch (optional) |
| Cooling Fans |
• Front: 120 x 25mm PWM fan x 1 (optional) • Middle: 120 x 25mm PWM fans x 2 (optional) • Rear: 120 x 25mm PWM fan x 1 (pre-installed) or optional 80 x 38mm PWM fans x 2 |
| Expansion Slot | Full-height PCIe slots x 7 |
| Material |
• Material: SECC • Thickness: 0.8mm |
| Maximum Capacity |
• GPU length: 350mm • CPU heatsink height: 145mm • PS2 power length: 250mm (including cable management area) |
| Rail Kit | Supports 23" ball-bearing slide rail |
| Product Dimensions (DxWxH; Chassis Only) |
560.2 x 200 x 430.1mm (22.1" x 7.9" x 16.9") |
| Package Dimensions (DxWxH) | 720 x 592 x 340mm |
| Weight (Chassis Only) |
• Net weight: 10.67kg • Gross weight: 14.21kg |
| Cubic Feet | 5.12 |
| Container Information |
Single packing with pallets: • 20': 110pcs • 40': 240pcs • 40' HQ: 288pcs |
|
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications. * The above image is for reference only. All hardware components and optional parts are not included. |
|
