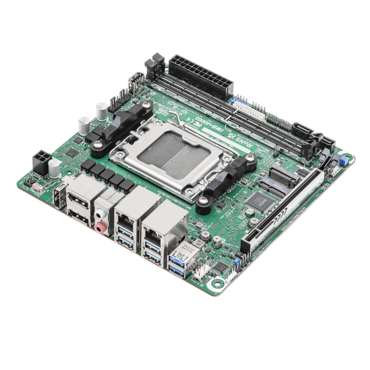

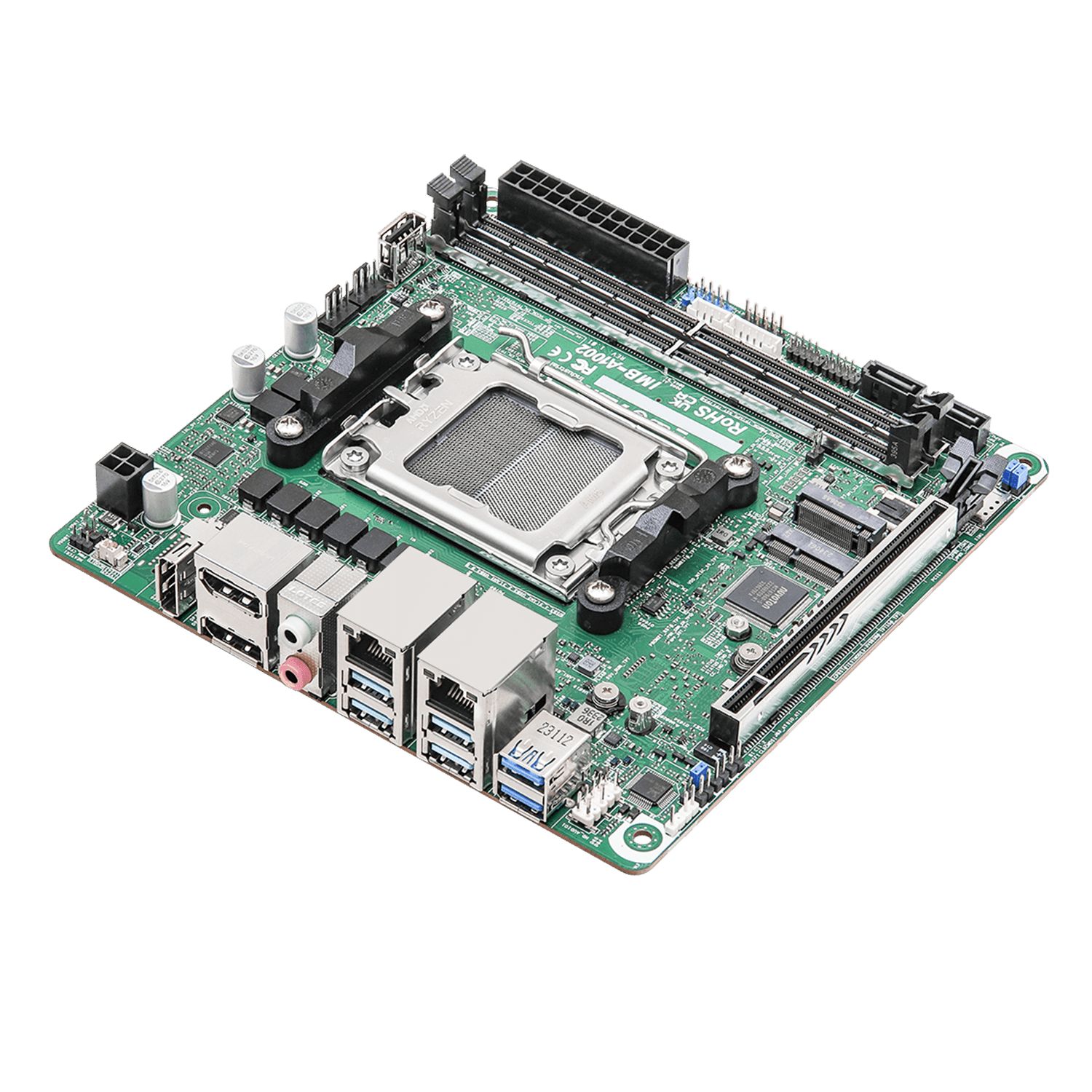

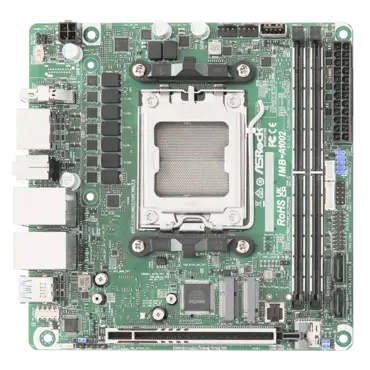

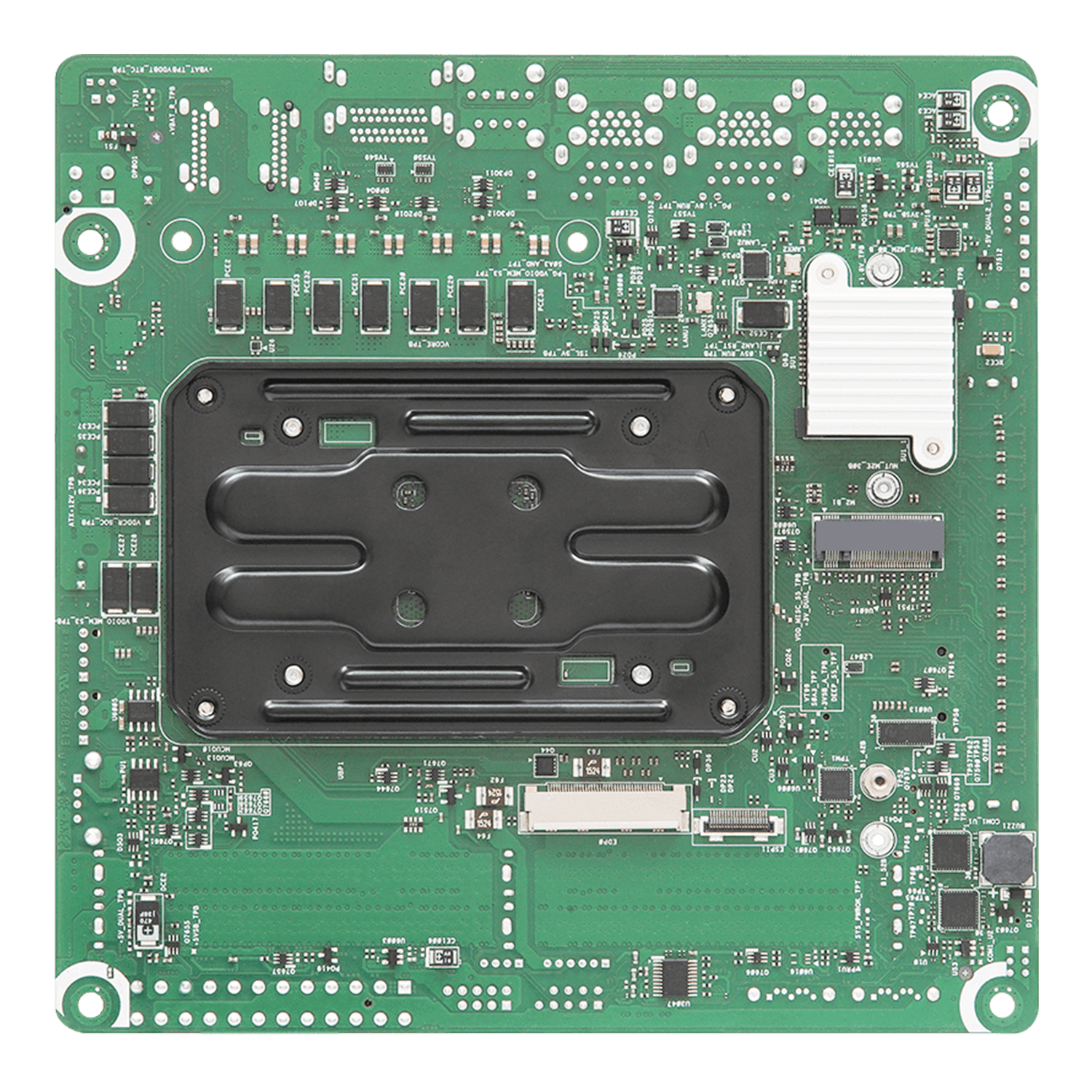

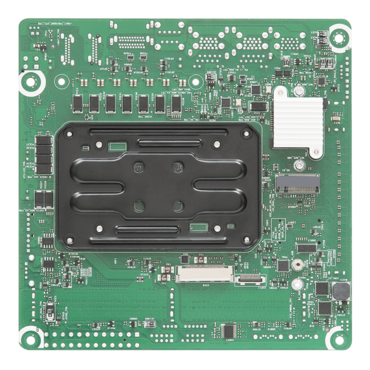

IMB-A1002, AMD B650 Chipset, AM5, SIM socket, Mini-ITX Motherboard
- SKU: 19197644
- Manufacturer: ASROCK
- MPN: IMB-A1002 MINI-ITX
- Availability: TEMPORARILY OUT OF STOCK
Price
$245.34
| Processor System | |
| CPU |
Supports AMD EPYC™ 4004 and AMD Ryzen™ 9000/8000/7000 Series Desktop Processors*, up to 65W *The availability of expansion slots may vary by CPU. Please refer to PCIe Bandwidth Table for details. https://download.asrock.com/IPC/Others/AM5_PCIe_Bandwidth_Table.pdf |
|---|---|
| Chipset | AMD B650 |
| Socket | AM5 |
| BIOS | AMI SPI 256 Mbit |
| Form Factor | |
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.7 cm) |
| Memory | |
| Technology |
Dual Channel ECC/non-ECC DDR5 5200 MHz *ECC support may vary by CPU |
| Capacity | 96GB (48GB per DIMM) |
| Socket | 2 x 288-pin Long-DIMM |
| Graphics | |
| Controller | AMD RDNA™ 2 Architecture |
| DisplayPort |
DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz |
| eDP |
eDP 1.4b Max resolution up to 4096x 2160@60Hz |
| MultiDisplay | Quad Display |
| Expansion Slot | |
| PCIe | 1 x PCIe x16 (Gen5) |
| M.2 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.0, USB 2.0 and SIM Socket for 4G/5G |
| SIM Socket | 1 x Socket connected to M.2 Key B |
| Audio | |
| Interface | Realtek ALC897, High Definition Audio. Mic-in, Line-out |
| Ethernet | |
| Controller/ Speed |
LAN1: Realtek RTL8111H with 10/100/1000 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps |
| Connector | 2 x RJ-45 |

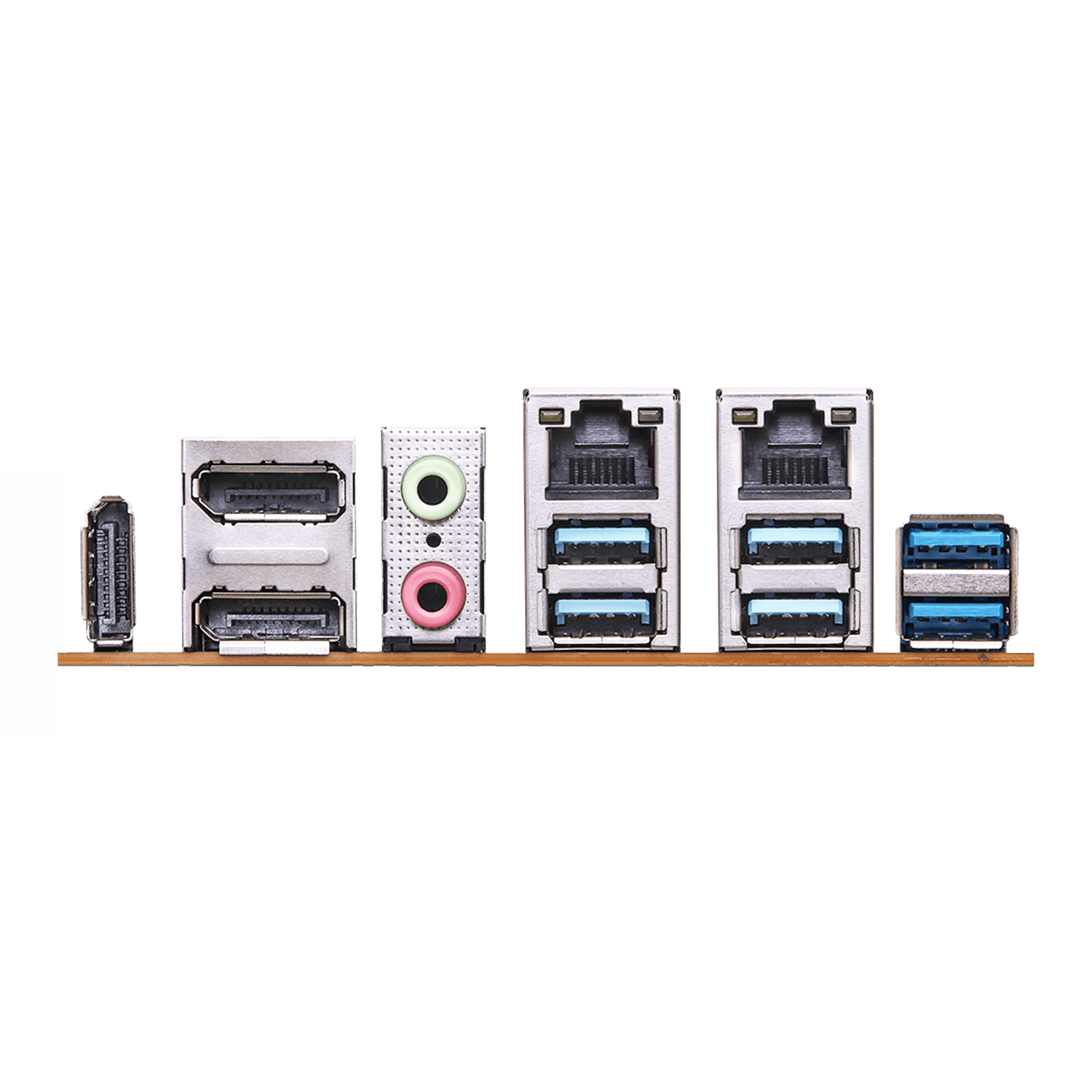

| Rear I/O | |
| DisplayPort | 3 x DP 1.2 |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 6 x USB 3.2 Gen2 |
| Audio | 2 (Mic-in, Line-out) |
| Internal Connector | |
| USB | 3 x USB 2.0 (1 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con) |
| COM | COM1, COM2 (RS-232/422/485) |
| eDP | 1 |
| Security | |
| TPM | TPM 2.0 onboard IC |
| Storage | |
| M.2 | 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4, SATA3 and USB 2.0 |
| SATA | 2 x SATA3 (6Gb/s) |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | ATX PWR (24+4-pin) |
| Power On |
AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | -20ºC ~ 70ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Accessories | |
| Gift Package |
2 x COM Cable (14G000000310AK) 2 x SATA Cable (14G00010107DAK) 1 x I/O Shield (13G02P045000AK) 3 x SCREW M2*2,D=5 (13G020302031AK) |
