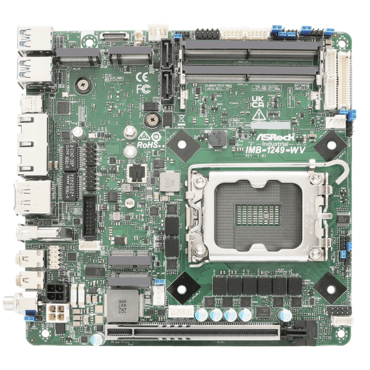

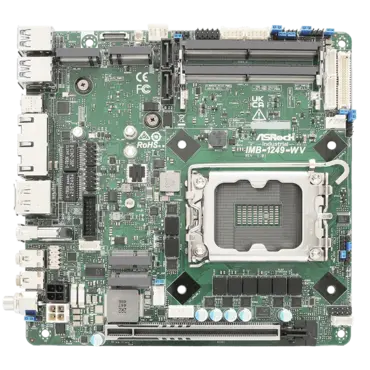

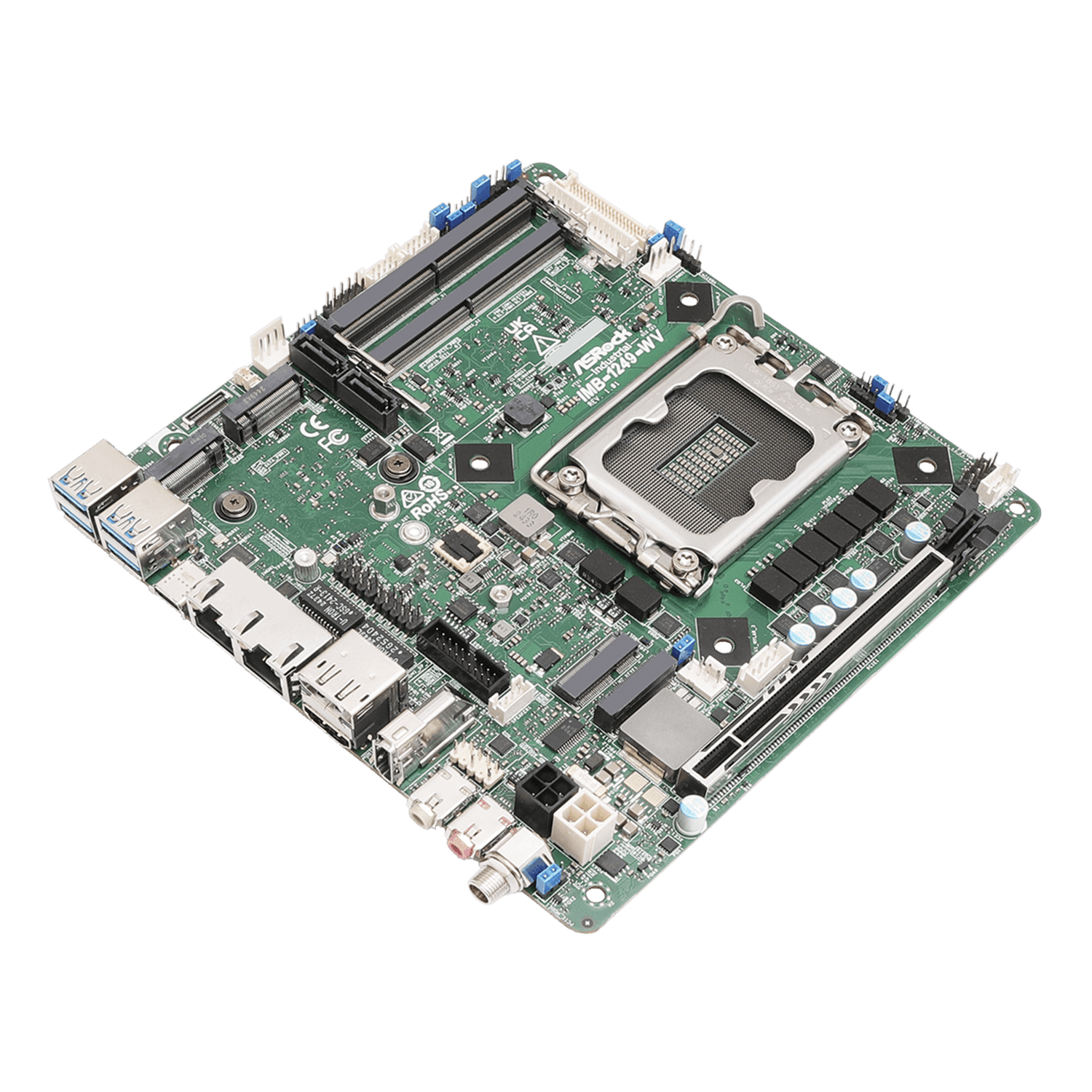

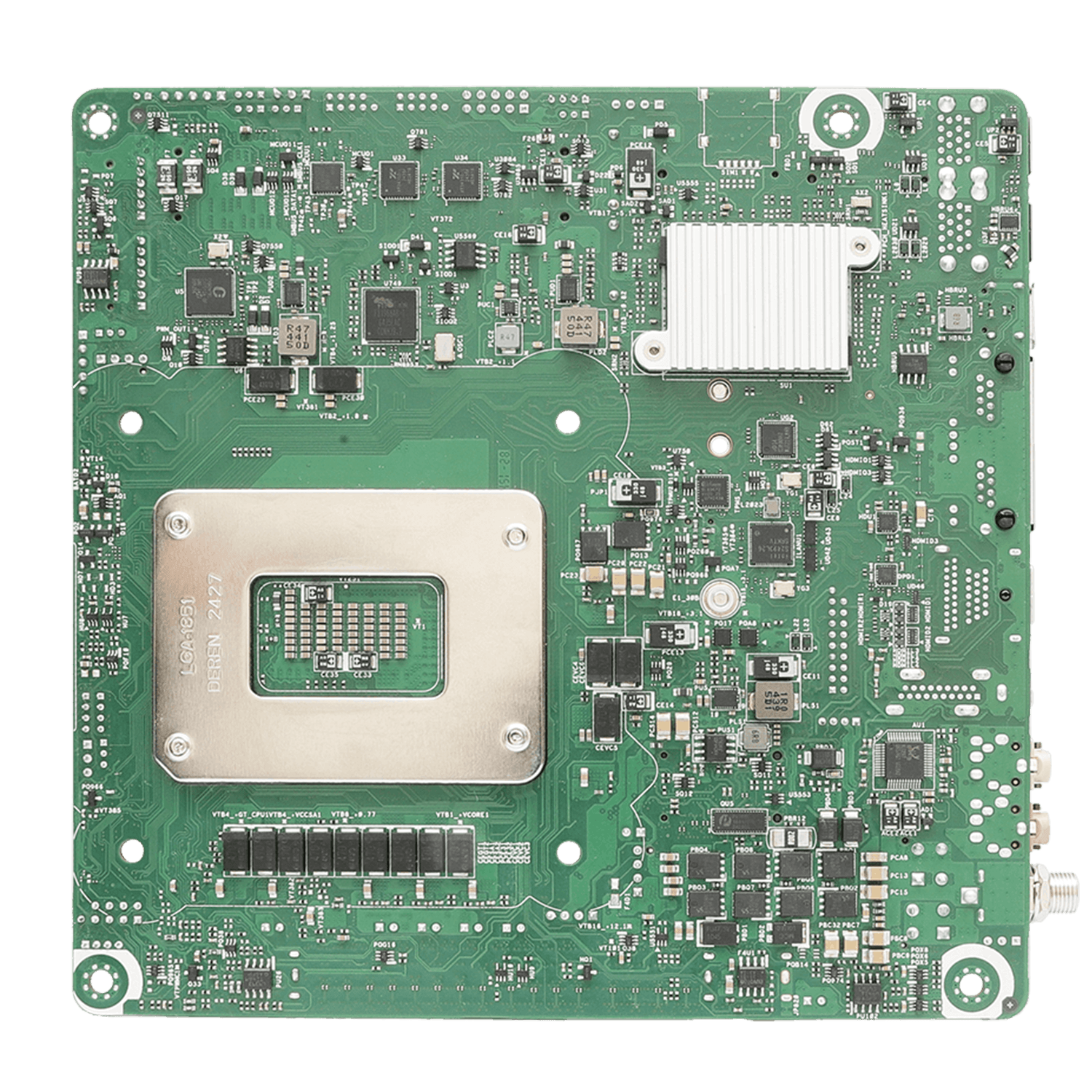

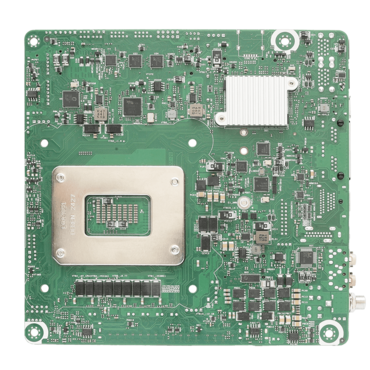

IMB-1249-WV, Intel® Q870 Chipset, LGA 1851, LVDS, Mini-ITX Motherboard
- SKU: 19197619
- Manufacturer: ASROCK
- MPN: IMB-1249-WV
- Availability: TEMPORARILY OUT OF STOCK
Price
$357.58
| Processor System | |
| CPU |
Intel® Core™ Ultra Processors (Arrow Lake-S), up to 65W *The Performance of CPUs over 65W will be limited due to power design |
|---|---|
| Chipset | Intel® Q870 |
| Socket | LGA1851 |
| BIOS | AMI SPI 256 Mbit |
| Form Factor | |
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.03-in, 17.0 cm x 17.0 cm x 2.6 cm) |
| Memory | |
| Technology | Dual Channel DDR5 5600/6400 MHz |
| Capacity | 96GB (48GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Xe LPG Graphics |
| HDMI |
HDMI 2.1 TMDS Max resolution up to 7680x4320@60Hz |
| DisplayPort |
DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| LVDS |
Dual channel 24 bit up to 1920x1200@60Hz (Connector shared with eDP) |
| eDP |
Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| MultiDisplay | Quad display (Included 1 output from Type-C) |
| Expansion Slot | |
| PCIe | 1 x PCIe x16 (Gen5, support riser card x8/x8, x8/x4/x4) |
| M.2 |
1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen4 x1, USB 3.2 Gen1 and USB 2.0 |
| Audio | |
| Interface | Realtek ALC897, High Definition Audio. Line-out, Mic-in |
| Ethernet | |
| Controller/ Speed |
LAN1: Intel® I226V with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, supports vPro |

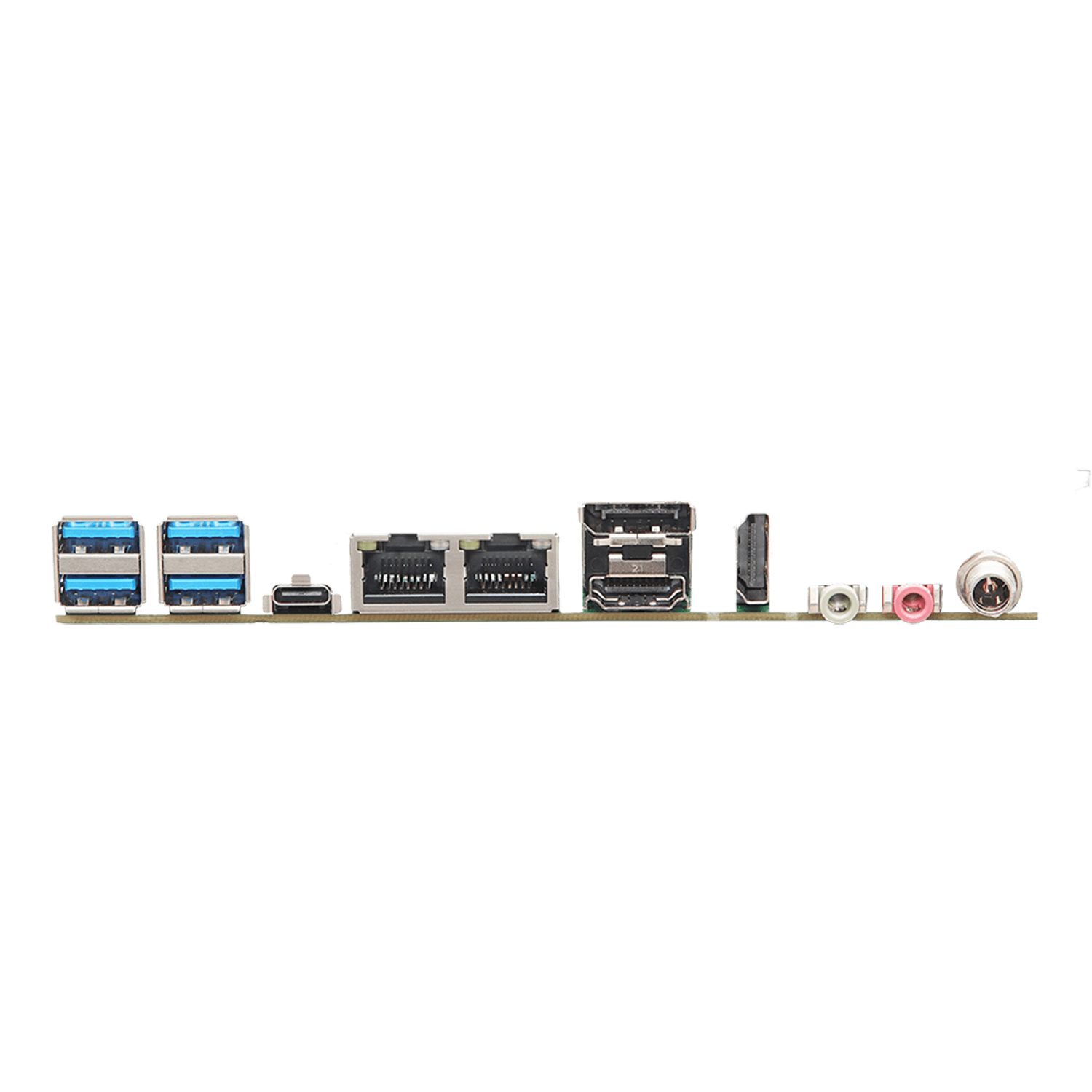

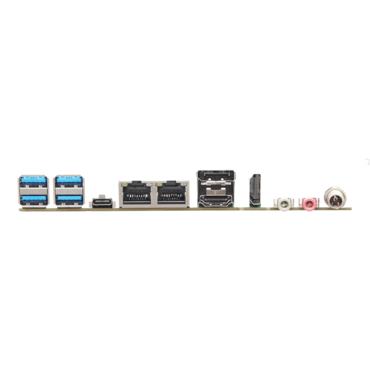

| Connector | 2 x RJ-45 |
| Rear I/O | |
| HDMI | 2 x HDMI 2.1 TMDS |
| DisplayPort | 1 x DP 1.4a++ |
| Ethernet |
1 x 2.5 Gigabit LAN 1 x 1 Gigabit LAN |
| USB |
4 x USB 3.2 Gen2 1 x USB4/Thunderbolt™4 (5V/3A, supports DP 2.1 display output) * For Thunderbolt support, please refer to support list. |
| Audio | 2 (Line-out, Mic-in or Line-out, Line-in (BOM option)) |
| DC Jack | 1 DC-in |
| Internal Connector | |
| USB |
2 x USB 3.2 Gen1 (1 x USB 3.2 wafer) 4 x USB 2.0 (2 x 2.54 pitch header) |
| COM | COM1, COM3 (RS-232/422/485) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| Security | |
| TPM | TPM 2.0 onboard IC |
| Storage | |
| M.2 |
1 x M.2 (Key M, 2242/2280) with PCIe Gen 4 x4 and SATA3 for SSD 1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD* *Recommend using M2X4-SATA-4P module to support extra 4 SATA ports (Support by special BIOS) |
| SATA | 2 x SATA3 (6Gb/s) |
| RAID |
Intel® VMD RAID 0/1 **supported by identical interface (PCIE or SATA) PCIE interface: M.2 Key B+ M.2 Key M, 2 x M.2 Key M SATA interface: 2 x SATA port |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR |
12~28V DC-In with 4-pin wafer PWR cable or DC Jack (Screw type) 12V DC-In only (BOM option) |
| Power On |
AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | -20ºC ~ 70ºC |
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Accessories | |
| Bulk Package |
1 x I/O Shield (13G02P089000AK) 1 x I/O Shield THIN (13G02P089010AK) 4 x SCREW M3*2.5 (13G02P072010AK) |
