HS 420 VGPU, Tempered Glass, No PSU, E-ATX, White, Mid Tower Case
- SKU: 19563812
- Manufacturer: HAVN
- MPN: HVN-CA-HS420-07
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$365.06
HS 420 VGPU, Tempered Glass, No PSU, E-ATX, White, Mid Tower Case

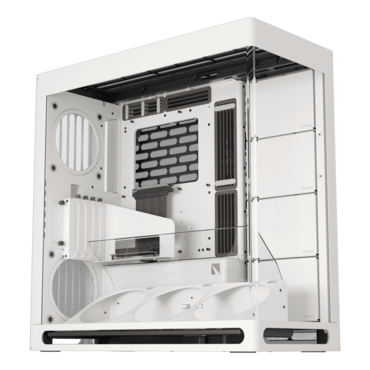

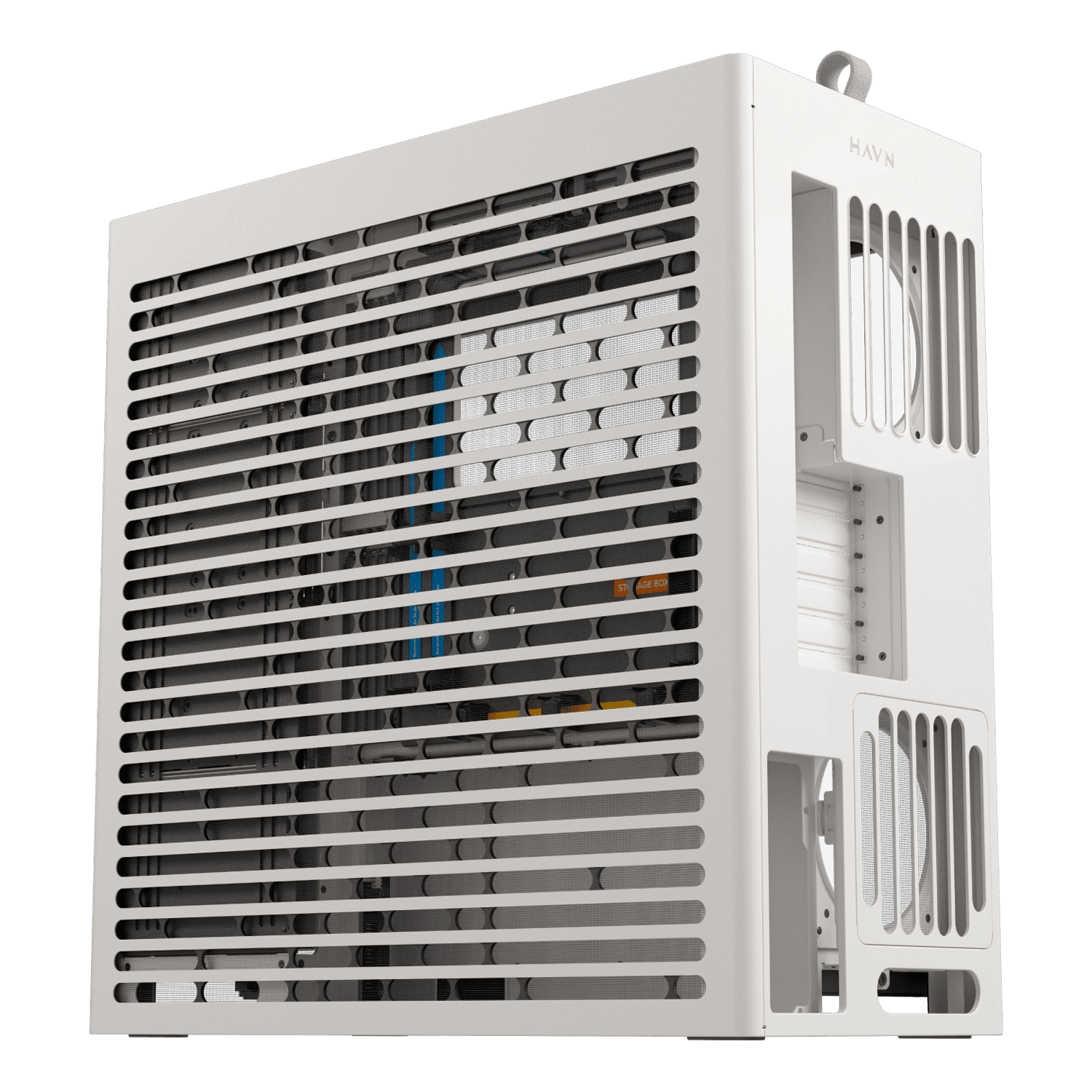

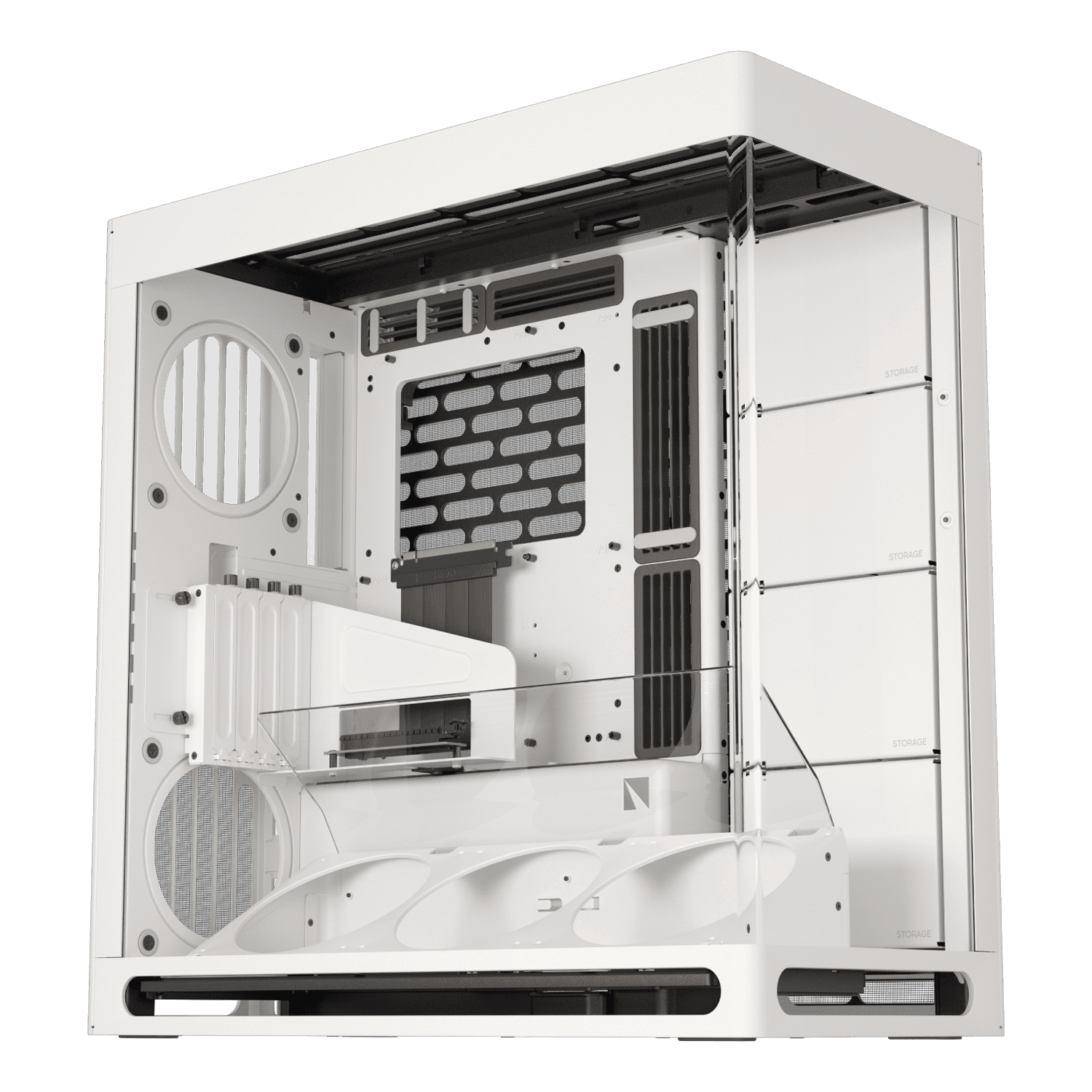

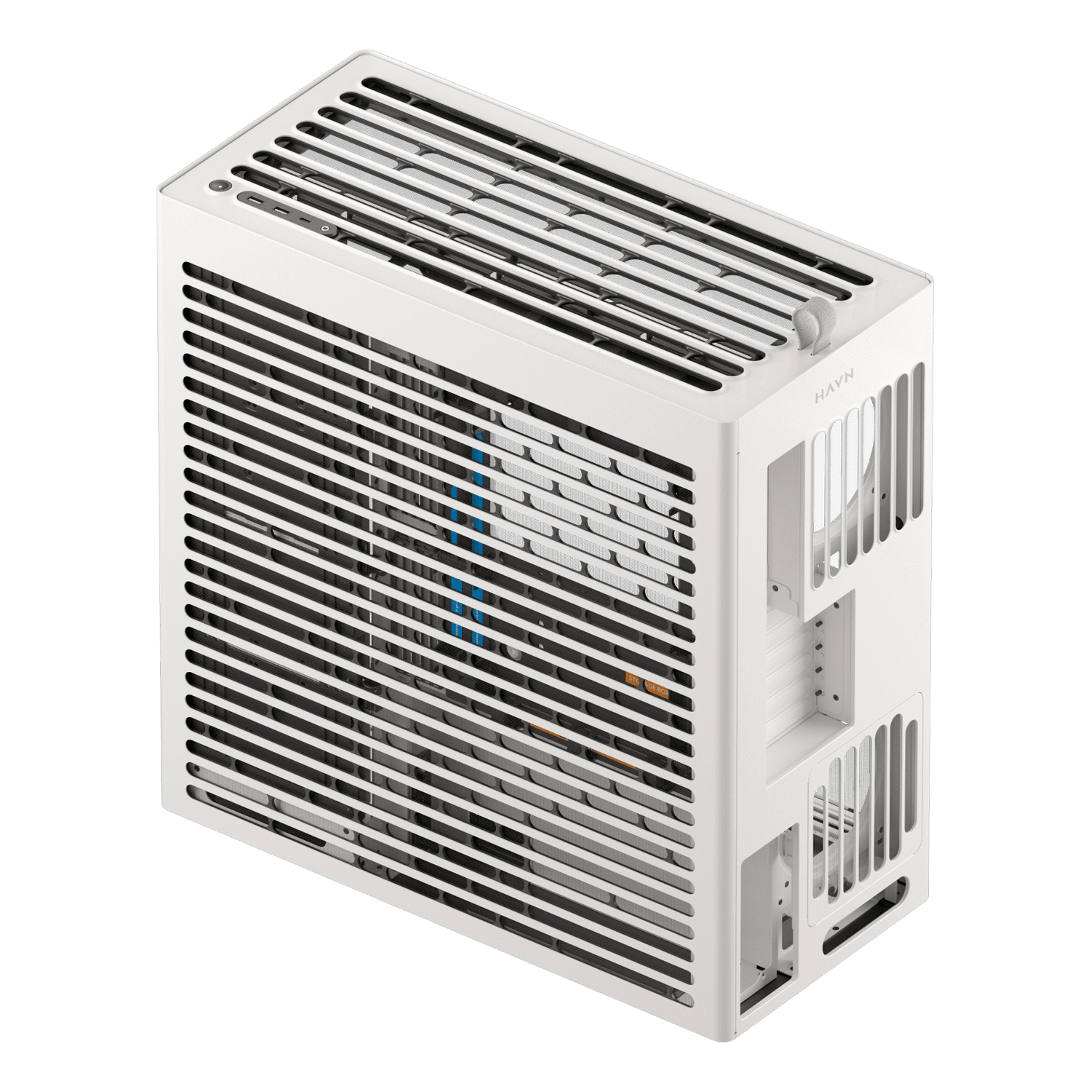

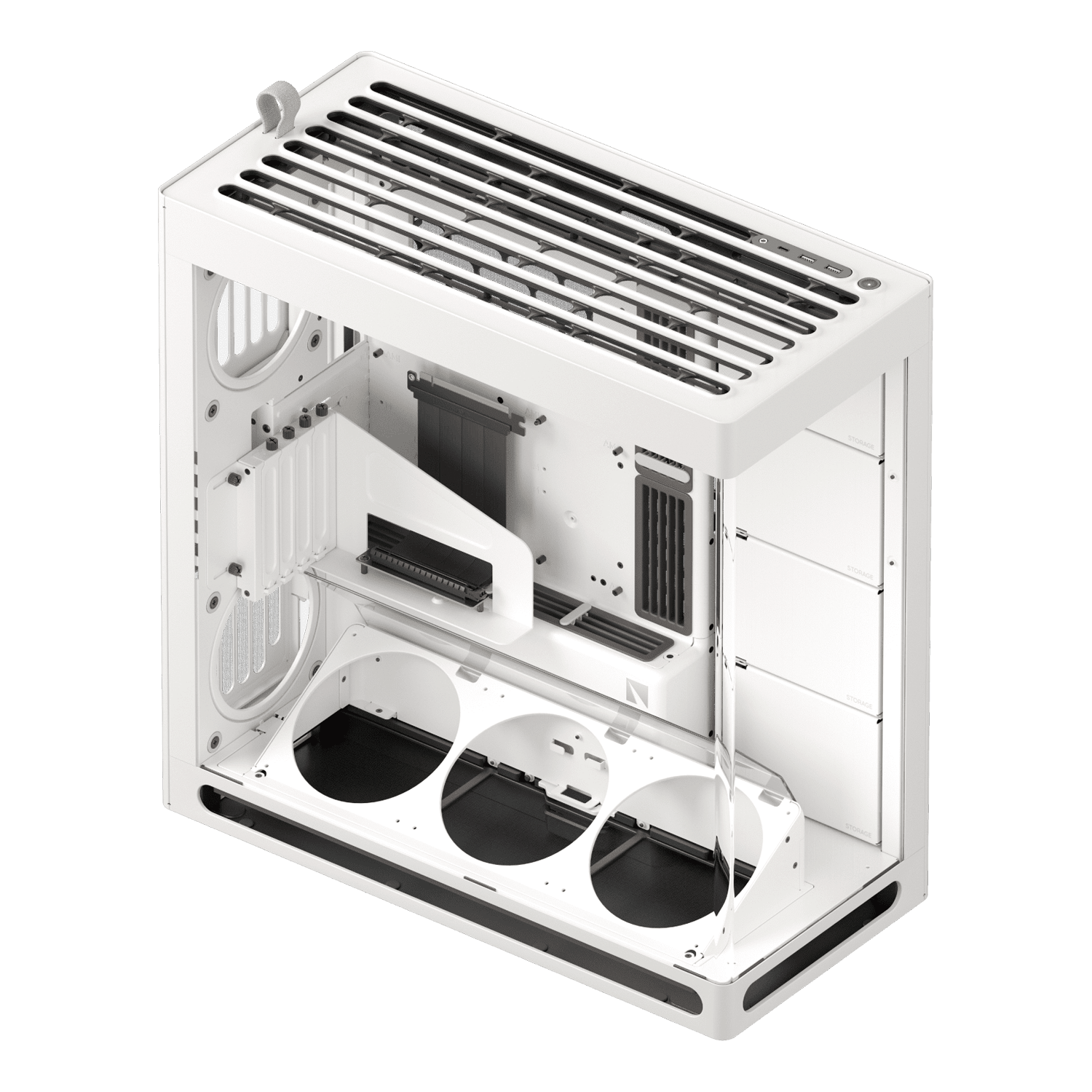

The HS 420 VGPU mid-tower case combines functional beauty with user-centric innovation. Designed by the HAVN team, this case is crafted to deliver superior GPU airflow, featuring a VGPU Mount Kit with a PCI Express® 5.0 riser cable.
Its elegant panoramic housing, hybrid structure, optimized airflow, and smart cable management system make it the ultimate sanctuary for your gaming setup.
This product does not include the flat, standard bottom fan bracket as featured on the Base Edition.
- UniSheet heat-formed panoramic glass panel for front and side, engineered to be flatter and with a smaller radius to minimize visual distortion.
- Enhanced thermal performance with custom ventilation, supporting up to 11 x 140mm fans and 420mm radiators on top and side.
- Intuitive SimpliCable routing system and fan hub keep your cables neatly organized and discreetly hidden.
| Form Factor | Mid Tower |
| Material | SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| PC Case Dimensions (L x W x H) | 541 x 259.5 x 547 mm |
| Net Weight | 19 kg |
| Warranty |
1 year Notice Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported. Please review our full warranty terms for more information. |
| Front I/O |
USB 3.2 Gen 2 Type-C x1 USB 3.2 Gen 1 Type-A x2 Audio Jack x1 Power & Reset Button x1 |
| Motherboard Support | E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Expansion Slots | 6 horizontal, 4 vertical |
| Fan Support |
Maximum Amount: 11 Top: 3 x 120 / 3 x 140 mm Right: 3 x 120 / 3 x 140 mm Bottom: 3 x 140 mm Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm) |
| Fan PWM Repeater |
Fan Ports: 2 x PWM repeaters, 12 ports total Location: 1 x Cable Management Tray 1 x PSU Shroud Fan Connectors: 6 ports per repeater x 4-pin PWM (Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port's signal.) Fan Rated Voltage: 12V Fan Safety Current: Up to 2.6A across 6 ports Power Connector: 1 x SATA Power Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max) |
| CPU Tower Cooler Clearance | Height: Up to 185 mm. Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended. |
| Liquid Cooling Support |
Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM) Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO) |
| Graphics Card Clearance |
Length: Up to 470 mm Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended. |
| Vertical GPU Support |
4 Slots PCI Express 5.0 Riser Cable Included |
| RAM Clearance | If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm |
| Power Supply Support |
ATX Length: Up to 220mm (Clearance - 290mm) |
| Storage |
Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5'' Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' Storage Bay Included: 4x |
| Internal Display Support |
VESA Mounting: 75 x 75 mm / 100 x 100 mm Display Size: 14 in. (Max) Location: Front Right Pillar |
| Dust Filter |
Bottom: 1 (Removable) Top: 1 (Built-in) Right: 1 (Built-in) Rear Bottom: 1 (Removable) |
