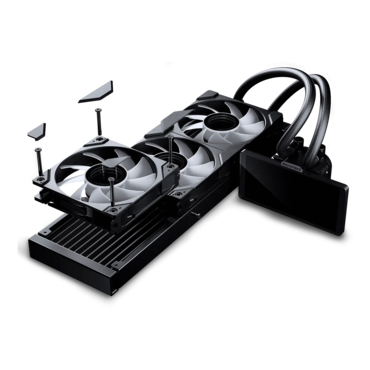

Glacier One 360M25 LCD, 360mm Radiator, Liquid Cooling System
- SKU: 19973221
- Manufacturer: PHANTEKS
- MPN: PH-GO360M25G2LCD_DBK01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$170.05

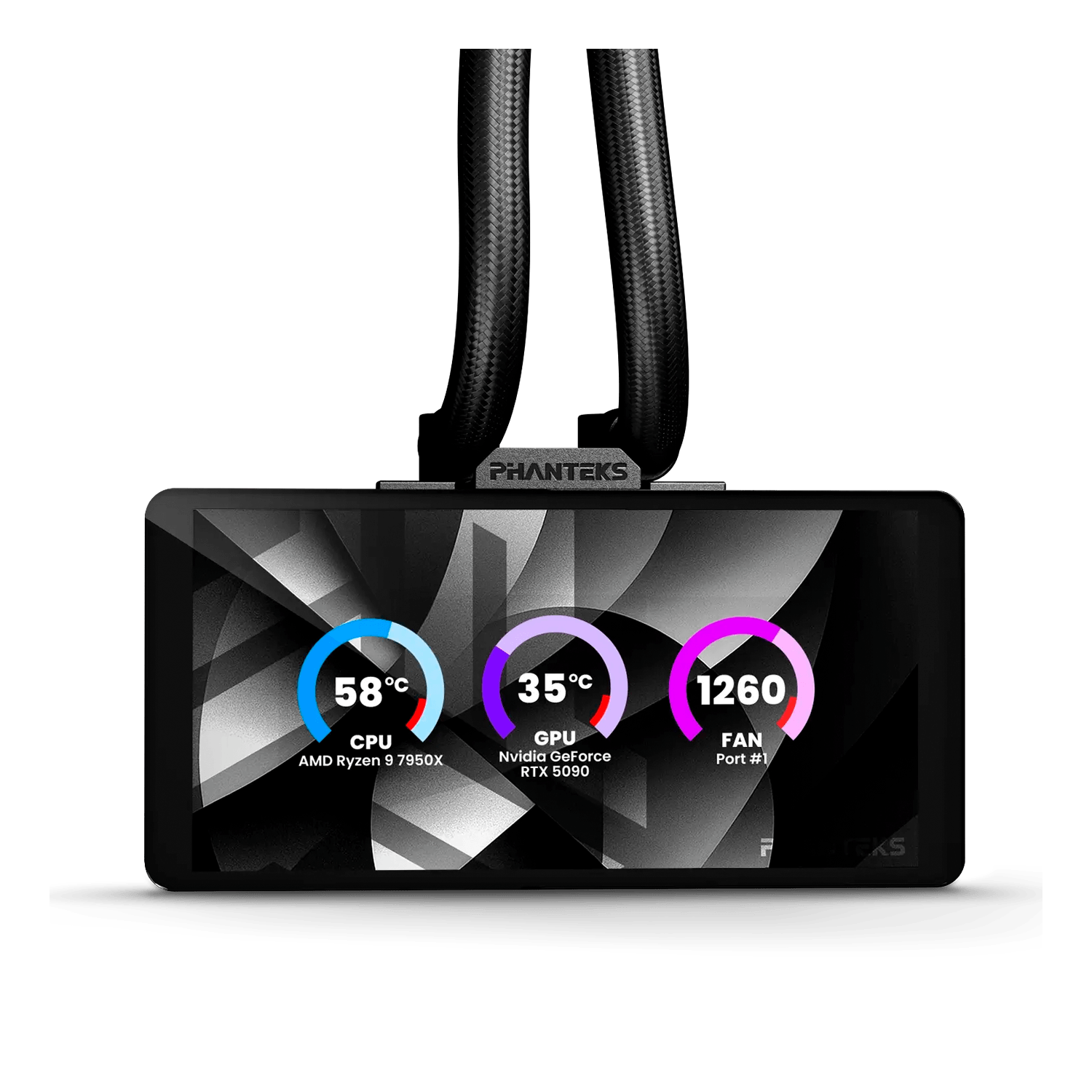

- Large 6″ LCD-IPS screen for easy viewing.
- Show system stats and more with the NexLinq App for Windows.
- Simple customization to match your setup.
- Adjustable orientation for flexible placement.
- Switch between landscape or portrait to suit your preference.
- Wide overview in landscape for system stats and media.
- Tall, streamlined layout in portrait for a different look.
- Adapts seamlessly to your build and style.
- Fine-tune the screen with seven adjustable viewing positions along the chosen orientation
| General | |
| Model No. | PH-GO360M25G2LCD_DBK01 |
| UPC Code | 886523004202 |
| Materials | Aluminum | ABS plastic | Copper | Glass |
| Color | Black |
| Intel Compatibility | LGA 115x | 1200 | 1700 | 1851 |
| AMD Compatibility | AM4 | AM5 |
| Radiator Dimensions |
Length x Width x Height 397 x 120 x 27mm | 15.62 x 4.72 x 1.06 in |
| Pump Dimensions |
Length x Width x Height 68.0 x 74.5 x 51.1 mm | 2.67 x 2.92 x 2.01 in |
| Pump Details | |
| Motor Speed | 3100 RPM ± 10% (100% Duty Cycle) |
| Power | 12V | 0.28A – 0.45A | 3.36W – 3.96W |
| Pump DC Cable | 400 + 10 mm | 15.74 + 0.39 in |
| Sound Level | 20.0 dBA |
| Material | Copper | ABS |
| Tube Details | |
| Length | 400 mm | 15.74 in |
| Diameter | 12.5 mm | 0.49 in |
| Tube Clips | 3x |
| Material | CIIR rubber| Braided sleeves |
| LCD Screen LCD6-HD | |
| LCD Type | IPS panel |
| LCD Dimensions | 145.2 x 70.5 x 2.08 mm | 5.71 x 2.77 x 0.08 |
| LCD Resolution | 1480 x 720 |
| Refresh Rate | 60 Hz |
| Luminance | 250 Nit |
| LCD RAM Clearance | 51.00 mm |
| Connector | USB-C |
| Max Power Draw | 0.43A |
| Fans M25G2-120 | |
| Fan Model | M25G2-120 D-RGB |
| Dimensions |
Length x Width x Height 120 x 120 x 30 mm | 4.72 x 4.72 x 1.18 in |
| Speed | 350 – 2000 ± 10% RPM |
| Air Flow | 72.72 CFM |
| Fan Static Pressure | 2.51 mm H2O |
| Sound Level | 35.13 dBA |
| MTFB | 150.000 Hours |
| Connector | Linq6 |
| Cable Length | 500 mm | 19.68 in Daisy-chain |
| Extra | |
| Net Weight | 0.00 kg | 0.00 lbs |
| Gross Weight | 0.00 kg | 0.00 lbs |
| Warranty |
5 Years limited Learn more |
| Scope of Delivery |
1x Glacier One 360M25-LCD Pre-applied thermal paste 3x M25G2 fans Pre-installed 4x Screw corner covers Pre-installed 4x Screw bridge covers Pre-installed |
| Accessory Box |
3x Tube clip 1x USB-C to USB 2.0 internal header 600 mm 1x Linq6 extension cable 500 mm 1x Linq6 Mainboard adapter cable 500 mm |
| Screws | 12x 36 mm 6-32 UNC Radiator screws 12x 6 mm 6-32 UNC Radiator screws |
| Mounting Hardware |
1x LGA 115X | 1200 | 1700 | 1851 Bracket 1x LGA 115X | 1200 | 1700 | 1851 Plastic backplate 4x LGA 1700 | 1851 Stand-off screws 4x LGA 115X | 1200 Stand-off screws 4x Thumb nuts 2x AM4 | AM5 Adapter brackets |
