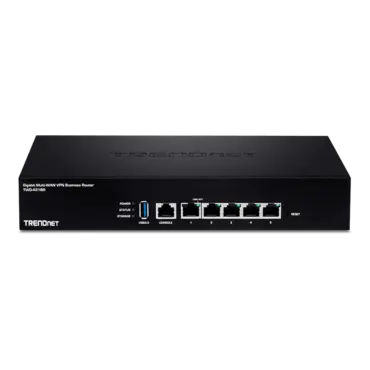

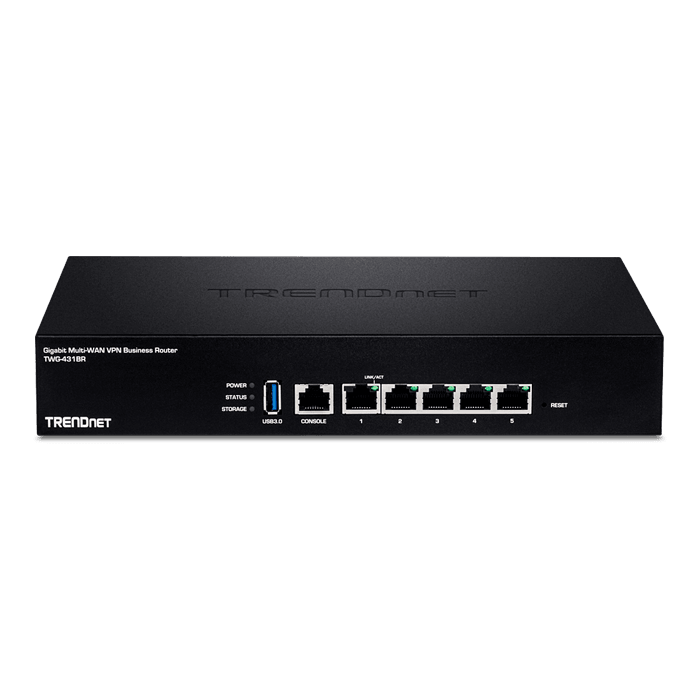

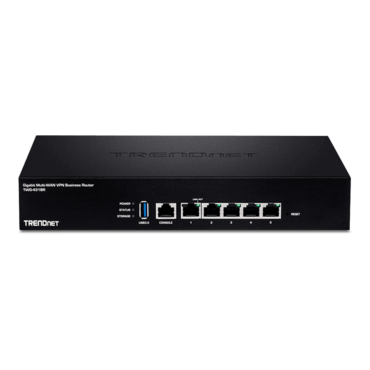

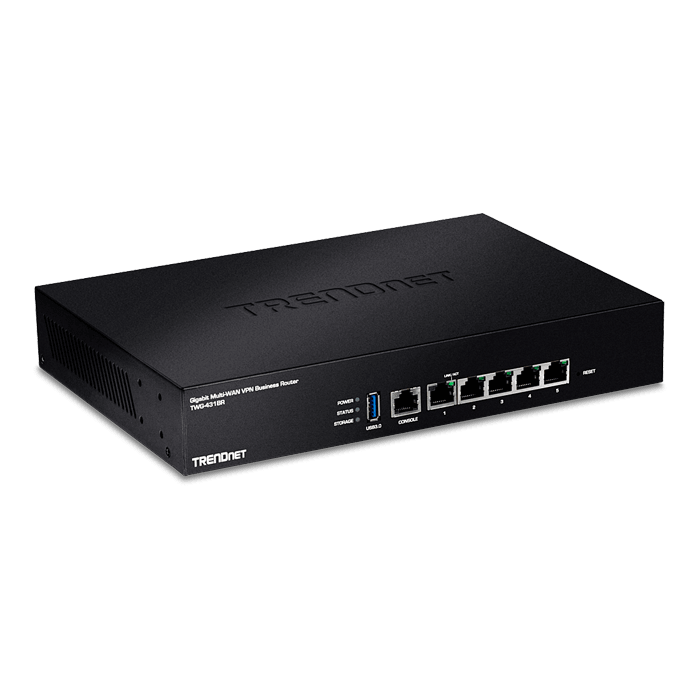

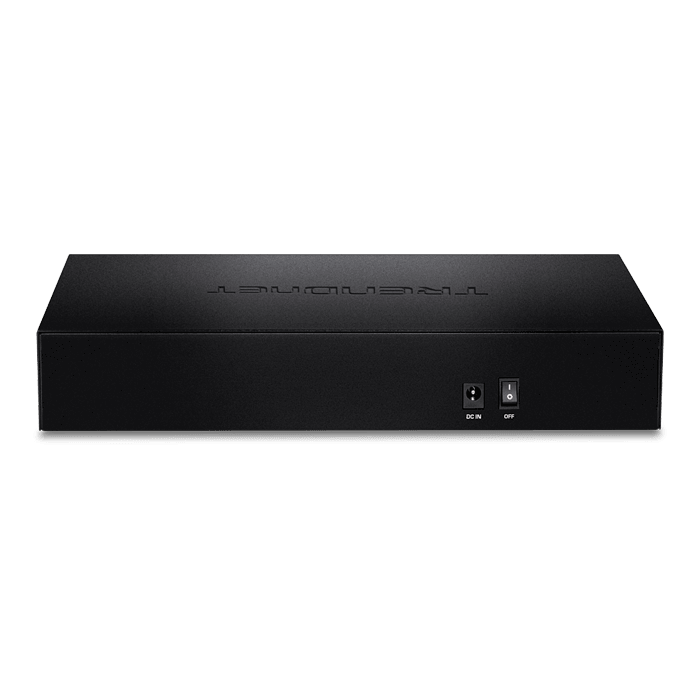

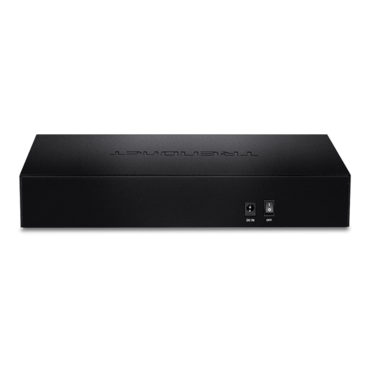

Gigabit TWG-431BR Multi-WAN VPN Business Router

  • SKU: 12967866
  • Manufacturer: TRENDNET
  • MPN: TWG-431BR
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$161.80
Quantity:
  • Multi-WAN support
  • High Availability
  • IEEE 802.1Q inter-VLAN routing
  • WAN load-balancing and fail-over modes
  • SSL, IPsec, PPTP, and L2TP w/IPsec VPN support
  • Web browser and Command Line Interface (CLI) Management
  • Advanced web content filtering service powered by Router Limits™
  • Online firmware notification and upgrade
  • QoS for VoIP and media streaming
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.1Q
Device Interface
  • 5 x Gigabit ports (Modes: 4 WAN ports / 1 LAN port or 1 WAN port / 4 LAN ports)
  • 1 x USB 3.0 port (Backup & Restore Configuration / Export Logging)
  • 1 x RJ-45 console port
  • Reset button
  • LED indicators
  • On/off switch
Performance
  • NAT (LAN-to-WAN) Throughput: 900Mbps
  • Routing Performance: 900Mbps
  • Maximum Concurrent Sessions: 50,000
  • Maximum Number of VLANs: 8 (ID: 1-4093)
  • IPsec VPN (AES-256/SHA-256/LAN-to-LAN) Throughput: 200Mbps
  • SSL VPN Throughput (Blowfish/SHA-1/Bridge): 20Mbps
VPN
  • SSL VPN Client-to-Site (Up to 30 tunnels)
  • IPsec VPN Site-to-Site / Client-to-Site (Up to 5 tunnels)
  • PPTP/L2TP VPN Server / Client-to-Site (Up to 15 tunnels / 5 user accounts)
  • L2TP with IPsec VPN Server / Client-to-Site (Up to 15 tunnels shared with L2TP)
  • IPsec Encryption: 3DES, AES-128/192/256
  • IPsec Authentication: MD5, SHA-1, SHA-256
  • IPsec Key Exchange: IKE: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
  • IPsec Protocols: ESP, PFS DH Groups 1/2/5/14, DPD, Local/Remote ID: IP Address, FQDN
  • IPsec NAT Traversal
  • SSL VPN Encryption: AES
  • SSL VPN Certificate: RSA
  • PPTP/L2TP Encryption: MPPE 40-bit, 128-bit, IPsec
  • PPTP/L2TP Authentication: MS-CHAPv1/2
Networking
  • WAN Modes: NAT, Classical Routing
  • NAT Modes: NAT, PAT
  • IPv4 WAN Modes: DHCP, Static IP, PPPoE, PPTP
  • IPv6 WAN Modes: Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4, 6rd
  • Routing: Static, dynamic RIPv2, OSPFv1/2, distribute RIPv2 over OSPFv1/2, routing policies (Up to 20 entries)
  • Inter-VLAN Routing (Up to 8 VLANs, 8 IP interfaces)
  • DHCP Server/Relay
  • Dynamic DNS: dyn.com, no-ip.com
  • WAN Failover
  • WAN Load Balancing: Assign weight by percentage or bandwidth, source IP based, source & destination IP based, session based
  • High Availability: Supports 1 active-passive cluster up to a total of 6 units (1 master + 5 standby)
  • VPN passthrough: IPsec, PPTP, L2TP
Access Control
  • MAC address filtering (Up to 64 entries)
  • IP address filtering: TCP, UDP, ICMP (Up to 64 entries)
  • Content filtering: URL (HTTP only), Keyword, P2P, IM (Up to 64 entries)
  • Virtual server/port forwarding (Up to 64 entries)
  • Advanced web content filtering service powered by Router Limits™
  • Scheduling: IP/MAC/Content filters, virtual server (Up to 10 entries)
  • DMZ host
Quality of Service
  • Bandwidth Control: applicable by IP network, IP range, TCP/UDP port, SIP, RTSP, RTP, web
Management
  • CLI (Console/Telnet/SSHv2) command line management
  • HTTP/HTTPS (SSL v2/3 TLS) web based management, upload custom SSL certificate
  • SNMP v1, v2c, v3
  • SNMP trap (Up to 4 receivers)
  • Scheduled automatic reboot
  • Scheduled Wake-on-LAN (WoL) to remote network device
  • Internal logging or send logging to external syslog server
  • Manual or online firmware upgrade and notification
  • Backup and restore configuration
  • Diagnostic tools: Built-in ping & traceroute network utilities
MIB
  • MIB II RFC 1213
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.5A
  • Output: 12V DC, 1.5A external power adapter
  • Max. consumption: 17.4W
MTBF
  • 318,350 hours
Operating Temperature
  • 0 – 50°C (32 – 122°F)
Operating Humidity
  • Max. 80% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 265 x 185 x 44.45mm (10.4 x 7.28 x 1.75 in.)
  • Rack mountable 1U height
Weight
  • 1.1kg (2.44 lbs.)
Warranty
  • 3 years
PACKAGE CONTENTS
  • TWG-431BR
  • Quick Installation Guide
  • RJ-45 to RS-232 console cable (1.5m / 5 ft.)
  • Power adapter (12V DC, 1A)
  • Rackmount kit
