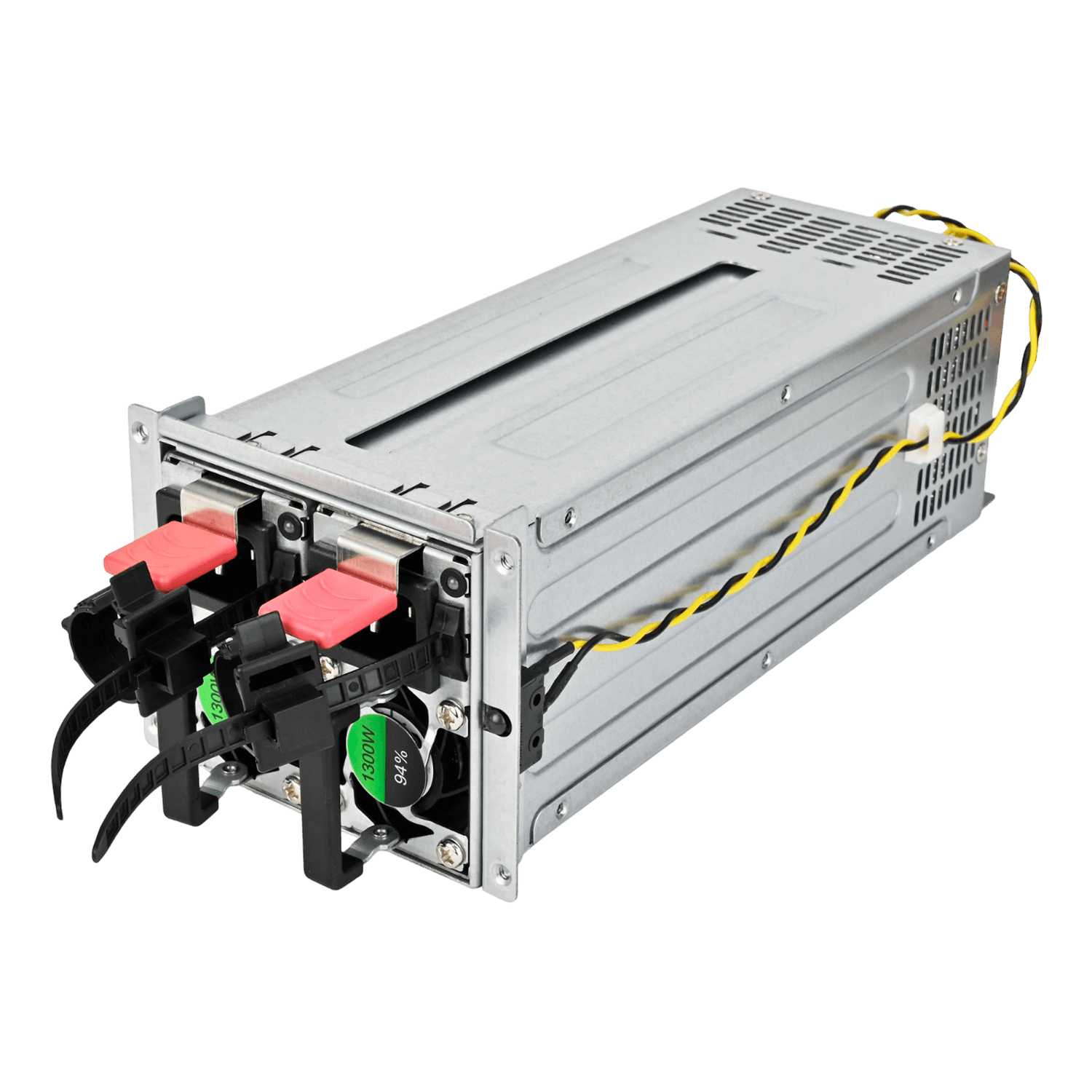

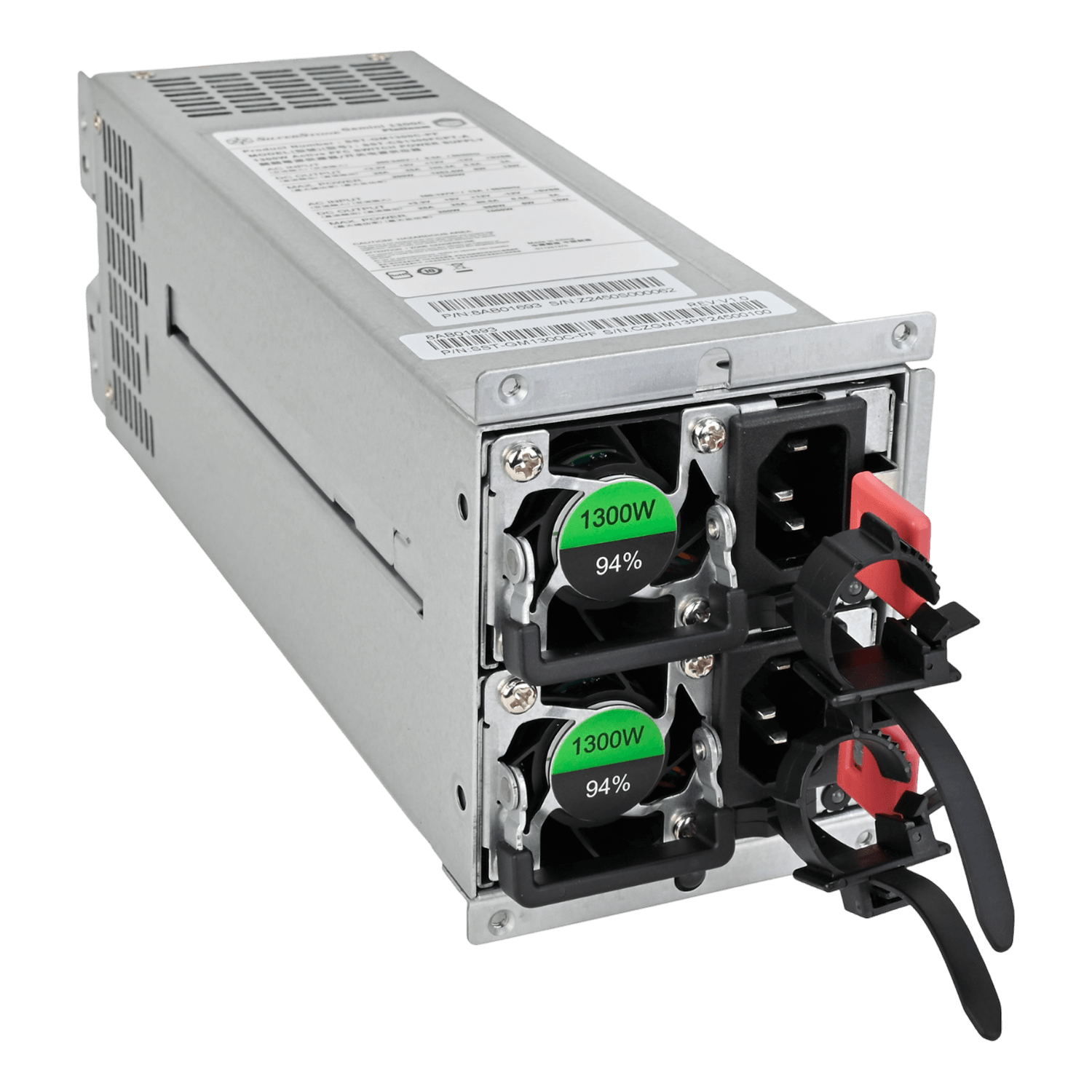

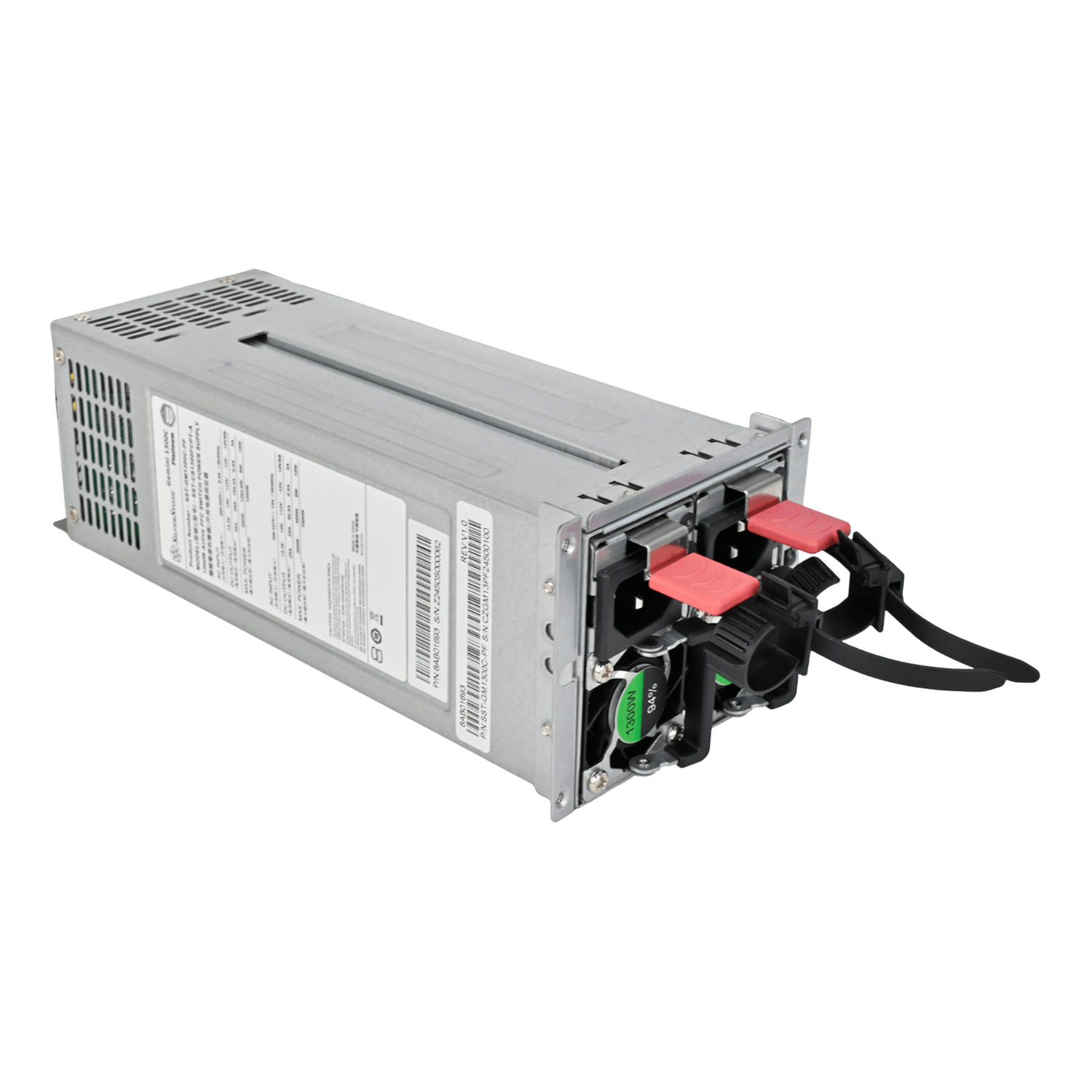

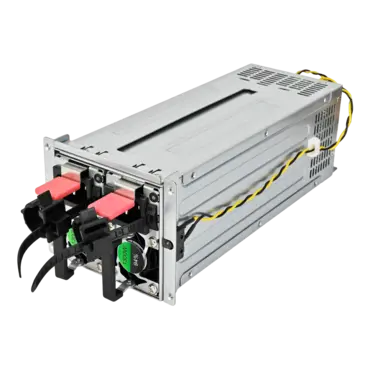

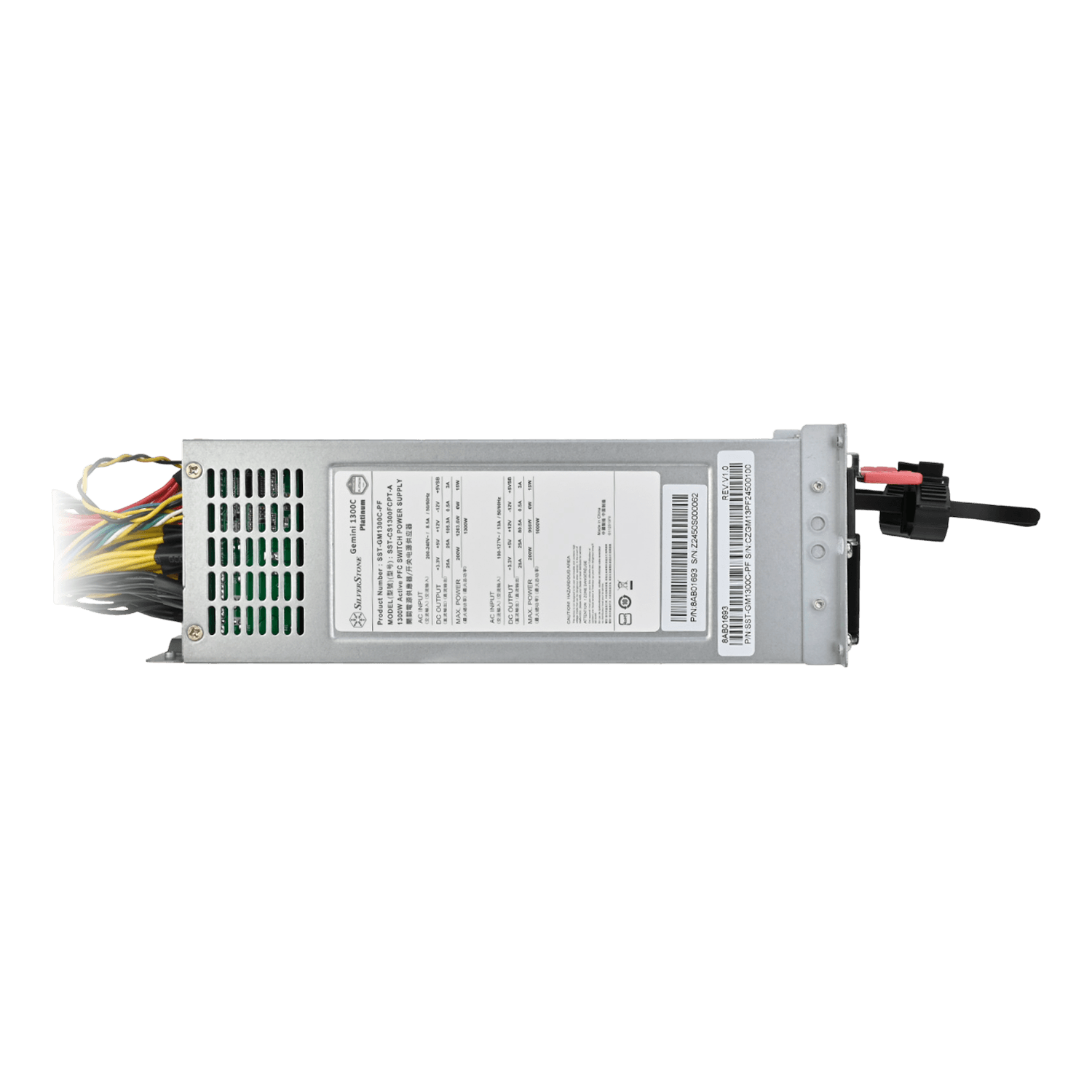

Gemini 1300C, 80 PLUS Platinum 1300W, Redundant, 2U Power Supply
Quantity:
- SKU: 18886381
- Manufacturer: SILVERSTONE
- MPN: GM1300C-PF
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,121.24
- 1300W + 1300W 24-hour continuous performance, reliably operating at 50°C with fully sustained power output.
- 2U CRPS form factor: 82mm (W) x 102mm (H) x 239mm (D)
- Cybenetics Platinum certification
- Active PFC (full range)
- All Japanese electrolytic capacitors

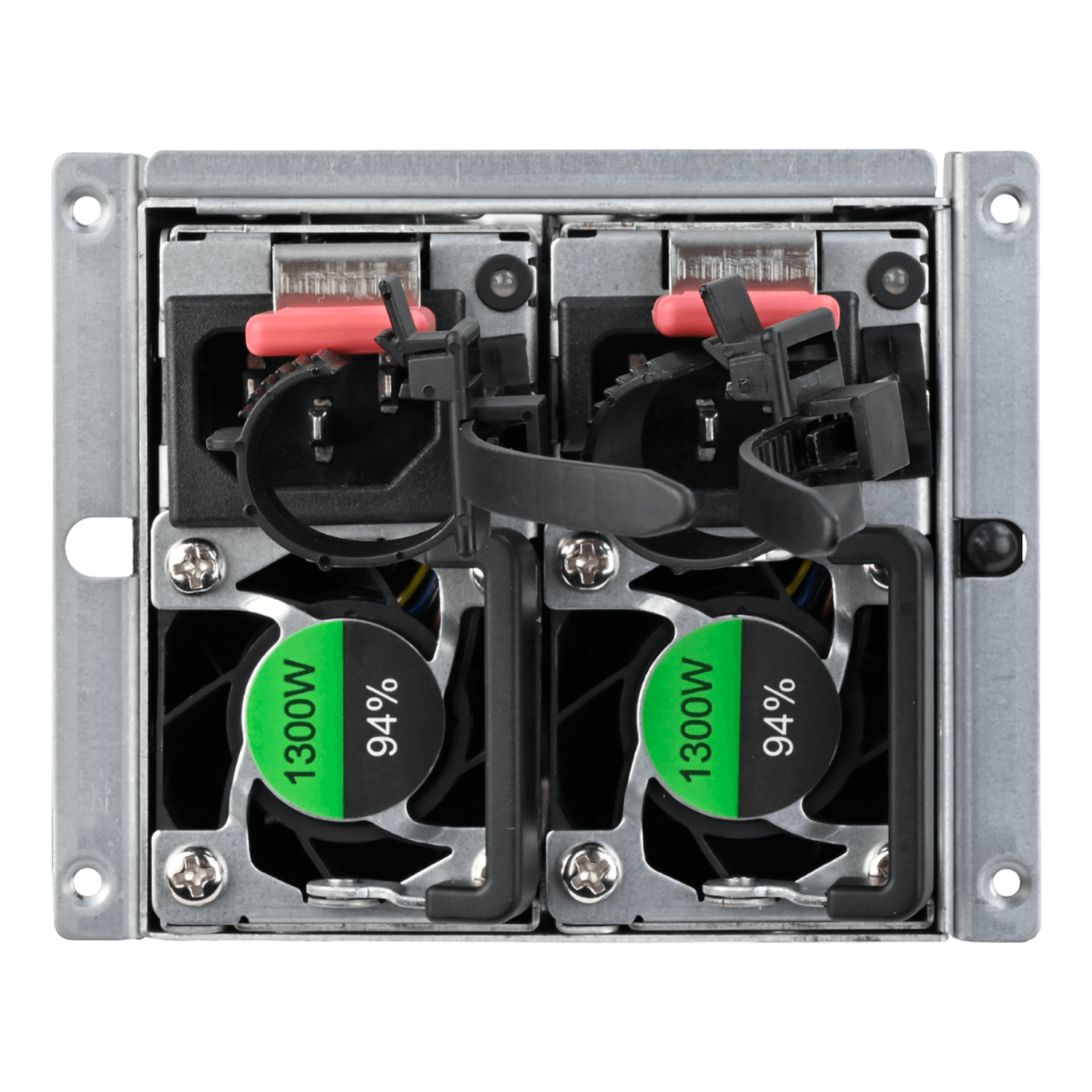

- Hot-swappable design
- Convenient pull-out handle bars
- Support PMBus 1.2
| Product No. | SST-GM1300C-PF | ||||
| Model (safety certification) | SST-CM1300FCPT-A | ||||
| Color | Silver | ||||
| Max. DC Output |
1300W+1300W, Max: 1300W |
||||
| Power density | 2394W/Liter | ||||
| Combined +3.3V & +5V | 200W | ||||
| Combined +12V | 1263.6W | ||||
| Input Voltage | 1300W: 200~240 Vrms | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC (PF>0.9 at full load) | ||||
| Efficiency | ≥89% & <91% overall efficiency | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 50°C | ||||
| Protection |
Over Current Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection |
||||
| Connectors |
1 x 24 / 20-Pin motherboard connector 2 x 8-Pin EPS / ATX 12V connectors 6 x 8 / 6-Pin PCIe connectors 4 x SATA connectors 6 x 4-Pin Peripheral connectors 1 x 5-Pin PMBus connector |
||||
| Cooling System | 40mm DC fans | ||||
| Noise Level | 61.5 dBA | ||||
| Certification | Cybenetics Platinum | ||||
| Form factor | 2U CRPS redundant | ||||
| Dimension |
82mm (W) x 102mm (H) x 239mm (D) (Housing with bracket, without handle) 82mm (W) x 102mm (H) x 225mm (D) (Housing without bracket) 73.5mm (W) x 40mm (H) x 185mm (D) (Module only without handle) |
||||
| Weight | 3.04 kg | ||||
| Load Range | |||||
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
| Max.(Amps) | 25A | 25A | 105.3A | 3A | 0.5A |
| Min.(Amps) | 0.8A | 0.5A | 1.5A | 0.1A | 0A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
