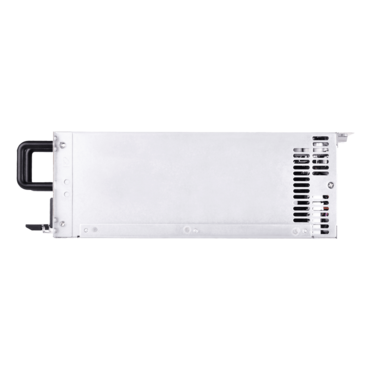

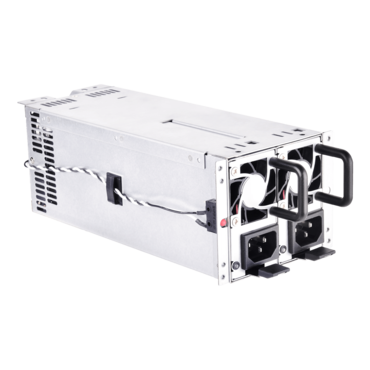

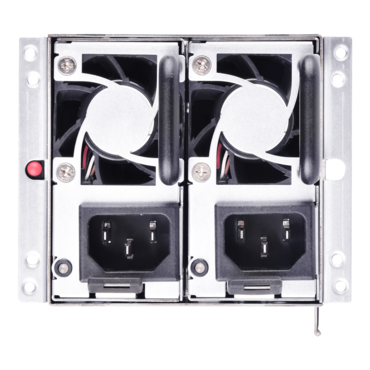

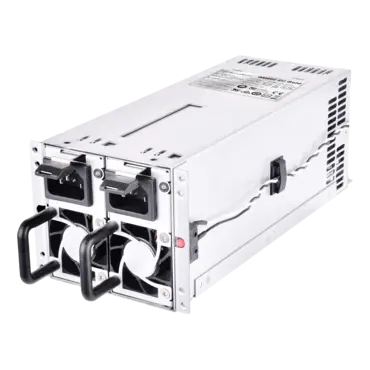

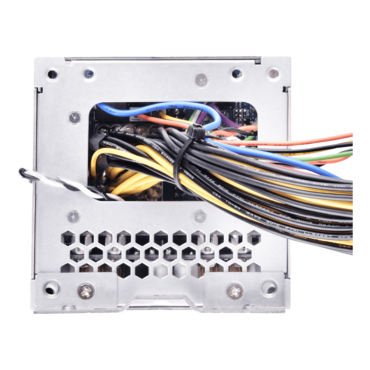

GM600 2U, Cybenetics Gold, 600W, 2U Redundant Power Supply
- SKU: 19477710
- Manufacturer: SILVERSTONE
- MPN: GM600-2UG-V2
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$706.10
| Product No. | SST-GM600-2UG V2 |
| Color | Silver |
| Max. DC Output | 600W |
| Power density | 803W per liter |
| Combined +3.3V & +5V | 170W |
| Combined +12V | 600W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | ≥87% & <89% overall efficiency with single modular power supply |
| MTBF | >100,000 hours |
| Operating temperature | 0°C ~ 45°C |
| Protection |
Over Current Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection |
| Connectors |
1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connectors 2 x 8 / 6-Pin PCIe connectors 6 x SATA connectors 9 x 4-Pin Peripheral connectors 1 x 4-Pin Floppy connector 1 x 2-Pin TTL connector 1 x 2-Pin PW1 connector 1 x 2-Pin PW2 connector 1 x PM Bus connector |
| Cooling System | 40mm PWM fans |
| Fan speed | 22,000 RPM |
| Noise Level | 62.5 dBA maximum |
| Form factor | 1+1 2U redundant form factor |
| Dimension |
102mm (W) x 82mm (H) x 231mm (D) (Housing with bracket, without handle) 84mm (W) x 82mm (H) x 217mm (D) (Housing without bracket) 78mm (W) X 39mm (H) X 190mm (D) (Module only without handle) 4.02" (W) x 3.23" (H) x 9.09" (D) (Housing with bracket, without handle) 3.31" (W) x 3.23" (H) x 8.54" (D) (Housing without bracket) 3.07" (W) x 1.54" (H) x 7.48" (D) (Module only without handle) |
| Weight | 3.13 kg |
| Other | GPU Support list |
| Load Range | |||||
|---|---|---|---|---|---|
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
| Max.(Amps) | 25A | 25A | 50A | 3.5A | 0.8A |
| Min.(Amps) | 1.0A | 1.0A | 1.0A | 0.1A | 0A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±5% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
| LED indicator | ||
|---|---|---|
| Power Supply Condition | Power System Status | Module Status |
| No AC power to all PSU | OFF | |
| AC present / only standby output on | Red | |
| Power supply DC output ON and OK | Green | |
| Power supply failure | Red | |
