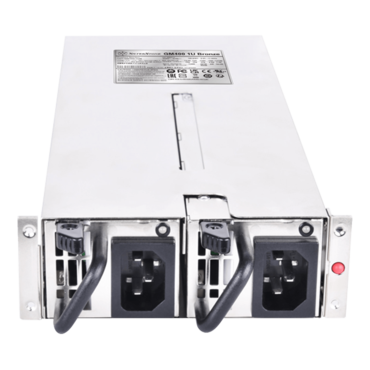

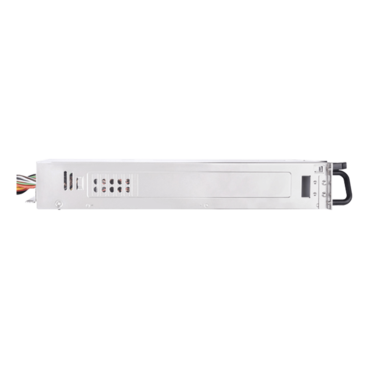

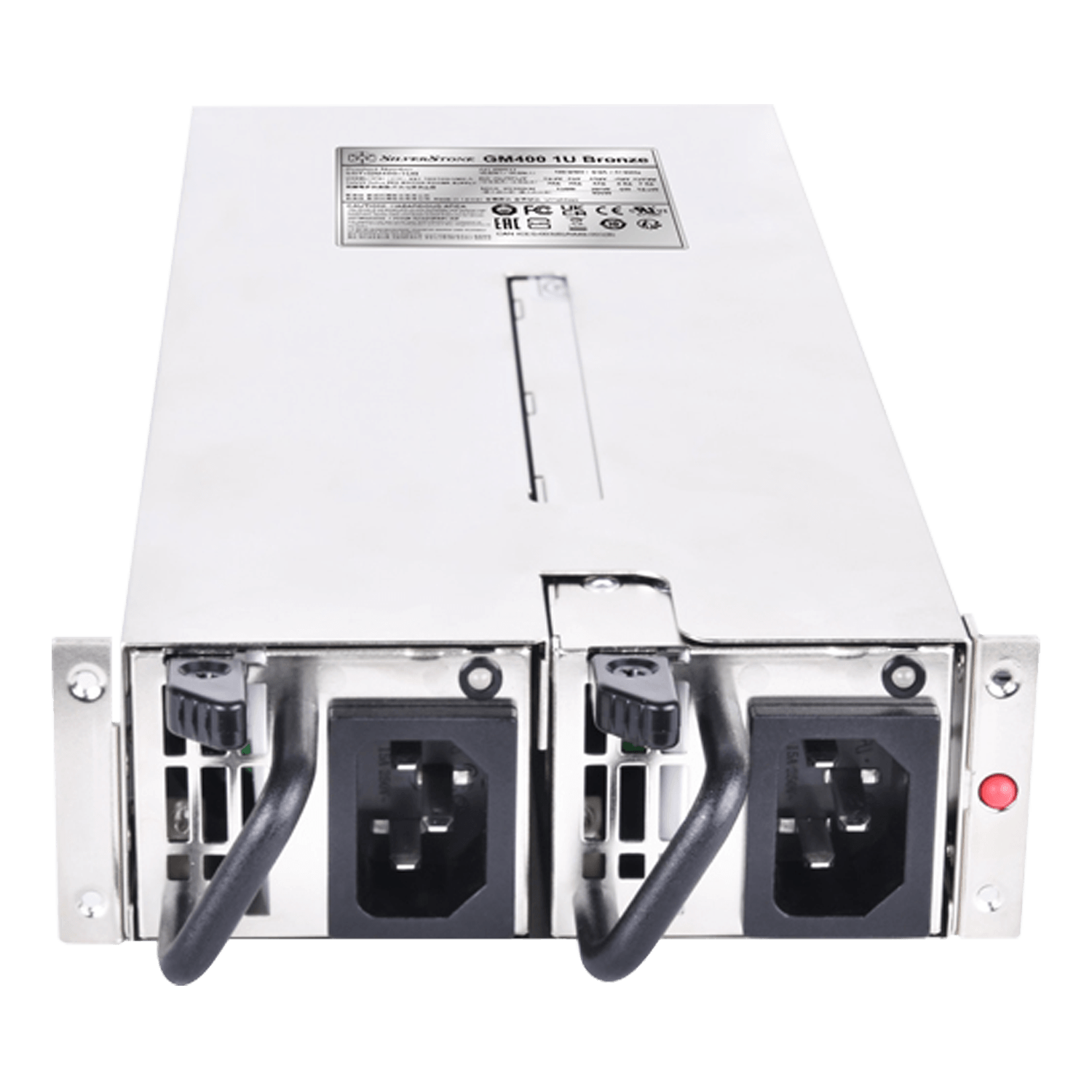

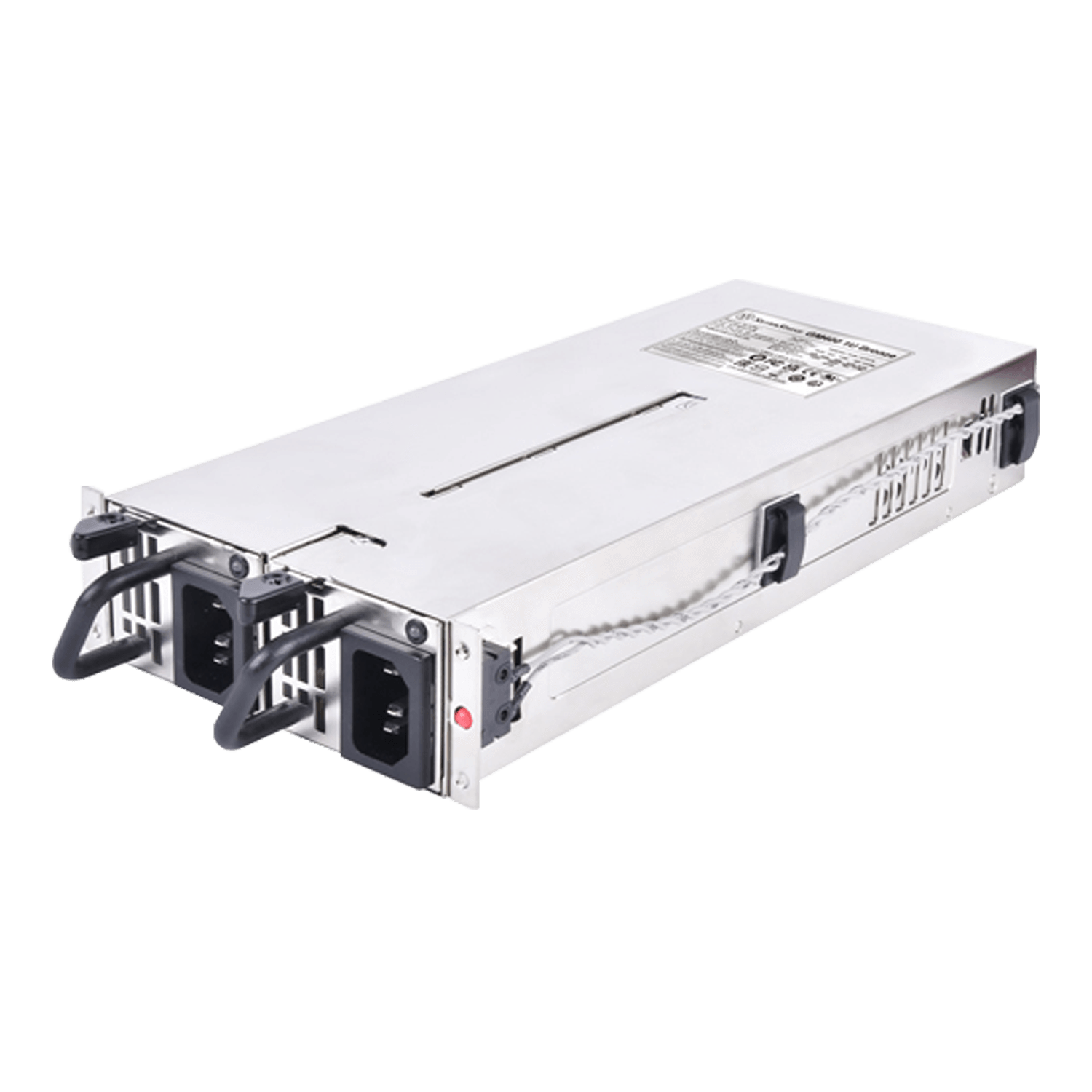

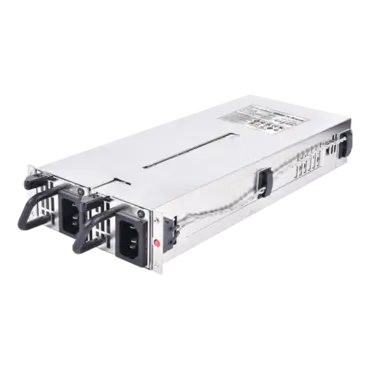

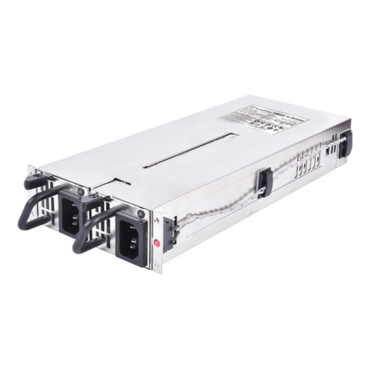

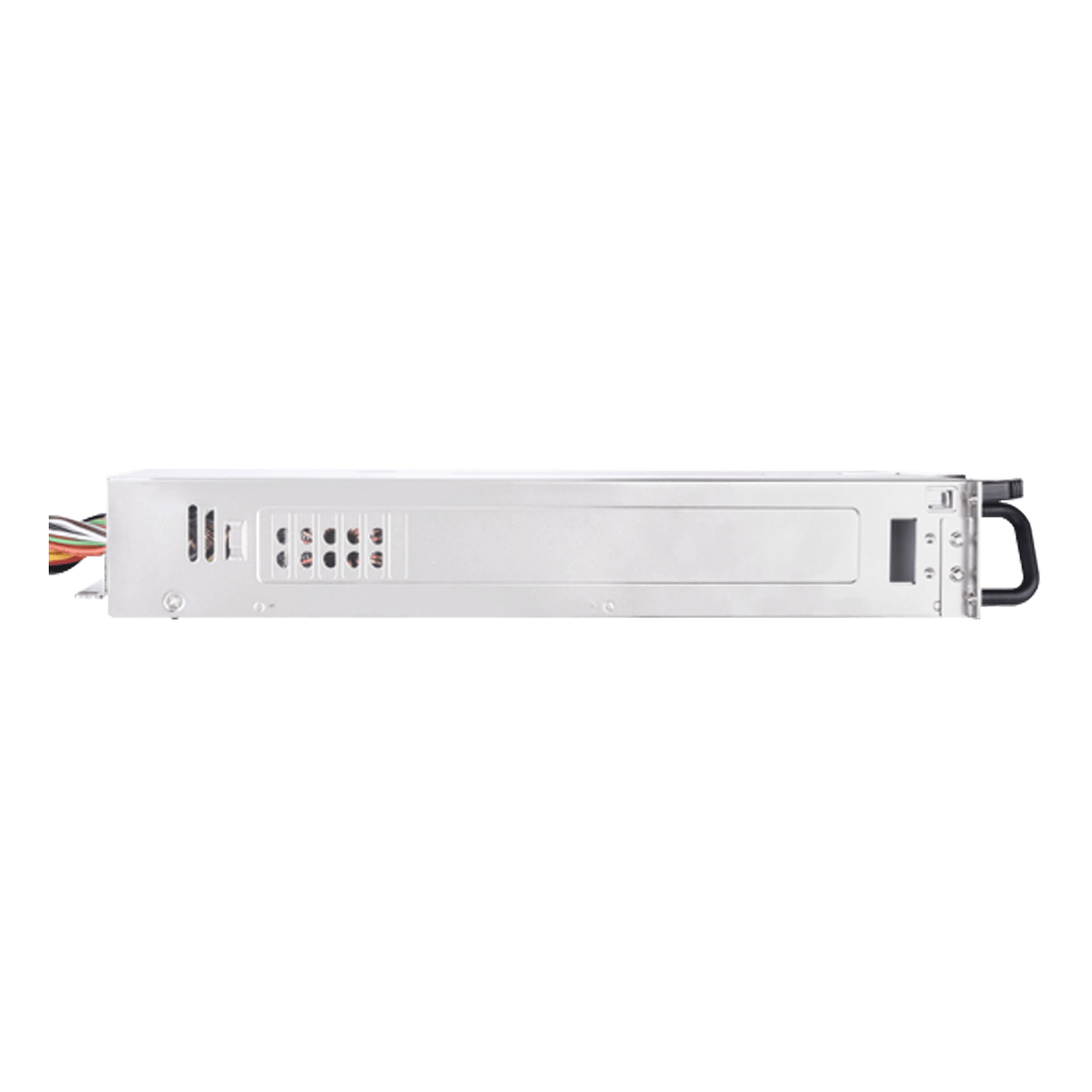

GM400, 80 PLUS Bronze, 400W, 1U Redundant
- SKU: 18019643
- Manufacturer: SILVERSTONE
- MPN: GM400-1UB
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$633.64
| Product number | SST-GM400-1UB | |||||
| Model (security) | SST-1R0400FCBR-A | |||||
| Color | silver | |||||
| Maximum output power | 400W | |||||
| Power density | 699W Watt/L | |||||
| Load combination +3.3V & +5V | 150W | |||||
| Load combination +12V | 384W | |||||
| Input voltage | 90V~264V | |||||
| Input signal frequency range | 47Hz ~ 63Hz | |||||
| PFC type | Active PFC (PF>0.9 at full load) | |||||
| Efficiency | Overall efficiency ≥82% and <85% | |||||
| Mean Time Between Failures | 100,000 hours | |||||
| Operating temperature range | 0°C ~ 45°C | |||||
| Protection |
Overcurrent protection Overvoltage protection Undervoltage protection Short circuit protection |
|||||
| Connectors |
1 x 24 / 20-pin Motherboard Connector 1 x 4-pin EPS / ATX 12V Connector 1 x 8-pin EPS / ATX 12V Connector 3 x SATA Connector 5 x 4-pin Peripheral Connector 1 x 4-pin Floppy Connector 1 x 2-Pin +5V TTL Signal Connector 1 x Brown / White Power 1 LED 1 x Red / White Power 2 LED 1 x Green / White Power / Module System LED |
|||||
| Cooling system | 40mm DC Fan | |||||
| Noise level | 52 dBA | |||||
| Certification | Cybenetics Bronze | |||||
| Form factor | 1+1 1U redundant | |||||
| Dimensions |
123mm (W) x 41.5mm (H) x 270mm (D) (Body without bracket) 106mm(W) x 41.5mm(H) x 260mm(D) (Body with bracket, without handle) 50mm(W) x 40mm(H) x 220mm(D) (Module only, without handle) |
|||||
| Weight | 2.15 kg | |||||
| Other |
GPU Support list Compatible with ATX12V v2.4 |
|||||
| Exit | +3.3V | +5V | +12V | +5VSB | -12V | |
| Maximum (amperes) | 20A | 20A | 32A | 3.0A | 0.5A | |
| Minimum (amps) | 1.0A | 1.0A | 1.0A | 0.5A | 0A | |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% | |
| Output voltage instability (%) | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Fluctuations(m Vp-p) | 60mV | 60mV | 120mV | 50mV | 120mV | |
| Power status | Power supply system status | Module status | ||||
| No AC power for all power supplies | OFF | OFF | OFF | ||||
| AC/backup power output only | red | OFF | OFF | ||||
| DC output is on and normal | OFF | green | orange | ||||
| power outage | OFF | Flashing | OFF | ||||
