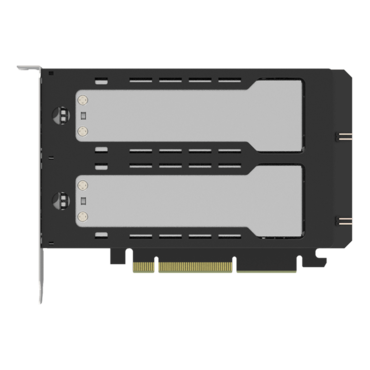

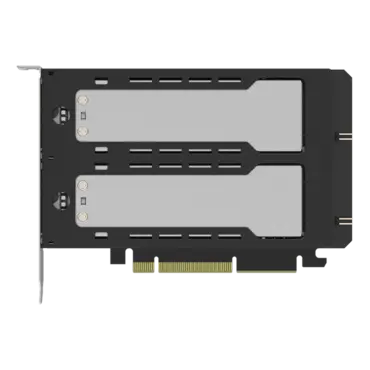

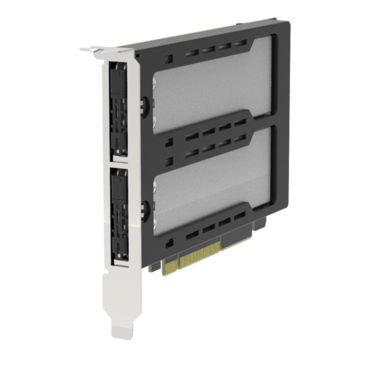

ExpressSlot Elite MB842M5P-B, 2 Bay Removable M.2 NVMe SSD to PCIe 5.0 x8 Mobile Rack Enclosure /Adapter for PCIe Expansion Slot
- SKU: 19429048
- Manufacturer: ICY DOCK
- MPN: MB842M5P-B
- Availability: TEMPORARILY OUT OF STOCK
Price
$253.77
| Model Number: | MB842M5P-B |
| Color: | Black & silver |
| Support Drive Size: | 2 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110) |
| Compatible Drive Type: | M.2 PCIe 5.0/4.0/3.0 NVMe SSD |
| Number of Drives: | 2 |
| Support Drive Length: | 30mm – 110mm |
| Drive Bay: | 1 x PCIe 5.0 x8 or x16 expansion slot (motherboard required PCIe x8 slots bifurcated into x4/x4, or PCIe x16 slots bifurcated into x4/x4/x4/x4) |
| Host Interface: | PCIe 5.0 x8 |
| Power Input: | Via PCIe |
| Transfer Rate: | Up to 128Gbps (depending on hard drive speed) |
| Support SSD Capacity: | No limitation |
| Drive Cooling: | Metal heat dispersion with passive cooling |
| Structure / Material: | Metal with partial ABS plastic |
| Dimension (W x H x D) : | 171 x 120.8 x 21.6 mm |
| Product Net Weight: | 229.7g |
| Package Gross Weight: | 331g |
| Drive Activity LED Indication: | Drive power: solid green; Drive access: flashing green |

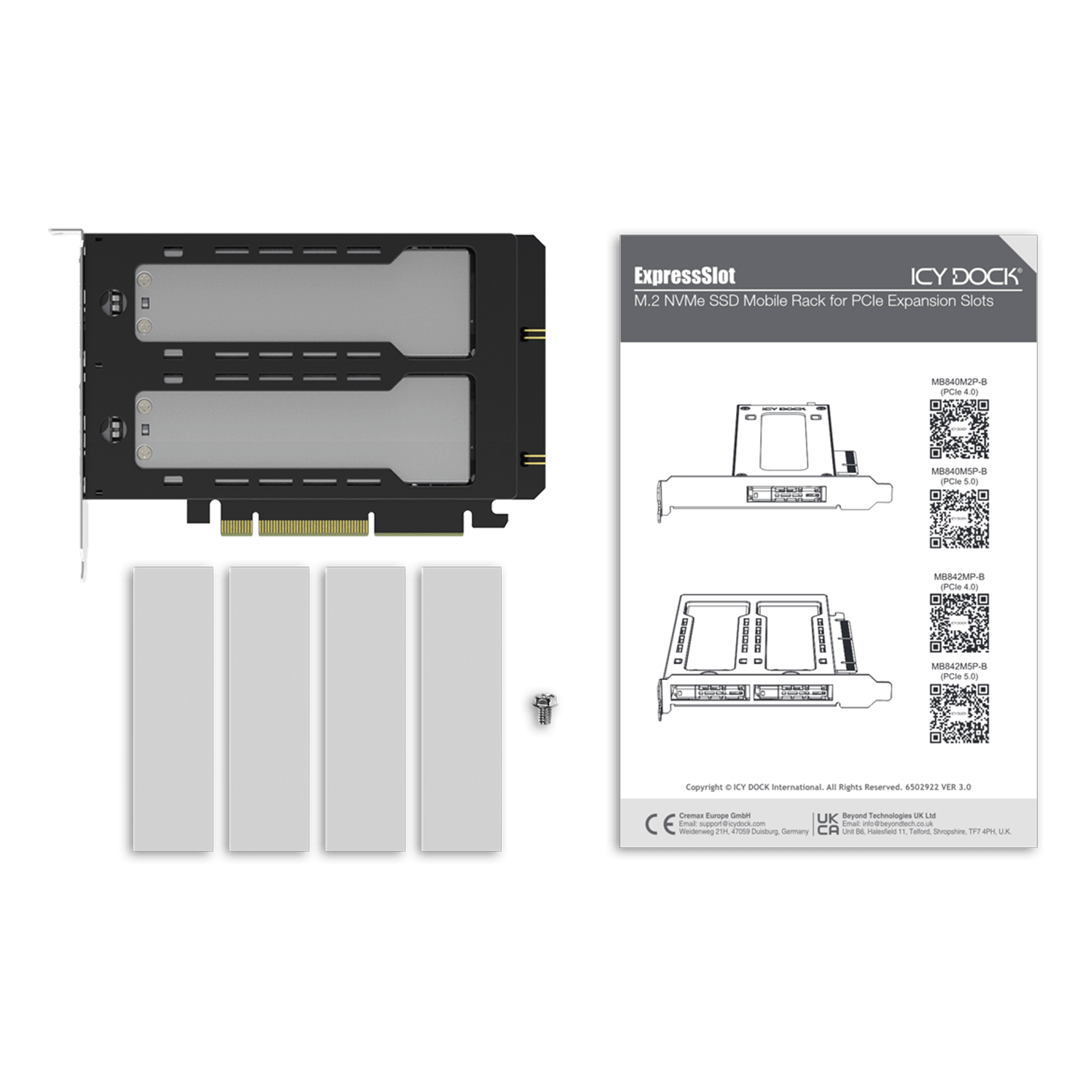

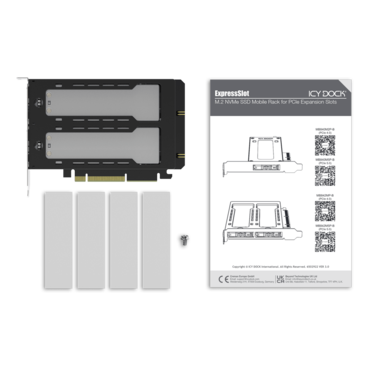

| Package Contents: | Device, user manual, screw, thermal pads |
| Connector Insertion Rate: | 5,000 |
| Humidity: | 5%~65% RH |
| Operating Temperature: | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature: | -35°C to 70°C (-31°F to 158°F) |
| Compliance: | CE, RoHS, REACH |
| Warranty: | 5 years limited warranty |
