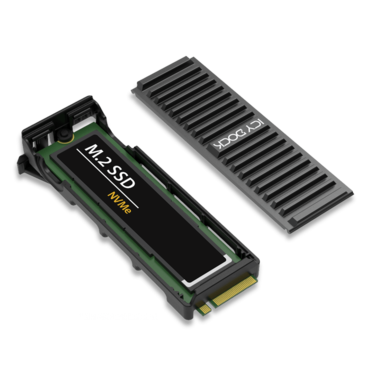

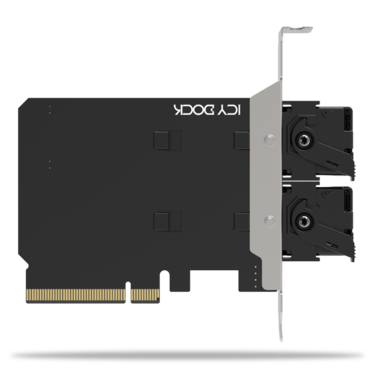

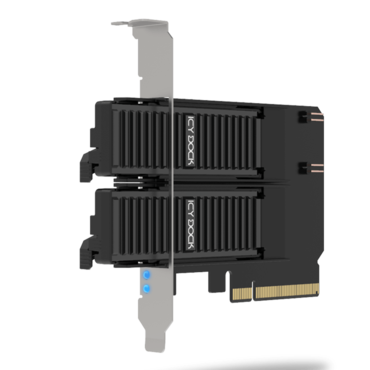

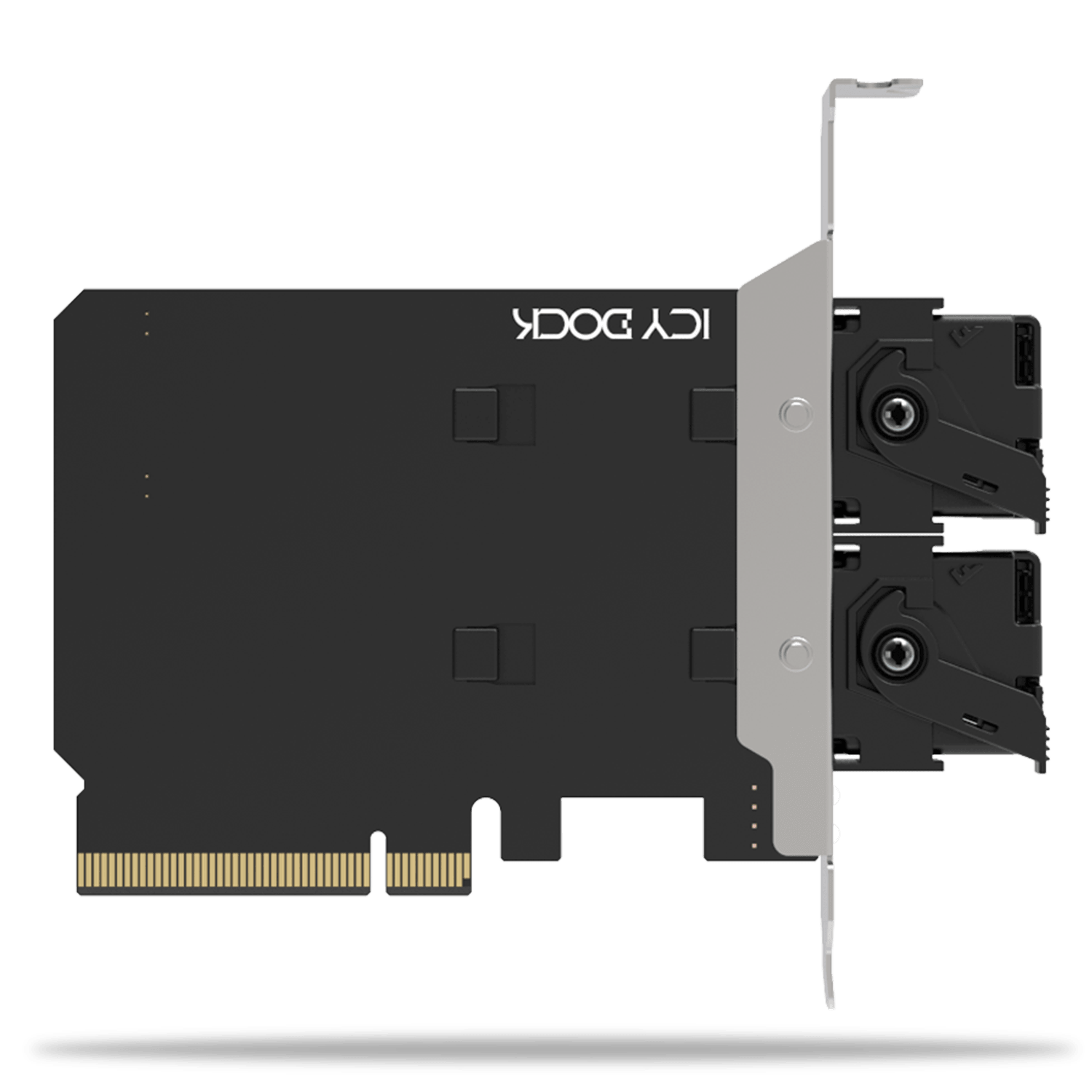

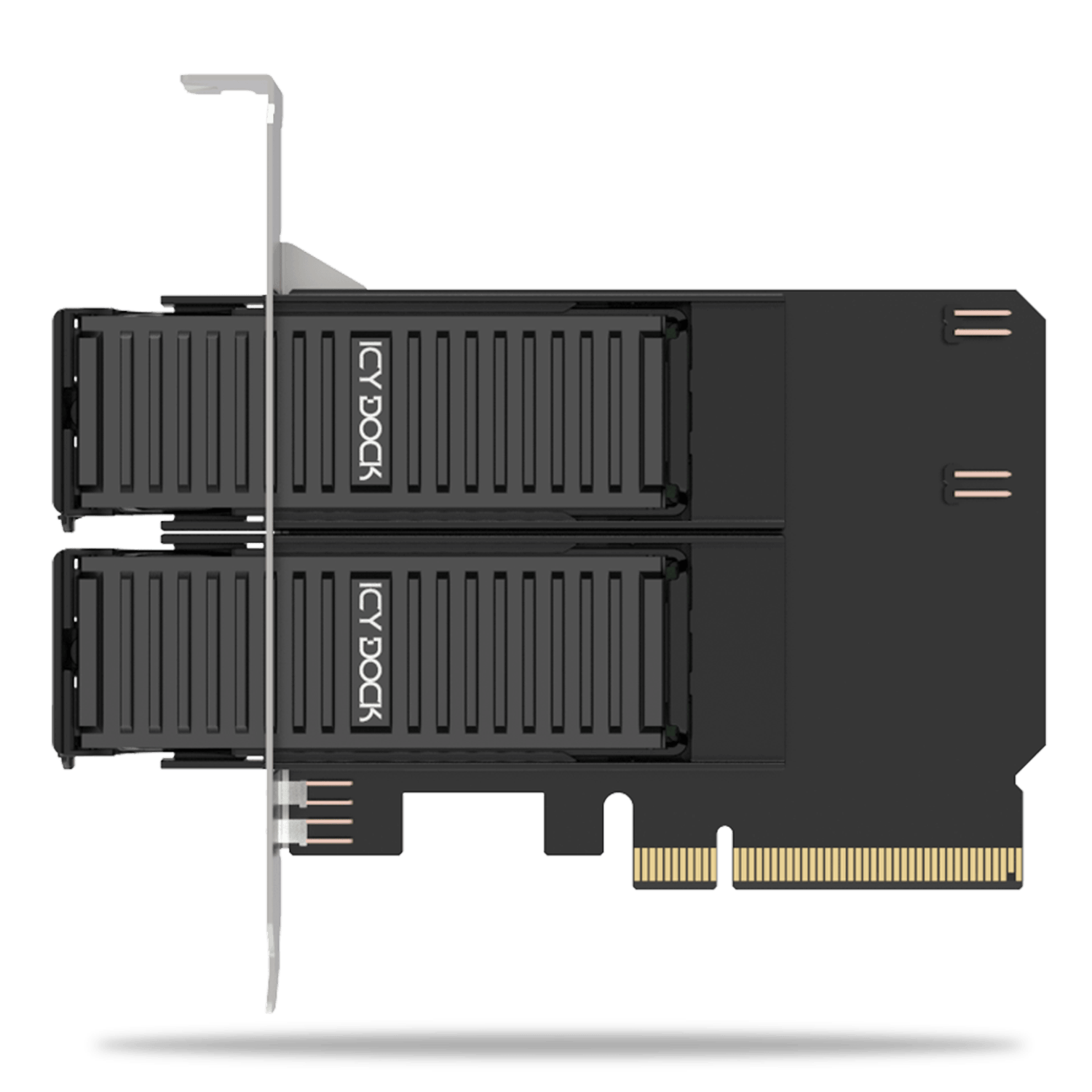

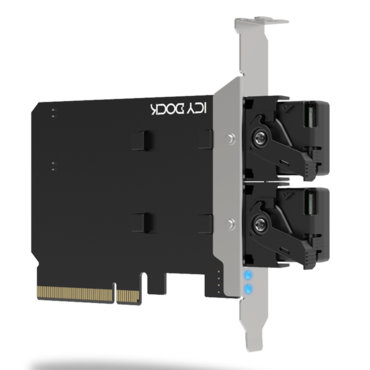

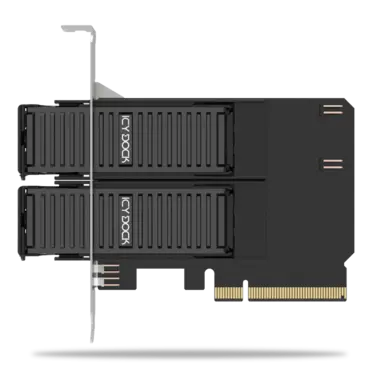

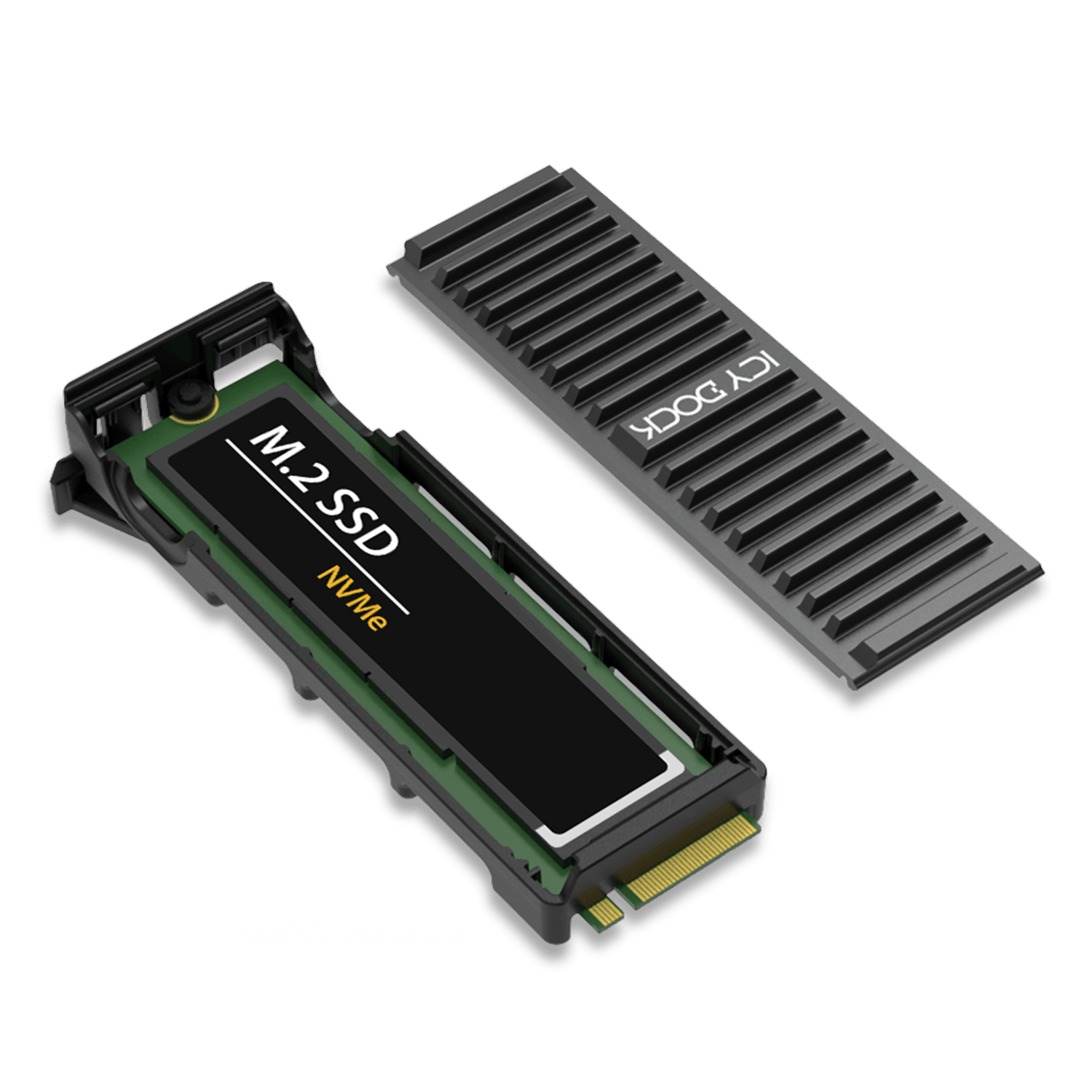

ExpressSlot Core MB312M4P-B, 2 Bay Removable M.2 NVMe SSD to PCIe 4.0 x8 Mobile Rack Adapter Card for PCIe Expansion Slot
- SKU: 19434356
- Manufacturer: ICY DOCK
- MPN: MB312M4P-B
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$119.70
| Model Number : | MB312M4P-B |
| Color : | Black |
| Support Drive Size : | M / B + M key M.2 PCIe NVMe SSD 2230/2242/2260/2280 |
| Compatible Drive Type : | M.2 PCIe 3.0/4.0 NVMe SSD |
| Number of Drives : | 2 |
| Drive Bay : | 1 x PCIe 3.0 or 4.0 x8 / x16 expansion slot (motherboard required PCIe x8 slots bifurcated into x4/x4 mode or PCIe x16 slots bifurcated into x4/x4/x4/x4 mode) |
| Host Interface : | PCIe 4.0 x8 |
| Power Input : | Via PCIe |
| Transfer Rate : | Up to 64Gbps (depending on hard drive speed) |
| Support SSD Capacity : | No limitation |
| Drive Cooling : | Metal heat dispersion with passive cooling |
| Structure / Materia : | Metal IO bracket/cover with PCBA and plastic shield |
| Product Dimension (W x H x D) : | 129.4 x 21.6 x 120.9mm |
| Product Net Weight : | 89.6g |
| Package Gross Weight : | 188.4g |
| Drive Activity LED Indication : |
Device power: solid blue Device activity: flashing blue Empty: LED off |
| Package Contents : | Device, user manual, thermal pads, M.2 SSD mounting clips, screws |
| Connector Insertion Rate : | 5,000 |
| Humidity : | 5%~65% RH |
| Operating Temperature : | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature : | -35°C to 70°C (-31°F to 158°F) |
| Compliance : | CE, RoHS, REACH |
| Warranty : | 3 years |
