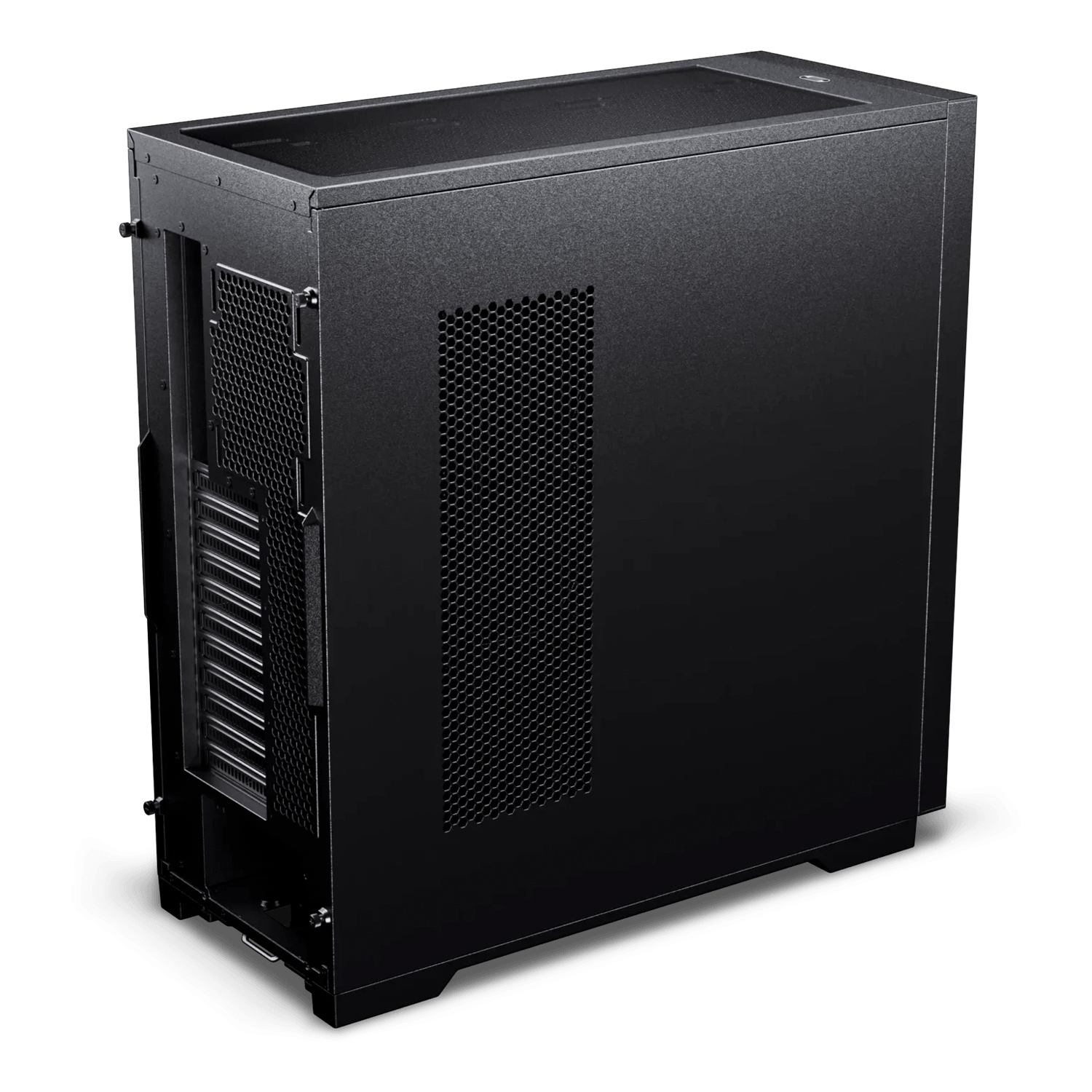

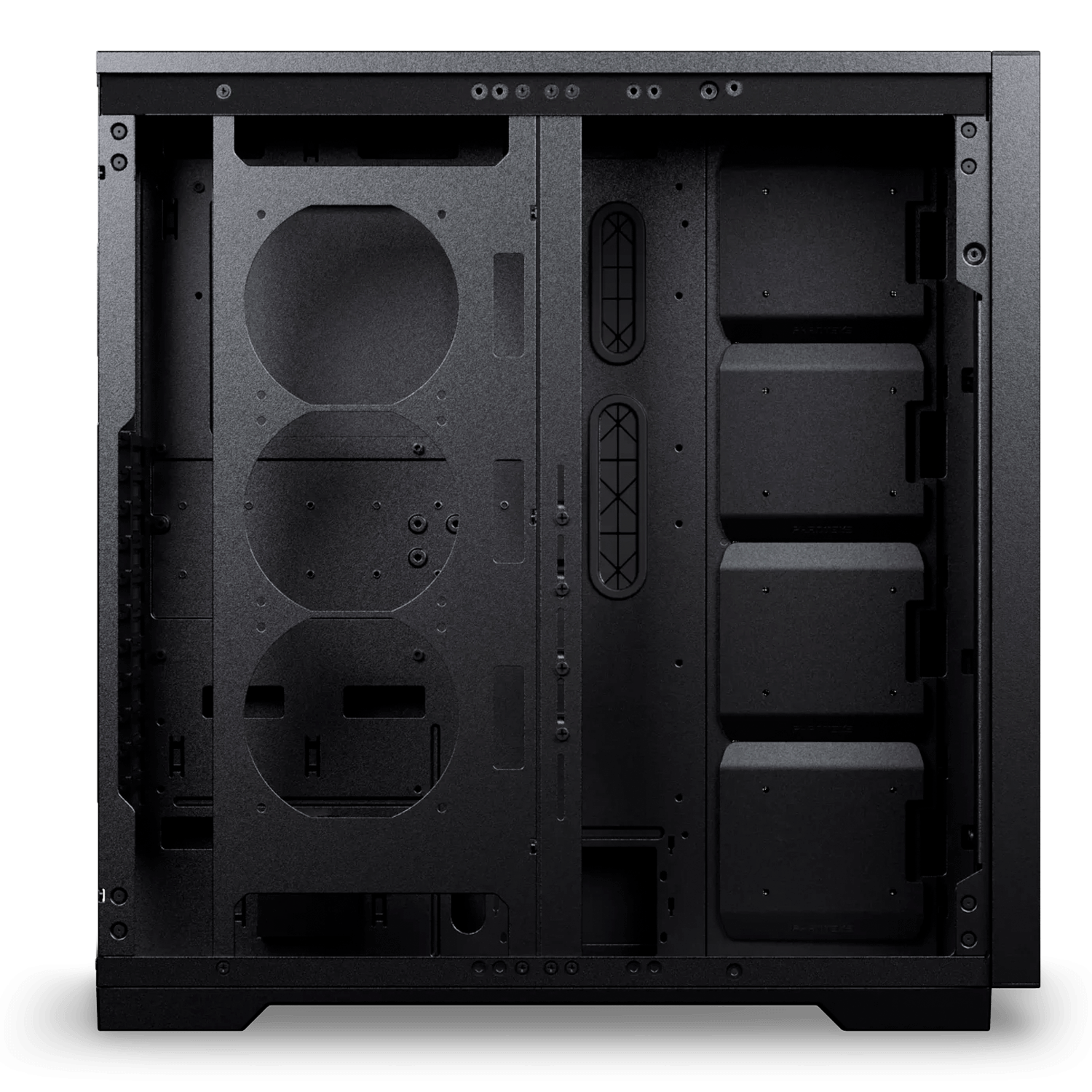

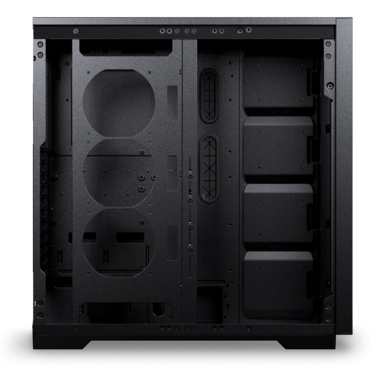

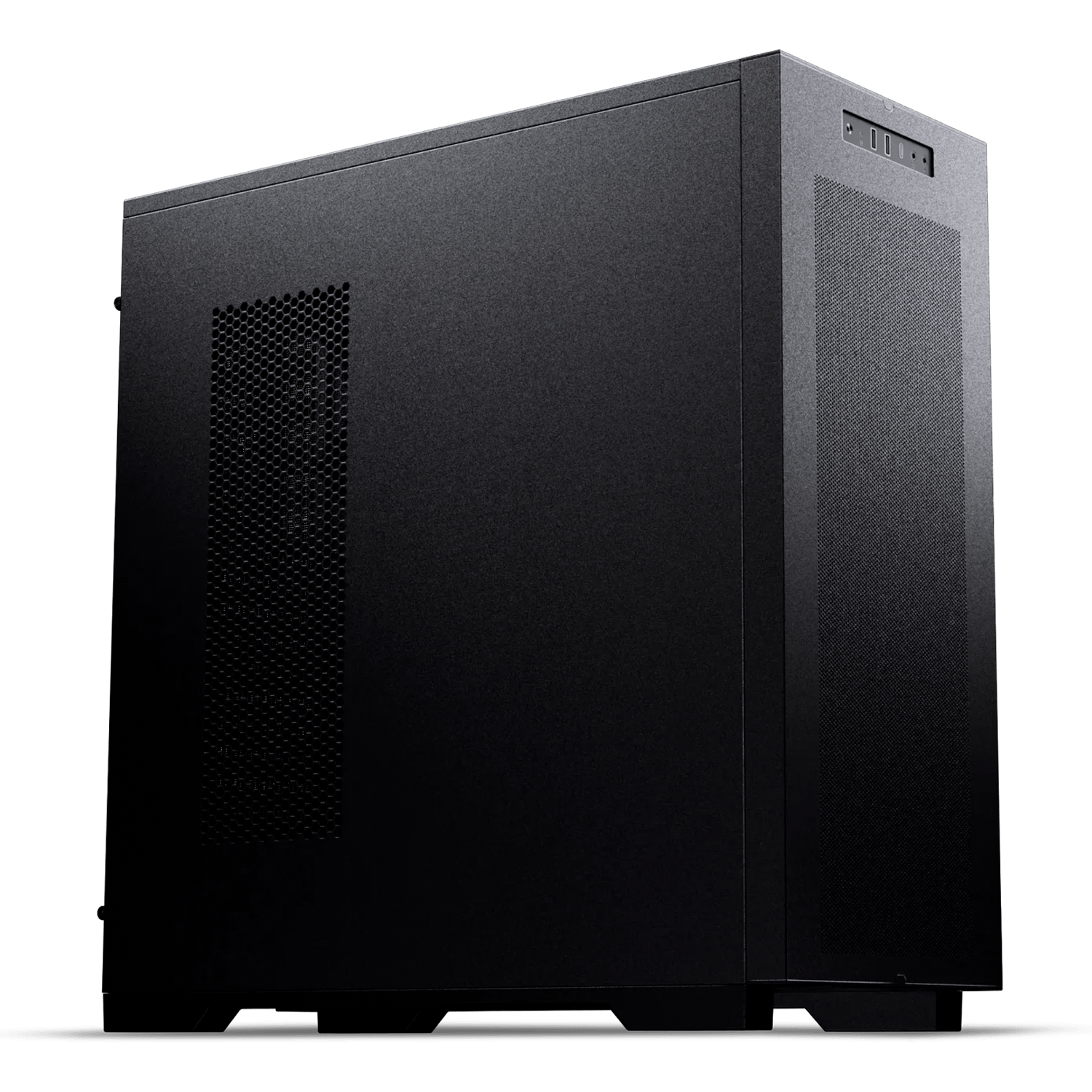

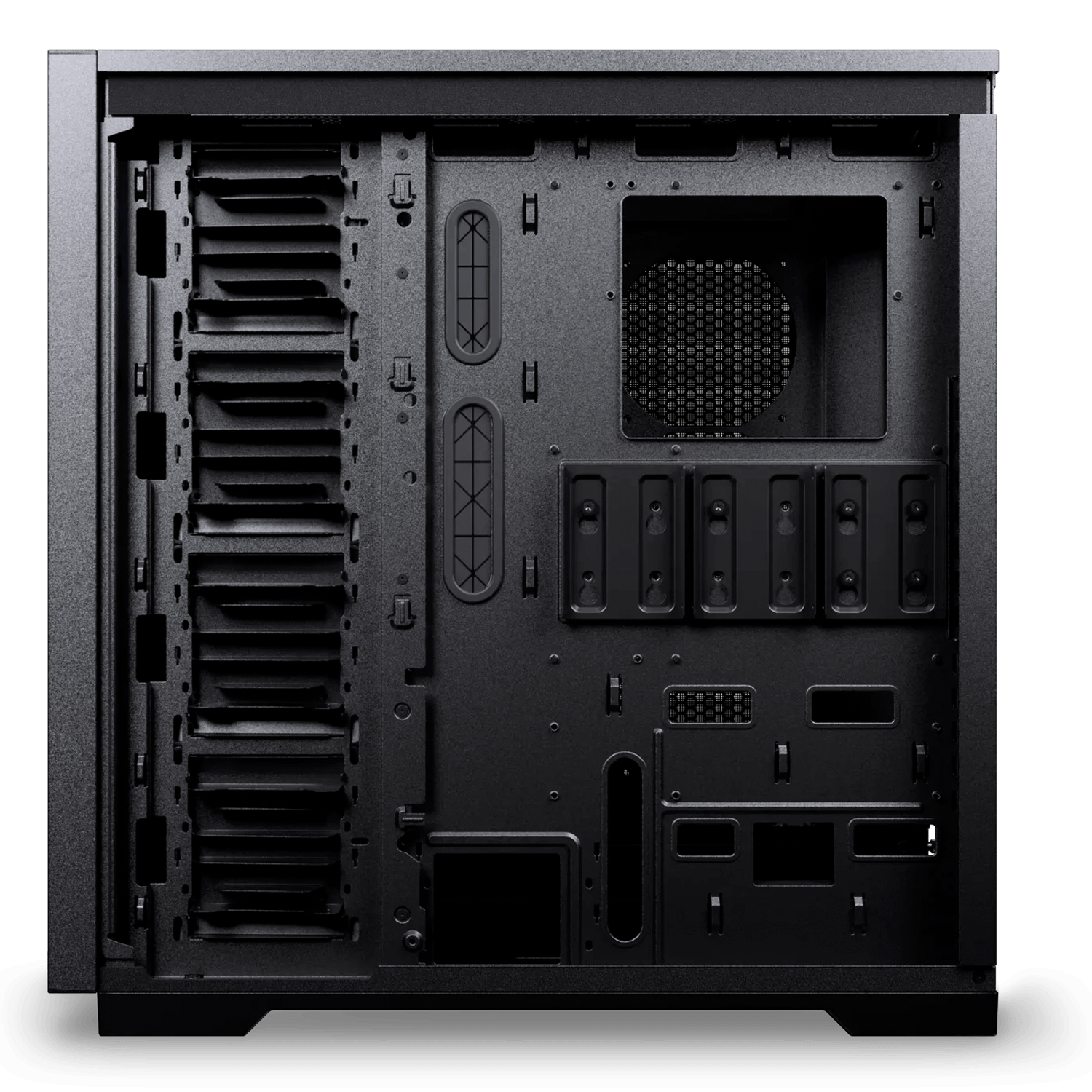

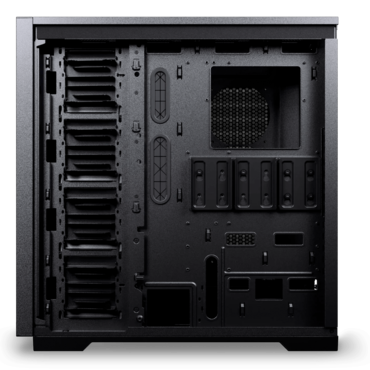

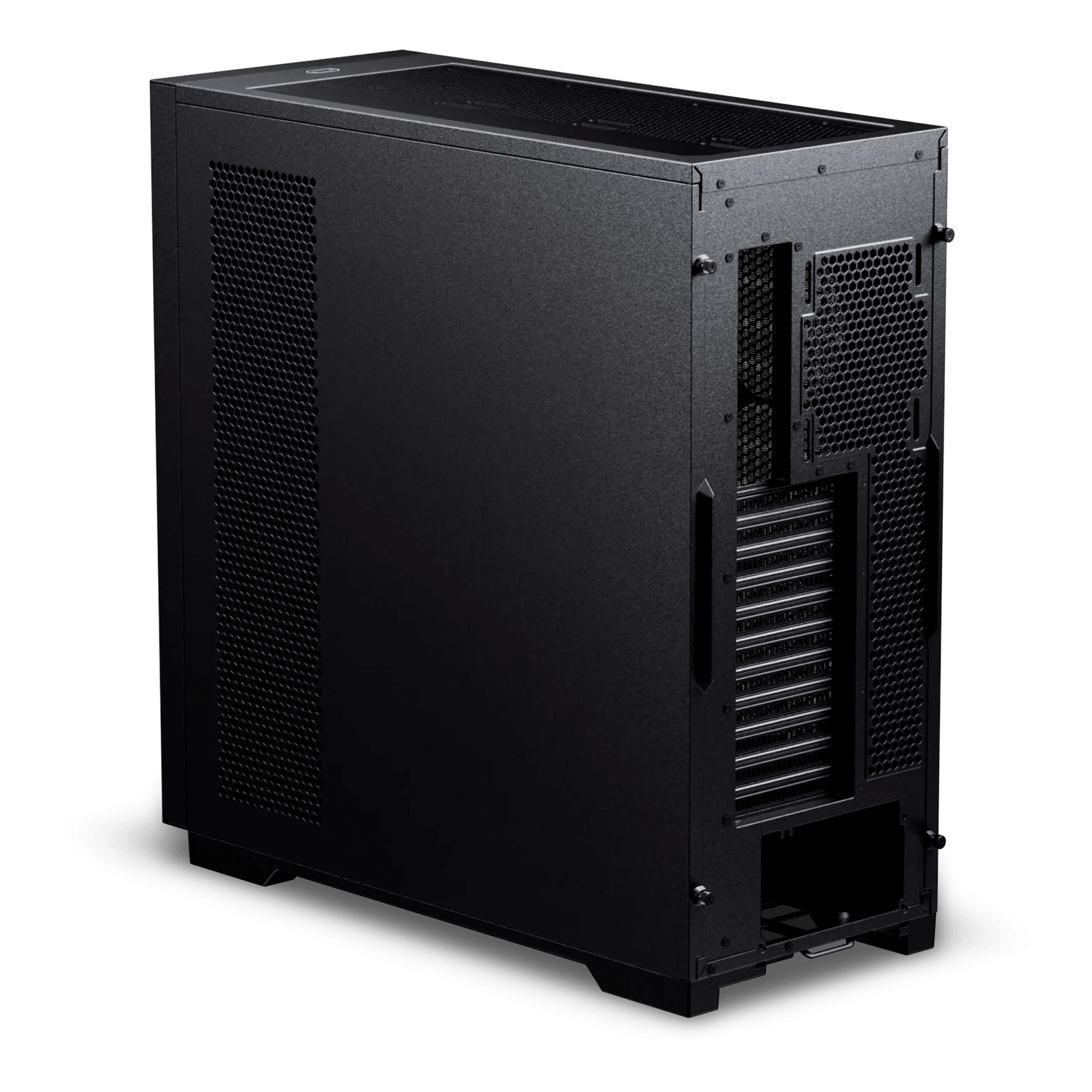

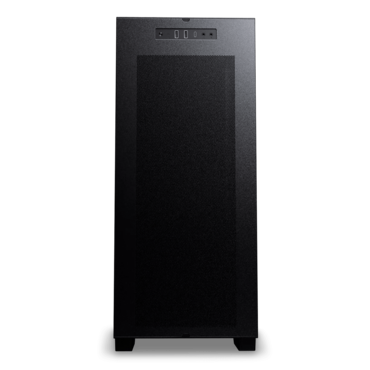

Enthoo Pro II Server V2, No PSU, E-ATX, Black, Full Tower Case
- SKU: 20320917
- Manufacturer: PHANTEKS
- MPN: PH-ES620PC_BK03
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
| General | |
| Model No. | PH-ES620PC_BK03 |
| UPC Code | 886523304173 |
| Case Dimensions | 570 x 240 x 550 mm | 22.44 x 9.44 x 21.65 in |
| From Factor | Full-Tower |
| Mainboard Support | SSI-EEB | XL-ATX | E-ATX | ATX | Micro-ATX | Mini-ITX |
| Materials | Steel chassis | Aluminum panels | ABS plastic |
| Color | Black |
| Expansion Slots | 11 |
| Vertical GPU Support |
Yes Riser cable & bracket |
| Internal 2.5″ Positions | 11 + 2x 3.5″ HDD |
| Internal 3.5″ Positions | 10 + 3x 2.5″ SSD |

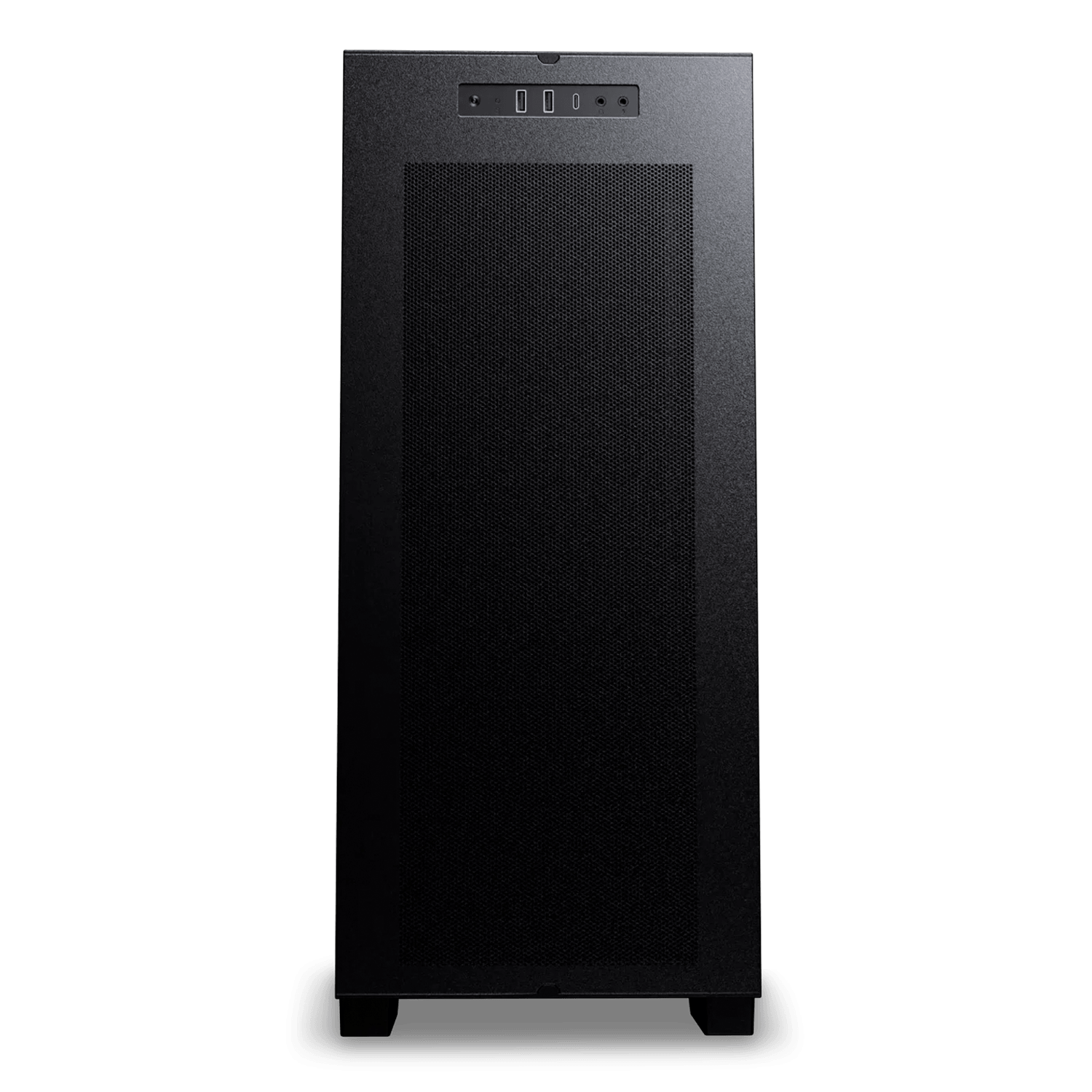

| Front I/O |
2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button |
| Fans 120 | 140 | |
| Total Fans | 15 | 6 |
| Top | 3 | 3 |
| Front | 4 | 3 |
| Side | 4 | – |
| Optional Fan Bracket | 3 | – |
| Rear | 1 | – |
| Bottom | – | – |
| Radiator 120 | 140 | |
| Top | Max. 360 | – |
| Front | Max. 480 | Max. 420 |
| Rear | Max. 120 | – |
| Side | Max. 480 | – |
| Clearance | |
| CPU Cooler | Height 195 mm | 7.67 in |
| GPU | Length 503 mm | 19.80 in |
| Top Radiator | Length x Width x Height 475 x 120 x 55 mm | 18.70 x 4.72 x 2.16 in |
| Side Radiator |
Length x Width x Height 525 x 134 x 35 mm | 20.66 x 5.27 x 1.37 in On the right side of chassis |
| Extra | |
| Net Weight | 11.32 kg | 24.95 lbs |
| Gross Weight | 13.14 kg | 28.96 lbs |
| Warranty | 5 Years Limited Learn more |
| Scope of Delivery | 1x Enthoo Pro 2 Server V2 chassis 3x SSD bracket Pre-installed 4x SSD cover Pre-installed |
| Accessory Box |
4x Stackable HDD bracket 4x GPU support bracket 1x Left side fan bracket 1x Server PSU bracket 6x Zip ties 1x Stand-off removal tool |
| Screws |
38x Mainboard | SSD screws 7x Power supply screws 7x Fan screws 10x Thumb screws 16x HDD screws 1x Mainboard stand-off |
